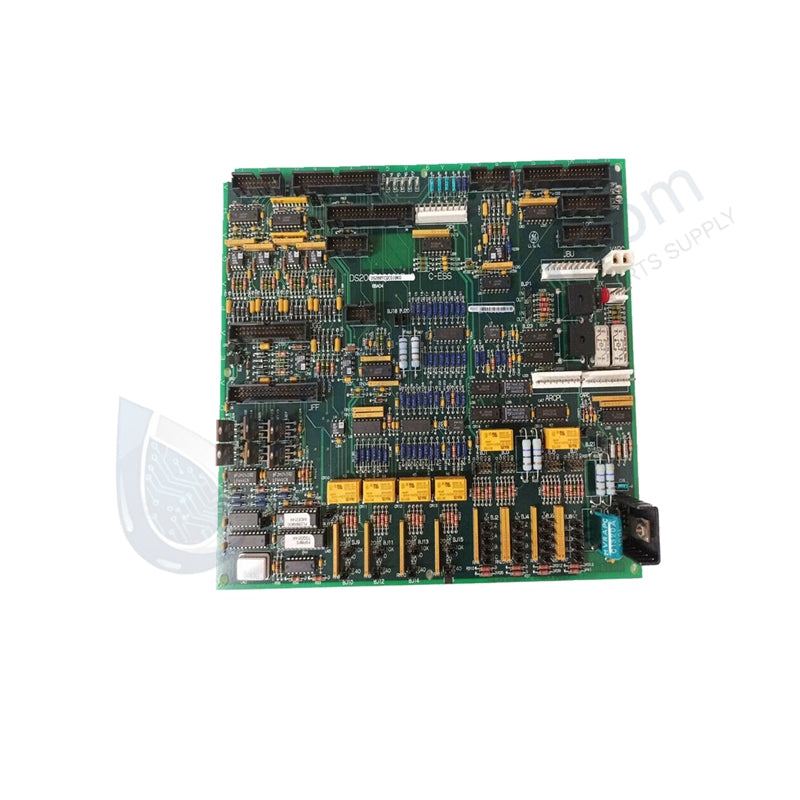

GE DS200TCDAH1BHE Mark V Digital I/O TCDA Circuit Board
The GE DS200TCDAH1BHE, also cataloged as the DS200TCDAH1BHE Digital I/O Processor Board, operates as a dedicated hardware component for discrete signal processing within Mark V Speedtronic Turbine Control System networks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DS200TCDAH1BHE |
| Brand | General Electric (GE) |
| Origin | USA |
| Functional Abbreviation | TCDA (Digital I/O Board) |
| System Compatibility | Mark V Speedtronic Control System |
| Communication Interface | IONET (High-speed Serial Link) |
| Processing Hardware | Integrated RAM for signal buffering |
| Configuration Matrices | J4, J5, J6 ID Jumpers; J2, J3 Termination Resistors |
| Operating Voltage | +5 VDC / +15 VDC / -15 VDC (Via backplane power distribution) |
| Power Consumption | Up to 15 Watts |
| Operating Temp | -20 to +60 deg C |
| Dimensions | 11 x 6 x 6.7 cm |
| Weight | 0.14 kg |
Backplane Bus Communication Velocity and I/O Density Scaling
The DS200TCDAH1BHE interfaces directly with the Mark V core to scale discrete I/O density by multiplexing field contact states across high-speed serial networks. Onboard local RAM handles real-time signal buffering, which decouples physical input-to-output latency from master CPU scan times. To maintain high backplane bus communication velocity and transmission fidelity over the IONET serial link, the board utilizes hardware-level J2 and J3 termination resistors to suppress high-frequency line reflections and electrical noise. Redundancy identification is managed via hardwired J4, J5, and J6 jumper blocks, which map the physical board layout directly into the deterministic , , or control cores.
Frequently Asked Questions
Q: How do the J2 and J3 termination resistors affect signal performance when the module is positioned at the physical end of an IONET network span?
A: When the board is placed at the physical boundary of the serial chain, the J2 and J3 termination jumpers must be manually inserted. This connects the matching line resistors across the differential data lines to prevent signal reflections from causing packet loss on the network.
Q: Will an incorrect configuration on the J4, J5, or J6 hardware jumpers trigger an error in the Mark V executive program?
A: Yes. If the J4, J5, or J6 identity jumpers do not match the structural allocation defined in the Mark V I/O Configuration Editor, the control core will register a configuration mismatch fault, disable IONET data transmission, and suppress the card's active state.
Q: Is it permissible to perform hot-swap maintenance on the DS200TCDAH1BHE board while the Mark V panel is online?
A: No. The DS200TCDAH1BHE does not contain active power-isolation switches or pre-charging pins. Physical manipulation of the board while the core is powered can cause transient bus faults, disrupt adjacent boards on the shared power rail, and initiate an emergency turbine shutdown.
Field Installation Guidelines
- Anti-Static Handling and Alignment: Wear a grounded electrostatic discharge (ESD) wrist strap prior to unboxing. Align the card layout with the card-guide tracks in the Mark V control enclosure and press the board inward until the multi-pin backplane plugs sit flush.
- Jumper Configuration Auditing: Inspect the positioning of the J4, J5, and J6 jumper blocks using a pair of needle-nose pliers before insertion. Verify that the hardware jumpers exactly match the target core ID allocation (, , or ) specified in the site engineering drawings.
- Low-Impedance Shield Bonding: Terminate all external digital contact field wiring shields at the panel grounding bar. Keep the outer shield isolated at the field device end to prevent ground loops from injecting electrical noise into the logic circuits.
- Environmental Ambient Control: Ensure panel cooling fans function normally to maintain cabinet interior airflow. Check that the ambient air pocket surrounding the TCDA board surfaces remains within the -20 to +60 deg C operating range.
