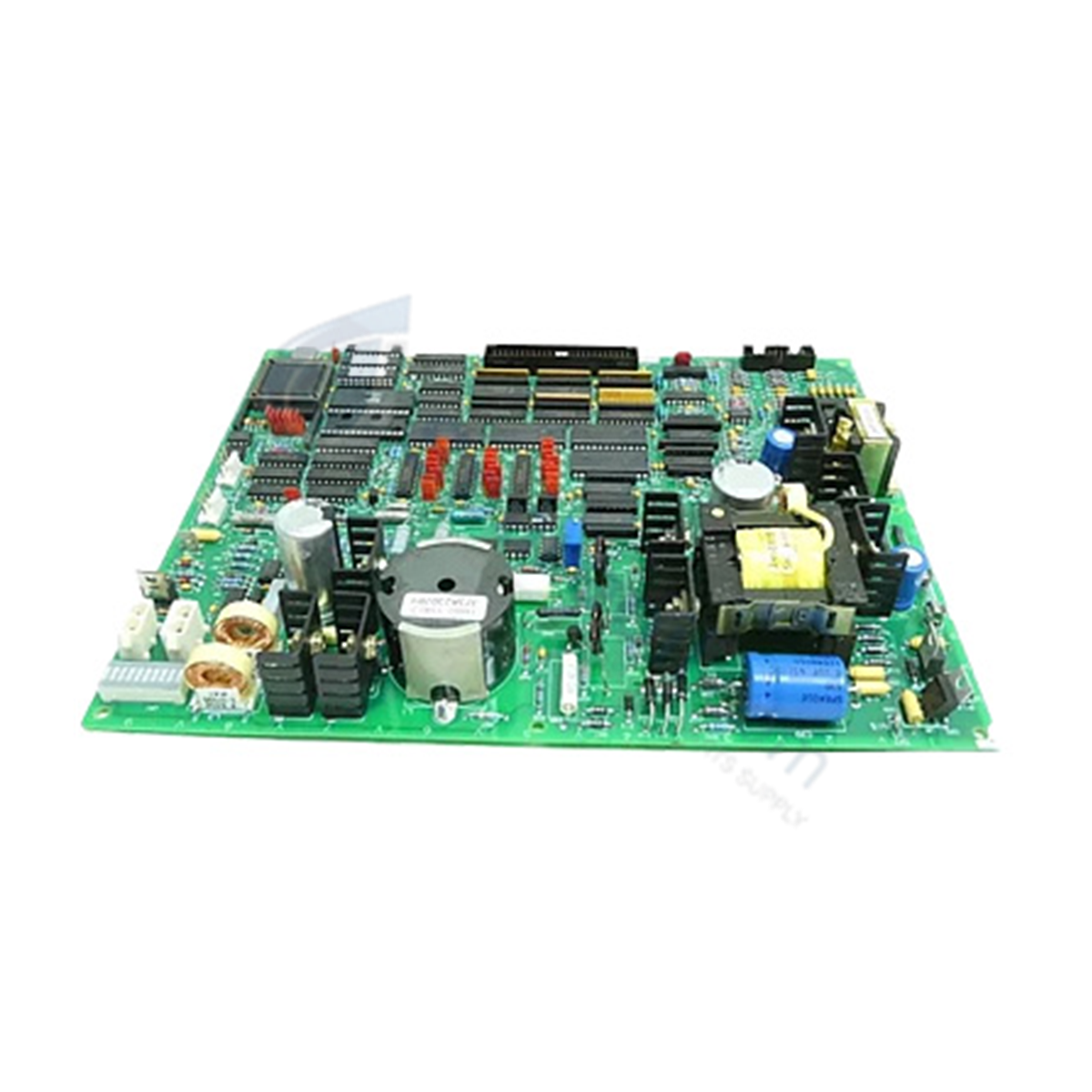

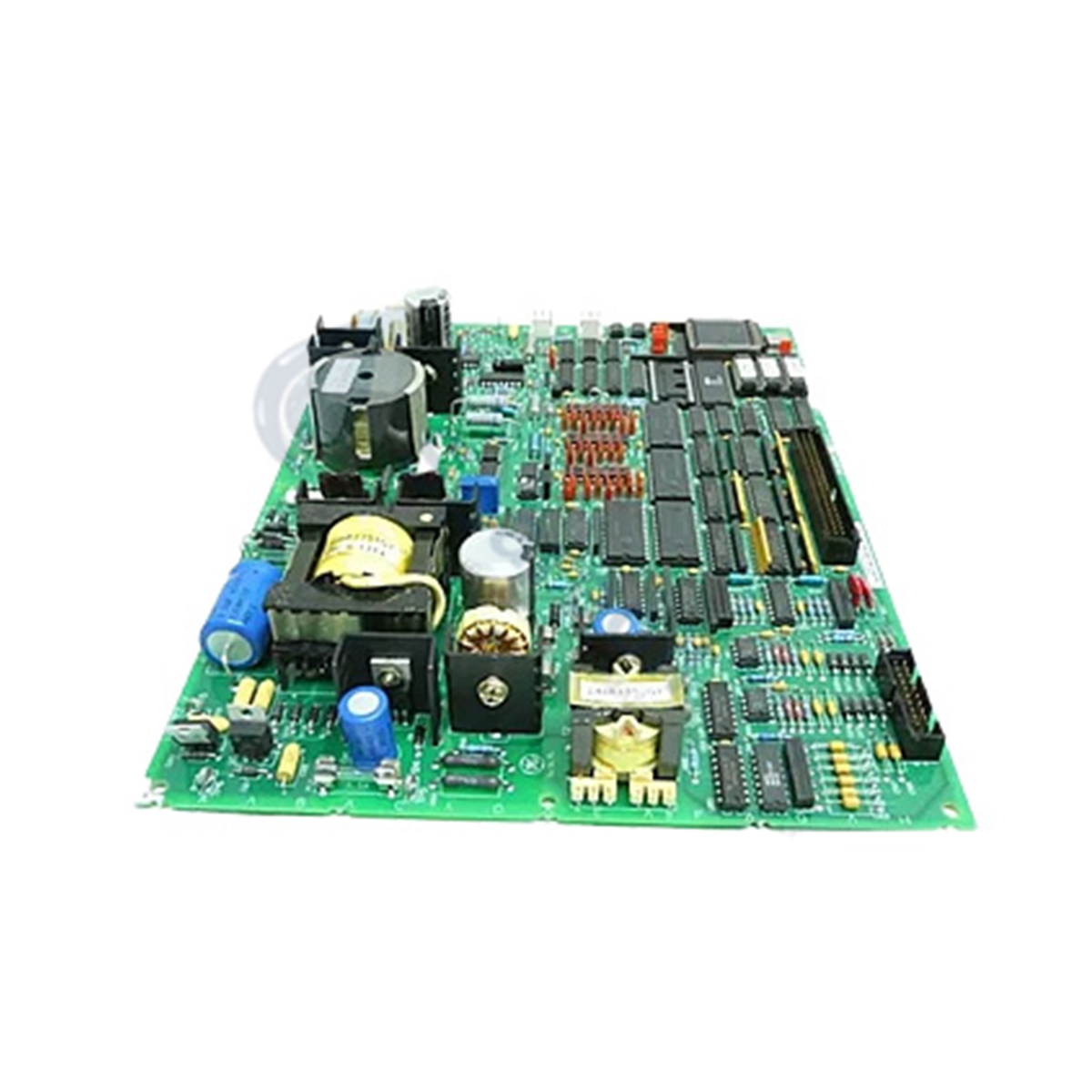

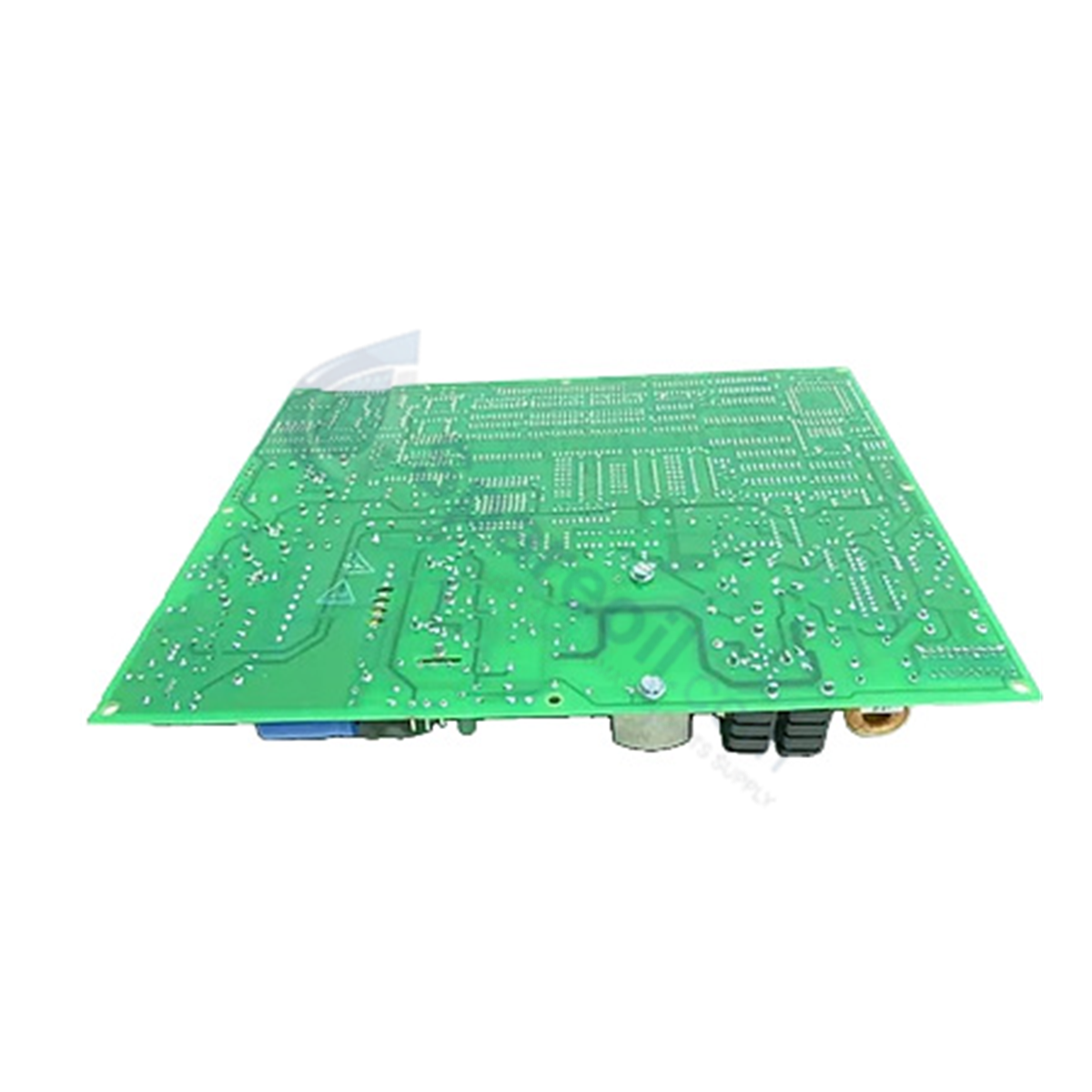

The GE Fanuc DS200TCEAG1BSF serves as the primary DS200TCEAG1 Emergency Overspeed Board utilized to execute overspeed and flame detection trip sequences across Mark V Turbine Control System platforms.

Hardware Specifications

Parameter Specification
Model DS200TCEAG1BSF
Brand GE Fanuc
Origin USA
Operating Temp 0 to 60 deg C
Power Consumption Backplane Driven / Fuse Protected
Processing Unit Onboard Microprocessor (P Core)
Onboard Storage Multiple Programmable Read-Only Memory (PROM) Modules
Circuit Hardware 3 x Fuses, 30 x Jumpers, 2 x Bayonet Connection Ports
Protective Functions Emergency Overspeed Trip, Flame Detection Trip Execution

Backplane Bus Communication & Firmware Compatibility

The GE Fanuc DS200TCEAG1BSF integrates directly into the P core section of the Mark V control panel via high-speed backplane interface lines. The onboard microprocessor executes firmware stored within designated PROM modules to process critical trip parameters. Deterministic response times ensure instantaneous signal routing to shut down the drive upon detection of overspeed or flame loss conditions. Configurable jumper arrays (30 total) allow precise hardware scaling and address mapping, maintaining full firmware flash compatibility across Mark V turbine control topologies.

Frequently Asked Questions

Q: How do the onboard bayonet connectors interface with the rest of the drive system?

A: The pair of bayonet connectors establish solid physical and electrical connections between the DS200TCEAG1BSF board and adjacent drive components. Male connectors on cable ends latch securely into female board ports with a tactile click.

Q: What onboard hardware protection and configuration features are present on this module?

A: The board features three onboard fuses to safeguard internal signal pathways against overcurrent conditions, as well as 30 jumpers for manual hardware configuration and circuit selection.

Q: Can PROM modules be transferred when replacing a DS200TCEAG1BSF board?

A: Yes, the programmable read-only memory (PROM) modules contain the system-specific firmware routines and can be moved to a replacement board provided proper ESD and chip extraction procedures are followed.

Field Installation Guidelines

  1. Electrostatic Discharge Precautions: Always handle the board at an ESD-safe workstation. Personnel must wear a grounded anti-static wrist strap during all installation and maintenance procedures.
  2. Bayonet Connector Insertion & Removal: When disconnecting bayonet cables, anchor the circuit board with one hand to prevent PCB flexing or bending while pulling the connector with the other. During reinstallation, align the male end with the female socket and press firmly until it clicks into place. Perform a light tug test to ensure positive mechanical latching.
  3. Jumper Position Verification: Before installing a replacement board, match all 30 jumper settings on the new module to the exact layout of the original board being replaced.
  4. Fuse Check: Verify that all three onboard fuses are tested for continuity and properly rated before energizing the control panel.
