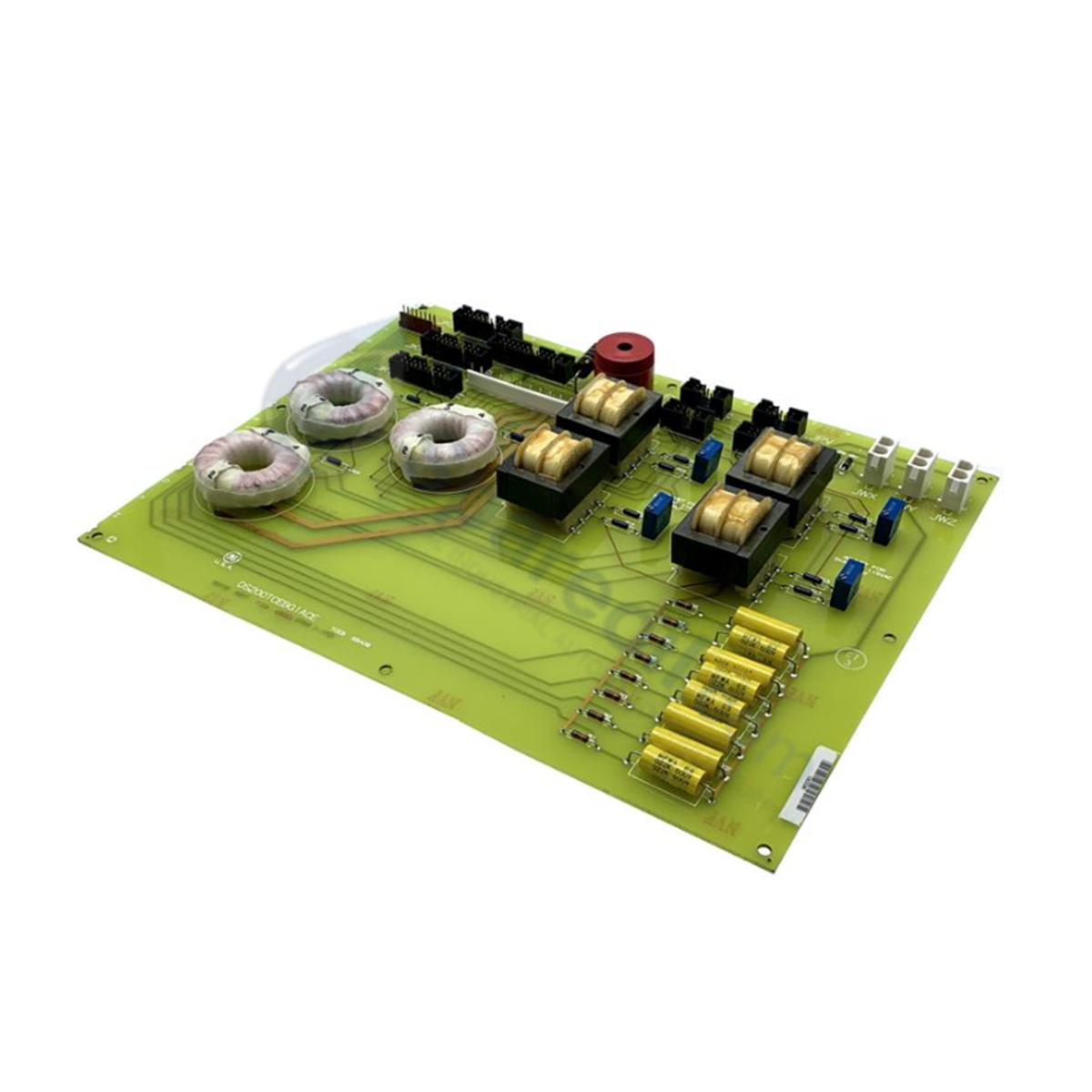

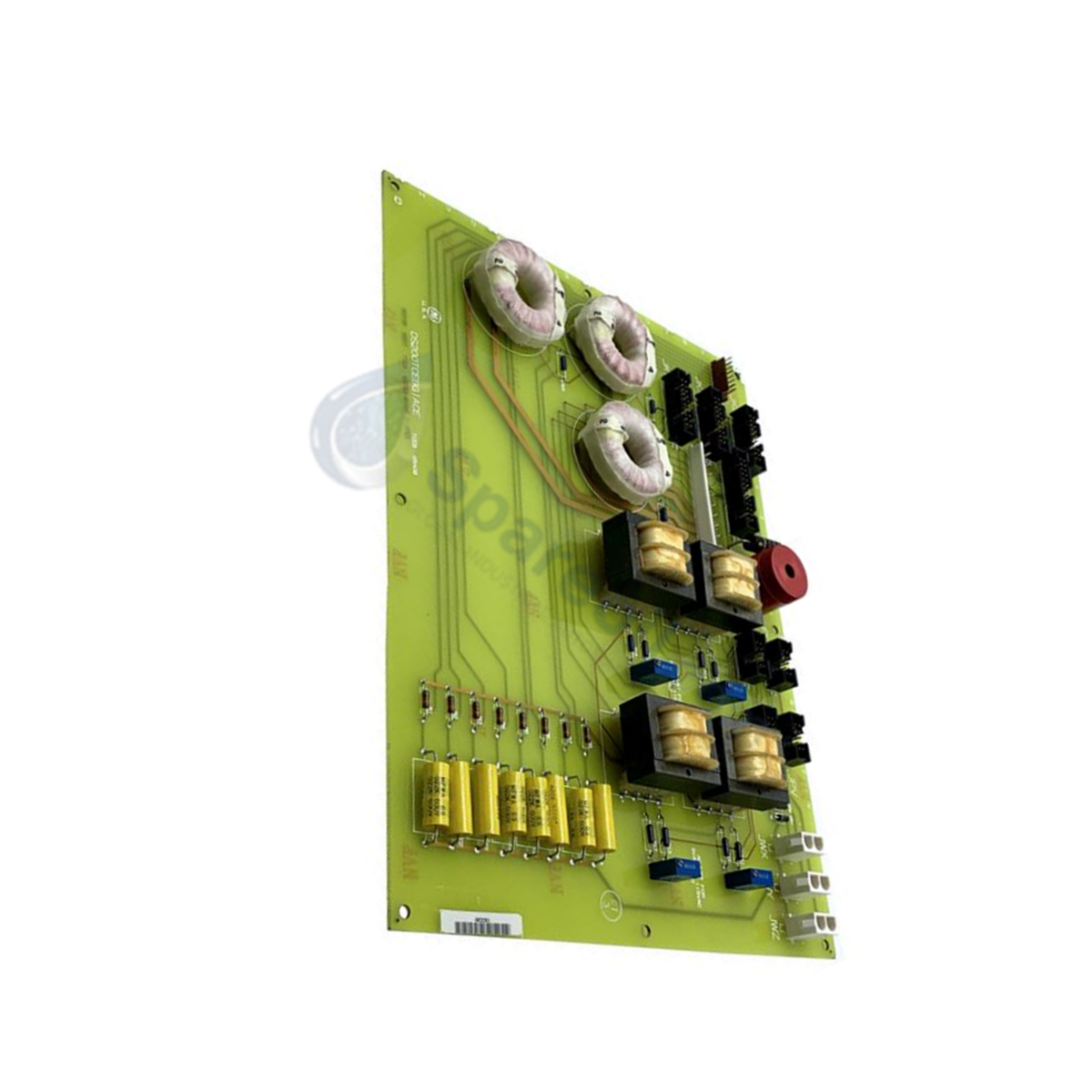

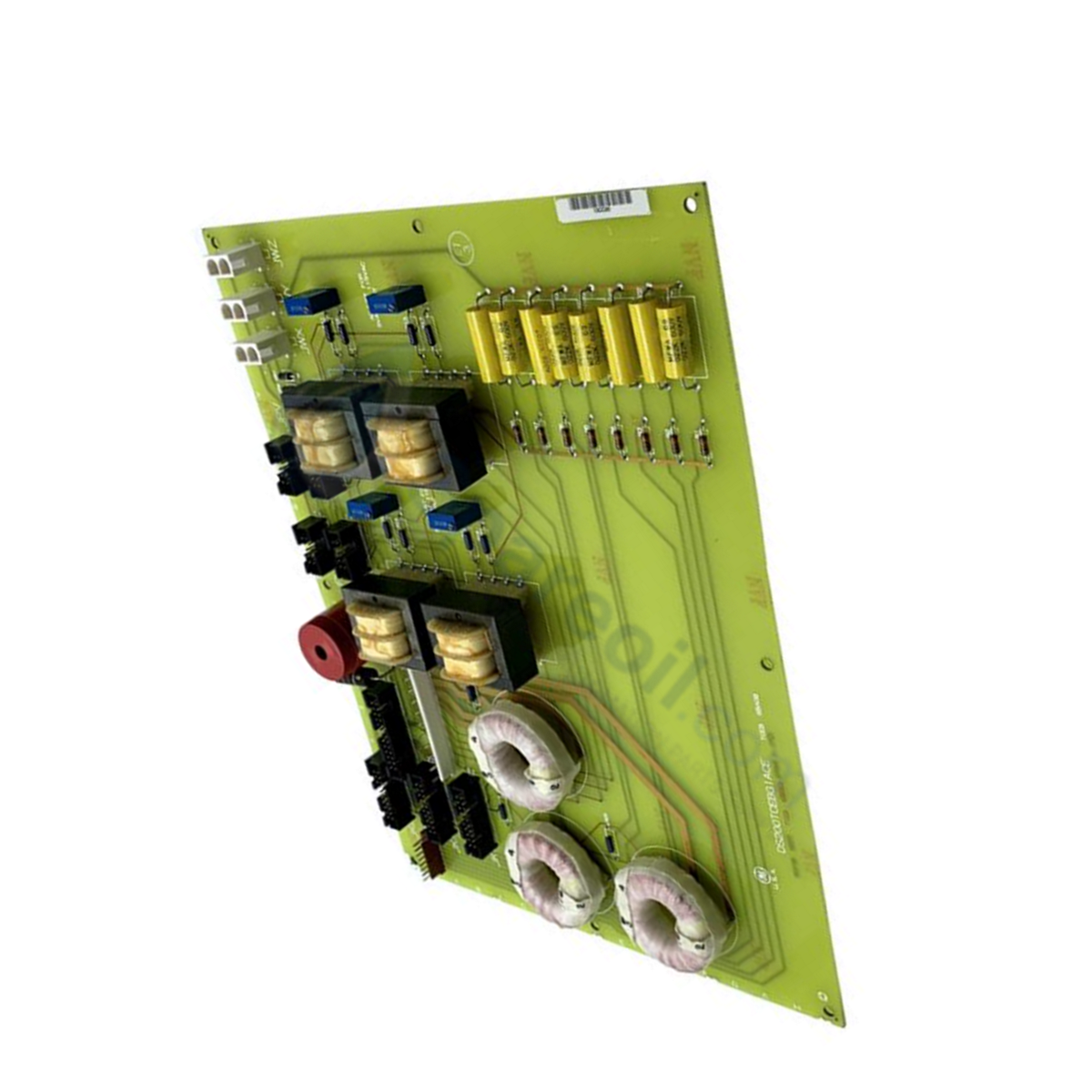

The GE DS200TCEBG1A, also cataloged as the DS200TCEB Protective Termination Expander Board, operates as a dedicated hardware component for expansion of protective signal termination and high-density interface routing within GE Mark V Speedtronic turbine control systems.

Hardware Specifications

Parameter Specification
Model DS200TCEBG1A
Brand General Electric
Origin USA
Series Mark V
Functional Acronym TCEB
Revision Group Group 1, Revision A (G1A)
Board Type Protective Termination Expander Board
Signal Transformers 4 x Signal Transformers
Bayonet Connectors 3 x Bayonet Connectors
Header Connectors 1 x 26-pin connector, 4 x 10-pin connectors, 3 x 20-pin connectors
Factory Interface Connectors JKX/Y/Z, JMP, JU, JV, JVA, JWX/Y/Z, JPU, JPV, JPW
Mounting Provisions 8 x Reinforced chassis mounting screw holes
Protective Coating Normal Coating
Operating Temp 0 to 60 deg C
Dimensions Standard GE Mark V Board Size
Weight Standard GE Mark V Board Weight
Power Consumption Passive passive/interface board (Backplane driven)

Backplane Bus Communication & I/O Density Scaling

The DS200TCEBG1A expands system I/O density scaling by functioning as a high-density passive signal routing hub for the Mark V protective core. Built with four integrated signal transformers, three bayonet connectors, and a large complement of multi-pin ribbon headers (including 26-pin, 20-pin, and 10-pin arrays), the module manages galvanic signal isolation and high-density termination without adding firmware latency. Its multi-channel design routes flame detection, signal feedback, and protective field telemetry directly into the backplane communication network across dedicated connection paths labeled JKX/Y/Z and JWX/Y/Z.

Frequently Asked Questions

Q: Does the DS200TCEBG1A require software flashing or hardware jumper configuration prior to replacement?

A: No, the DS200TCEBG1A contains no software, firmware PROMs, or adjustable hardware jumpers. It functions strictly as a hardwired terminal and signal expansion interface.

Q: Why does the DS200TCEBG1A board feature eight chassis mounting screw holes?

A: The board is populated with four heavy signal transformers and multiple heavy connector bodies. The eight mounting points distribute physical load evenly across the cabinet chassis to prevent board flex under vibration.

Q: What functions do the onboard signal transformers perform on the TCEB board?

A: The four onboard signal transformers provide magnetic isolation and signal scaling for protective telemetry inputs entering the Mark V protective core assembly.

Field Installation Guidelines

  • Fully de-energize the Mark V cabinet and verify that all remote field instrument power sources are isolated before servicing the card.
  • Tag and record every ribbon and coaxial cable connection according to its factory-printed nomenclature (such as JKX/Y/Z, JWX/Y/Z) prior to disconnection.
  • Wear a grounded ESD wrist strap bonded to the enclosure chassis during installation to prevent static damage to adjacent active modules.
  • Support the heavy board with one hand while loosening or tightening the eight retaining screws; retrieve any dropped metal hardware immediately from the cabinet interior before restoring power to prevent short circuits.
