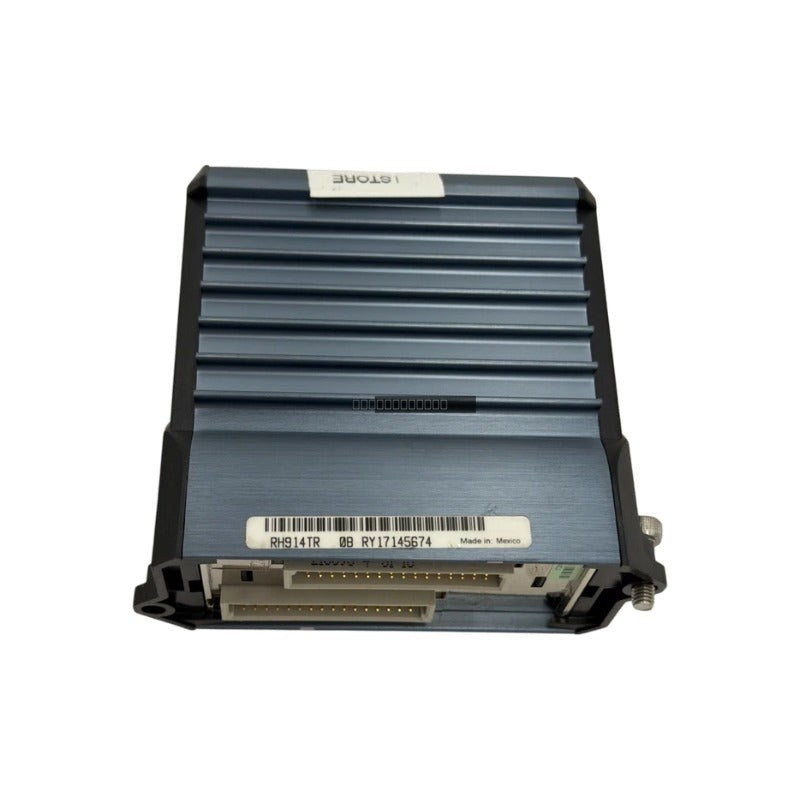

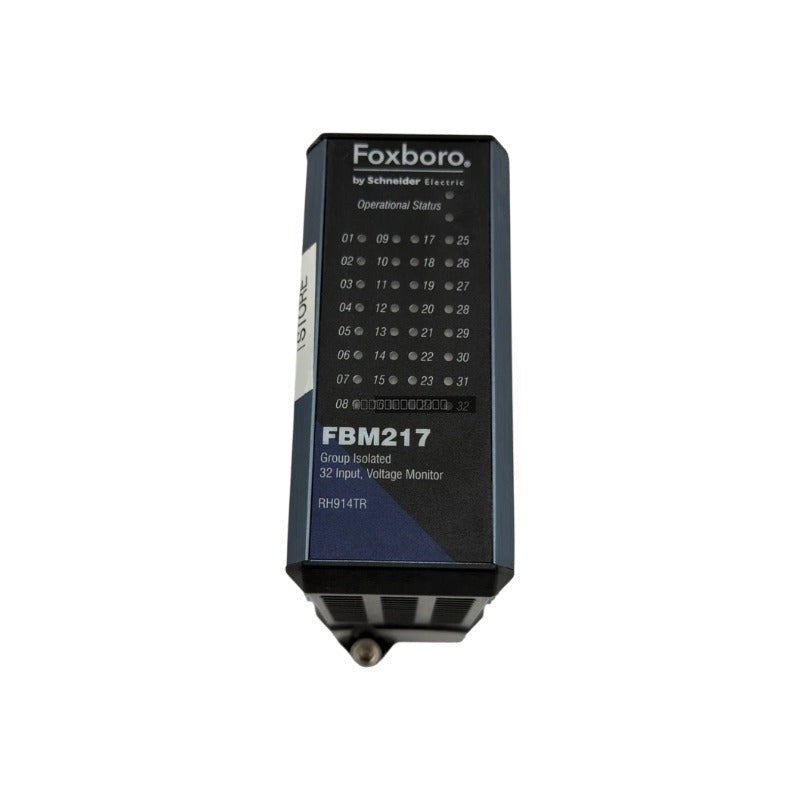

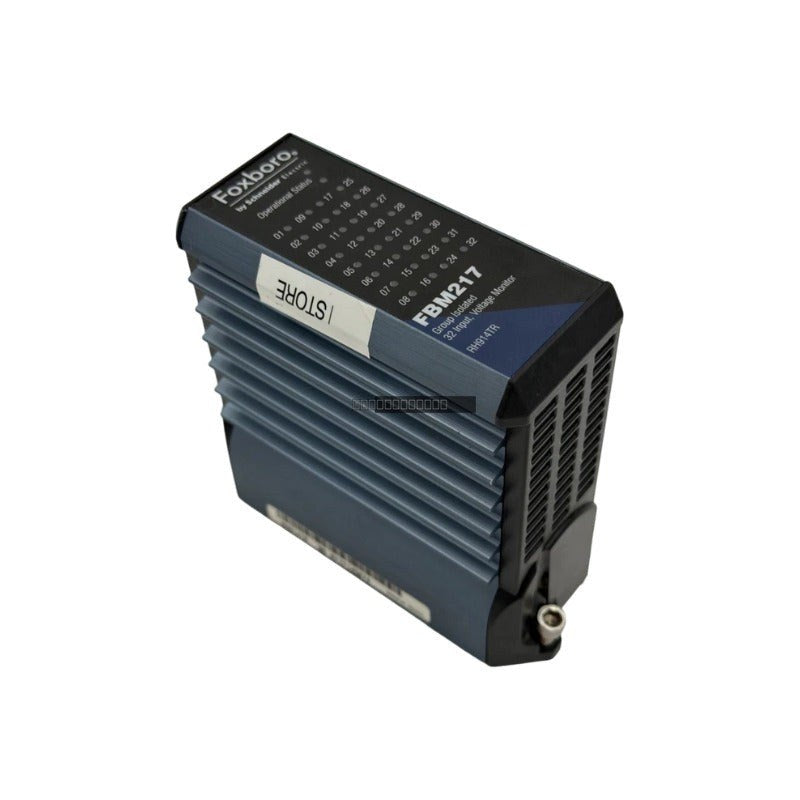

Foxboro FBM217 Discrete Input Module

Foxboro FBM217 Discrete Input Module P0914TR

Availability: 1 left in stock

Product OverviewThe Foxboro FBM217 (P0914TR) is a high-density discrete input module engineered for the I/A Series distributed control system. This...

SKU: FBM217

Manufacturer: Foxboro
Product No.: FBM217
Product Type: Discrete Input Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 280g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Foxboro FBM217 (P0914TR) is a high-density discrete input module engineered for the I/A Series distributed control system. This module provides 32 isolated input channels, designed to monitor critical field devices such as relay contacts, limit switches, and pushbuttons. Built for demanding industrial environments including power generation, chemical processing, and oil refining, the FBM217 facilitates reliable, high-speed signal acquisition while protecting system logic through robust optical isolation against field-side electrical transients.

Features

32 independent discrete input channels for high-density monitoring.
Optical isolation provided between field inputs and the module bus to mitigate electrical noise.
Supports both single and redundant module configurations for enhanced system availability.
Integrated diagnostic capabilities for continuous health monitoring of internal circuitry and field power.
Hot-swappable hardware design allows for replacement without interrupting the field wiring or the operation of the control system.
2 Mbps redundant Module Fieldbus communication interface for rapid data transfer.

Applications

The FBM217 is primarily utilized in I/A Series control architectures where high-density discrete status monitoring is required. It is ideal for safety-critical and process-critical applications that demand continuous, real-time status updates from field equipment to minimize downtime and enhance operational safety.

Technical Specifications

Model	FBM217 (P0914TR)
Input Type	32-Channel Discrete Input
Input Voltage	24 VDC (Contact closure)
Communication	2 Mbps Redundant Module Fieldbus
Isolation	600 VAC (Field-to-Bus and Field-to-Ground)
Power Consumption	3.5 W (Max)
Operating Temperature	-20 to +70 deg C
Storage Temperature	-40 to +85 deg C
Humidity	5 to 95% (Non-condensing)

Installation Guidelines

Ensure the system is powered down before inserting or removing the module from the baseplate.
The module supports hot-swapping; however, verify baseplate compatibility for redundant pairs before installation.
Maintain proper grounding practices to ensure the effectiveness of the optical isolation.
Route signal cables away from high-EMI sources and high-voltage power lines to prevent signal interference.
Ensure the environment remains within the specified temperature and humidity ranges to prevent component degradation.

Compliance and Certifications

The FBM217 is designed for use in hazardous locations, holding certifications including Class I Div 2, ATEX Zone 2, CE, and CSA.

FAQ

Is the FBM217 hot-swappable?
Yes, the module is designed to be hot-swappable, allowing for maintenance and replacement without disconnecting field wiring or impacting the operation of adjacent modules on the baseplate.

Does this module support redundant configurations?
Yes, the FBM217 supports both single and redundant module configurations to ensure uninterrupted data flow in high-availability control applications.
