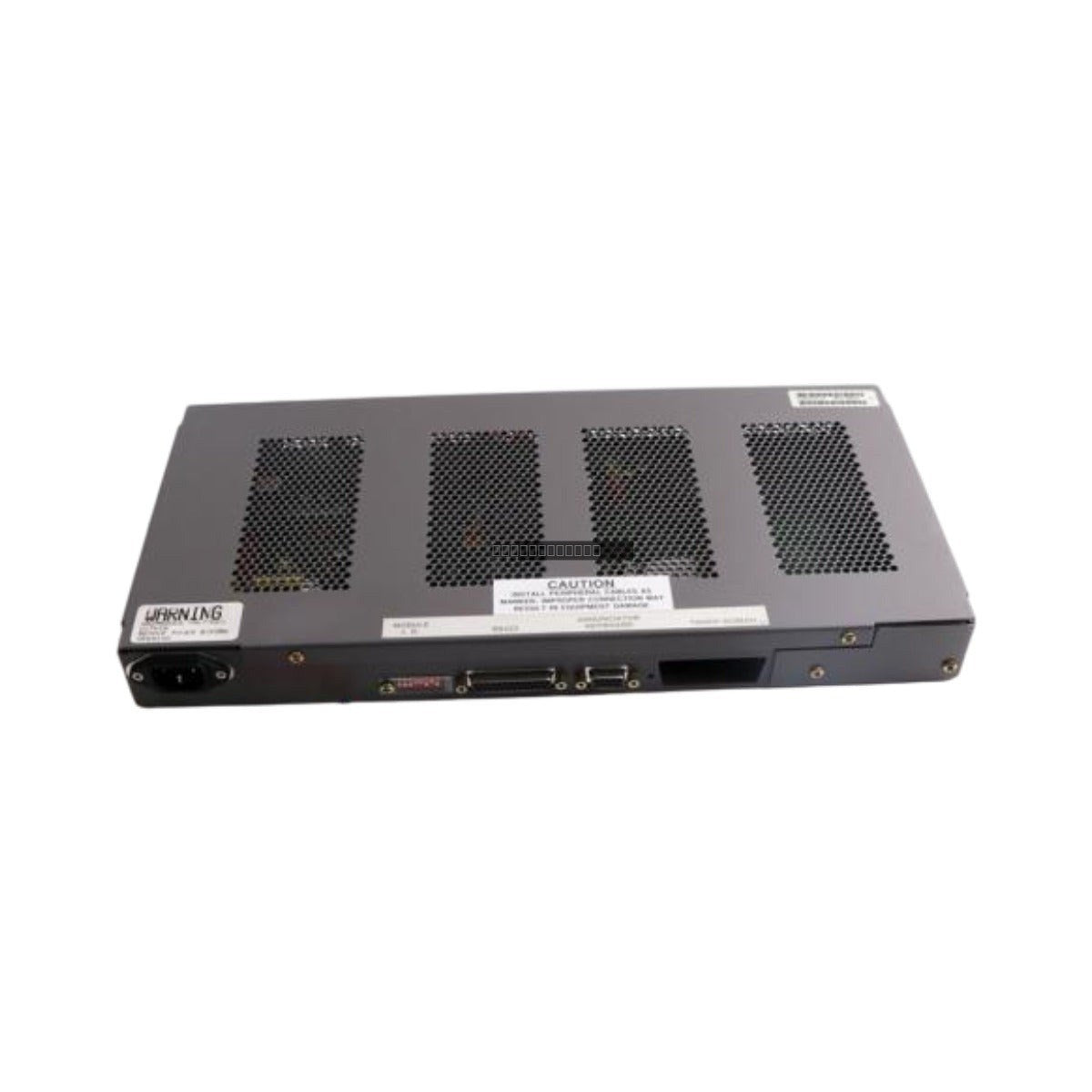

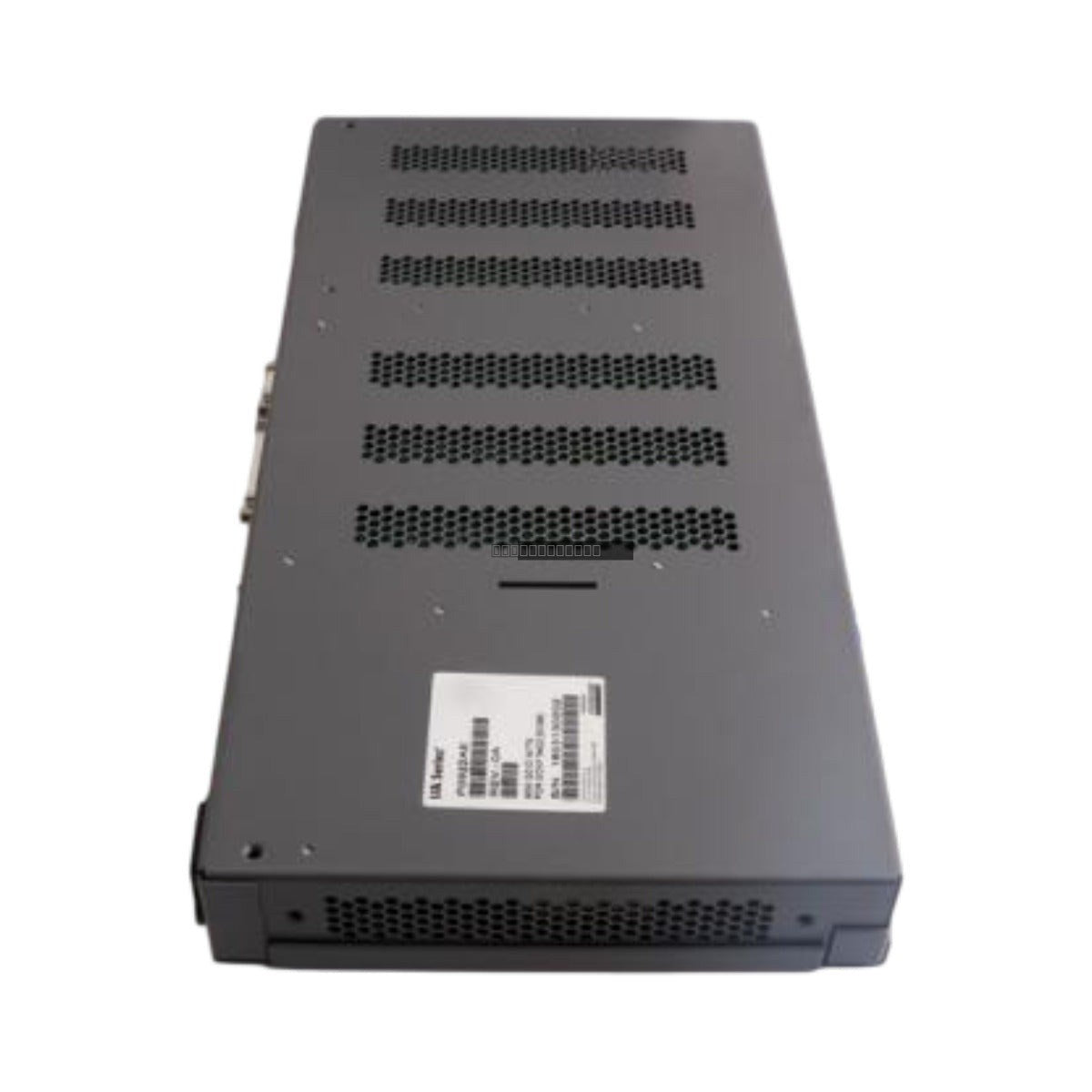

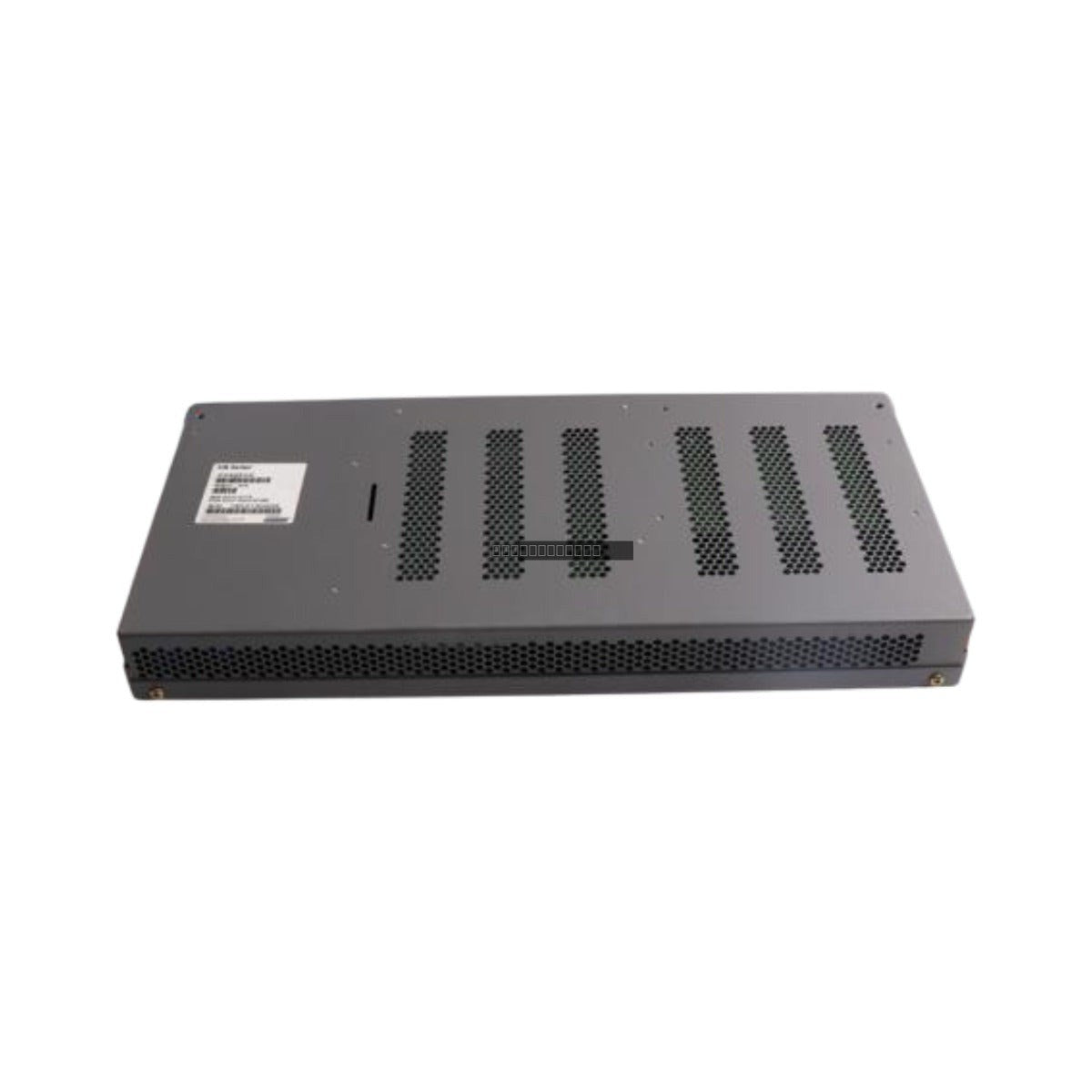

Foxboro P0922AE I/A Series 16-Channel Discrete Output Module

Availability: 3 left in stock

DescriptionThe Foxboro P0922AE (also identified as FBM242) is a high-performance discrete output module designed for the I/A Series distributed control...

SKU: P0922AE

Manufacturer: Foxboro
Product No.: P0922AE
Product Type: Digital Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 290g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Foxboro P0922AE (also identified as FBM242) is a high-performance discrete output module designed for the I/A Series distributed control system. This module provides 16 isolated digital output channels, engineered to interface with field-side resistive or inductive loads, such as solenoid valves, motor starters, and status indicators. It is specifically built for demanding industrial environments, including power generation, oil and gas refining, and heavy mining applications, where reliable signal integrity and protection against field-side transients are critical for continuous process operation.

Features

16-Channel Output: Provides sixteen independent sourcing output channels for versatile field control.
Galvanic Isolation: Features 600 V AC isolation to ensure electrical separation between field wiring and internal control logic.
Hot-Swappable Design: Supports removal and replacement under power, allowing for maintenance without disrupting adjacent I/O modules or field wiring.
Redundancy Support: Designed for integration into systems requiring dual-redundant power and communication paths for high availability.
Environmental Hardening: Rated for G3 harsh environments (ISA S71.04), ensuring durability in corrosive or extreme conditions.
Integrated Diagnostics: Includes onboard LEDs for immediate status monitoring and continuous internal health reporting to the main control processor.

Technical Specifications

Model	P0922AE (FBM242)
Module Type	16-Channel Discrete Output
Output Voltage	24 VDC (Nominal)
Max Total Current	2.25 Amps per module
Power Consumption	3.5 W maximum
Isolation	600 V AC galvanic
Operating Temperature	-20 to +70 deg C
Storage Temperature	-40 to +85 deg C
Humidity	5 to 95 percent (non-condensing)
Environmental Rating	G3 (ISA S71.04)

Installation Guidelines

Ensure the baseplate is properly mounted and grounded before seating the module.
Always adhere to local ESD (Electrostatic Discharge) protocols when handling the module to prevent damage to sensitive internal components.
Verify that the field wiring is correctly terminated according to the I/A Series wiring diagrams before applying power.
When replacing a module in a live environment, ensure the baseplate connection is secure and the module is fully seated to engage the backplane pins correctly.
Maintain adequate ventilation in the cabinet to ensure the ambient temperature remains within the specified -20 to +70 deg C operating range.

FAQ

Is the P0922AE module hot-swappable? Yes, the module supports hot-swapping, allowing for maintenance and replacement without powering down the entire baseplate or disturbing adjacent I/O operations.

What kind of loads can this module drive? The P0922AE is designed to drive 24 VDC inductive or resistive loads, such as solenoids, relays, and indicator lamps, with built-in suppression for back-EMF protection.

Does this module require specific environmental conditions? It is rated for G3 harsh environments per ISA S71.04, making it suitable for exposure to corrosive gases and demanding industrial atmospheres.
