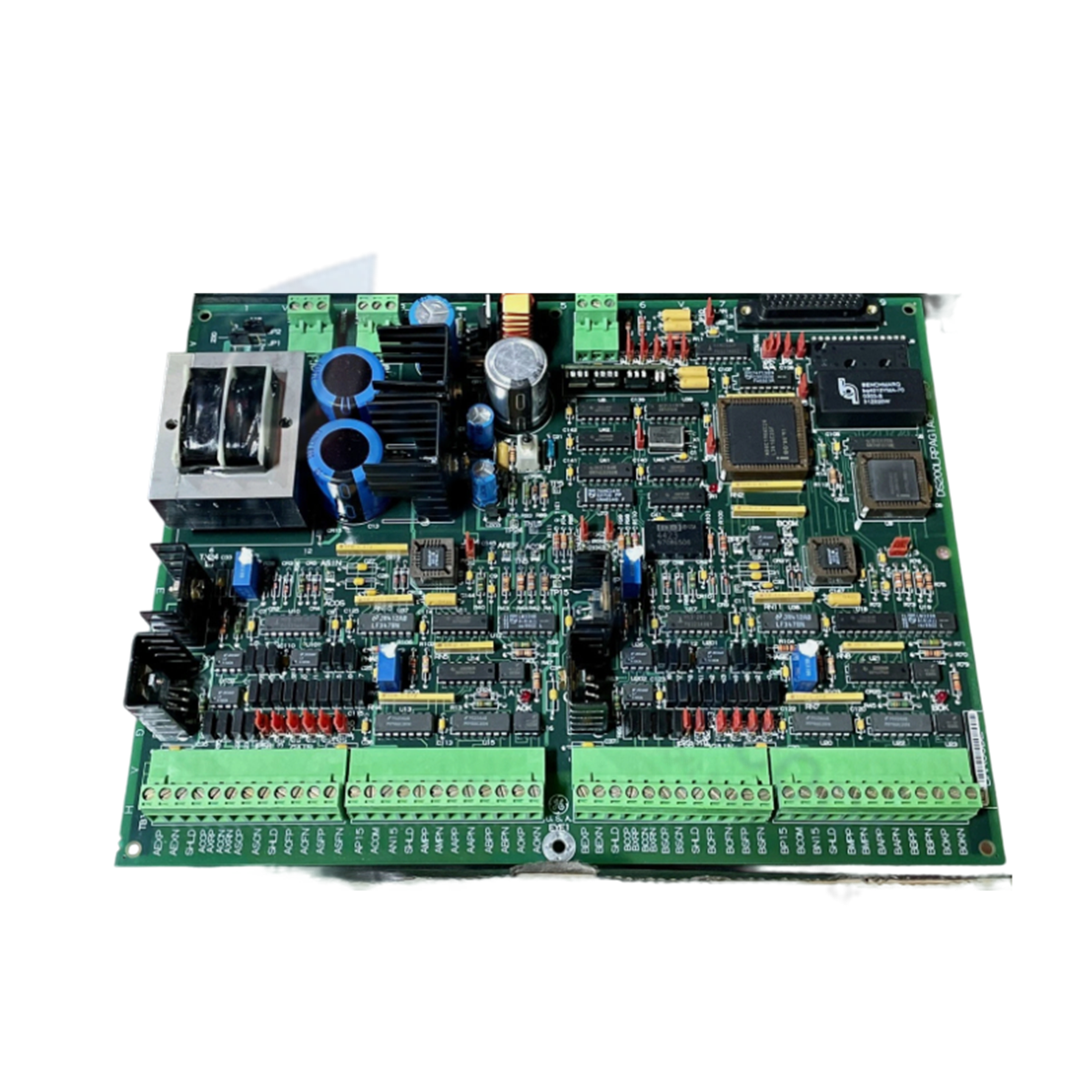

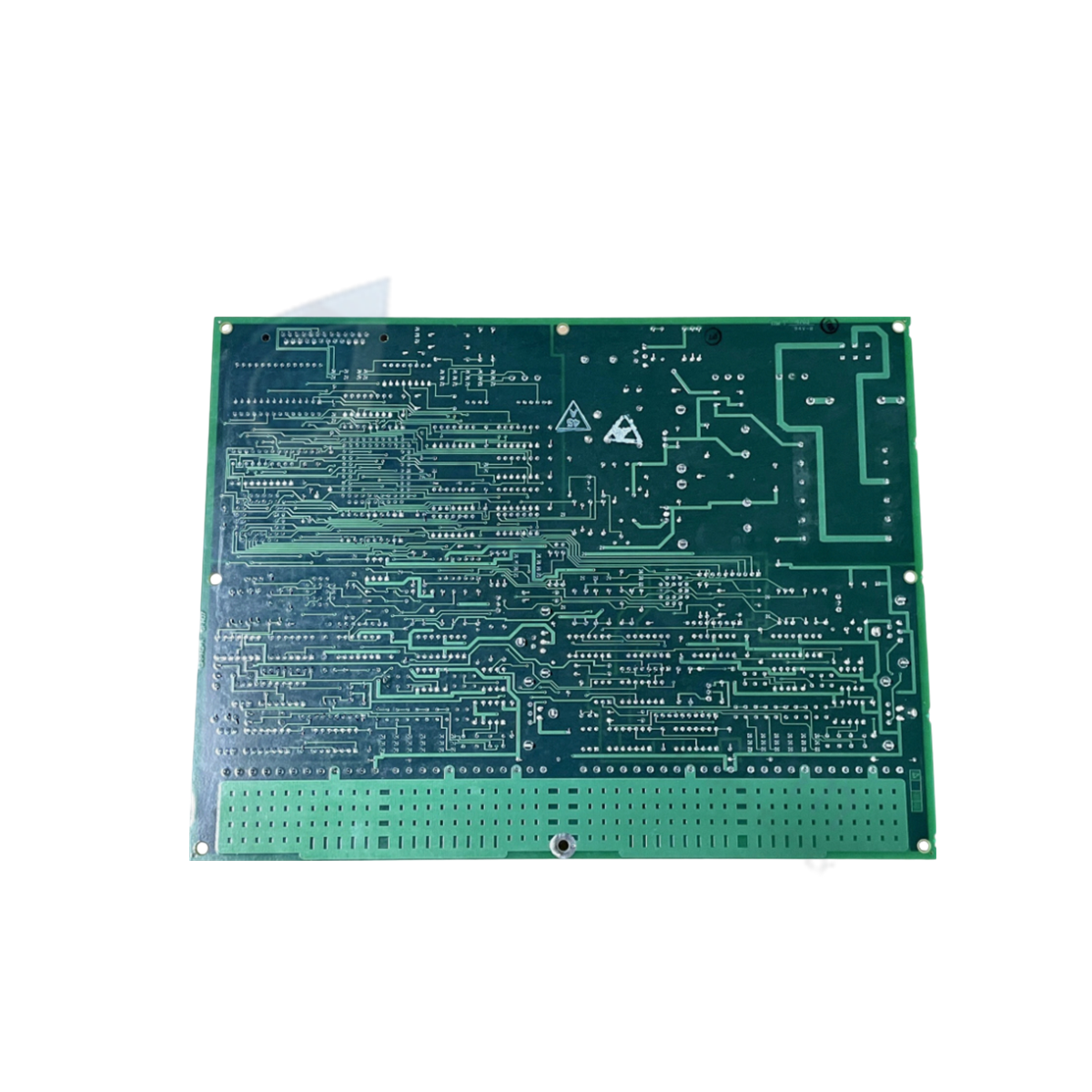

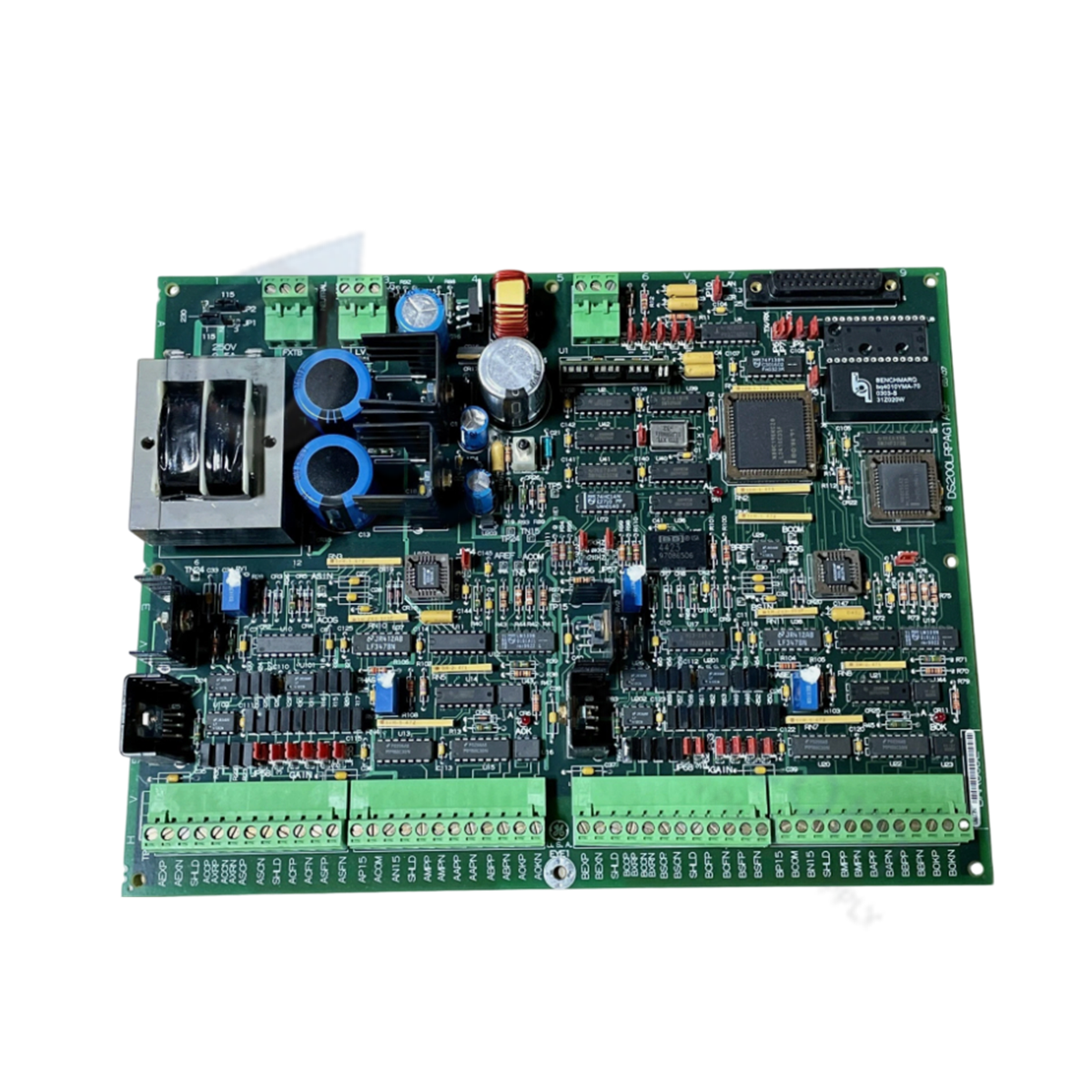

The GE DS200LRPAG1A, also cataloged as the DS200LRPA Line Protection Card, operates as a dedicated hardware component for line protection and voltage regulation within GE Speedtronic Mark V turbine control systems.

Hardware Specifications

Parameter Specification
Model DS200LRPAG1A
Brand General Electric
Origin USA
Series Speedtronic Mark V
Product Type Line Protection Card
Functional Acronym LRPA
Dimensions Standard GE Mark V Board Size
Operating Temp 0 to 60 deg C
Weight Standard GE Mark V Board Weight
Power Consumption Powered via backplane and terminal feed connections
PCB Coating Normal Coating
Terminal Interfaces 2 x Screw terminal strips, 2 x Large lower ports
Onboard Connectors 1 x Vertical female cable connector, multiple male stab-on connectors
Switching & Controls Electromechanical relays, jumper switches, 1 x Reset switch
Tuning Devices Integrated potentiometers
Visual Diagnostics Onboard LED indicators
Active Protection Step-down transformer, high-voltage electrolytic capacitors, transistors with heat sinks

Firmware Flash Compatibility & Backplane Bus Processing

The DS200LRPAG1A interfaces across both Simplex and Triple Modular Redundant (TMR) Speedtronic Mark V backplane architectures. Signal processing streams through onboard high-voltage electrolytic capacitors, semiconductor diodes, and an isolation transformer to execute hardware-level line protection against transient voltage spikes. Bus communication velocity and determinism are maintained via optimized traces that link backplane signals to the front-facing vertical female connector and stab-on terminals. Hardware firmware execution compatibility is locked to Group 1 (G1) revision A revision standards.

Frequently Asked Questions

Q: How does the DS200LRPAG1A interface within both Simplex and TMR Mark V control systems?

A: The board features standard backplane bus connections and terminal interfaces compatible with both Simplex software-fault-tolerant layouts and TMR 2oo3 voting structures without physical modifications.

Q: What primary onboard elements manage voltage suppression on the DS200LRPAG1A?

A: Voltage suppression and regulation are executed using high-voltage electrolytic capacitors, dedicated resistor networks, heat-sinked power transistors, and an isolation transformer component.

Q: How is physical grounding and mounting established for this board?

A: The board incorporates factory-drilled mounting holes along its corners and perimeter edges to accept conductive metal standoffs or screws for chassis mounting.

Field Installation Guidelines

  • De-energize all incoming high-voltage line feeds and main cabinet power before handling or mounting the board.
  • Wear a grounded static-dissipative ESD wrist strap attached to the metal enclosure frame during installation to prevent static damage to sensitive semiconductor components.
  • Secure all corner and perimeter mounting screws firmly to ensure reliable chassis ground continuity across all conductive standoffs.
  • Verify cable orientation and strain relief for the vertical female connector and lower ports to prevent mechanical tension on the PCB traces.
