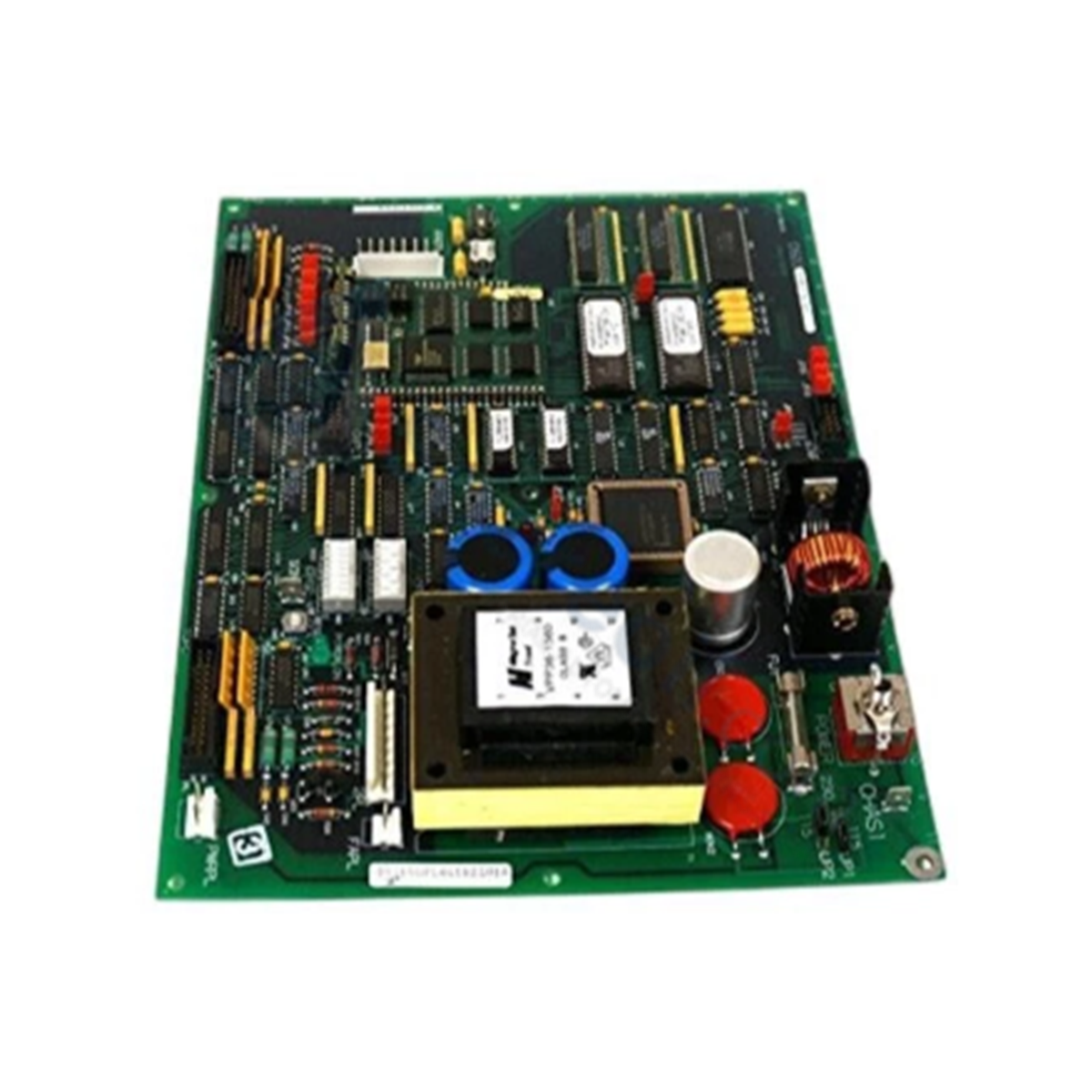

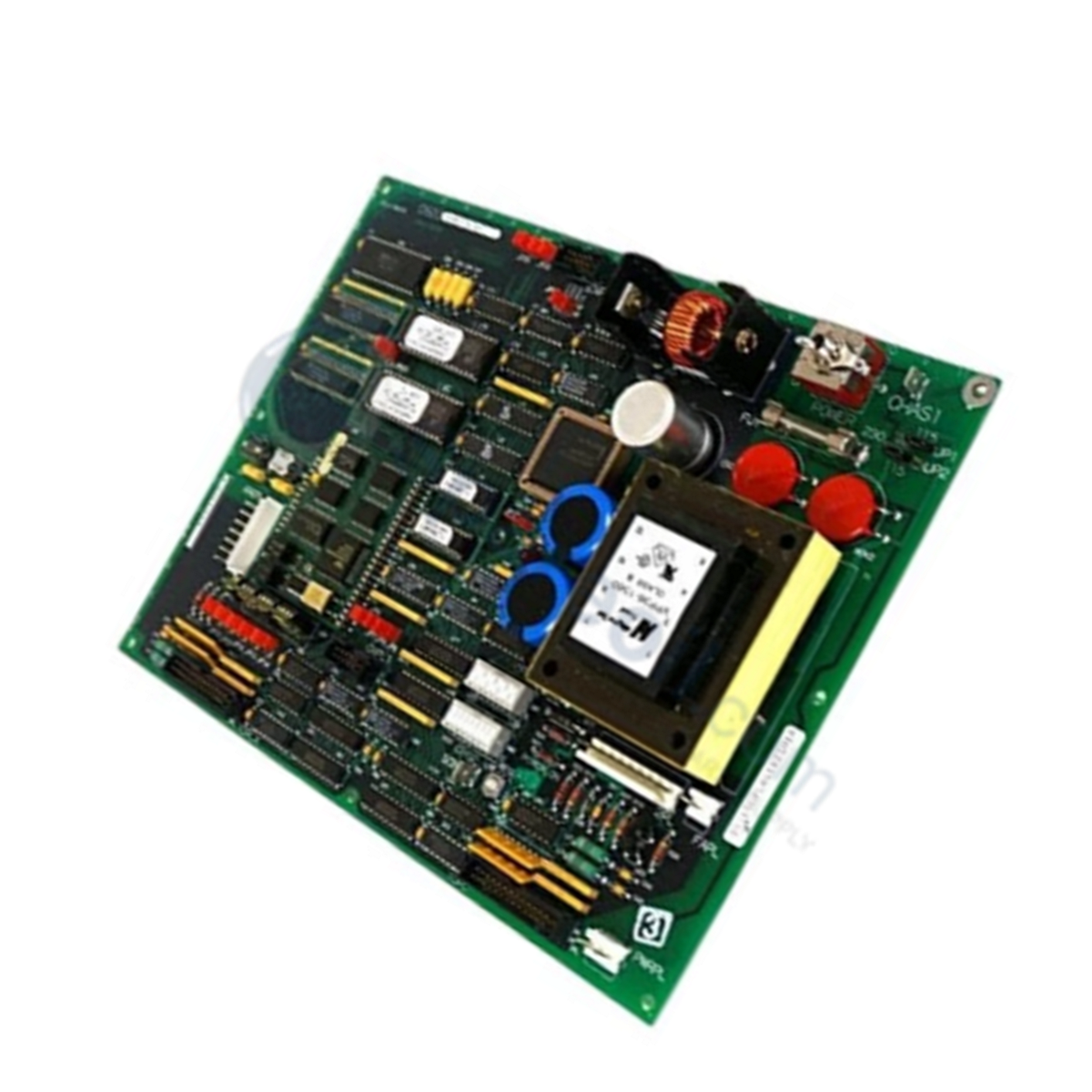

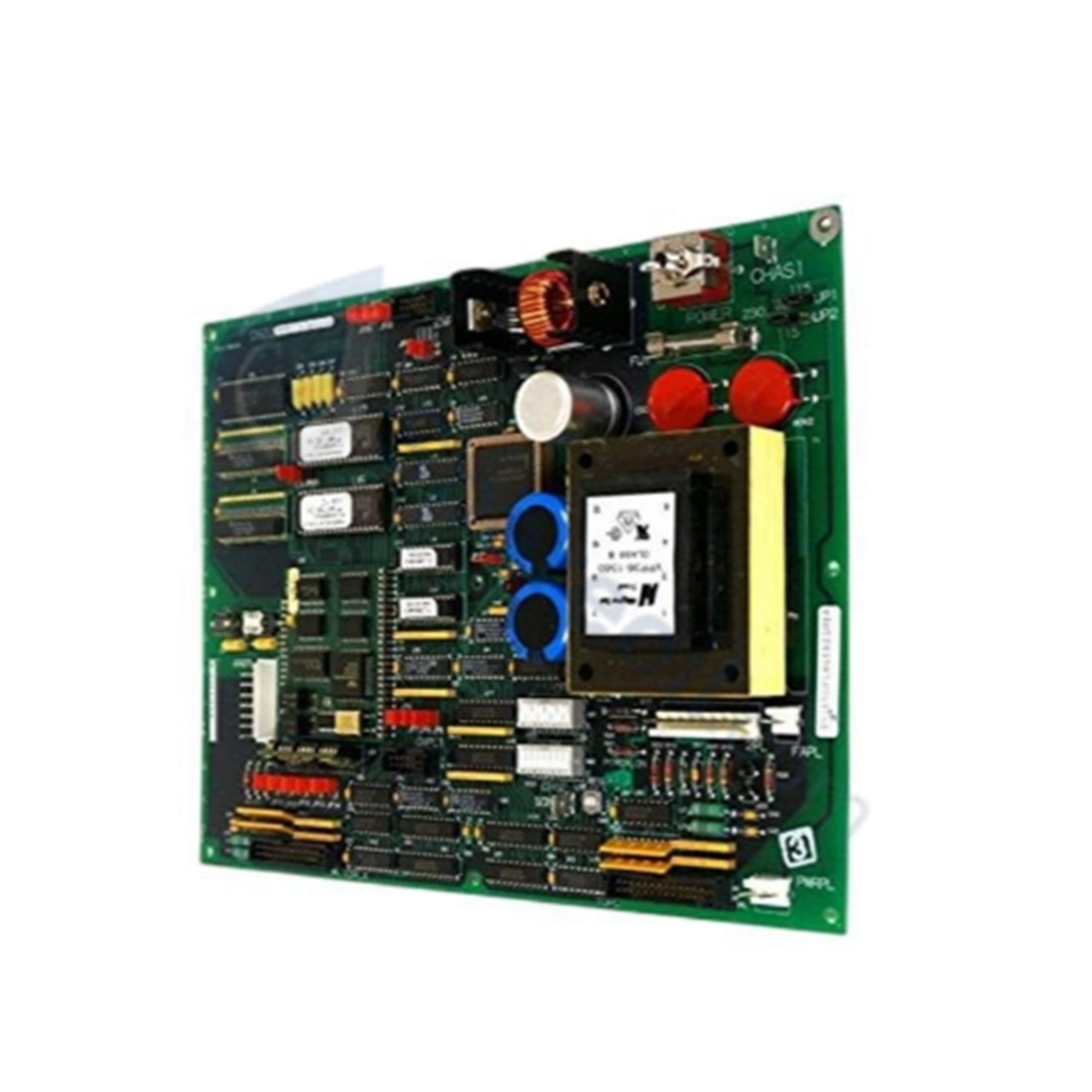

The GE DS200UPLAG1B, also cataloged as the DS200UPLA LAN Power Supply Card, operates as a dedicated hardware component for Local Area Network power conditioning and control communication distribution within GE Mark V Speedtronic turbine control cabinets.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DS200UPLAG1B |
| Brand | General Electric |
| Origin | USA |
| Series | Mark V |
| Product Type | LAN Power Supply Card |
| Dimensions | 8.5 in x 11.0 in |
| Operating Temp | 0 to 60 deg C |
| Weight | Standard GE Mark V Board Weight |
| Power Consumption | Rack backplane and local DC rail powered |
| Onboard Connectors | 2 x 26-pin connectors, 1 x 8-pin connector |
| Onboard Circuit Protection | 1 x Onboard fuse |
| Onboard Controls | 1 x Toggle switch, 1 x Reset push button |
| Hardware Jumpers | 17 x Configurable jumpers |
| DIP Switch Assemblies | 16 x Switches (configured as 2 blocks of 8 switches) |
Firmware Flash Compatibility & Backplane Bus Processing
The DS200UPLAG1B routes local power rails and network communication packets across the Mark V cabinet rack via dual 26-pin and single 8-pin interface headers. Configurable hardware paths are established using 17 onboard jumpers alongside 16 DIP switches arranged in two 8-position dual inline blocks, matching specific node communication profiles and power rail selections. An onboard fuse prevents overcurrent propagation across the LAN supply circuits. The integrated manual reset button permits a forced local hardware restart to clear transient logic faults without cycling power to the host turbine drive system.
Frequently Asked Questions
Q: What function does the onboard reset button execute on the DS200UPLAG1B?
A: The reset button reinitializes board logic and resets transient errors without requiring a full power shutdown of the host turbine control rack.
Q: How are board operational parameters physically configured on the DS200UPLAG1B hardware?
A: Hardware configuration is set manually via 17 selectable jumper pins and 16 DIP switches arranged in two 8-switch blocks.
Q: How is the DS200UPLAG1B physically anchored inside the control cabinet?
A: The board mounts directly into the Mark V rack enclosure and is held in place by four screws passing through factory-drilled corner mounting holes.
Field Installation Guidelines
- Isolate cabinet main power or verify system safety conditions prior to servicing or altering hardware jumper configurations on the board.
- Wear a grounded static-dissipative wrist strap connected to the enclosure metal chassis during handling to prevent ESD damage.
- Set all 17 jumpers and 16 DIP switches to match the exact switch/jumper map of the displaced board before securing the card into the rack.
- Secure all four corner retaining screws to ensure solid electrical grounding to the metal rack frame and prevent vibration looseness.
