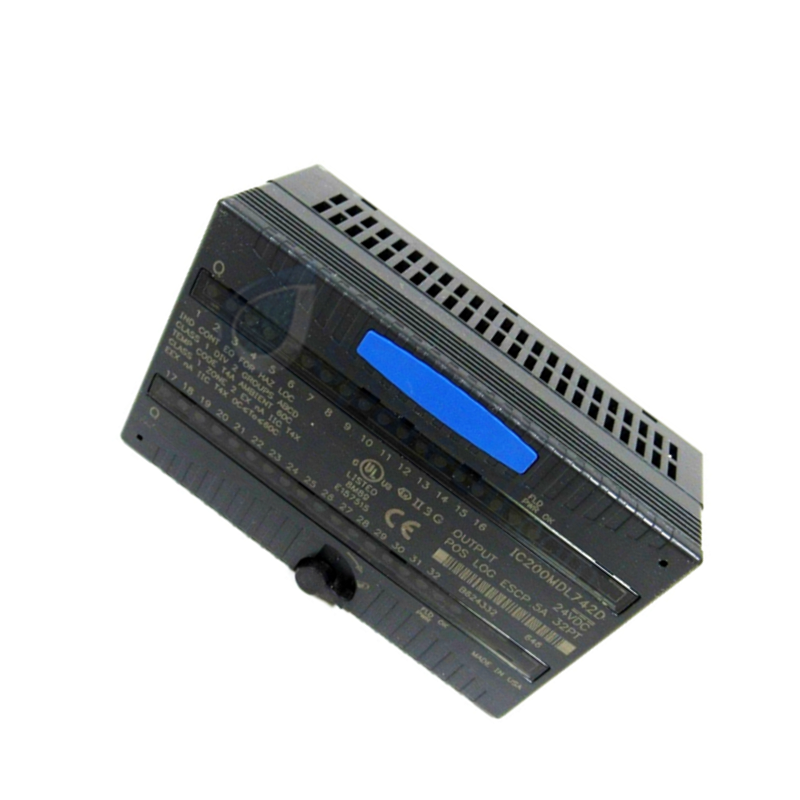

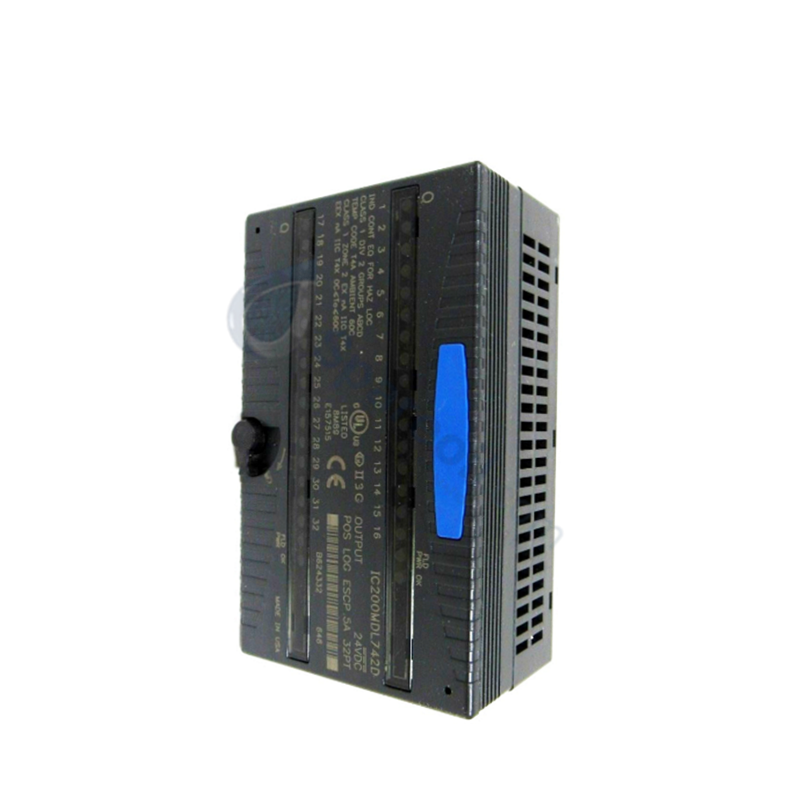

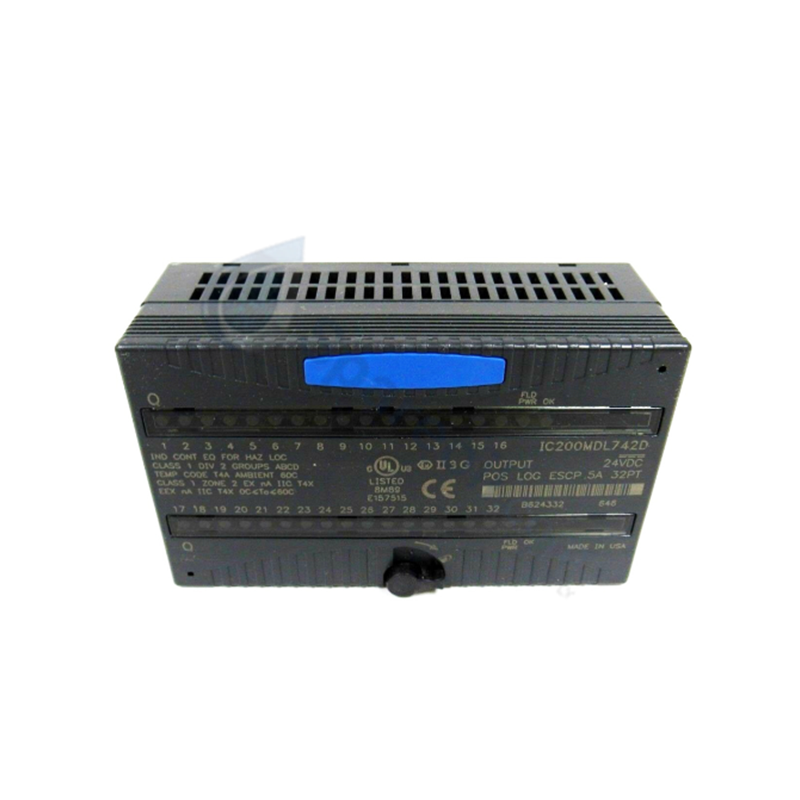

The GE Fanuc IC200MDL742, also cataloged as the IC200MDL742 Discrete Output Module, operates as a dedicated hardware component for solid-state DC load switching within VersaMax PLC platforms.

Hardware Specifications

Parameter Specification
Model IC200MDL742
Brand GE Fanuc Emerson
Origin USA / Various
Weight 0.15 kg (0.33 lbs)
Dimensions Standard VersaMax module footprint
Operating Temp 0 to 60 deg C
Power Consumption Standard backplane power draw
Nominal Output Voltage 24 VDC
Output Logic Positive logic (sourcing)
Output Channels 32 discrete output points
Current Rating Per Point 0.5 A maximum per point
Electronic Protection Electronic Short Circuit Protection (ESCP)
Mounting Type Backplane carrier mount (DIN rail / panel)

Backplane Bus Communication Velocity & I/O Density Scaling

The IC200MDL742 incorporates 32 positive logic output channels within a single slot, supporting high-efficiency I/O density scaling across VersaMax backplane carrier bases. Interfacing directly with the local processor, the module maintains rapid backplane bus communication velocity during discrete output update cycles. Integrated Electronic Short Circuit Protection (ESCP) automatically detects overcurrent and short-circuit conditions on field outputs without interrupting local processor execution, while internal hardware status registers ensure complete firmware flash compatibility with host CPUs.

Frequently Asked Questions

Q: What type of electronic protection is integrated into the output circuitry of the IC200MDL742?

A: The module features Electronic Short Circuit Protection (ESCP), which automatically protects the internal solid-state switching components against output overcurrent and field wiring short circuits.

Q: What are the current rating limits per channel for the discrete outputs?

A: Each individual positive logic channel is rated for a continuous maximum load current of 0.5 A at 24 VDC.

Field Installation Guidelines

  • Carrier Terminal Mounting: Insert the module firmly into its designated VersaMax I/O carrier until the retaining clips latch completely onto the backplane assembly.
  • Field Load Wiring: Connect 24 VDC external load circuits to the carrier terminal block. Ensure total current per output group does not exceed carrier backplane rating limits and maintain physical separation from high-voltage AC cables.
  • Shield and Chassis Grounding: Connect the system carrier plate directly to enclosure protective earth using a low-impedance copper strap to divert transient electrical noise away from backplane communications.
