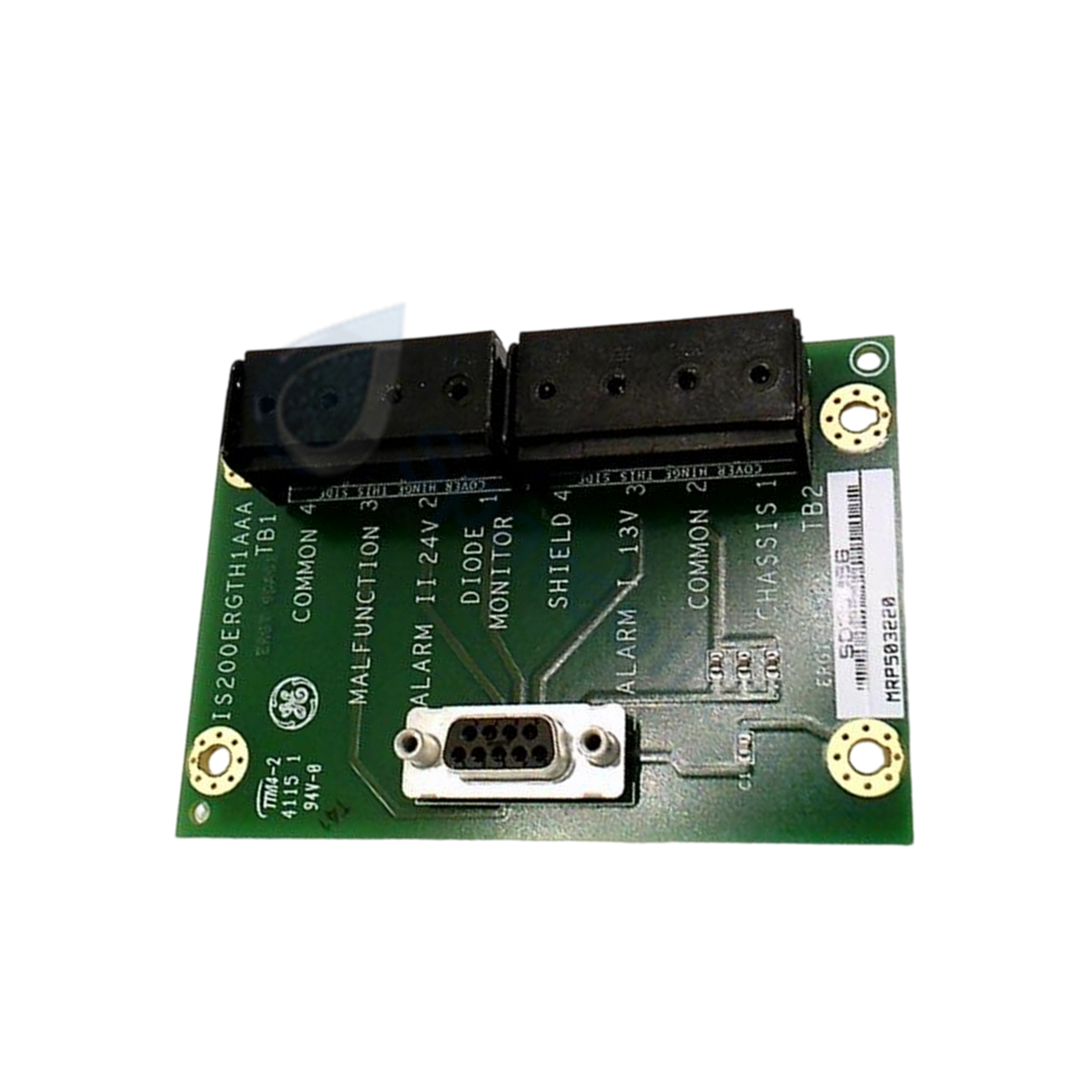

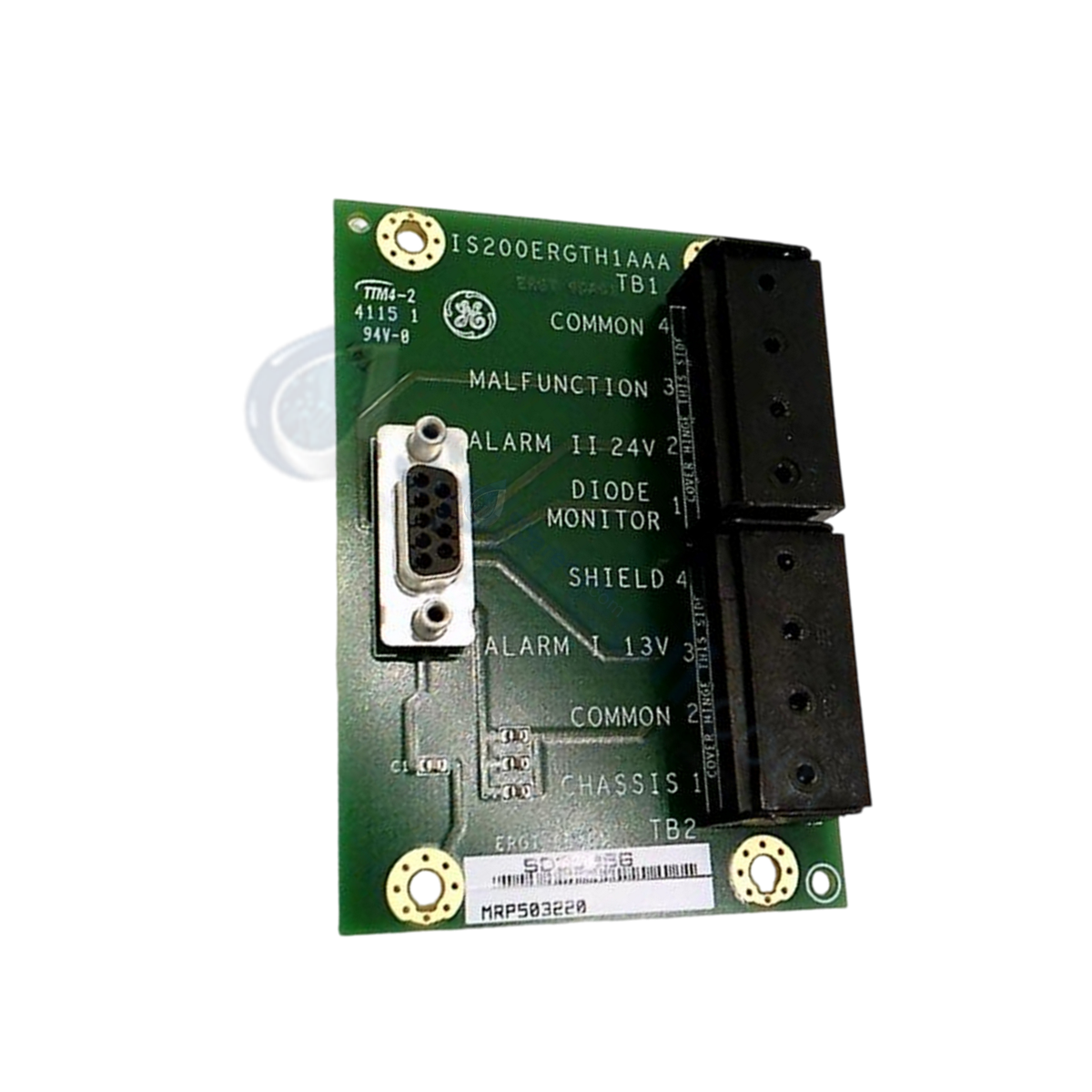

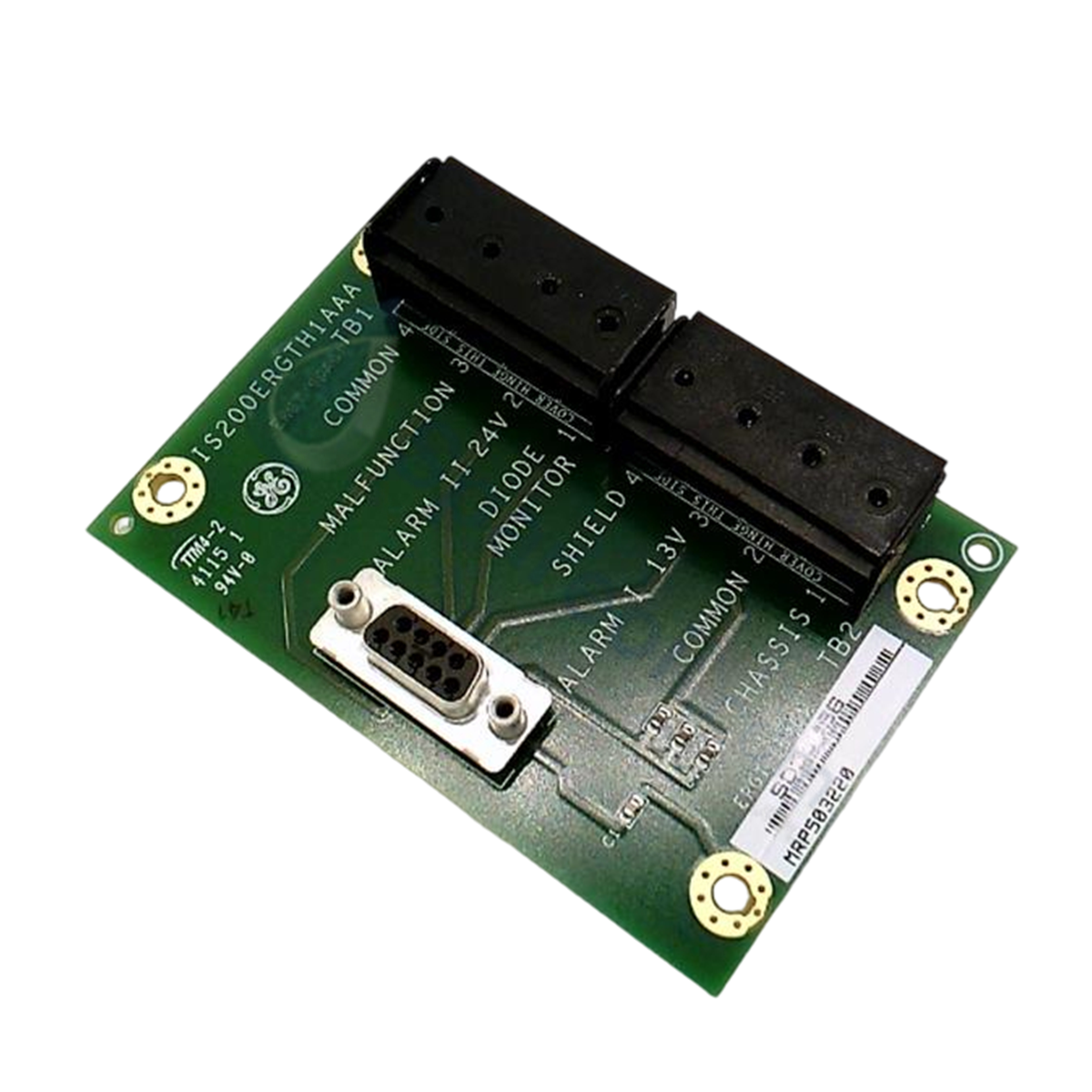

The GE IS200ERGTH1AAA, also cataloged as the IS200ERGT Exciter Regulator Third-Party Ground Detector Terminal Board, operates as a dedicated hardware component for signal conversion and field interface routing within EX2100 regulator control systems. It translates the 9-pin connector signals from the IS200EROC Exciter Regulator Options Card into screw terminal connections to support third-party ground detector equipment in simplex or redundant control configurations.

Hardware Specifications

Parameter Specification
Model IS200ERGTH1AAA
Brand GE (General Electric)
Origin United States
Weight 2 lbs
Dimensions 17.8 cm high x 33.02 cm
Operating Temp 30 to 50 deg C
Power Consumption 24 VDC excitation supply
Series EX2100
Product Type Exciter Regulator Terminal Boards
Processor 32-bit digital signal processor
Analog Output 0-20 mA
Line Frequency 50 or 60 Hz
Maximum Lead Resistance 15 ohms
Interfacing Card IS200EROC (Exciter Regulator Options Card)
Monitored Signal Channels Ground alarm, Ground detector malfunction, Diode fault monitor

Backplane Signal Conditioning and Firmware Flash Compatibility

The IS200ERGTH1AAA features onboard signal conversion logic backed by a 32-bit digital signal processor to handle high-accuracy loop monitoring. By converting low-voltage digital signals from the 9-pin EROC connector into isolated field screw terminal points, the module stabilizes current loop outputs under varying load parameters up to a maximum lead resistance of 15 ohms. The board's internal processing logic ensures full firmware flash compatibility across EX2100 control platforms, allowing precise transmission of ground alarm, detector fault, and diode fault status signals without compromising backplane bus communication velocity.

Frequently Asked Questions

Q: How does the IS200ERGTH1AAA interface physically with the IS200EROC options card?

A: The ERGT board converts the multi-pin signal path originating from the 9-pin D-sub connector on the EROC card directly into heavy-duty screw terminal blocks for field wiring.

Q: What specific diagnostic and alarm outputs are supported through the ERGT terminal connections?

A: The board supports three distinct diagnostic paths from the ground detector: Ground Alarm, Ground Detector Malfunction, and Diode Fault Monitor.

Q: What excitation voltage and loop signal levels does the board utilize?

A: The module operates using a 24 VDC excitation voltage supply and generates an analog output current range of 0-20 mA.

Field Installation Guidelines

  • Wiring and Screw Terminals: Secure field conductors tightly to the screw terminal connections, ensuring lead resistance across the loop does not exceed the maximum limit of 15 ohms.
  • Shielding and Grounding: Terminate cable shielding directly to the cabinet frame ground to prevent external electromagnetic noise from corrupting 0-20 mA measurement loops.
  • ESD Mitigation Procedures: Observe standard electrostatic discharge precautions, using a grounded wrist strap when handling the printed circuit board during panel mounting.
  • Connector Mating Check: Ensure the 9-pin cable interface running to the IS200EROC card is fully seated and screw-locked before applying 24 VDC excitation power.
