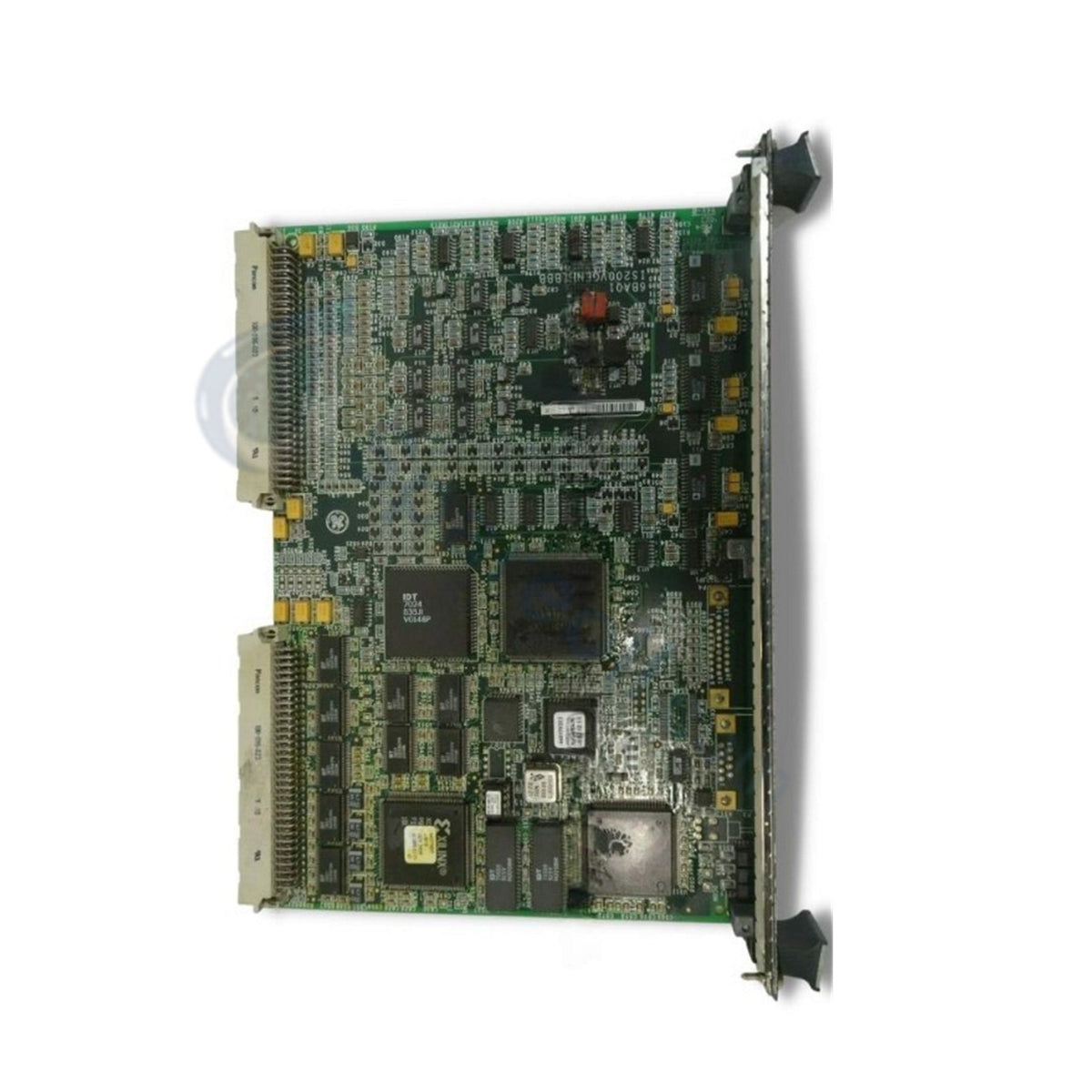

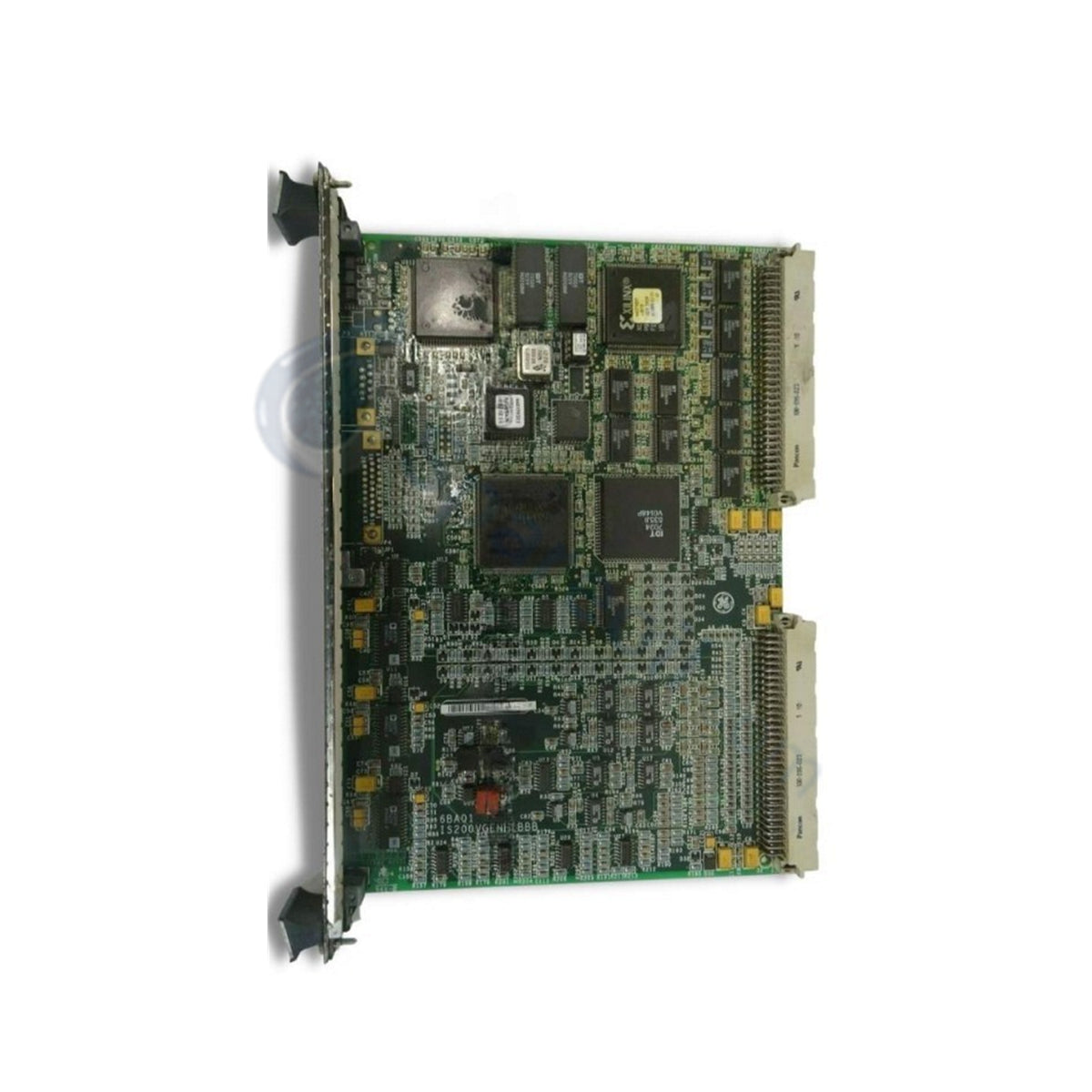

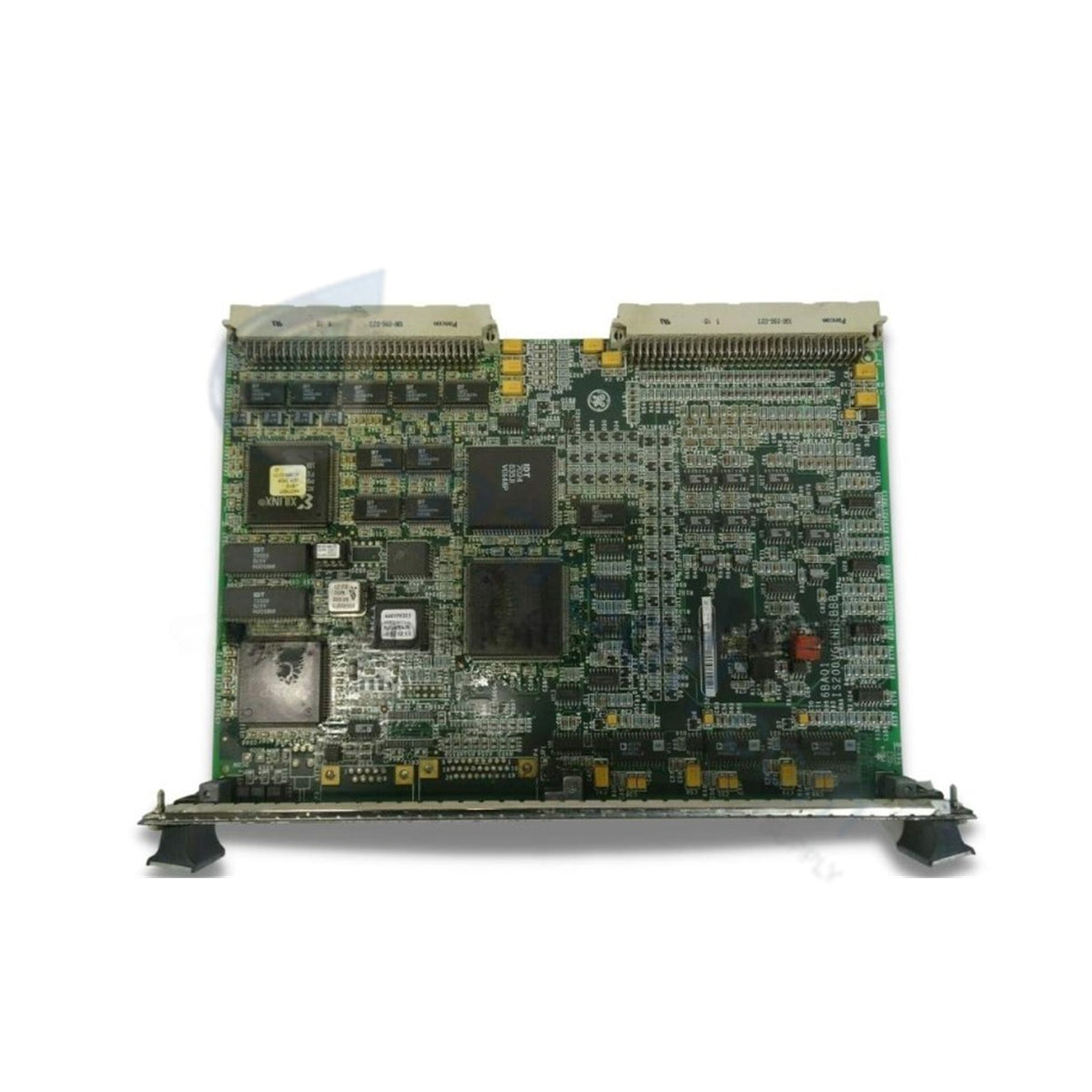

Configured for three-phase potential transformer (PT) and current transformer (CT) monitoring in Mark VI Speedtronic turbine control systems, the GE IS200VGENH1B (IS200VGEN VME Monitor Board) provides direct physical signal acquisition and control execution. The module processes analog inputs from power monitoring transformers and executes application control logic for reheat-style steam turbine assemblies. Onboard Xilinx FPGA and PLD components interface directly with the VME backplane to digitize high-speed electrical feedback without processor latency.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS200VGENH1B |
| Brand | GE Industrial Systems |
| Origin | USA |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | VME Backplane powered |
| Series | Mark VI Speedtronic |
| Product Type | VME Monitor Boards |
| Functional Revision | Revision B (H1B) |
| Onboard Logic | Xilinx XCS30 FPGA, Xilinx XC95216 PLD |
| Signal Inputs | Three-phase PT and CT monitoring signals |
| Identification Code | 6BA01 |
Backplane Bus Communication and Deterministic Processing
The IS200VGENH1B maintains backplane bus communication velocity across the Mark VI control rack by utilizing hardware-level execution via its Xilinx XCS30 Field Programmable Gate Array and XC95216 Programmable Logic Device. These integrated circuits offload high-frequency sampling tasks for three-phase PT and CT waveforms directly at the module layer, preventing CPU bottlenecking during transient turbine events. Onboard firmware flash compatibility ensures real-time synchronization across deterministic VME control loops and facilitates precise I/O density scaling.
Frequently Asked Questions
Q: What primary monitoring functions does the IS200VGENH1B execute within the Mark VI rack?
A: The board conditions and processes three-phase potential transformer (PT) and current transformer (CT) feedback signals for turbine generator excitation and reheat control loops.
Q: What integrated circuit architecture is built onto the PCB to manage signal timing?
A: The module incorporates a Xilinx XCS30 FPGA and a Xilinx XC95216 PLD operating alongside onboard oscillating chips to handle hardware-level logic timing and backplane interface data framing.
Field Installation Guidelines
- Electrostatic Discharge Protection: Personnel must wear a grounded anti-static wrist strap connected to the cabinet frame before removing or inserting the board into the VME rack.
- Card Alignment and Insertion: Align the circuit board edges with the top and bottom VME card guide rails. Slide the board inward until the backplane connectors fully seat, then tighten the faceplate retention screws with a hand screwdriver.
- Signal Cabling and Grounding: Route three-phase PT and CT secondary wiring using twisted, shielded pairs. Terminate cable shields according to GE Mark VI cabinet grounding specifications to prevent electromagnetic noise coupling into measurement channels.
- Thermal Management: Maintain clear air passage above and below the rack assembly to allow free convection cooling, keeping ambient operating temperatures within the 0 to 60 deg C range.
