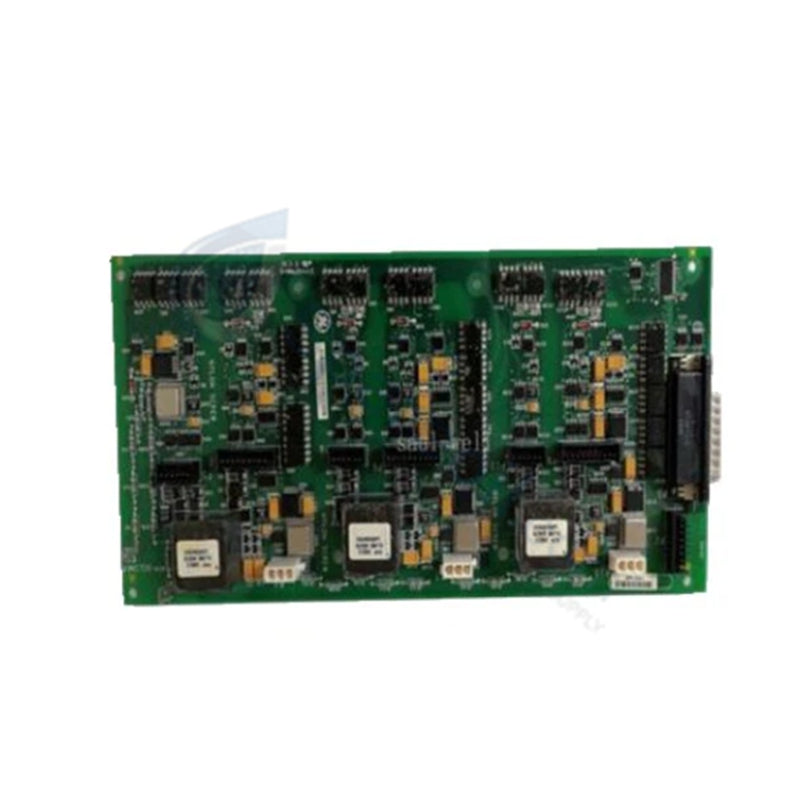

Configured for digital signal bridging and multi-protocol data arbitration in Mark VIe Wind Series architectures, the GE IS210AEBIH3BBC (IS210AEBIH3B Alternative Energy Bridge Interface) provides direct physical/electrical execution.

Hardware Specifications

Parameter Specification
Model IS210AEBIH3BBC
Brand GE
Origin USA
Dimensions 10 cm x 10 cm x 2 cm
Operating Temp -40 to 85 deg C
Power Consumption 24 VDC Nominal Input
Signal Interfaces Multiple Digital and Analog I/O Channels
Communication Ports RS485 and Ethernet Protocols
Integrated Protection Overvoltage and Overcurrent Protection Circuitry
System Series Mark VIe Wind Series

Backplane Bus Communication Velocity & Deterministic Networks

The IS210AEBIH3BBC controls real-time data exchange across Ethernet and RS485 serial communication links, transferring analog and digital I/O states directly to central processor modules. High backplane bus communication velocity ensures deterministic processing of telemetry and feedback loops, avoiding signal latencies. Enforced firmware flash compatibility across active network subracks maintains synchronized signal timing, while internal overvoltage and overcurrent protection circuits shield the board's processing core from transient power fluctuations.

Frequently Asked Questions

Q: What communication interfaces are integrated on the IS210AEBIH3BBC card?

A: The board supports RS485 serial communication protocols alongside standard Ethernet networking for control and data acquisition.

Q: What onboard electrical protection mechanisms are included on this module?

A: The card features hardware-level overvoltage and overcurrent protection circuits to suppress field wiring transients and voltage surges.

Q: Can this module operate in extended thermal environments without degradation?

A: Yes, the assembly is rated for continuous operation across an ambient temperature range of -40 to 85 deg C.

Field Installation Guidelines

  1. Disconnect and isolate the 24 VDC power feed supplying the card enclosure before installing or removing the module.
  2. Wear an grounded ESD wrist strap during physical handling to prevent electrostatic damage to surface-mount components.
  3. Align the mounting holes of the 10 cm x 10 cm x 2 cm board with the panel standoffs.
  4. Fasten the mounting screws securely to establish an electrical grounding connection to the mounting plate.
  5. Connect Ethernet and RS485 communication cables, ensuring shielded twisted-pair wiring is used for RS485 to prevent noise coupling.
  6. Terminate field digital and analog I/O wiring at the designated terminal blocks, keeping signal cables separated from high-voltage AC power lines.
