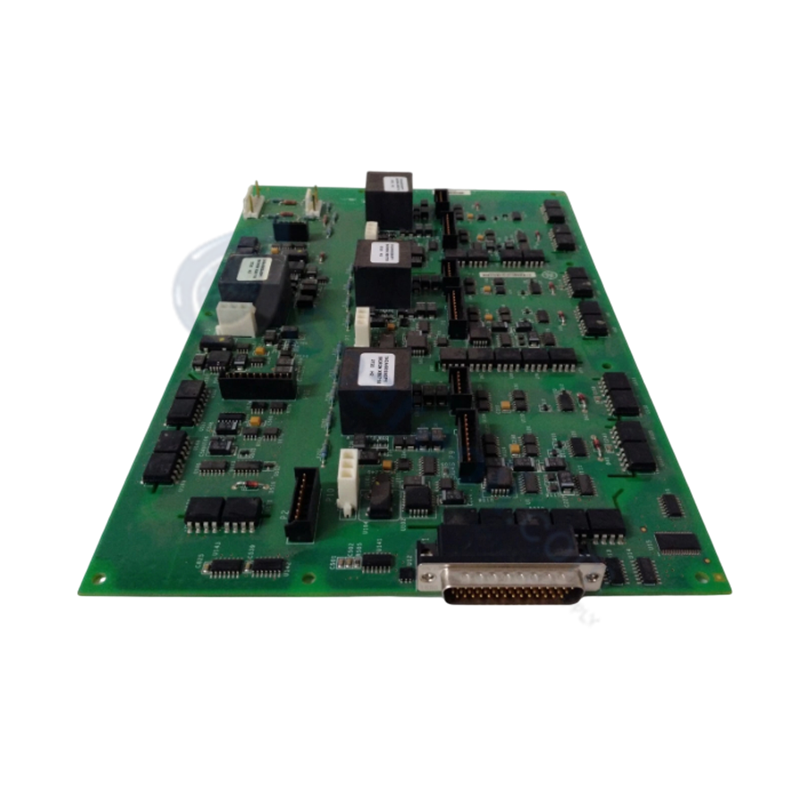

The GE IS210AEDBH4AGD, also cataloged as the IS210AEDBH4A Bridge Interface Card, operates as a dedicated hardware component for high-frequency signal switching and localized transformer-isolated pulse routing within GE Mark VI Speedtronic control systems.

Hardware Specifications

Parameter Specification
Model IS210AEDBH4AGD
Brand GE (General Electric)
Origin USA
Operating Temp -30 to 65 deg C
Power Consumption Subrack Backplane Powered

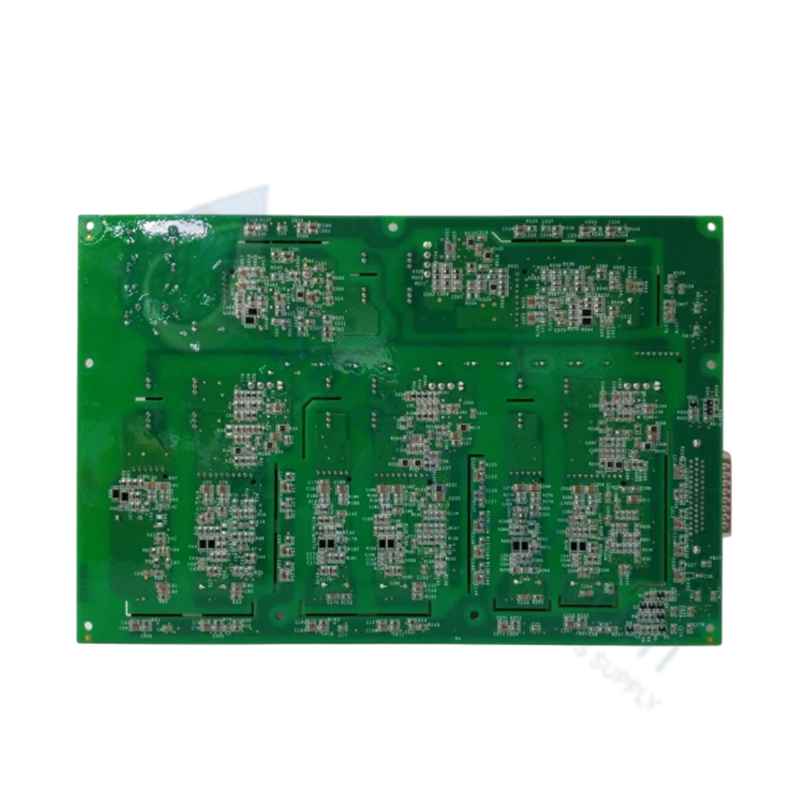

Board Type Double-sided PCB populated with components on both sides
Transformer Rating BIL rating 12 KV - 15 KV; Switching frequency 10 kHz - 500 kHz
Onboard ICs Nearly 200 integrated circuits including oscillating chips

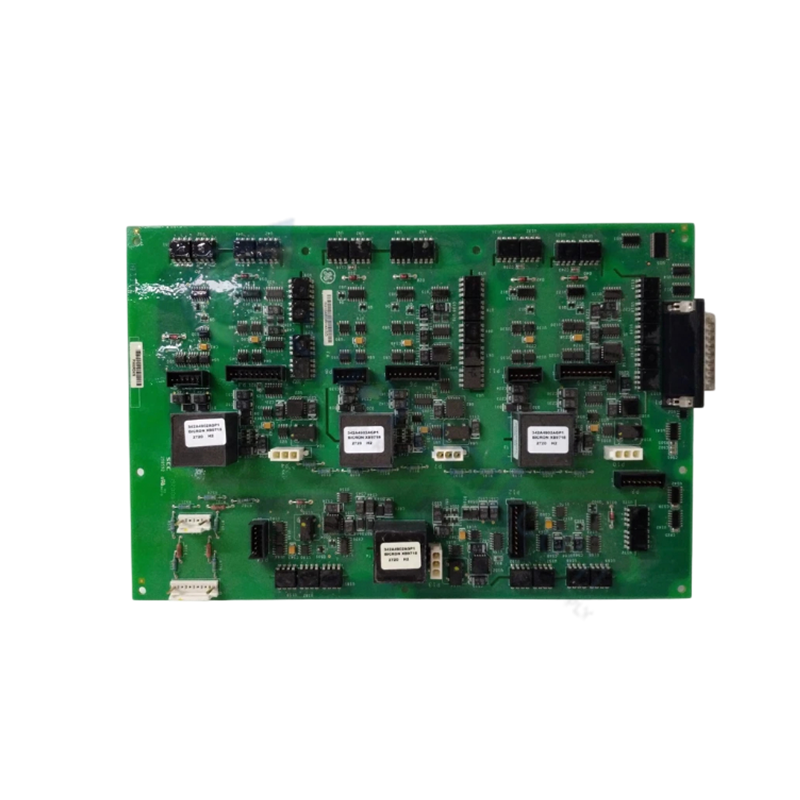

Onboard Connectors Two 2-pin header connectors, nine male vertical pin connectors, one right-angled connector (5749771-1 1301)
System Series Mark VI Speedtronic Control System

Backplane Bus Communication Velocity & Deterministic Networks

The double-sided IS210AEDBH4AGD architecture integrates nearly two hundred integrated circuits, including oscillating chips and Bicron encapsulated switch mode transformer components. Operating across a high transformer switching frequency range of 10 kHz to 500 kHz with a 12 KV to 15 KV BIL rating, the module processes high-speed pulse routines without signal jitter. Firmware flash compatibility guarantees synchronized data processing across backplane bus communication channels, ensuring high-velocity telemetry transfer across active system nodes.

Frequently Asked Questions

Q: What pin header and connector interfaces are populated on the IS210AEDBH4AGD circuit board?

A: The board features two 2-pin header connectors, nine male vertical pin connectors, and a single right-angled connector marked 5749771-1 1301.

Q: What are the electrical parameters for the onboard encapsulated transformer components?

A: The onboard Bicron pulse and switch mode transformers operate within a switching frequency range of 10 kHz to 500 kHz and carry a BIL rating of 12 KV to 15 KV.

Q: What physical features prevent voltage tracking across high-density component sections?

A: The double-sided PCB includes nine factory-drilled mounting holes and isolation slots cut through the body of the board directly above or below large ICs and transformers.

Field Installation Guidelines

  1. Isolate and lock out all main power feeds to the Mark VI enclosure prior to touching internal subracks.
  2. Put on an anti-static wrist strap connected to a verified chassis earth point before removing the card from its ESD packaging.
  3. Align board edge pathways with the subrack guide tracks, ensuring male vertical pin connectors and right-angled connectors line up with mating receptacles.
  4. Seat the board firmly into position to engage edge terminals and backplane connections without applying lateral force to surface components.
  5. Fasten all panel retaining screws into the frame to establish chassis ground loops and mitigate mechanical vibration.
  6. Verify all pin header wiring is secured before applying system power to prevent unexpected bus faults.
