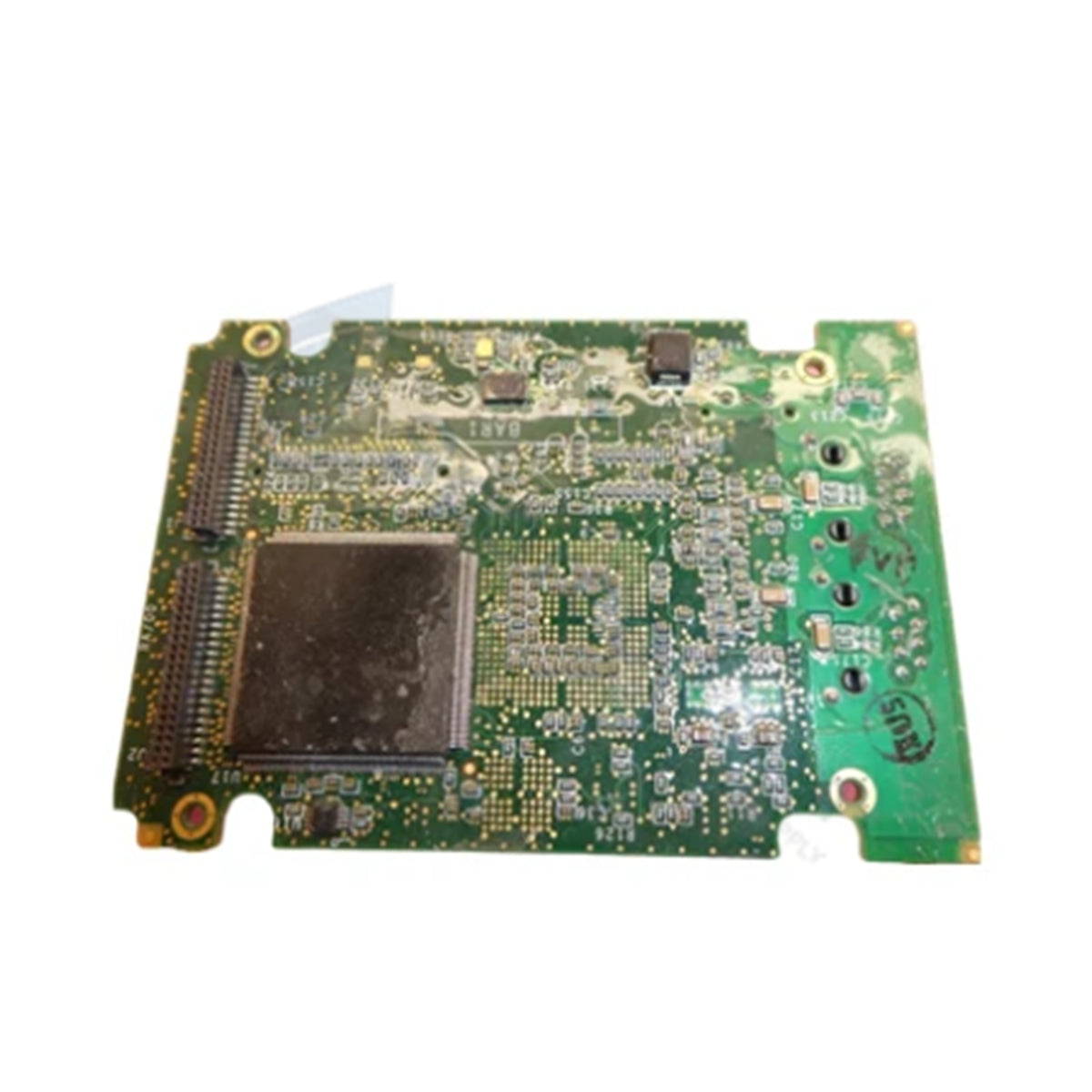

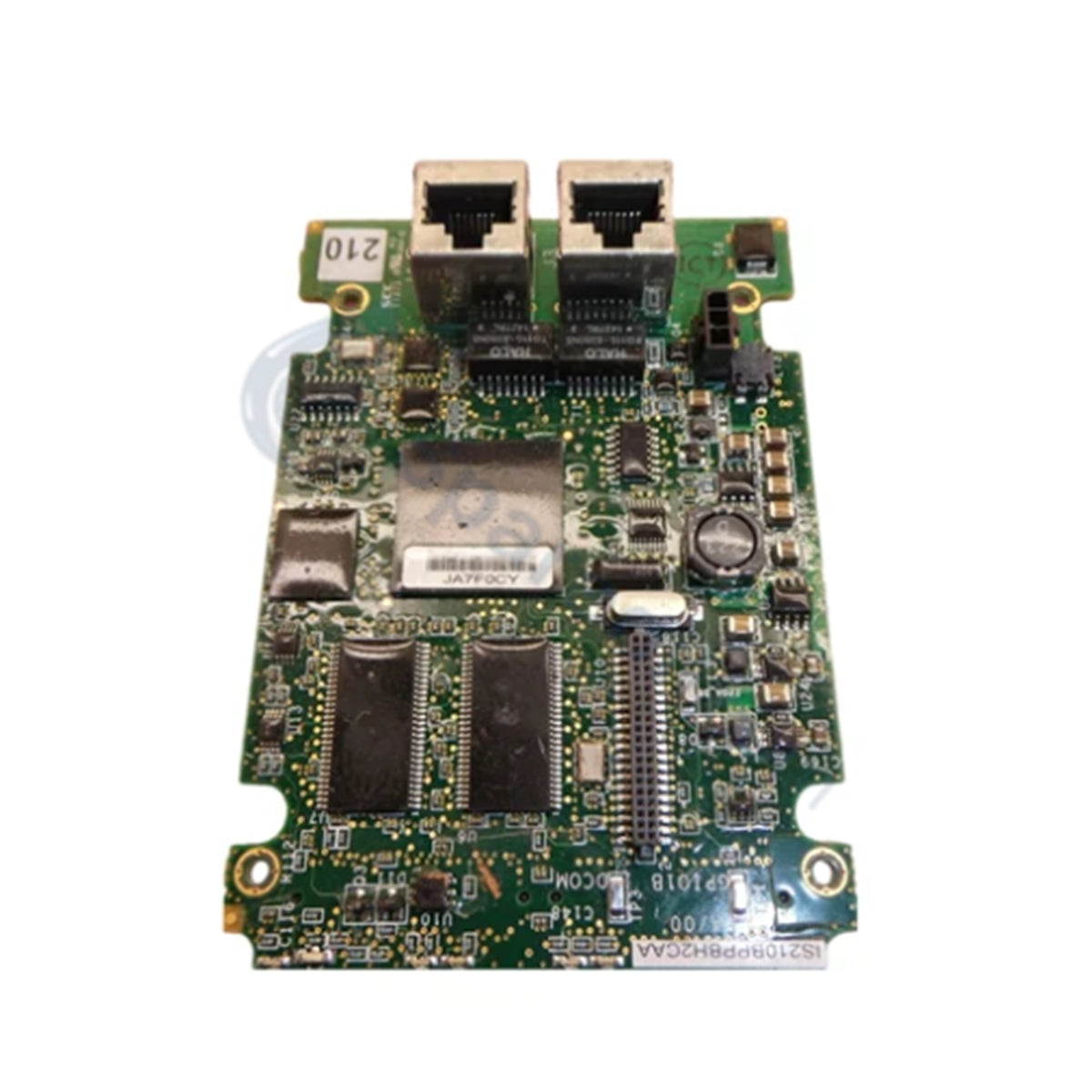

The GE IS210BPPBH2CAA, also cataloged as the IS210BPPB Printed Circuit Board, operates as a dedicated hardware component for processor processing, backplane bus interfacing, and signal routing within GE Mark VI control platforms.

Hardware Specifications

Parameter Specification
Model IS210BPPBH2CAA
Brand General Electric (GE)
Series Mark VI
Product Type Printed Circuit Board
Power Consumption Backplane bus powered
System Bus Mark VI VME backplane bus
Connectivity Multi-pin backplane connector headers

Firmware Flash Compatibility and Deterministic Backplane Communication

The IS210BPPBH2CAA executes low-latency data exchange across the Mark VI rack backplane bus using dedicated onboard logic controllers. Non-volatile onboard flash memory maintains full firmware flash compatibility across revision cycles, allowing remote parameter updates and deterministic communication cycle synchronization without causing control loop execution interruptions or system bus drops.

Frequently Asked Questions

Q: How does the IS210BPPBH2CAA maintain data integrity during backplane power fluctuations?

A: Onboard voltage monitoring circuits and decoupling capacitors filter transient noise on the DC supply rails, ensuring stable memory state retention and continuous signal processing without triggering false bus faults.

Q: Is hot-swapping supported for the IS210BPPBH2CAA in an active Mark VI rack?

A: Module replacement requires de-energizing the local rack power supply or isolating the board from the active backplane to prevent electrical arc damage to the connector pins and avoid data corruption on the IONet bus.

Q: How are firmware revisions deployed to the IS210BPPBH2CAA?

A: Firmware binaries are written to the onboard flash memory via the host Mark VI software environment over the primary network interface, ensuring full compatibility with existing system hardware configurations.

Field Installation Guidelines

  1. Isolate and lock out all AC and DC power supplies feeding the Mark VI enclosure prior to handling the board.
  2. Wear a grounded electrostatic discharge (ESD) wrist strap attached to bare cabinet metal before removing the board from its anti-static packaging.
  3. Align the printed circuit board with the designated slot card guides inside the rack assembly.
  4. Slide the board smoothly along the guides until the backplane connectors engage, then apply firm, even pressure to seat the multi-pin header pins fully.
  5. Tighten the top and bottom captive mounting screws to secure the chassis and verify proper electrical earth grounding connections.
