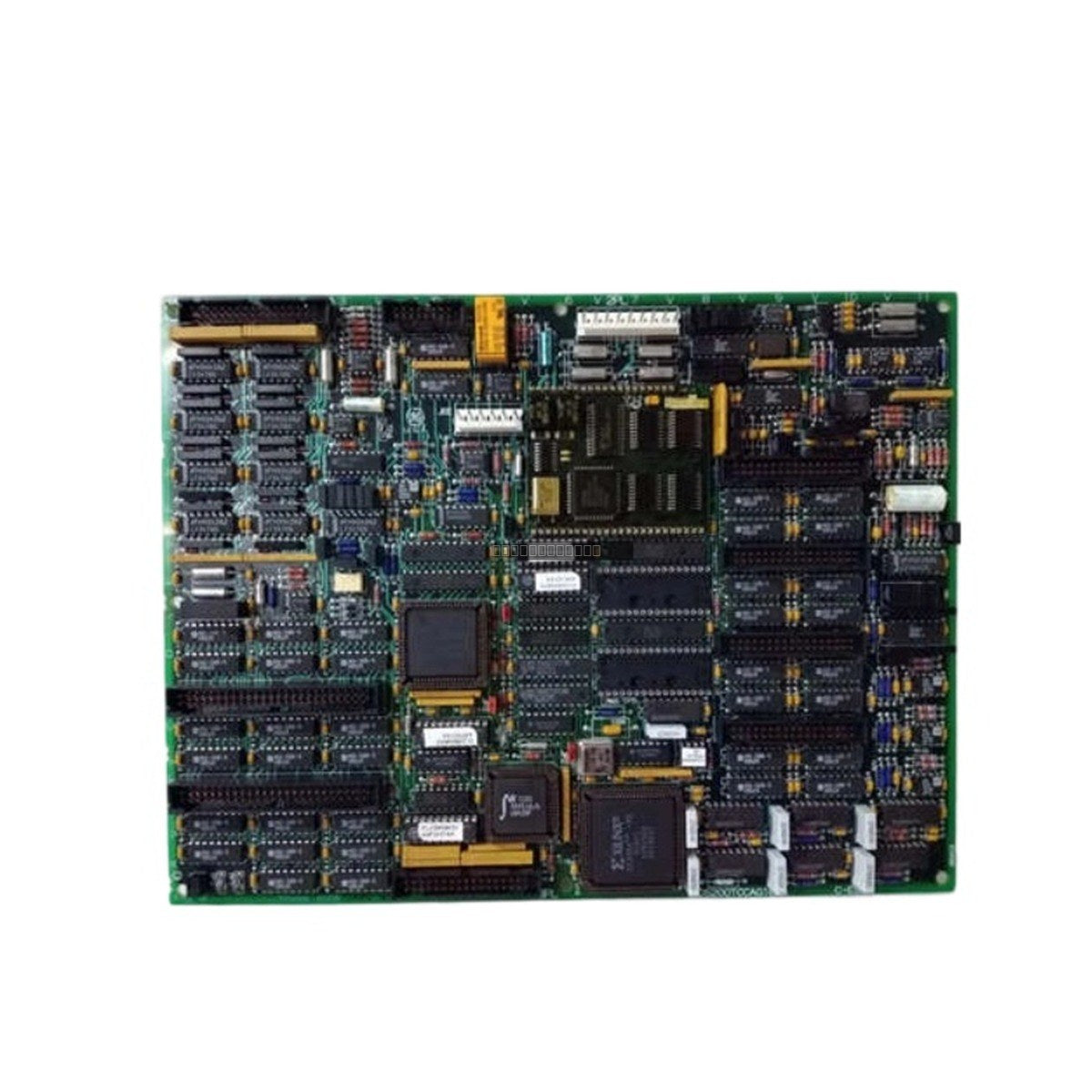

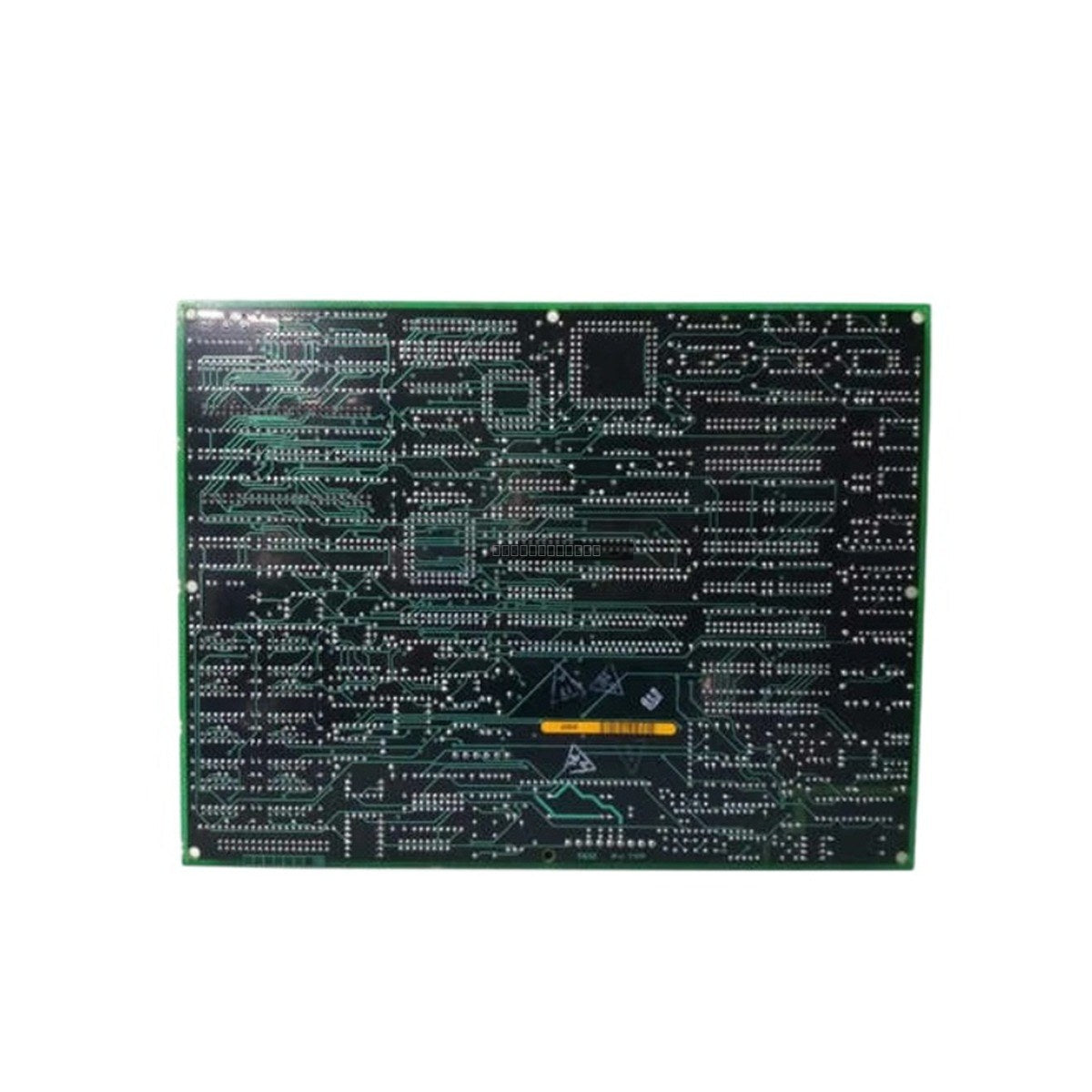

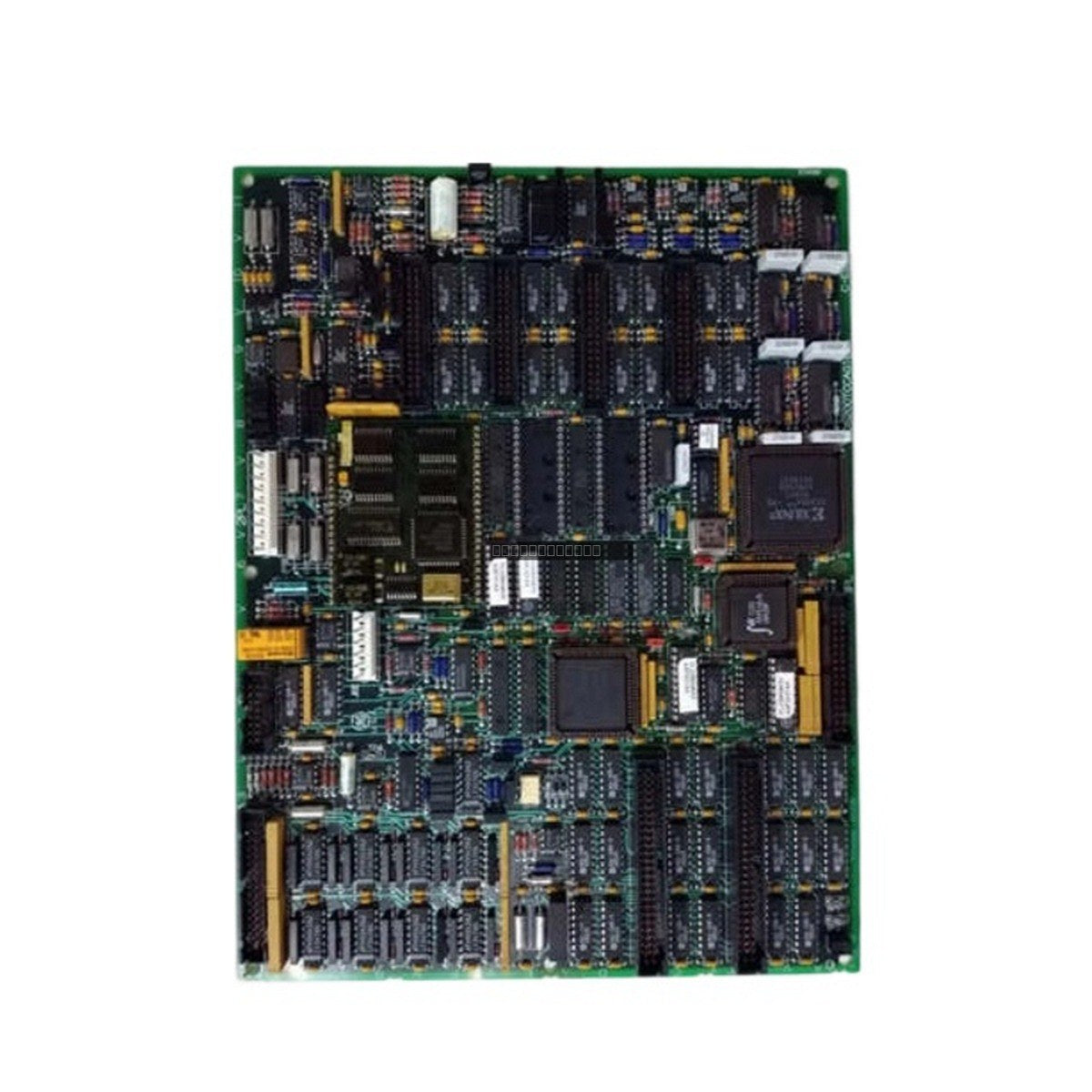

The General Electric DS200TCQAG1BFD is an RST Analog I/O board designed for the Speedtronic Mark V turbine control system. This module serves as a critical interface between field instrumentation and the control architecture, facilitating the processing of analog signals across the R, S, and T cores of the Mark V system.
Features
- Designed for integration within the GE Speedtronic Mark V turbine control architecture.
- Equipped with four 34-pin connectors and two 40-pin connectors for robust field signal interfacing.
- Features six onboard configuration jumpers (J1-J6) to adjust channel ranges and thermocouple types.
- Includes six diagnostic LEDs for real-time status monitoring and troubleshooting.
- Utilizes an onboard Intel 80196 microprocessor for local signal conditioning and communication management.
- Incorporates Op-Amp buffer amplifiers to ensure signal integrity and electrical isolation from the backplane.
Applications
- Turbine speed and fuel regulation, including servo-actuator control.
- Thermal monitoring and exhaust temperature diagnostics.
- Generator and grid synchronization via high-voltage wave sampling.
- Aerodynamic operational safety, including boundary-layer pressure tracking.
Technical Specifications
| Model | DS200TCQAG1BFD |
| Manufacturer | General Electric |
| System Compatibility | Mark V Speedtronic |
| Connectors | 4x 34-pin, 2x 40-pin |
| Configuration | 6x Jumpers |
| Weight | 0.58 kg |
Installation Guidelines
- De-energize the control core completely; isolate and disconnect all 24 VDC power feeds to the I/O rack before installation or removal.
- The board contains sensitive analog components; always wear a properly grounded static-dissipative wrist strap to prevent ESD damage.
- Ensure the board is correctly seated in the Mark V control cabinet rack.
- Verify jumper settings (J1-J6) match the specific requirements of the field devices (e.g., current ranges or thermocouple types) prior to system startup.
FAQ
What is the primary function of the DS200TCQAG1BFD?
The board performs critical analog signal conditioning, processing inputs such as ±10 V DC, vibration signals, and actuator feedback for the gas turbine control network.
Are different revisions of this board compatible?
Yes, later revisions are generally functionally identical and fully compatible with existing Mark V installations, even if minor component layout changes exist.
Where is this board installed?
This module is designed for installation within the R, S, or T cores of the Speedtronic Mark V control panel.
