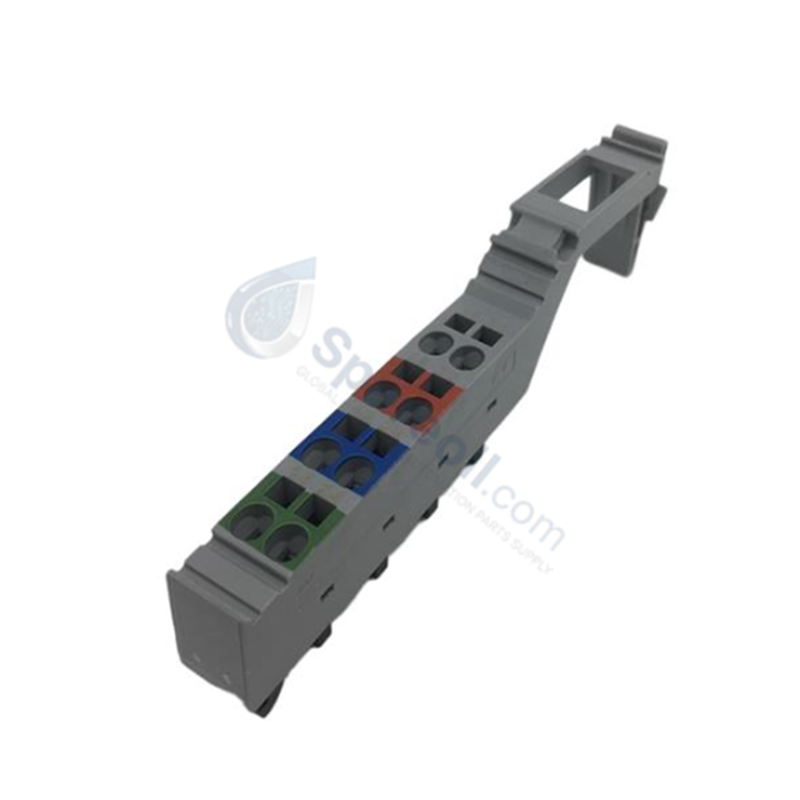

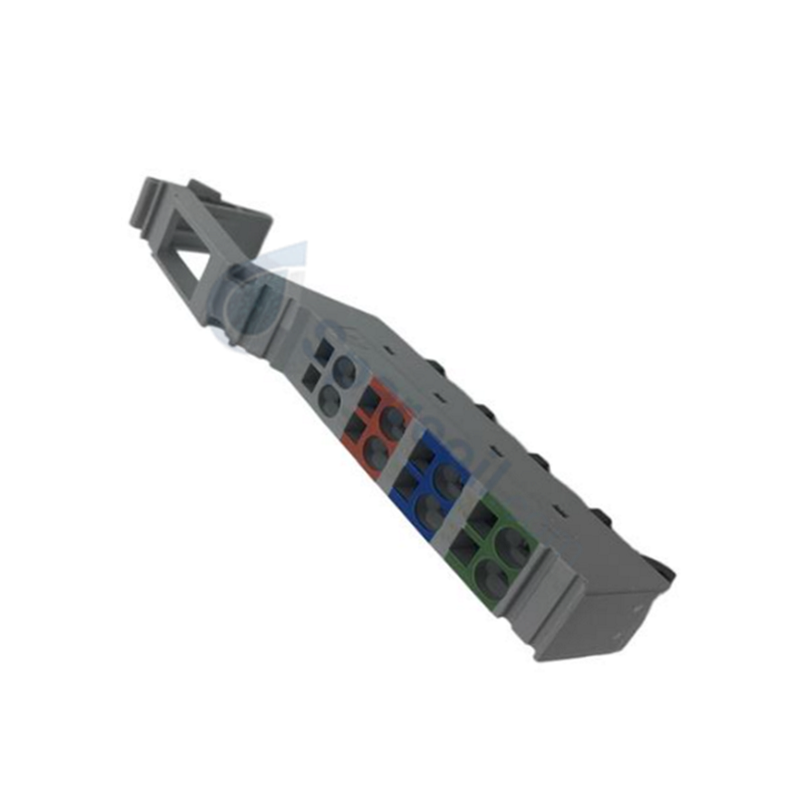

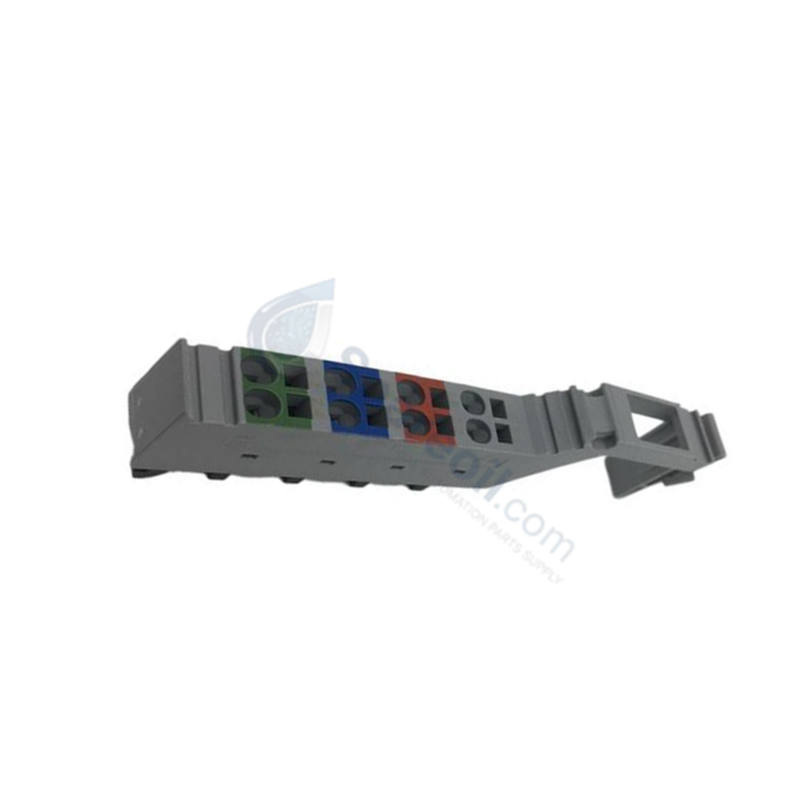

The GE IC220TBK087, also cataloged as the IC220TBK087 Power Terminal Strip, operates as a dedicated hardware component for field wiring termination and power routing within GE VersaMax I/O platforms.

Hardware Specifications

Parameter Specification
Model IC220TBK087
Brand GE
Origin United States
Weight 0.37 lbs
Dimensions Standard VersaMax Carrier Footprint
Operating Temp 0 deg C to 60 deg C
Power Consumption Passive Component
Termination Type Spring Style Clamp
Position Count 8 Position
Category Panel Accessories / Terminal Block Wiring Device

Backplane Power Routing and Wiring Density Scaling

The IC220TBK087 provides direct electrical interfacing between incoming power distribution lines and field I/O modules. Featuring an 8 position spring style clamping array, the module eliminates screw-torque degradation under continuous vibration environments. Internal contact rails ensure low-resistance current distribution across connected field nodes while maintaining backplane noise isolation and signal integrity across high-density panel configurations.

Frequently Asked Questions

Q: What wire conductor sizes are compatible with the spring style contacts on the IC220TBK087?

A: The 8 position spring clamp terminals accept solid or stranded copper conductors ranging from 28 AWG to 14 AWG (0.08 mm2 to 2.5 mm2).

Q: Does the IC220TBK087 support hot-swapping during live system operation?

A: Field power supplies feeding the terminal strip must be de-energized prior to wire insertion or module detachment to prevent electrical arcing across contacts.

Q: What is the primary operational advantage of the spring clamp connection over screw terminals?

A: The constant tension applied by the spring clamp mechanism prevents conductor loosening caused by mechanical vibration and thermal expansion cycles.

Field Installation Guidelines

  1. Mount the terminal strip securely onto the designated carrier base or DIN-rail assembly until the retention latch engages fully.
  2. Strip field conductor insulation to a uniform length of 8 mm to 9 mm prior to terminal insertion.
  3. Insert a standard flat-head screwdriver into the actuation slot to open the spring clamp, insert the stripped conductor, and remove the tool to secure the wire.
  4. Maintain proper field wiring separation from high-voltage AC lines to prevent inductive noise coupling.
  5. Verify that field power supplies are turned off before performing continuity or insulation testing on connected circuits.
