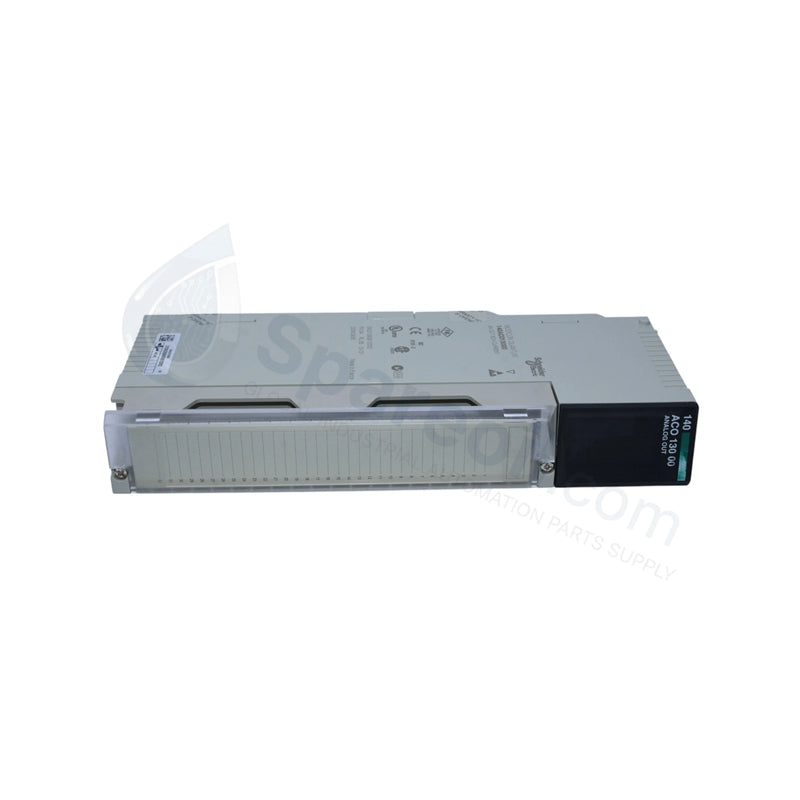

Schneider Electric 140ACO13000 Analog Output Module

Configured for high-precision loop control in Modicon Quantum PLC platforms, the Schneider Electric 140ACO13000 (140ACO13000 Analog Output Module) provides direct electrical execution of 4-20 mA or 0-20 mA current signals to drive actuators, valves, and variable-speed drives.

Hardware Specifications

Parameter Specification
Model 140ACO13000
Brand Schneider Electric
Origin Not specified
Weight 0.32 kg
Dimensions Standard Quantum Form Factor
Operating Temp 0 deg C to 60 deg C
Power Consumption 300 mA (typical)
Output Channels 8
Output Ranges 4-20 mA / 0-20 mA
Resolution 12-bit (0-4095 counts)
Isolation 1780 Vrms (Field to Logic)

Industrial Control and Diagnostic Capabilities

The 140ACO13000 integrates per-channel broken wire detection, which provides real-time monitoring of output loop integrity. Diagnostic status is mapped to the controller via 4 input words, enabling proactive fault detection and minimizing process deviation during cable interruptions. The module supports a load impedance range of 0 to 600 Ohm at 24 VDC field supply, ensuring compatibility with most industrial actuators. The design incorporates galvanic isolation between the system bus and field circuits, maintaining high-availability signal output even in harsh electromagnetic environments.

Frequently Asked Questions

Q: Are the internal fuses accessible for replacement if a loop short circuit occurs?

A: Yes. The 140ACO13000 features accessible internal fusing per group, located behind the front protective door of the module. This allows for rapid recovery from field-side short circuits without requiring the removal of the entire module from the backplane.

Q: How is the broken wire detection function monitored by the PLC?

A: The diagnostic feedback for broken wire detection is transmitted to the PLC CPU through 4 designated input words. When a loop is interrupted, the module sets the corresponding bit in the diagnostic registers, allowing the logic program to initiate an alarm or trigger a fail-safe state for the associated process control loop.

Field Installation Guidelines

  • Mounting: Seat the module firmly into the Quantum I/O rack. Ensure the front door assembly is properly closed after wiring to maintain the module's environmental integrity and access to the fuse blocks.
  • External Power: An external 24 VDC nominal power supply is mandatory for the operation of the output loops. Ensure this supply is adequately filtered and grounded according to instrumentation standards to prevent ripple-induced output noise.
  • Wiring: Utilize shielded twisted-pair cables for all current outputs to prevent EMI-induced fluctuations. Terminate the shield at the cabinet ground bus, ensuring that the shield path remains consistent and is not utilized as a current return path.
