Schneider Electric 140DDO35300 Discrete Output Module

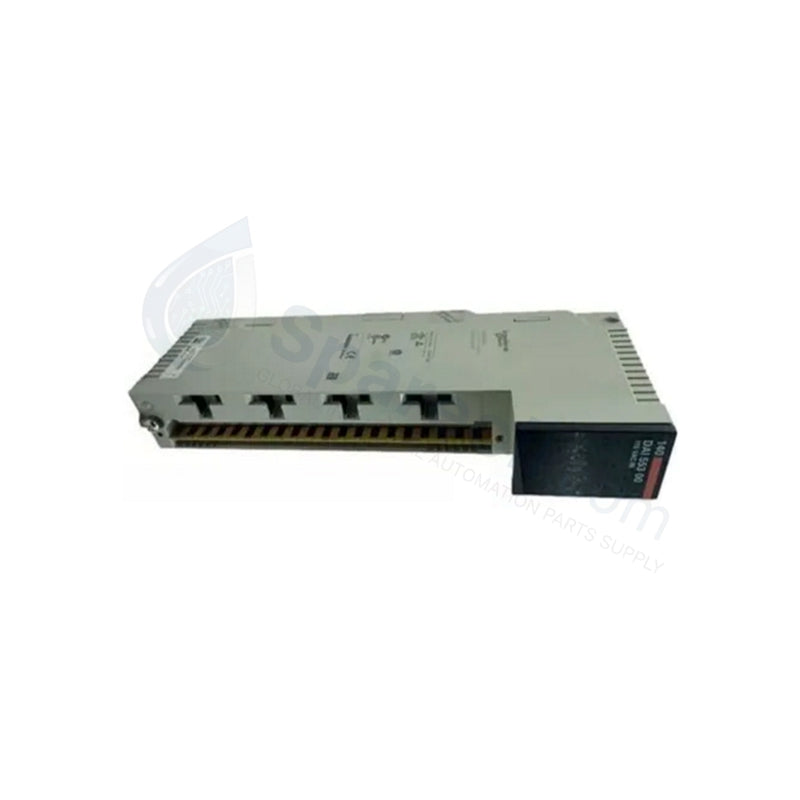

The Schneider Electric 140DDO35300 (140DDO35300 Discrete Output Module) operates as a high-density switching component for the Modicon Quantum PLC platform, providing 32-channel source-type output control for field-level industrial devices.

Hardware Specifications

Parameter	Specification
Model	140DDO35300
Brand	Schneider Electric
Origin	Not specified
Weight	0.45 kg
Dimensions	Standard Quantum Form Factor
Operating Temp	0 deg C to 60 deg C
Output Type	32-channel Discrete DC (Source)
Nominal Voltage	24 VDC (19.2 to 30 VDC range)
Current Capacity	0.25 A per channel / 8.0 A per module
Isolation	1780 Vrms (Field to Logic)

Industrial Control and Network Connectivity

The 140DDO35300 utilizes a positive logic (source) architecture across four independent banks of eight channels each. This modular grouping allows for localized fault management, as each group features integrated group fusing to prevent electrical failure propagation across the I/O backplane. The module maintains high communication efficiency within the Quantum backplane, requiring only 2 output words for addressing, ensuring rapid I/O scan cycles for deterministic control. Integration into the backplane bus communication velocity architecture allows this module to seamlessly function alongside other Quantum communication or processing units.

Frequently Asked Questions

Q: Can the internal group fuses be replaced if tripped by a field short circuit?

A: No. The internal 5 A group fusing is non-replaceable. These fuses are designed to provide localized protection for the 8-channel banks; if a fuse trips due to a field-side fault, the entire module must be evaluated for repair or replacement according to standard maintenance protocols.

Q: Is the 140DDO35300 compatible with firmware flash updates?

A: Modicon Quantum modules are generally designed for specific hardware revisions. Always check the firmware flash compatibility matrix for your specific Quantum CPU and backplane configuration before attempting to integrate or update a system utilizing this output module.

Field Installation Guidelines

Mounting: Ensure the module is fully seated into the designated Quantum I/O rack slot. Tighten the retaining screws to ensure proper grounding between the module chassis and the rack, which is necessary to maintain the rated 1780 Vrms isolation.
Wiring: Terminate field wiring using the appropriate terminal block connectors provided for the Quantum series. Ensure that the total current draw per group does not exceed 2.0 A to prevent nuisance tripping of the internal fuses.
Grounding: To maintain signal integrity and safety, ensure the I/O rack is properly bonded to the central instrumentation ground bus. Keep output cabling separated from high-voltage AC lines to prevent induced electrical noise from affecting the solid-state switching logic.
