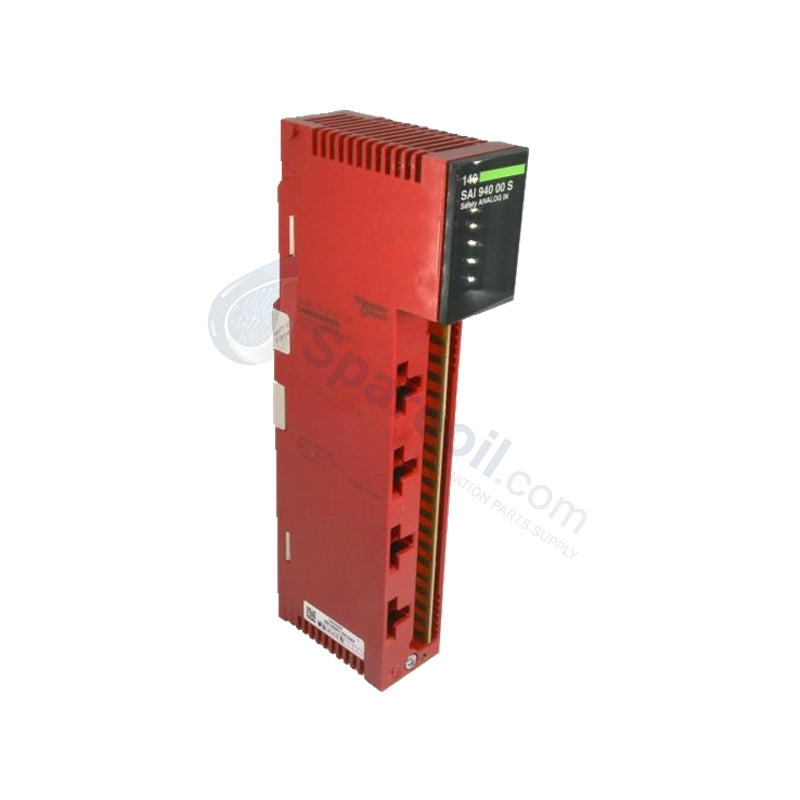

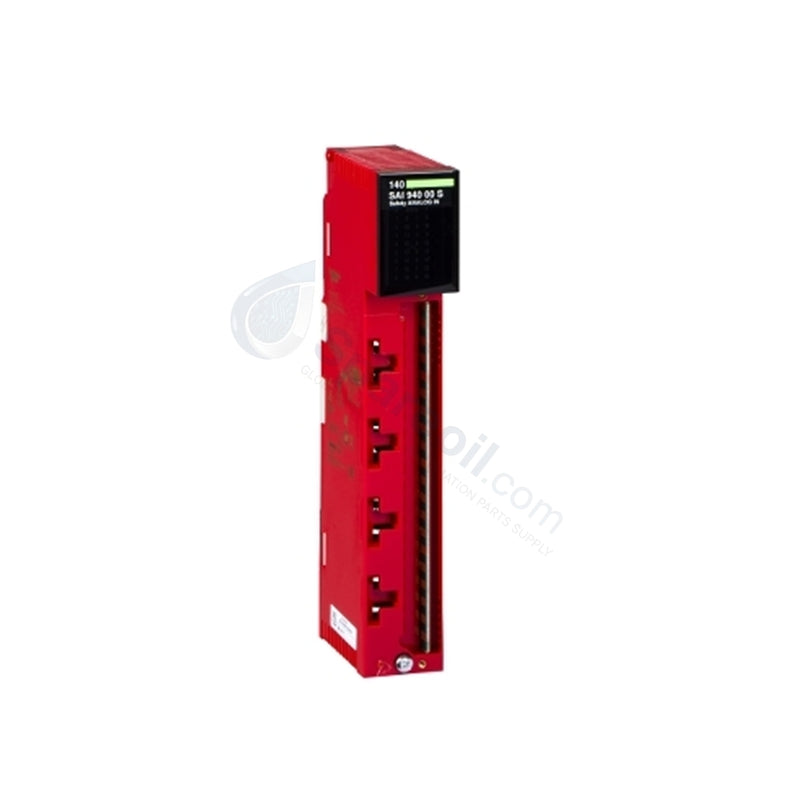

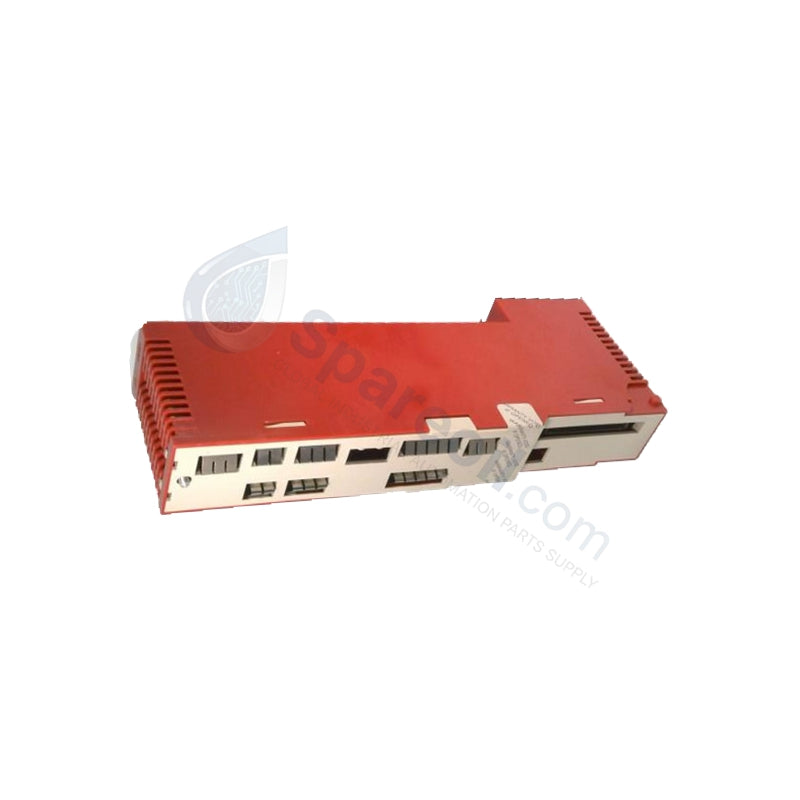

Schneider 140SAI94000S Modicon Quantum Safety Module

The Schneider 140SAI94000S, also cataloged as the 140SAI94000S Analog Safety Input Module, operates as a dedicated hardware component for precise analog signal acquisition within Modicon Quantum safety instrumented systems. The module interfaces with external field transmitters to process up to 8 continuous current loops over a high-resolution conversion matrix. Electrical parameters are digitized and transmitted directly to the safety controller backplane, executing continuous diagnostic checks to ensure operational integrity under defined threshold configurations.

Hardware Specifications

Parameter	Specification
Model	140SAI94000S
Brand	Schneider Electric (Modicon)
Origin	France
Weight	0.50 kg (1.10 lbs)
Dimensions	47 mm x 162 mm x 315 mm
Operating Temp	0 to 60 deg C
Storage Temp	-40 to 85 deg C
Power Dissipation	3.5 W
Input Channels	8 analog inputs
Input Signal Range	0-25 mA DC
Absolute Max Input	35 mA
Resolution	16 bits
Accuracy	+/- 0.3% of span
Linearity Error	<= 2 uA (0 to 60 deg C)
Input Impedance	287 Ohm
Common Mode Rejection	65 dB at 60 Hz, 70 dB at 50 Hz
Update Time	15 ms
Isolation (Channel-Bus)	1500 V AC for 60 s
Isolation (Channel-Channel)	500 V AC for 60 s
Bus Current Requirement	400 mA
Certifications	CE, UL, CSA, HazLoc, TUV Rheinland SIL2

Deterministic Network and I/O Density Scaling

The Schneider 140SAI94000S utilizes dedicated internal safety logic that syncs with standard backplane bus communication velocity licenses. The 16-bit analog-to-digital converters process inputs within a fixed 15 ms update window, mapping the data directly into the processor memory map.

When integrated into Profinet / EtherNet/IP deterministic networks via safety drop adapters, the module maintains strict timing loops required for industrial process verification. The hardware supports exact I/O density scaling profiles, enabling simultaneous deployment of multiple safety modules across the same rack without introducing data jitter or degradation of the TUV Rheinland SIL2 performance characteristics.

Frequently Asked Questions

Q: Can the 140SAI94000S module be hot-swapped while the safety rack is energized?

A: No. Live insertion or removal of this safety module can induce transient electrical noise on the backplane parallel bus. This disrupts execution of the safety runtime environment and may trigger an uncommanded trip or force the safety rack into an offline fault state.

Q: How does the module handle a field wire break or an input signal exceeding 25 mA?

A: The module executes continuous internal diagnostics. If an input exceeds the 25 mA boundary or drops below structural parameters indicative of an open circuit, the dedicated local channel fault LED illuminates and a diagnostic fault attribute is transferred to the controller to initiate safety state actions.

Q: Is this safety module backward compatible with standard non-safety Modicon Quantum processors?

A: No. The 140SAI94000S requires specific Quantum safety CPUs and executive firmware configurations that support safety-validated I/O addressing and functional diagnostics.

Field Installation Guidelines

Ensure all primary instrumentation loop power and chassis backplane power supplies are fully de-energized before mounting the module.
Install the hardware strictly within a protected IP20 or higher industrial enclosure to shield the internal circuitry from conductive dust and atmospheric moisture.
Connect the individual channel signal cable shields directly to a dedicated low-impedance instrument ground bar within the enclosure, ensuring the shield remains ungrounded at the field transmitter end.
Maintain a structural separation distance of at least 30 cm between the 0-25 mA low-voltage input loops and high-voltage AC power distribution runs or motor control cables.
Verify all terminal block screw connections are torqued to manufacturer specifications to eliminate loose physical contacts that can induce measuring linearity errors.
