140XBP00600 Schneider Modicon Quantum Datasheet & Technical Manual

Availability: 94 left in stock

Schneider 140XBP00600 Modicon Quantum Rack Backplane Configured for slot allocation and backplane bus connection routing in Modicon Quantum networks, the...

SKU: 140XBP00600

Manufacturer: Schneider
Product No.: 140XBP00600
Product Type: Rack Backplanes
Product Origin: France
Payment:T/T, Western Union
Weight: 2270g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

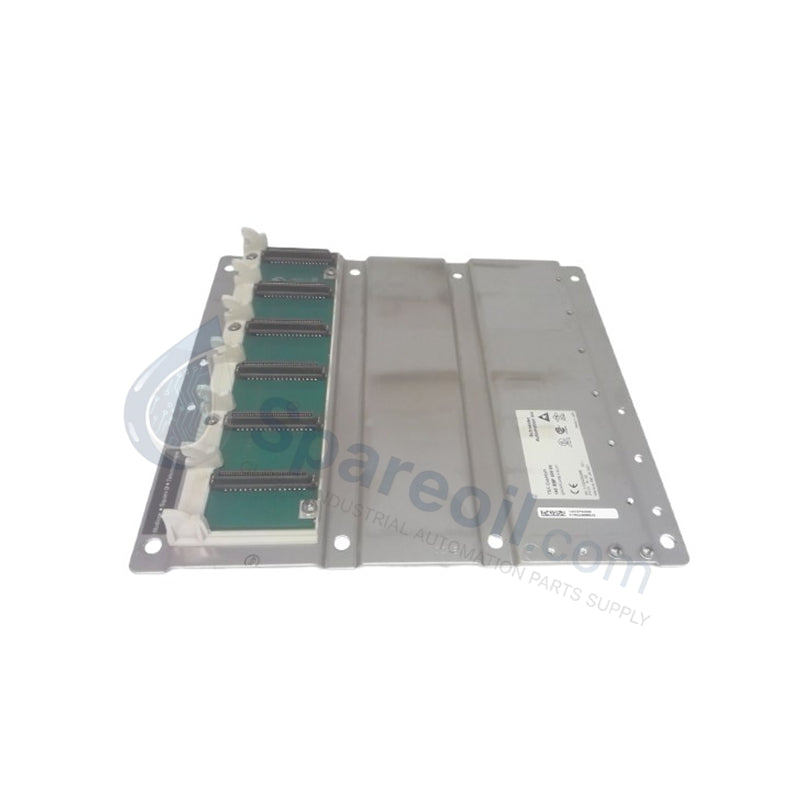

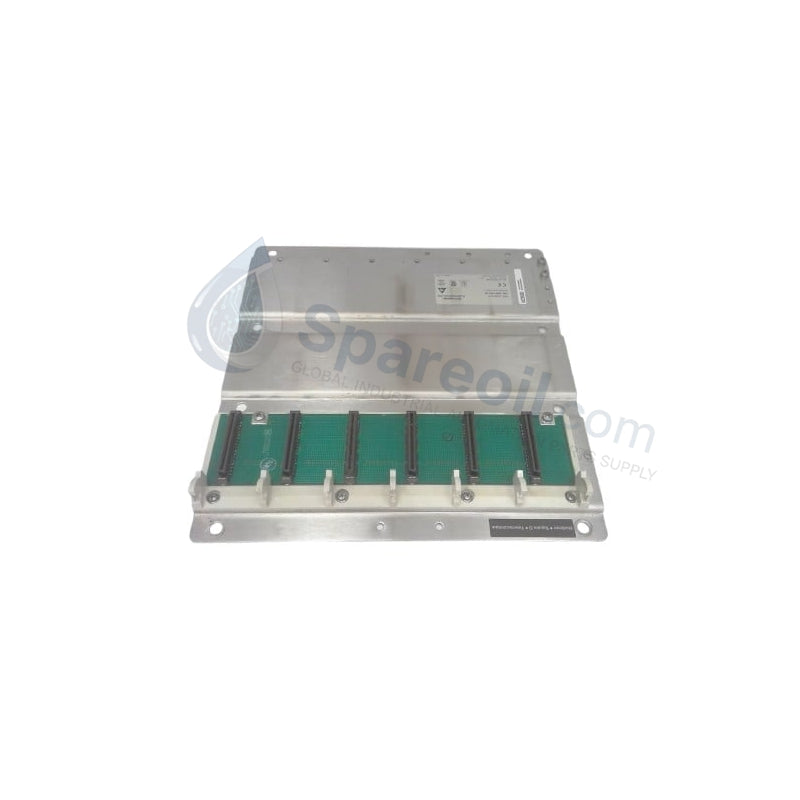

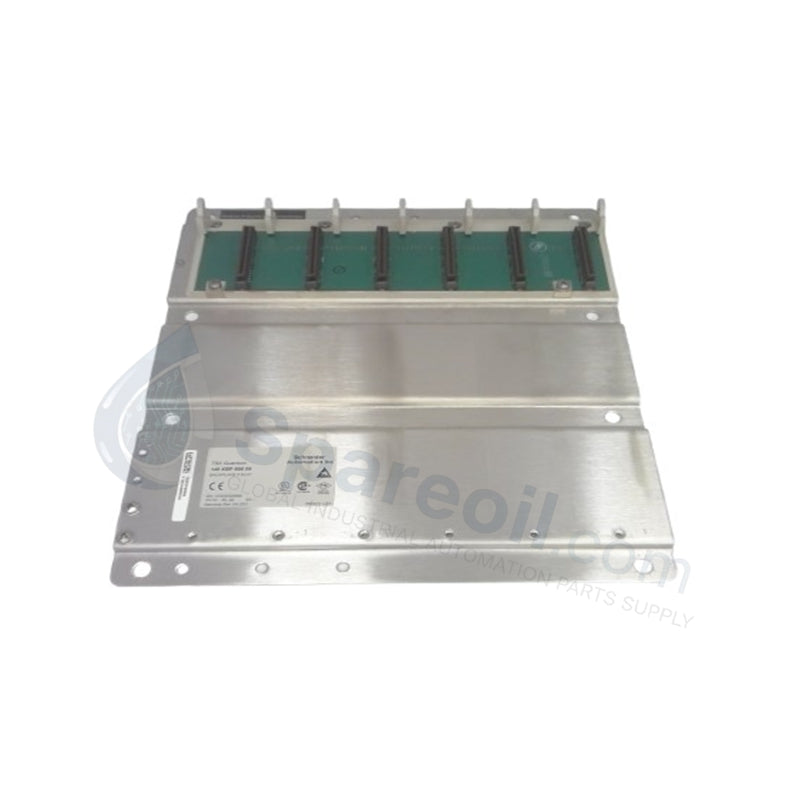

Schneider 140XBP00600 Modicon Quantum Rack Backplane

Configured for slot allocation and backplane bus connection routing in Modicon Quantum networks, the Schneider 140XBP00600 (140XBP00600 Rack Backplane) provides direct physical/electrical execution. This hardware structure incorporates 6 addressable module slots to distribute control signals, bus communications, and internal logic power across Modicon Quantum CPU processors, local power supplies, and specialized high-density I/O configurations. The mechanical assembly facilitates internal backplane connectivity for local, distributed, and remote hardware deployment profiles within a standardized chassis footprint.

Hardware Specifications

Parameter	Specification
Model	140XBP00600
Brand	Schneider Electric
Origin	France
Weight	2.27 kg (5.00 lbs)
Dimensions	398 mm x 41 mm x 152 mm
Operating Temp	0 to 60 deg C
Storage Temp	-40 to 85 deg C
Power Consumption	Passive backplane backplane-only load
Number of Slots	6 module slots
Bus Type	Modicon Quantum backplane bus
System Compatibility	Local, distributed, and remote I/O configurations
Mounting Support	Mounting plate integrated architecture
Fixing Mode	Screw hardware mounting
Protection Class	IP20

Deterministic Network and Backplane Bus Communications

The Schneider 140XBP00600 backplane maintains data channel propagation using dedicated physical lines optimized for backplane bus communication velocity licenses. The 6-slot electrical bus architecture handles high-speed internal addressing transitions between the central processor and multi-channel input/output points.

To prevent data corruption during fast runtime execution, the physical track routing isolates standard logic signals from heavy external switching noise. This physical path stability aligns with Profinet / EtherNet/IP deterministic networks, enabling remote drop communication modules to pass multi-word registers to local processors without signal collision or transmission latency spikes.

Frequently Asked Questions

Q: What are the slot installation limitations for power supply units on this backplane?

A: The backplane distributes electrical currents up to structural limits. When utilizing redundant or high-current power supply configurations, the modules must occupy designated slots mapped by the hardware documentation to maintain systematic electrical load balance across the internal copper tracking.

Q: Can this 6-slot backplane support the direct insertion of Modicon M340 or M580 series I/O hardware?

A: No. The internal pin configuration and mechanical guide rails match only the standard Modicon Quantum physical parameters. It does not possess mechanical or electrical cross-compatibility with the platform architectures of the M340 or M580 lines.

Q: Does this passive backplane require independent external firmware flash compatibility validation?

A: No. The backplane contains no programmable logic controllers or flash memory chips. It operates as a passive electrical bus routing panel, meaning its hardware parameters remain unaffected by external processor or I/O module firmware revisions.

Field Installation Guidelines

Isolate all primary and secondary power sources leading to the enclosure panel before mounting the backplane onto the rear enclosure frame.
Fasten the backplane structure onto a metal mounting plate using the designated screw positions, verifying that all mounting hardware is tightened completely to prevent chassis flexing.
Establish a direct low-impedance electrical path from the backplane grounding terminal to the main cabinet earth bar to ensure adequate noise rejection.
Clean the internal slot connector pins with an approved non-conductive technical solvent prior to module insertion if the unit has been in long-term storage.
Inspect the structural alignment of the module locking levers during insertion to avoid physical pin deformation inside the backplane receptacle.
