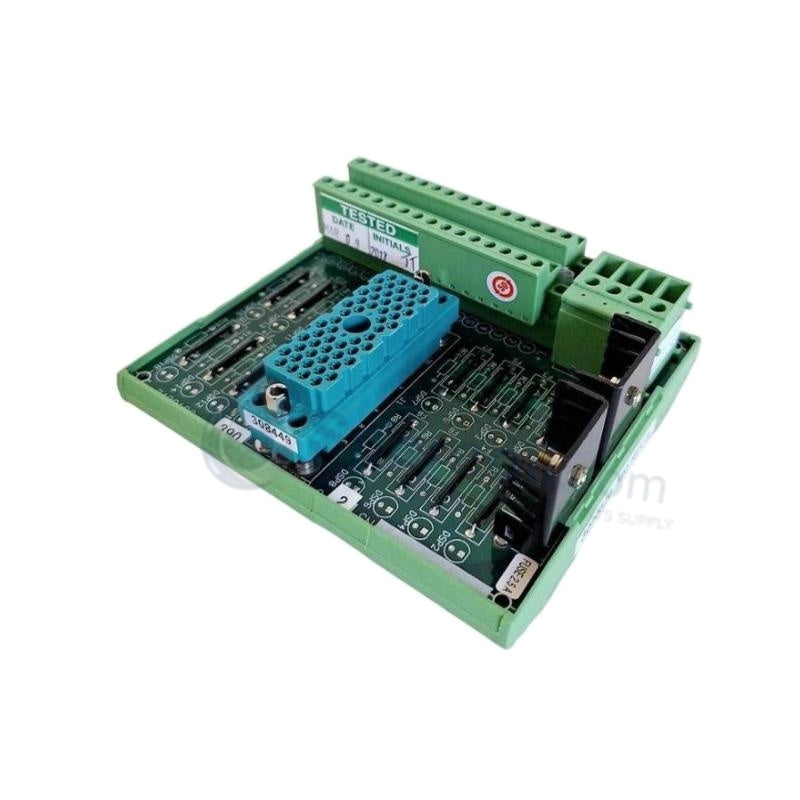

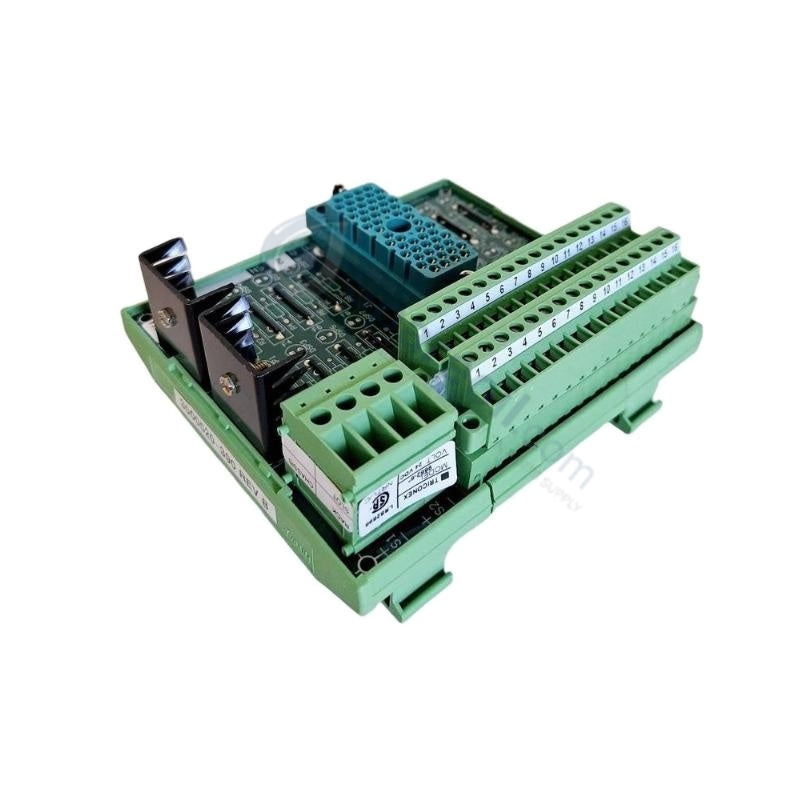

3000520-390 Triconex Termination Board

3000520-390 Triconex Safety System Interface Termination Board

3000520-390 Triconex Safety System Interface Termination Board

Availability: 10 left in stock

Triconex 3000520-390 Termination Board Configured for secure signal distribution, conditioning, and isolation between I/O modules and field devices in Tricon...

SKU: 3000520-390

Manufacturer: Triconex
Product No.: 3000520-390
Product Type: Terminal Panel Assemblies
Product Origin: USA
Payment:T/T, Western Union
Weight: 1840g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Triconex 3000520-390 Termination Board

Configured for secure signal distribution, conditioning, and isolation between I/O modules and field devices in Tricon and Trident SIS platforms, the Triconex 3000520-390 (3000520-390 Terminal Panel / Interface Module) provides direct physical/electrical execution. This assembly, also designated under cross-reference code 9662-6, routes field signals directly to execution cores through high-density connection pins without processing degradation.

Hardware Specifications

Parameter	Specification
Model	3000520-390 (Revision: Rev B)
Brand	Triconex (Schneider Electric)
Origin	China
Weight	1.84 kg
Dimensions	160 mm x 40 mm x 230 mm
Operating Temp	0 deg C to +60 deg C
Storage Temp	-40 deg C to +85 deg C
Power Consumption	Nominal 5 VDC system power; supports 24 VDC external loops
Architecture Support	Triple Modular Redundant (TMR) safety structures
Wire Gauge Supported	14-22 AWG field wiring paths
Mounting Style	DIN-rail compatible / Rack-mounted options
Safety Integrity	SIL 3 certified per IEC 61508 standards

High Reliability Safety Control (SIS) Technical Attributes

The board architecture establishes isolated physical trace routing lanes that enforce strict galvanic isolation parameters between adjacent signal paths. This structural configuration shields inner logic channels from external field voltage transients and surge distribution loops. By deploying separate termination sectors for each parallel leg, the board layout sustains full fail-safe state execution parameters and preserves triple modular redundancy (TMR) 2oo3 architecture integrity across all active analog or digital channels without letting localized hardware faults migrate into the primary safety controller backplane.

Frequently Asked Questions

Q: What are the primary hardware operational risks during live module maintenance procedures?

A: The 3000520-390 assembly does not feature internal bypass switches and is not hot-swappable; field technicians must isolate associated loops or schedule a planned system maintenance window prior to physical board extraction.

Q: How does the termination board maintain signal balance across variable 14-22 AWG field connections?

A: The onboard circuit network incorporates explicit trace tuning and decoupling nodes that suppress high-frequency line interference while maintaining precise loop impedance matching for incoming field signals.

Q: Does this hardware revision require specific grounding configurations to maintain SIL 3 certification?

A: Yes, safety integrity compliance mandates that all chassis grounding paths map directly back to a common structural earth bus bar to prevent ground potential changes from altering low-voltage differential sensor readings.

Field Installation Guidelines

Mount the termination board housing securely onto the standard DIN rail or system rack matrix, verifying that the locking tab mechanisms engage completely to prevent vibration-induced contact failure. Establish a direct, low-resistance connection between the hardware earth terminal and the main cabinet copper grounding bar using standard industrial bonding practices.

Installation technicians must separate all low-voltage signal wires and multi-core safety loops from high-voltage AC utility distribution cables, routing them through independent grounded metallic conduits. Terminate field wires within the designated 14-22 AWG range, ensuring that terminal screws are properly tensioned to maintain continuous contact pressure. Confirm that local enclosure ventilation balances environmental thermal variables to keep surrounding operational parameters within the required 0 deg C to +60 deg C scope before applying live power to the distribution paths.
