Product Overview The Yokogawa ADV151-P10 Style S2 serves as a high-density digital signal acquisition interface for CENTUM VP and ProSafe-RS Distributed Control Systems (DCS). This module...

SKU: ADV151-P10

Manufacturer: Yokogawa
Product No.: ADV151-P10
Product Type: Digital Input Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 650g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

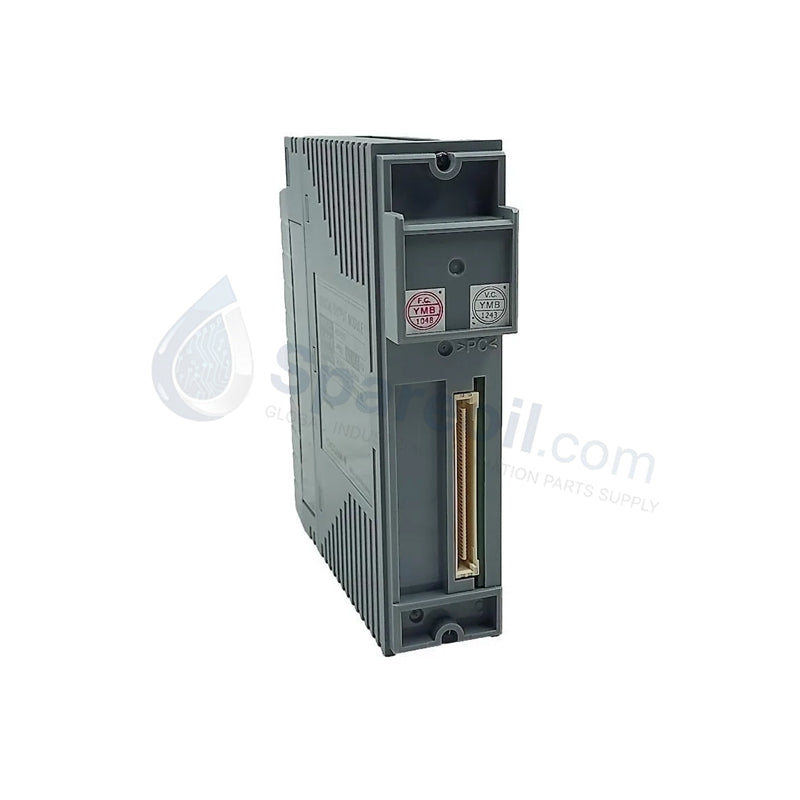

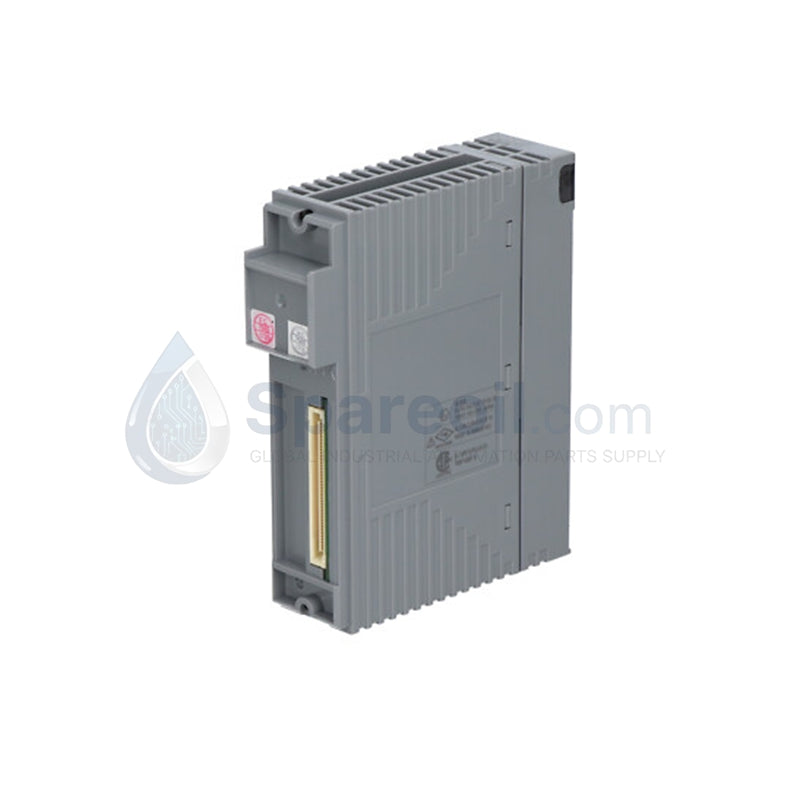

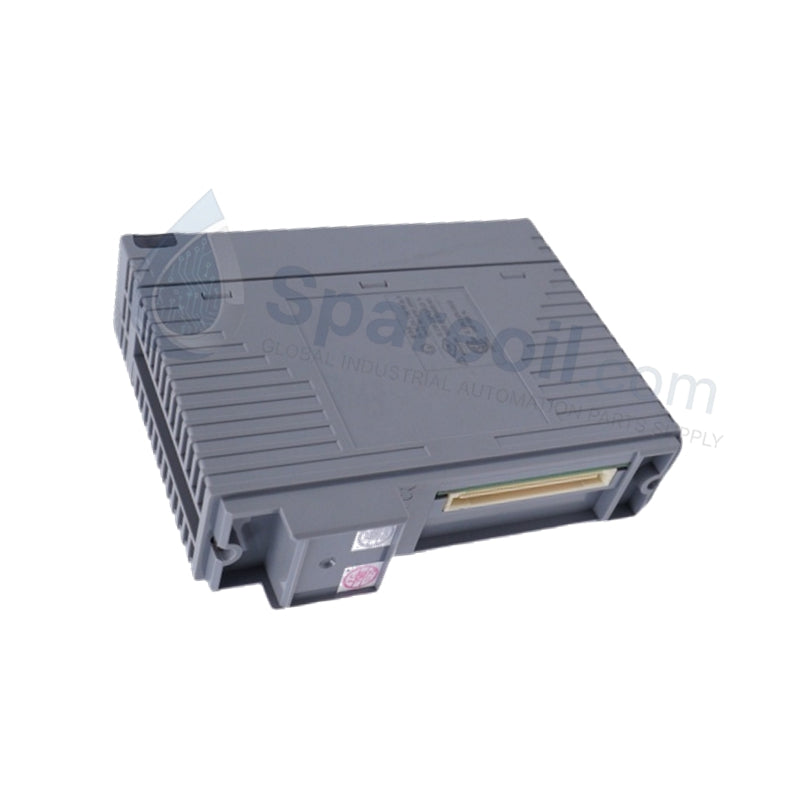

The Yokogawa ADV151-P10 Style S2 serves as a high-density digital signal acquisition interface for CENTUM VP and ProSafe-RS Distributed Control Systems (DCS). This module monitors 32 independent channels, capturing status data from limit switches, push buttons, and interlock contacts. As an FIO (Field I/O) component, the ADV151-P10 converts field-side 24V DC signals into reliable digital data. This specific configuration often pairs with the ATD5A-00 S1 KS Cable Interface Adapter to facilitate streamlined cabinet wiring and high-integrity signal transmission.

Condition: 100% Brand New, Factory Sealed Original.

Part Number Breakdown: ADV151 Series

Yokogawa utilizes suffix codes to define the hardware interface and environmental specifications for the ADV151 series.

ADV151: Digital Input Module (32-channel, 24 V DC, Isolated).
-P: Features pushbutton input for localized hardware diagnostics.
1: Basic hardware type revision.
0: Standard version without status display / No explosion protection.
Style S2: Hardware Style 2; signifies the updated hardware baseline for improved component longevity.
ATD5A-00: KS Cable Interface Adapter (Used for 32-channel digital signals).

Technical Specifications

The ADV151-P10 balances massive channel density with sub-millisecond response times.

Parameter	Specification
Number of Channels	32 (Individually Isolated)
Input Signal Type	24 V DC (Dry Contact/Typical)
Input Current	Approx. 7 mA per channel
Response Time	< 1 ms (High-speed capture)
Isolation Strength	Channel-to-channel and Channel-to-system
Status Indicators	LED indicators per channel (Internal/Interface)
Operating Temperature	0°C to +50°C
Storage Temperature	-20°C to +70°C
Dimensions	130 × 107.5 × 32.8 mm
Shipping Weight	2.0 kg (Including Adapter)

Engineering Advantages

Maximized Cabinet Density: The 32-channel design allows engineers to monitor an extensive array of field devices using only a single slot on the FIO backplane. This footprint reduction significantly lowers the cost per point and minimizes the total number of required Field Control Units (FCUs).
High-Speed Logic Execution: With a response time under 1 ms, this module catches transient status changes that standard I/O might miss. This speed proves critical for high-speed interlock sequences and machine state monitoring.
Total Signal Isolation: The module provides robust isolation between each channel and from the system bus. This architecture prevents electrical noise, surges, or ground loops from migrating across the backplane, ensuring that a fault on one field device does not compromise the entire I/O nest.
Streamlined Wiring via ATD5A-00: By utilizing the ATD5A-00 KS Cable Interface Adapter, technicians connect 32 channels through a single pre-fabricated cable. This eliminates tedious point-to-point wiring, reduces the risk of human error, and accelerates the commissioning phase during plant startups.

FAQs

Q: Does the ADV151-P10 require an external power supply for field contacts?

A: Yes. You must provide a 24 V DC loop power supply to the field contacts. The module detects the approx. 7 mA current flow when the contact closes to register a digital "ON" state.

Q: What is the difference between Style S1 and Style S2?

A: Style S2 represents a hardware refresh that incorporates more modern, long-life electronic components and optimized thermal management. It remains fully backward compatible with S1 slots and software configurations.

Q: Can I hot-swap the ADV151-P10 while the process is live?

A: Yes. When configured in a dual-redundant pair, you can replace a single ADV151-P10 module without interrupting the status monitoring of the 32 inputs, provided the FIO nest supports redundancy.

Q: How does the module handle signal bouncing from mechanical switches?

A: The module incorporates internal digital filtering and high-speed processing to differentiate between valid contact closures and mechanical noise/bouncing, ensuring only clean data reaches the control logic.
