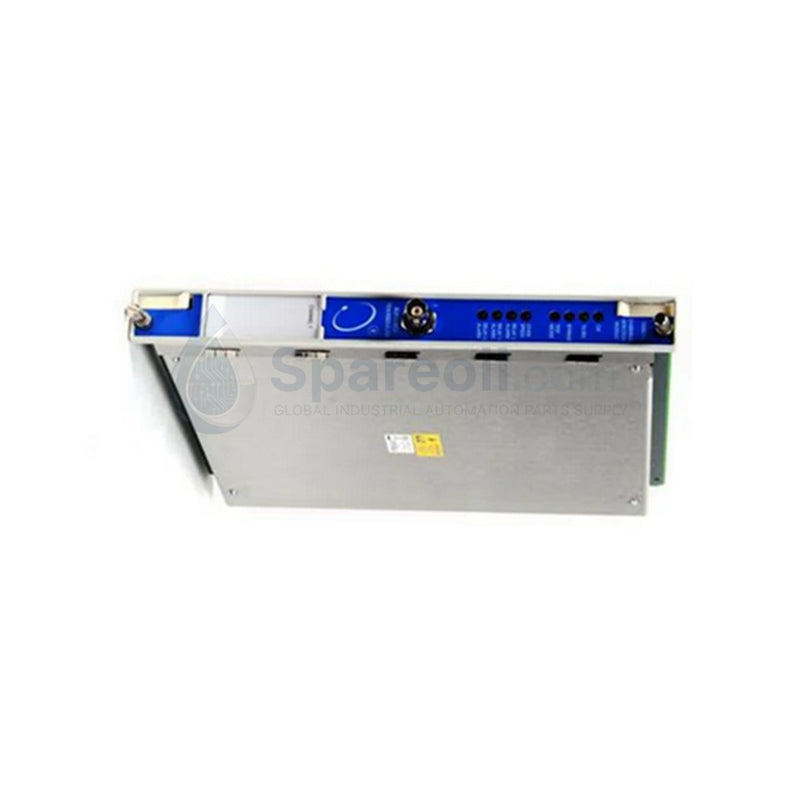

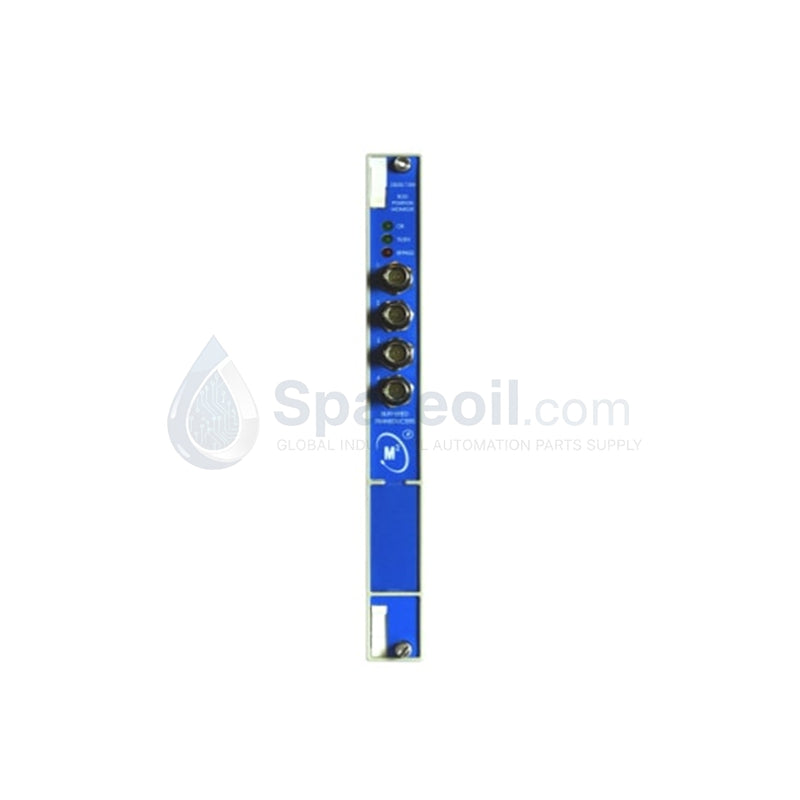

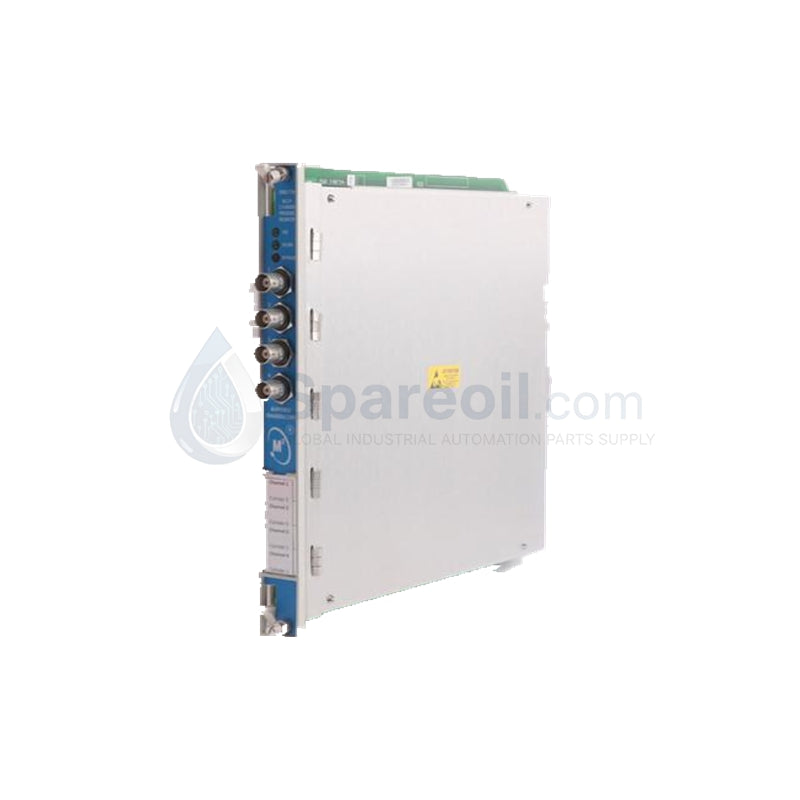

Bently Nevada 3500/72M 176449-08 Reciprocating Compressor Monitor

The Bently Nevada 176449-08, also cataloged as the 3500/72M Reciprocating Compressor Monitor, operates as a dedicated hardware component for continuous rod position and rod drop tracking within the 3500 Machinery Protection System. The module provides direct physical/electrical execution, converting linear displacement data from proximity probes into real-time metrics to monitor rider band wear on reciprocating machinery.

Hardware Specifications

Parameter	Specification
Model	3500/72M (Part Number: 176449-08)
Brand	Bently Nevada (Baker Hughes)
Origin	USA
Weight	1.13 kg (2.5 lbs)
Dimensions	25.4 cm x 12.7 cm x 7.62 cm
Operating Temp	-40 to +85 deg C
Power Consumption	Power supplied via main rack backplane; 24 VDC Nominal
Monitoring Channels	4 independent channels per module
Signal Output	0-10 VDC proportional analog output
Measurement Accuracy	Within +-1% of full-scale range
Housing Material	300-series Stainless Steel
Protection Class	IP67
Signal Conditioners	Supports Proximitor sensor inputs
Redundancy Layout	Compatible with Triple Modular Redundant (TMR) loops

Machinery Monitoring & Eddy-Current Probe Calibration

The four-channel monitor interfaces directly with external eddy-current Proximitor sensors to manage rod drop and instantaneous position tracking. The internal processing logic requires precise eddy-current probe scaling to convert the raw negative voltage feedback into physical engineering units. During commissioning, engineering steps enforce strict gap voltage validation targeting a nominal -10 VDC baseline, aligning the sensor within the linear calibration curve. This configuration suppresses signal cross-talk across adjacent cylinder lines, allowing the system to isolate true rod deflection from structural high-frequency vibration during the piston stroke.

Frequently Asked Questions

Q: Can a single 3500/72M module monitor different parameters on different channels concurrently? A: Yes. The 4 independent channels can be configured individually via the 3500 Rack Configuration Software. A single module can process rod drop measurements on channels 1 and 2 while dedicating channels 3 and 4 to instantaneous position or crosshead vibration analysis.

Q: What safety actions occur if the module loses its connection to a Proximitor sensor? A: The monitor continuously runs internal hardware diagnostics. If a field wiring open-circuit or probe failure occurs, the channel invalidates the current readings, drives the status to a NOT OK state, and inhibits the specific Alert and Danger relays to prevent a false machinery trip.

Field Installation Guidelines

Module Insertion and Fastening: Seat the 176449-08 module into its assigned chassis slot along the card guides. Push firmly until the backplane connectors seat completely, then tighten the integrated stainless steel panel screws to establish a solid ground bond to the rack frame.
Proximitor Cable Shielding: Terminate all Proximitor sensor cable shields at the designated instrumentation ground bar within the monitoring rack enclosure. Do not ground the coaxial shield at both ends to prevent creating circulating ground loops that distort the calibrated gap voltage.
Cable Routing Constraints: Run all sensor transducer extensions inside dedicated, grounded metal conduits. Ensure these lines do not run parallel to heavy AC power wiring or variable speed drive conductors to prevent electromagnetic noise injection into the low-voltage probe lines.
IP67 Seal Verification: To maintain the IP67 protection class rating in environments with humidity or dust, ensure that all mating connectors are fully torqued and that the stainless steel outer gasket seals tightly against the rear panel faceplate.
