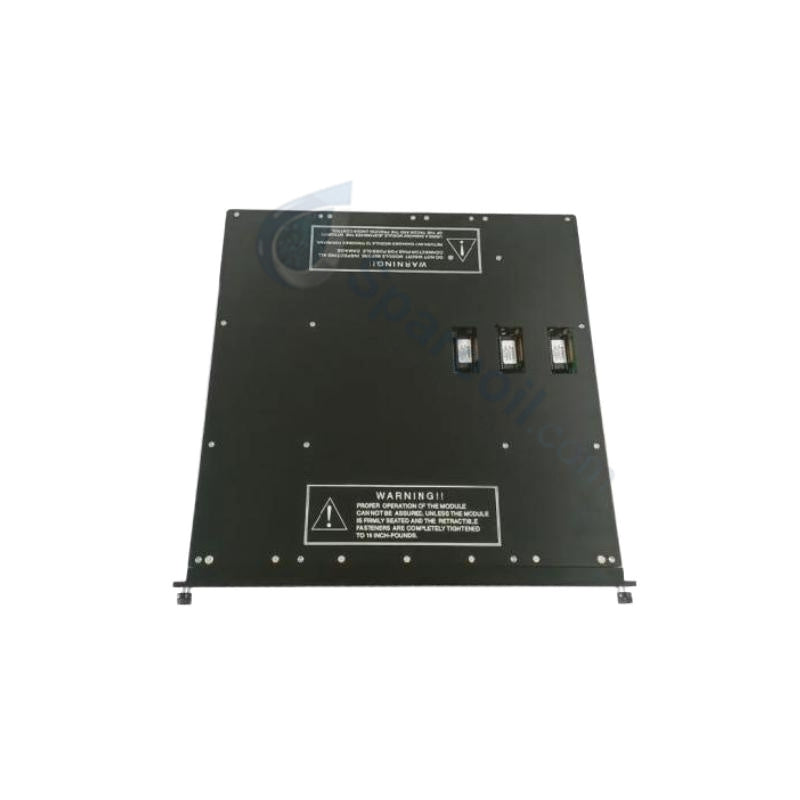

Triconex 3603T Digital Output Module
The Triconex 3603T, also cataloged as the 3603T Digital Output Module, operates as a dedicated hardware component for high-speed digital signal execution within Tricon safety system networks. The module provides direct electrical commands to field actuators, relays, and solenoids via 16 isolated digital output channels. Operating with an output rating of 0.8 A per channel at a nominal 120 VDC voltage level, the hardware maintains a response latency of less than or equal to 2 ms to enforce safe state transitions across external loops.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 3603T |
| Brand | Triconex (Schneider Electric) |
| Origin | United States |
| Weight | 2.2-3.0 kg |
| Dimensions | 420 x 210 x 40 mm |
| Operating Temp | -40 to +70 deg C |
| Power Consumption | Not Specified |
| Operating Voltage | 120 VDC (0.8 A per channel) |
| Number of Channels | 16 Isolated Channels |
| Switching Frequency | Up to 20 kHz |
| Response Time | Less than or equal to 2 ms |
| Enclosure Rating | IP65 |
Triple Modular Redundancy (TMR) 2oo3 Architecture
The hardware incorporates a fault-tolerant distribution path utilizing parallel triplicated internal lines routed through quad output voting circuits. Every logic instruction generated by the main processing units undergoes physical vote validation before shifting the final output state. If a single channel component path degrades or breaks down, the redundant output matrix absorbs the load variance instantly to prevent accidental loop failure or unscheduled process termination. This architecture guarantees strict adherence to SIL 3 execution mandates by continuously verifying load continuity and driving circuits through internal diagnostic subroutines.
Frequently Asked Questions
Q: What are the primary rules regarding the online replacement or hot-swapping of the 3603T module?
A: Technicians can hot-swap the module online while the rest of the safety system remains fully active. The operator must install the replacement module into the corresponding slot, allowing the system to run internal diagnostic checks and cross-verify the quad output voting pathways prior to assigning execution control.
Q: How does the module prevent electrical faults on one channel from corrupting adjacent outputs?
A: The board design implements physical electrical isolation fields between all 16 digital output channels. This structure limits transient voltage spikes, field faults, and channel cross-talk, keeping them isolated to the damaged loop.
Q: What electrical limits govern the off-state leakage current and on-state voltage drop?
A: The module maintains an off-state leakage current profile below 2.5 mA to prevent high-impedance field loads from remaining energized. During active execution, the internal on-state voltage drop remains below 3 VDC across the switching path.
Field Installation Guidelines
- Mount the module securely inside the designated rack framework, taking care to align the rear multi-pin pinout block with the backplane connectors.
- Verify that the total loop current demand does not exceed 0.8 A per individual channel when activating inductive components like solenoids or relays at 120 VDC.
- Install external flyback diodes or surge suppression blocks across inductive field loads to diminish voltage transients during high-frequency switching operations up to 20 kHz.
- Route all 120 VDC output signal conductors through dedicated wire ways to block electrical noise injection into low-voltage analog loops.
- Connect the enclosure earth grounding terminal directly to the safety instrument ground grid using low-resistance copper cabling.
