3636R Triconex Tricon 3000 Series Relay Output Module

Availability: 10 left in stock

TRICONEX 3636R Relay Output Module Configured for providing fault-tolerant relay outputs to drive actuators such as valves, pumps, alarms, and...

SKU: 3636R

Manufacturer: Triconex
Product No.: 3636R
Product Type: Relay Output Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 1500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

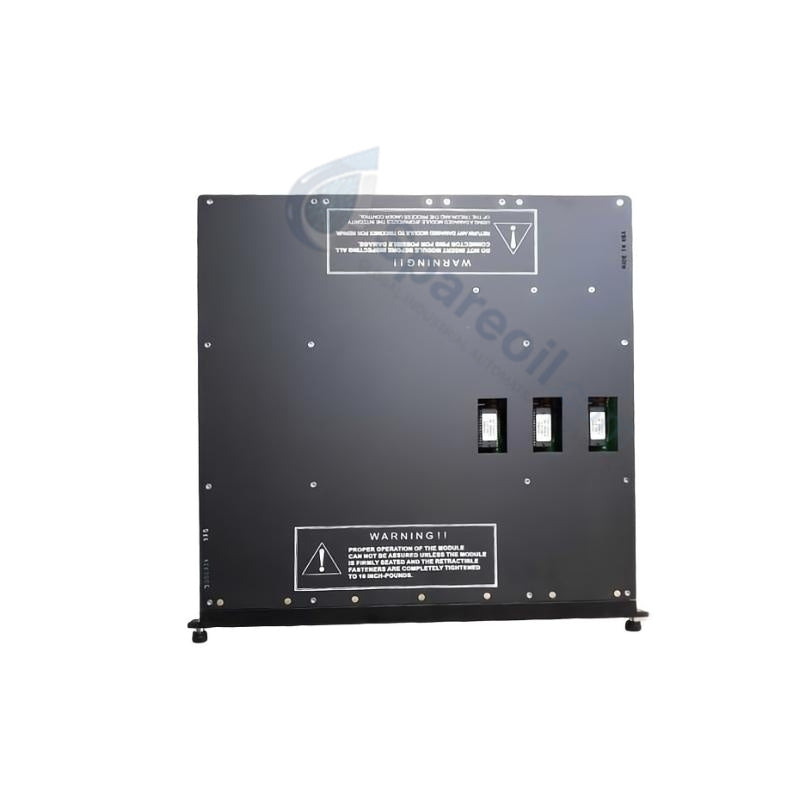

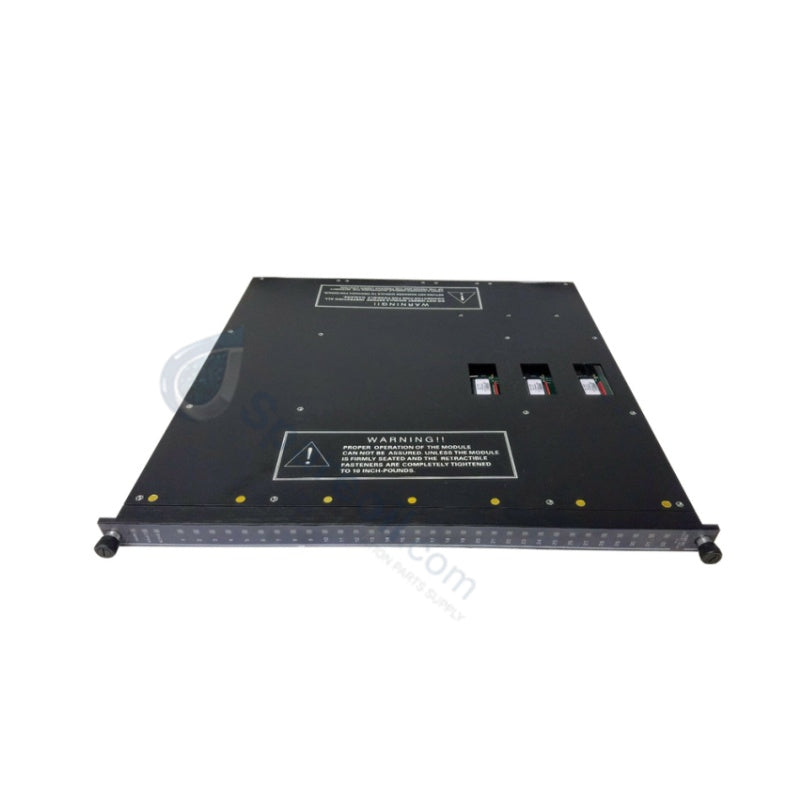

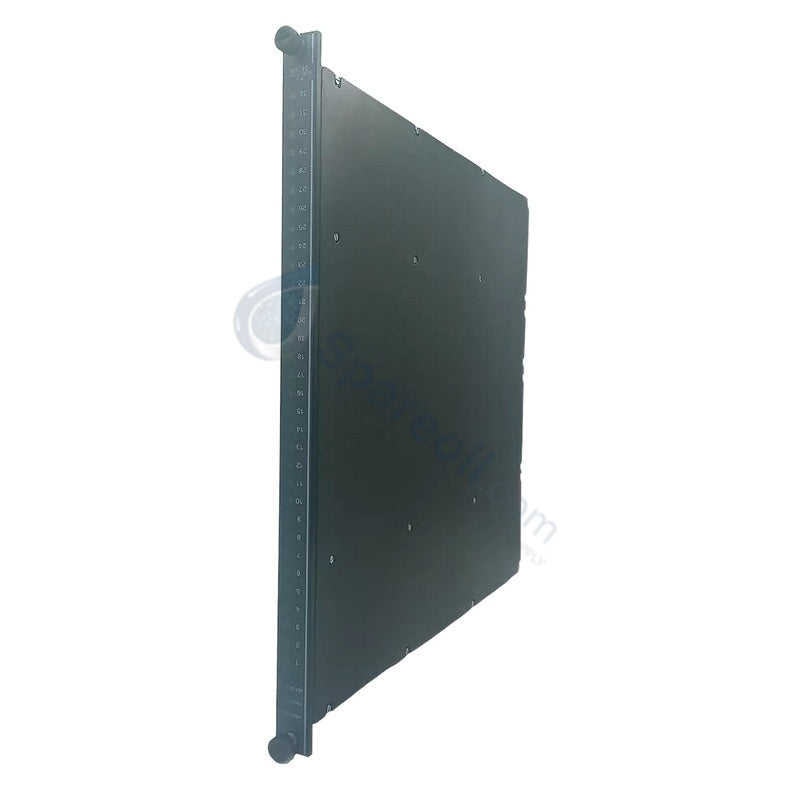

TRICONEX 3636R Relay Output Module

Configured for providing fault-tolerant relay outputs to drive actuators such as valves, pumps, alarms, and trip relays in Tricon 3000 Series SIS racks, the TRICONEX 3636R (TRICONEX 3636R Relay Output Module) provides direct physical/electrical execution. This hardware subassembly transforms system command logic into binary contact states across isolated electrical paths. The module manages electrical power switching to field components via integrated mechanical relay matrices.

Hardware Specifications

Parameter	Specification
Model	3636R
Brand	TRICONEX (Schneider Electric)
Origin	USA
Weight	1.5 kg (Shipping weight 2.0 kg to 4.0 kg)
Dimensions	177.8 mm x 101.6 mm x 228.6 mm
Operating Temp	-20 deg C to +60 deg C
Power Consumption	~6 W typical @ 5 VDC, 24 VDC backplane powered
Output Channels	32 isolated relay outputs (Non-commoned)
Voltage Range	125 VAC/VDC maximum (Data variation: up to 250 VAC / 30 VDC)
Current Load	2 A maximum resistive per channel
Minimum Permissible Load	10 mA @ 5 VDC
Response Time	Less than or equal to 10 ms
Isolation Rating	1500 VDC channel-to-backplane, 2.5 kV RMS channel-to-channel
Safety Certification	IEC 61508 SIL3, IEC 61511, UL Class I Div 2, ATEX Zone 2

Triple Modular Redundancy & Fail-Safe State Execution

The hardware uses a Triple Modular Redundancy (TMR) architecture with integrated voting logic to enforce systematic fail-safe state execution. Three fully distinct internal execution branches receive parallel digital output data across the TriBus backplane. The module translates this data through independent coils to drive a series of internal relay contacts configured in a hardware-based voting matrix. If a fault causes one execution branch to drift from the parallel status, the redundant paths ensure correct state continuity at the terminal block. Galvanic isolation up to 2.5 kV RMS between distinct channels prevents electrical anomalies from propagating across the module circuitry, forcing a predictable de-energized or safe position if internal diagnostic thresholds drop below minimum criteria.

Frequently Asked Questions

Q: How do the built-in diagnostics evaluate individual channel health during active field operations?

A: The module runs continuous, non-disruptive per-channel monitoring circuits that check coil continuity and contact position health. If a discrepancy occurs between the intended TMR state and the physical relay feedback, the module lights the local FAULT LED indicator and reports the channel variance to the system controller logs.

Q: What are the parameters for executing an online hot-swap without causing accidental contact actuation?

A: Online hot-swap is supported directly within the chassis rack. Before extraction, verify that the adjacent or redundant module slot has taken over control. The physical backplane connectors allow live module removal and insertion without disrupting active field loop power or inducing spurious contact trips.

Field Installation Guidelines

Chassis Earth Reference: Ensure that the single-slot rack chassis installation maintains solid electrical contact with the system enclosure ground bus. Proper grounding suppresses high-frequency electromagnetic interference from altering relay coil signals.
Terminal Wiring and Isolation: Run all field output wiring through dedicated terminal blocks, verifying that non-commoned paths remain physically separated. Route external lines away from high-voltage AC cables to limit signal noise coupling.
Contact Load Protection: Verify that the maximum switching current does not exceed 2 A resistive per channel. For highly inductive or capacitive external loads, install external suppression components to prevent contact pitting and prolong mechanical lifecycle parameters.
Hazardous Area Limits: For installations requiring compliance with ATEX Zone 2 or UL Class I Div 2 standards, verify that the module enclosure remains fully secured within the environmental protective housing to maintain local ignition boundaries.
