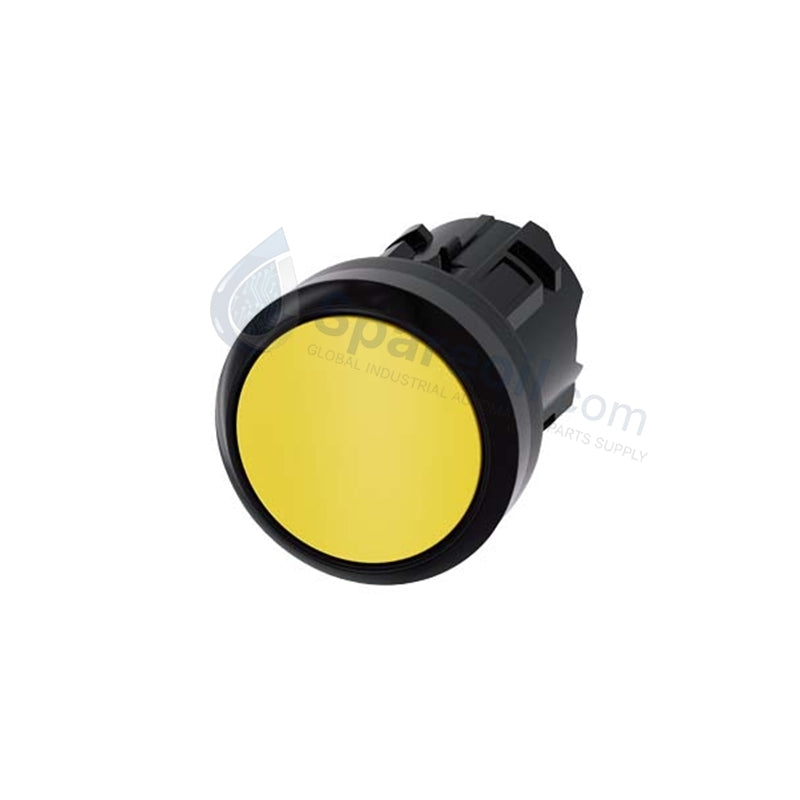

3SU1000-0AB30-0AA0 Siemens SIRIUS ACT Pushbutton

3SU1000-0AB30-0AA0 Siemens SIRIUS ACT Pushbutton | New & Original Stock

Availability: 99 left in stock

Siemens 3SU1000-0AB30-0AA0 SIRIUS ACT Pushbutton The Siemens 3SU1000-0AB30-0AA0, also cataloged as the 3SU1000-0AB30-0AA0 Actuating/Signaling Element, operates as a dedicated hardware...

SKU: 3SU1000-0AB30-0AA0

Manufacturer: Siemens
Product No.: 3SU1000-0AB30-0AA0
Product Type: Actuating Signaling Elements
Product Origin: Germany
Payment:T/T, Western Union
Weight: 15g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Siemens 3SU1000-0AB30-0AA0 SIRIUS ACT Pushbutton

The Siemens 3SU1000-0AB30-0AA0, also cataloged as the 3SU1000-0AB30-0AA0 Actuating/Signaling Element, operates as a dedicated hardware component for discrete operator interface inputs within SIRIUS ACT network platforms.

Hardware Specifications

Parameter	Specification
Model	3SU1000-0AB30-0AA0
Brand	Siemens
Origin	Germany
Weight	0.015 kg
Dimensions	29.5 mm x 29.5 mm x 24.3 mm (H x W x D)
Operating Temp	-25 deg C to +70 deg C
Power Consumption	Passive mechanical element (0 W net)
Mounting Diameter	22.3 mm (tolerance +0.4 mm)
Actuator Configuration	Round, flat button, momentary contact type
Protection Class	IP66, IP67, IP69K
NEMA Rating	1, 2, 3, 3R, 4, 4X, 12, 13
Mechanical Life	10,000,000 switching cycles
Maximum Frequency	3,600 operations per hour

Profinet / EtherNet/IP Deterministic Networks and Contact Block Integration

The non-illuminated actuating element establishes physical link interface inputs when coupled to backend contact modules. When integrated with SIRIUS ACT terminal interfaces, the manual contact sequences are translated across centralized I/O density scaling racks or digitized directly onto Profinet / EtherNet/IP deterministic networks via electronic module interfaces. This mechanical front-end transmits continuous status validation into the system bus without processing delays or signal line degradation.

Frequently Asked Questions

Q: Does this specific part number include the electrical contact blocks or the mounting collar?

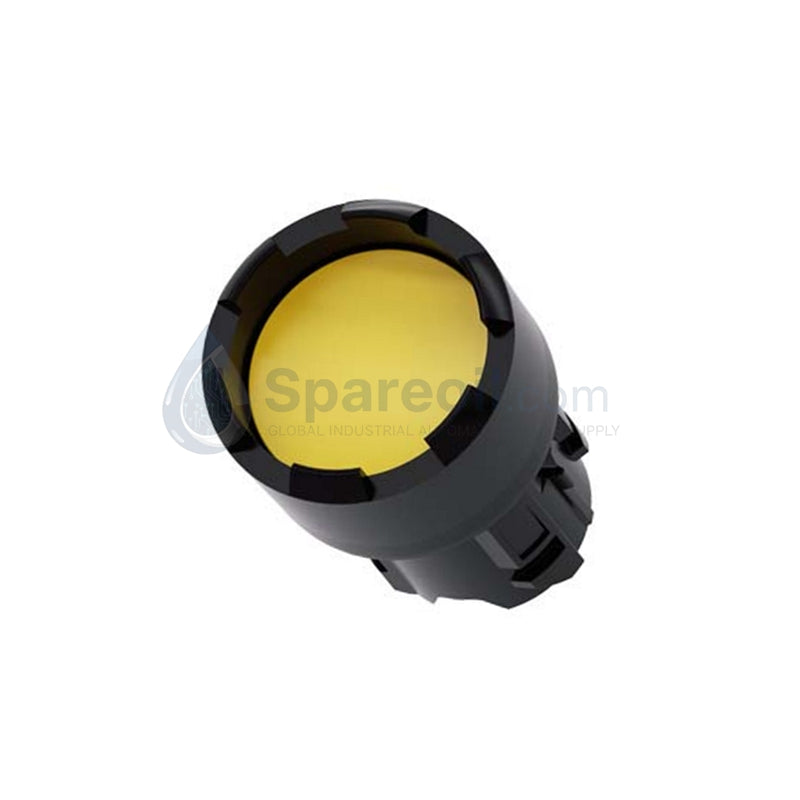

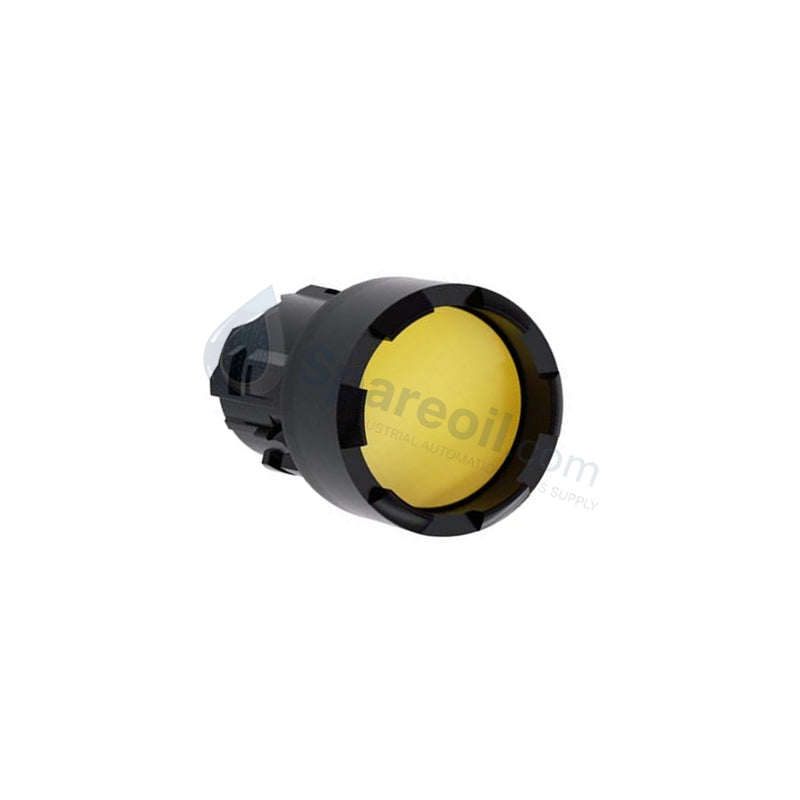

A: No. The 3SU1000-0AB30-0AA0 consists strictly of the front-panel actuating element (yellow button and black plastic front ring). Standard operations require the separate procurement of a mounting collar and the specific contact blocks needed for the electrical schematic.

Q: Can this element withstand high-pressure washdown environments during system cleaning cycles?

A: Yes. The component carries an IP69K rating, confirming that the front-facing mechanical boundaries can withstand high-pressure, high-temperature water jet applications when mounted correctly into a sealed enclosure panel.

Field Installation Guidelines

Panel Cutout Execution: Prepare a circular mounting hole measuring exactly 22.3 mm (with a maximum tolerance of +0.4 mm) through the enclosure fascia panel.
Orientation and Torque Alignment: Insert the actuator element through the front of the panel cutout, aligning the structural indexing notch with the corresponding groove before torque-locking the rear mounting collar.
Environmental Sealing Inspection: Verify that the primary integrated sealing ring sits completely flat against the front exterior sheet metal surface to prevent liquid migration into the internal wiring spaces.
