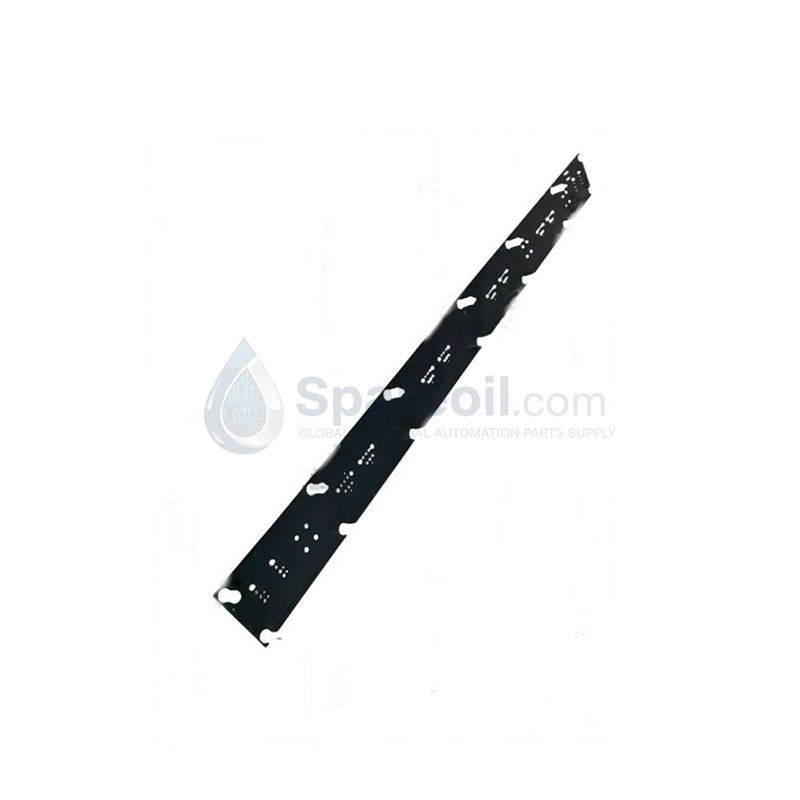

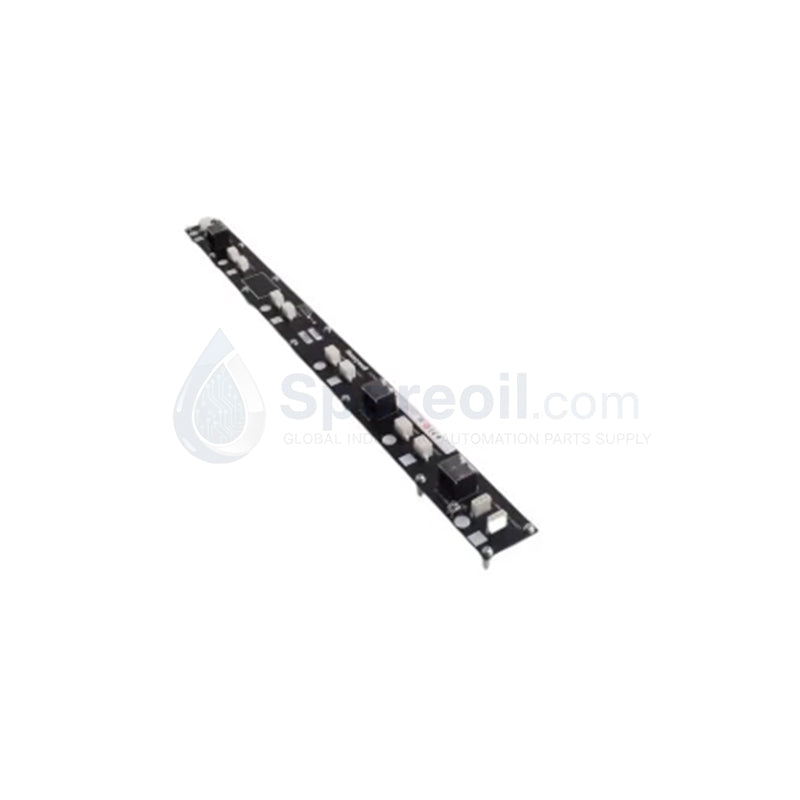

51307186-175 Honeywell Series 8 1ms Event Resolution Module

Availability: 99 left in stock

Product Overview The Honeywell 8C-SHEDA1 (Part Number: 51307186-175) serves as a high-precision Sequence of Events (SOE) interface for the Experion PKS C300 Series...

SKU: 8C-SHEDA1 51307186-175

Manufacturer: Honeywell
Product No.: 8C-SHEDA1 51307186-175
Product Type: Experion PKS Series 8
Product Origin: USA
Payment:T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Honeywell 8C-SHEDA1 (Part Number: 51307186-175) serves as a high-precision Sequence of Events (SOE) interface for the Experion PKS C300 Series 8 platform. This module monitors 32 digital input channels simultaneously, recording critical process transitions—such as turbine trips, emergency shutdowns, and interlock activations—with a 1-millisecond resolution. By providing millisecond-accurate time-stamping at the source, the 8C-SHEDA1 allows engineers to perform forensic root-cause analysis after a plant trip. We supply this unit as 100% Brand New and Original, ensuring absolute data integrity for your mission-critical monitoring systems.

Technical Specifications

Feature	Specification Details
Model Number	8C-SHEDA1
Part Number	51307186-175
Channel Density	32 Digital Input Channels
Event Resolution	1 Millisecond Time-Stamping
Input Voltage	24 VDC Typical
Isolation	Galvanic Isolation (Channel-to-System Bus)
Operating Temp	-40°C to +70°C (-40°F to +158°F)
Humidity Range	5%–95% RH, non-condensing
Hot-Swappable	Supports Online Module Replacement
Pairing Assembly	Requires 8C-THEDA1 Termination Assembly (IOTA)
Origin	USA

Engineering Advantages

Millisecond-Precision Forensics: The 8C-SHEDA1 timestamps digital status changes with 1ms resolution. This speed allows the DCS to distinguish between two events occurring almost simultaneously, which is vital for identifying the "first out" alarm in complex trip sequences.
Superior Signal Protection: Integrated galvanic isolation prevents field-side electrical surges and noise from reaching the C300 system bus. This barrier protects the core controller logic and ensures that high-voltage transients do not result in false event triggers.
Non-Stop System Availability: The module supports hot-swapping, allowing maintenance teams to replace hardware without powering down the I/O rack or interrupting the monitoring of adjacent modules.
Optimized Cabinet Footprint: Consolidating 32 high-speed channels into a single Series 8 module reduces the number of required I/O racks. This high-density design lowers overall cabinet costs and simplifies field wiring management.
Extreme Climate Resilience: Designed for unconditioned environments, the 8C-SHEDA1 maintains 100% functionality from -40°C to +70°C. This robustness ensures reliable SOE logging in remote oil & gas stations or high-heat power plant environments.

FAQs

Does the 8C-SHEDA1 require a specific I/O termination assembly?

Yes. You must pair the 8C-SHEDA1 module with the 8C-THEDA1 Termination Assembly (IOTA). The IOTA provides the physical screw terminals for field wiring and the mounting base for the module.
Can I use the 8C-SHEDA1 for standard digital inputs?

While it functions as a digital input module, its primary value is the 1ms SOE logging. If your application does not require millisecond-accurate event recording, a standard 8C-PDILA1 may be a more cost-effective alternative.
How does the "Header Board" designation (Rev E) impact compatibility?

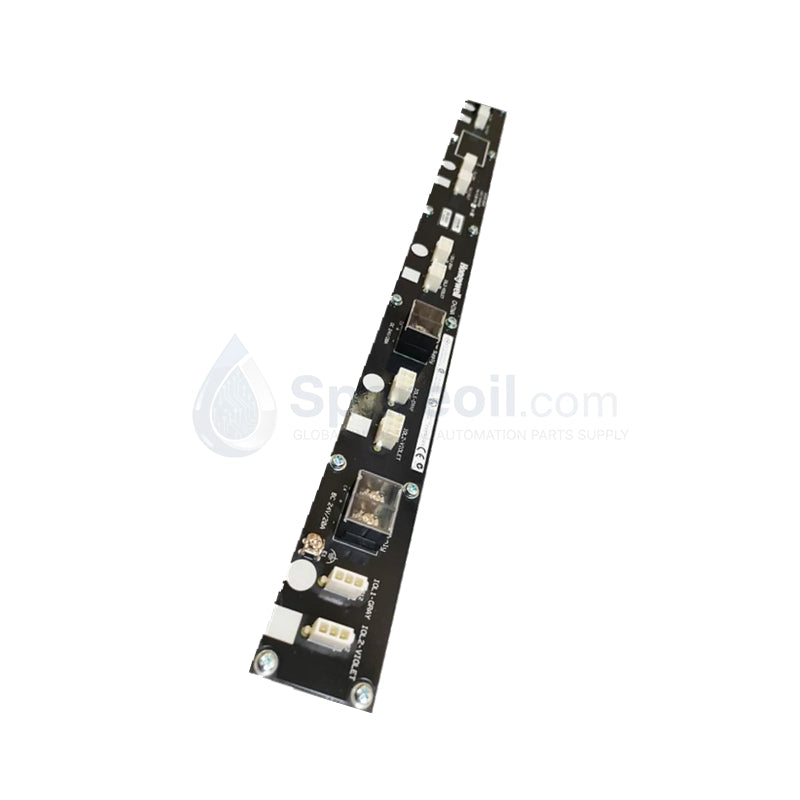

The 51307186-175 Rev E Header Board is the internal hardware revision of the 8C-SHEDA1 module. It remains fully backward compatible with Experion PKS C300 Series 8 systems designed for the SHEDA1 specification.
What is the condition and origin of this part?

We guarantee the Honeywell 8C-SHEDA1 is 100% Brand New and Original, shipping in factory-sealed Honeywell packaging. Every unit includes a comprehensive 12-month professional warranty.
