5204-DFNT-PDPM ProSoft Gateway | New & Original Stock

Availability: 99 left in stock

ProSoft 5204-DFNT-PDPM ProLinx Protocol Master Gateway Configured for high-speed bi-directional data exchange between EtherNet/IP and PROFIBUS DP networks, the ProSoft...

SKU: 5204-DFNT-PDPM

Manufacturer: PROSOFT
Product No.: 5204-DFNT-PDPM
Product Type: Protocol Gateways
Product Origin: USA
Payment:T/T, Western Union
Weight: 408g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

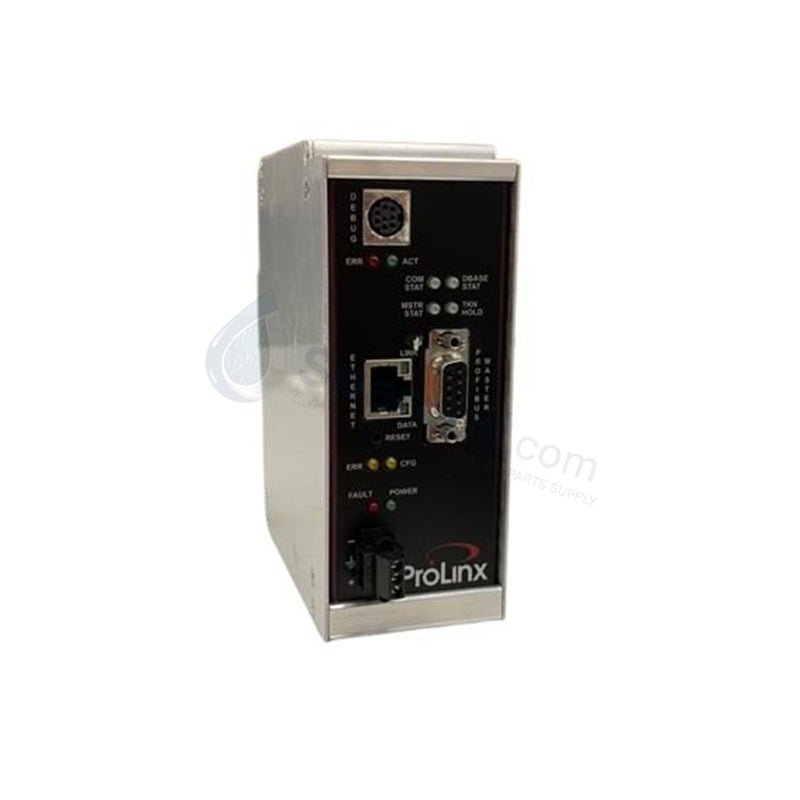

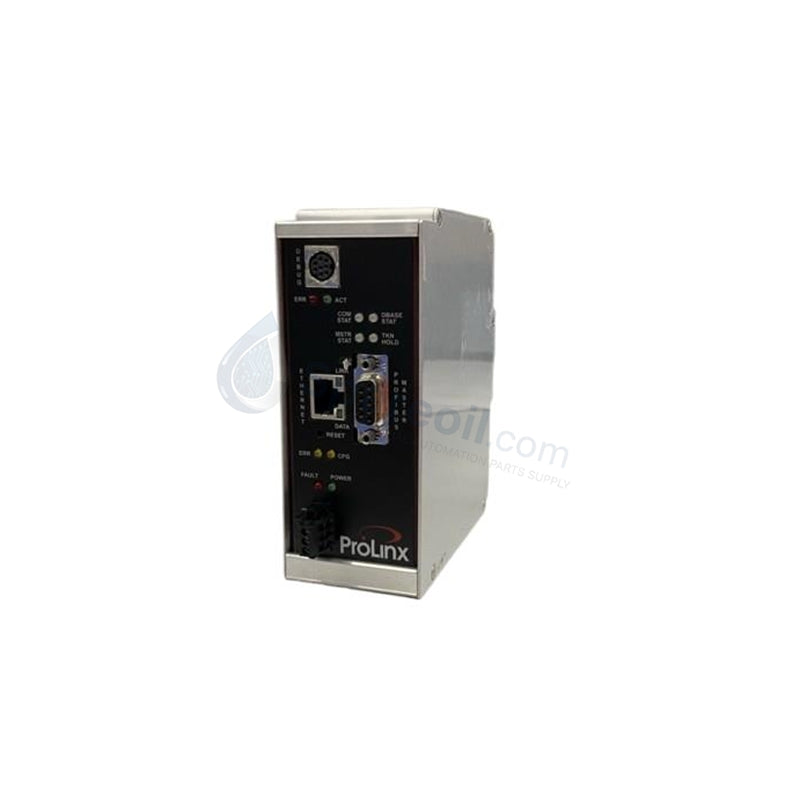

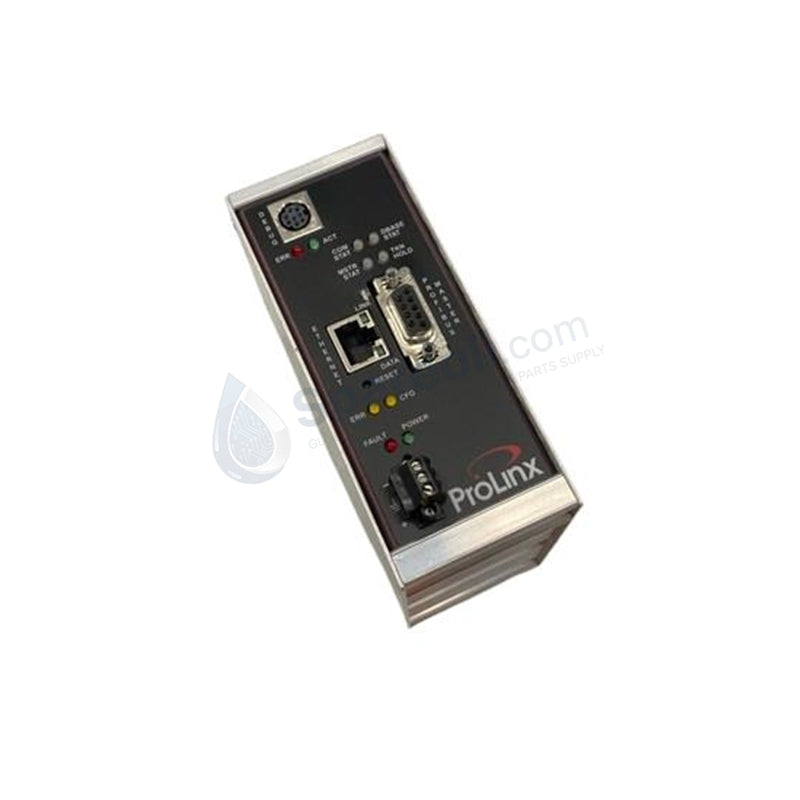

ProSoft 5204-DFNT-PDPM ProLinx Protocol Master Gateway

Configured for high-speed bi-directional data exchange between EtherNet/IP and PROFIBUS DP networks, the ProSoft 5204-DFNT-PDPM, also cataloged as the ProSoft 5204-DFNT-PDPMV1 Protocol Master Gateway, provides direct physical/electrical execution.

Hardware Specifications

Parameter	Specification
Model	5204-DFNT-PDPM (Alternative Part #: 5204-DFNT-PDPMV1)
Brand	ProSoft Technology
Origin	United States
Weight	0.90 lbs
Dimensions	Standard ProLinx compact housing
Operating Temp	Standard industrial rating (contact manufacturer for exact limits)
Power Consumption	24 VDC nominal (18 to 32 VDC allowable range)
Ethernet Port	1 x 10/100 Mbps RJ45 port
Serial Port	1 x PROFIBUS DP Master DB9 female connector
Mounting	Standard DIN-rail
Terminal Connections	2.5 mm screwdriver blade required for GND/Power terminals
Firmware Revision	Ver. 2.45 (OS 2.41)

Protocol Conversion Latencies & Network Performance

The gateway architecture optimizes protocol conversion latencies through dual-port internal memory mapping. The EtherNet/IP interface utilizes up to 5 independent TCP server sockets, executing PCCC on CIP for explicit messaging (Services 0x4C and 0x4D). Data table mapping is structured with a fixed origin at N10, processing data packets up to 1000 words.

Simultaneously, the PROFIBUS DP Master engine executes full physical and link layer management per IEC 61158. The DB9 interface supports transmission velocities up to 12 Mbps, maintaining cyclic IO scanning and DPV1 extended diagnostic messaging for up to 125 downstream slave devices. Internal propagation delay between the EtherNet/IP driver and the PROFIBUS master stack is governed by the backplane polling cycle, ensuring deterministic updates.

Frequently Asked Questions

Q: Does this gateway support hot-swapping or live extraction under load? A: No. The DC power terminal blocks and communication cables must be isolated before removing the module from the DIN-rail to prevent electrical arcing, backplane current spikes, or data corruption.

Q: Can the EtherNet/IP interface handle simultaneous read and write requests from multiple PLCs? A: Yes. The module features 5 independent TCP server sockets, allowing concurrent connections from multiple Rockwell Automation controllers (ControlLogix, CompactLogix, or SLC). However, aggregating cross-communication within the internal 1000-word memory layout requires strict index mapping to prevent data collision.

Q: What happens if a PROFIBUS slave device drops offline or encounters a fault? A: The master engine utilizes the DPV1 specification to capture extended diagnostics and alarms. This status data is mapped into the internal register structure and mirrored to the EtherNet/IP host controller via CIP services, allowing the master PLC to detect individual slave dropouts within one network cycle.

Field Installation Guidelines

Mounting and Orientation: Install the module vertically on a grounded, 35 mm steel DIN-rail. Ensure a minimum clearance of 50 mm above and below the unit to allow natural convective thermal dissipation.
Power and Grounding Architecture: Connect a regulated 24 VDC external power supply to the screw terminals using a 2.5 mm screwdriver blade. Connect the dedicated GND terminal directly to the central equipment rack ground bus using a low-impedance copper conductor.
Shielding Requirements: Use double-shielded, twisted-pair Type A PROFIBUS cable for all serial runs. Ensure the DB9 connector outer metal shell makes continuous 360-degree contact with the cable shield to suppress high-frequency EMI.
Termination: The final slave device on the PROFIBUS segment and the master gateway (if positioned at the physical end of the bus topology) must have active termination enabled via the standard DB9 terminating resistor switch.
