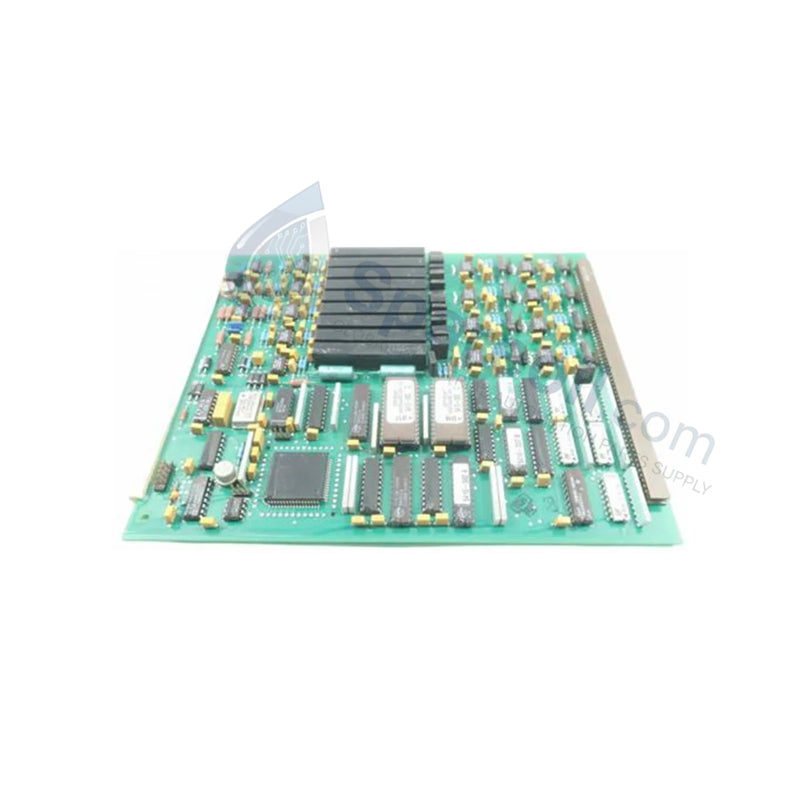

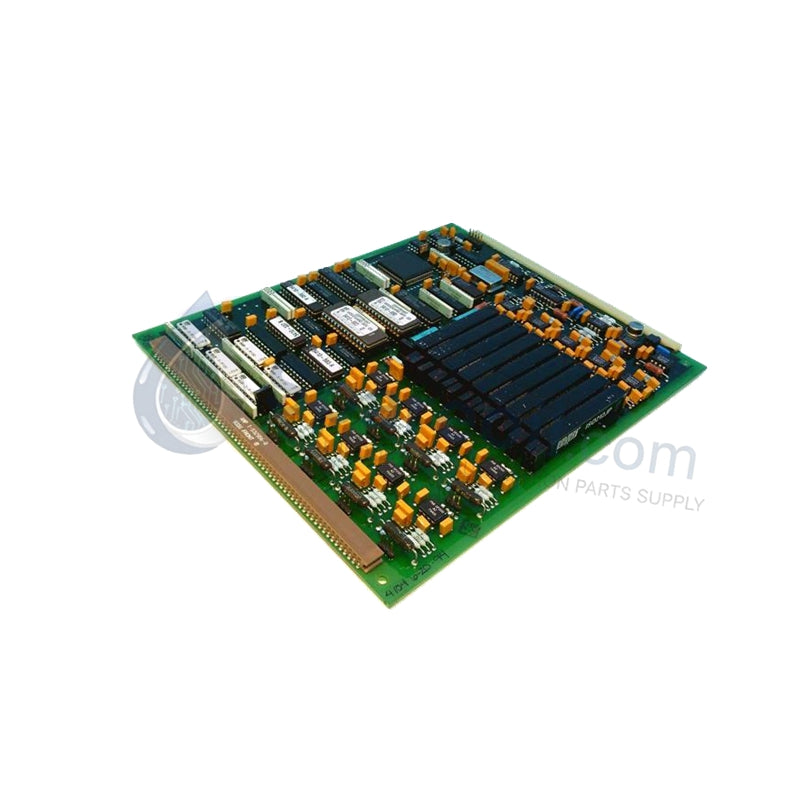

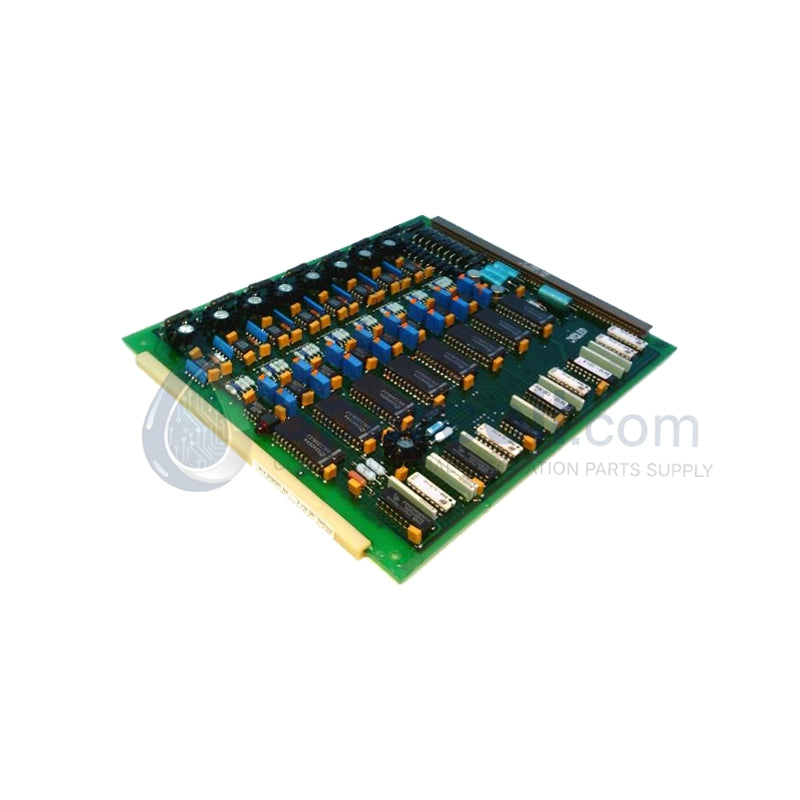

5463-581 Woodward MicroNet 8-Channel Isolated Relay Output

Availability: 10 left in stock

Product Details Product Overview The Woodward 5463-581 serves as a high-performance input module and control board within the MicroNet™ series...

SKU: 5463-581

Manufacturer: Woodward
Product No.: 5463-581
Product Type: Governor Control Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 430g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Details

Product Overview

The Woodward 5463-581 serves as a high-performance input module and control board within the MicroNet™ series ecosystem. This module executes critical governor control logic for turbines, compressors, and large-scale rotating machinery. By integrating 8 isolated channels and supporting 4-20 mA signals, it ensures precise monitoring and adjustment of mechanical velocity and load parameters. We supply this unit as 100% Brand New and original equipment to maintain the safety and efficiency of your critical infrastructure.

Technical Specifications

Attribute	Value
Model Number	5463-581
System Compatibility	Woodward MicroNet™ Series
Input Type	8-Channel Isolated 4-20 mA
Output Type	Relay Output
Primary Function	Governor Control / Input Monitoring
Power Supply	24 VDC
Indicators	Front-panel LED Status Indication
Operating Temp	0°C to +60°C
Communication	Ethernet, RS-232, RS-485
Weight	0.43 kg (0.95 lbs)

Engineering Advantages

The 5463-581 addresses the specific rigors of power generation and petrochemical environments through a hardware-centric design that prioritizes signal purity and system uptime.

Signal Isolation Integrity: The module features 8 fully isolated channels. This architecture prevents ground loops and protects the central processor from field-side electrical surges, which is essential in large-scale plants with expansive wiring runs.
Real-Time Governor Execution: Designed specifically for governor control, the board processes 4-20 mA inputs with minimal latency. This rapid response allows the system to maintain stable turbine speeds even during sudden load fluctuations.
Visual Diagnostics: Integrated LED indicators provide immediate feedback on module health and channel status. Maintenance teams can identify signal faults or power issues at a glance without connecting external diagnostic tools.
Industrial-Grade Durability: Woodward builds this module to withstand the high-vibration and thermally volatile conditions common in turbine enclosures, ensuring continuous operation where standard PLCs might fail.

FAQs

What is the primary role of the relay outputs on the 5463-581?

The integrated relay outputs allow the module to trigger hardware-level interlocks or alarms directly from the control board. This provides a secondary layer of safety and control that functions alongside the primary 4-20 mA logic.
Can I use the 5463-581 in a standard MicroNet™ rack?

Yes. The 5463-581 features a compact modular design compatible with standard Woodward MicroNet™ control racks. It interfaces seamlessly with other modules in the series via the high-speed serial bus or Ethernet.
How does this module handle electromagnetic interference (EMI)?

The 5463-581 utilizes an isolated circuit design and a shielded PC board layout. These features effectively reject EMI and noise generated by surrounding high-voltage equipment, ensuring the 4-20 mA input signals remain accurate.
Is this unit compatible with both RS-232 and RS-485?

Yes. The module supports multiple communication interfaces, including Ethernet and both RS-232/RS-485 serial protocols, allowing for flexible integration into various supervisory and data acquisition systems.
