5464-333 Woodward Module | Dual PID Speed & Load Management

Availability: 99 left in stock

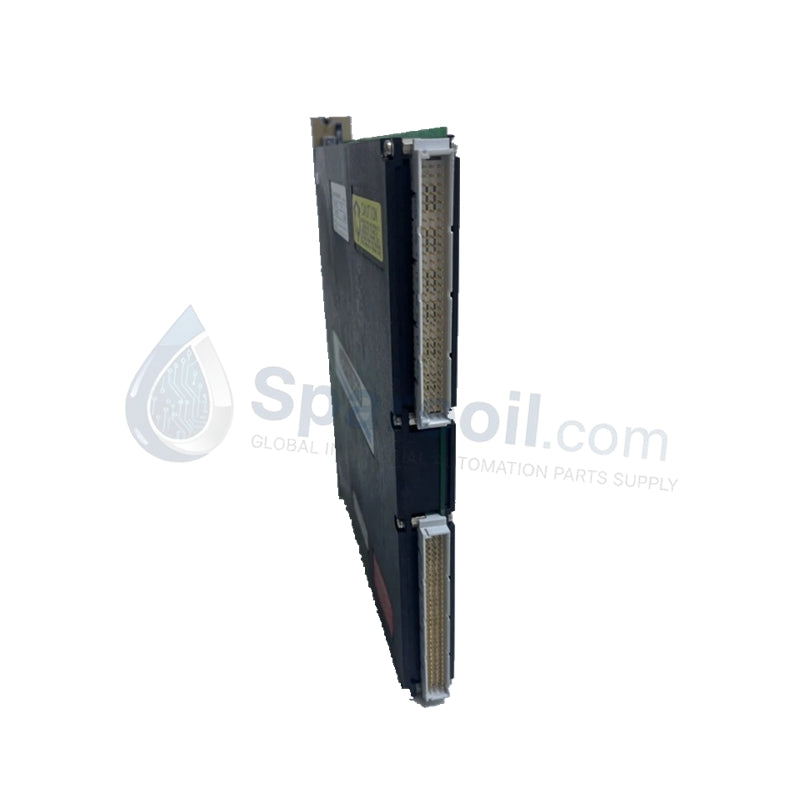

Product Overview The Woodward 5464-333 functions as the primary intelligence for high-performance prime mover control systems. As a core component of the...

SKU: 5464-333

Manufacturer: Woodward
Product No.: 5464-333
Product Type: Digital Speed Controls
Product Origin: USA
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Woodward 5464-333 functions as the primary intelligence for high-performance prime mover control systems. As a core component of the ProAct Series, this digital speed control module manages the complex operational requirements of industrial gas turbines, steam turbines, and large-bore diesel engines. It integrates isolated thermocouple (T/C) inputs with advanced 32-bit RISC processing to execute start-up sequences, synchronization, and overspeed protection. By consolidating dual independent PID loops into a single modular unit, the 5464-333 ensures stable load sharing and precise frequency regulation under volatile operating conditions.

Technical Specifications

The 5464-333 utilizes a robust I/O suite to interface with various field sensors and actuators.

Attribute	Technical Detail
Manufacturer	Woodward (USA)
Model Number	5464-333 (Rev. L)
Processor	32-bit RISC High-Speed Processor
Input Voltage	18–36 V DC (24 V DC Nominal)
I/O Configuration	2 MPU, 4 Analog (4-20mA), 8 Digital Inputs
Output Channels	4 Analog (4-20mA), 12 Digital (Relay/Transistor)
Control Logic	Dual Independent PID Loops
Response Time	< 20 ms for step load changes
Operating Temperature	-40°C to +85°C
Hazardous Certification	ATEX Zone 2, UL 508, CE

Engineering Advantages

Isolated Thermocouple (T/C) Precision: This module features high-in isolated thermocouple inputs. This hardware isolation prevents common-mode noise and ground loops from corrupting critical exhaust gas temperature (EGT) readings, which are vital for turbine life-cycle management.
Dual-Loop Stability: The independent PID loops allow for simultaneous speed and load management. This architecture prevents "hunting" during grid synchronization and ensures a smooth transition between island mode and parallel operation.
Extreme Environmental Resilience: Engineered for the heat of turbine enclosures, the 5464-333 operates in temperatures up to +85°C and resists vibrations up to 5 Grms. It eliminates the need for specialized cooling hardware in most industrial settings.
Versatile Communication Architecture: The 5464-333 supports Ethernet (Modbus TCP/IP), CANopen, and RS-485. This enables seamless data streaming to plant-wide DCS or SCADA systems for real-time performance monitoring.
Fast-Acting Protection: With a response time of less than 20 ms, the module reacts instantly to load rejections. This high-speed execution prevents overspeed events that could lead to catastrophic mechanical failure.
100% Brand New Condition: We supply only original, factory-sealed Woodward units. This guarantees the integrity of the 32-bit RISC processor and the precision of the analog-to-digital converters, ensuring your turbine operates within its designed safety margins.

FAQs

Q: Can the 5464-333 be configured for both magnetic pickups (MPU) and analog speed sensing?

A: Yes. The module supports 2 magnetic pickups (4–10,000 Hz) for direct frequency sensing and 4-20 mA analog inputs for auxiliary speed or pressure data, providing redundant sensing paths for critical safety.

Q: What software do I need to customize the control parameters?

A: You configure the 5464-333 using the ProAct Configuration Suite. This Windows-based environment allows engineers to tune PID constants, define alarm thresholds, and map I/O logic to specific turbine requirements.

Q: Is this module suitable for hazardous area installations?

A: The 5464-333 carries ATEX Zone 2 and North American Class I, Div 2 certifications. However, its IP20 rating requires installation within a protective NEMA 4 or IP54-rated industrial cabinet to ensure protection against dust and moisture.

Q: How does the "Isolated T/C" feature benefit my system?

A: High-in isolation ensures that the thermocouple signals remain accurate even in the presence of heavy electromagnetic interference (EMI) from large generators or motor starters, preventing "false trips" caused by signal noise.
