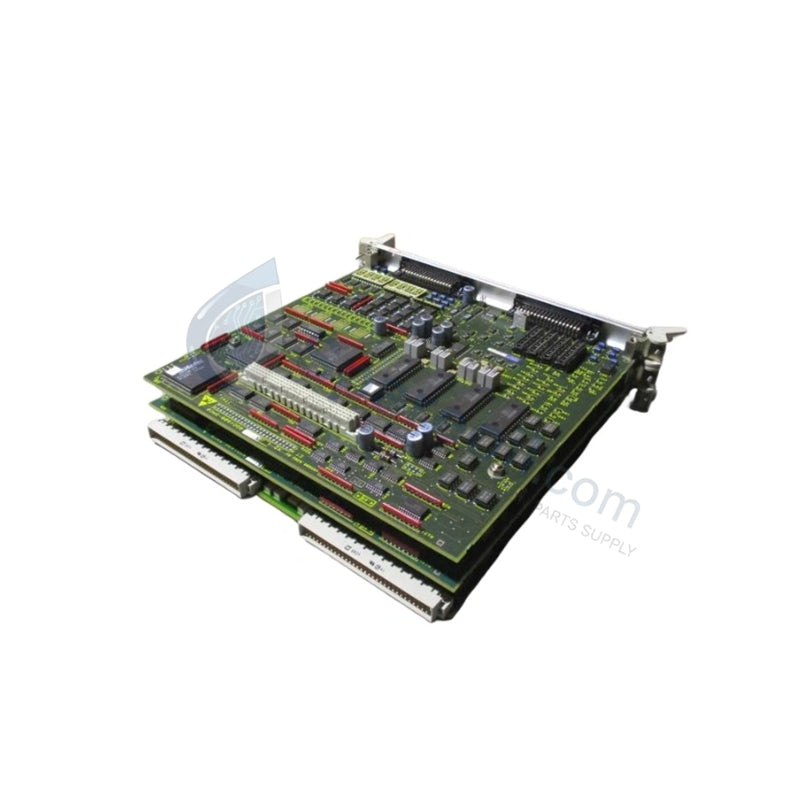

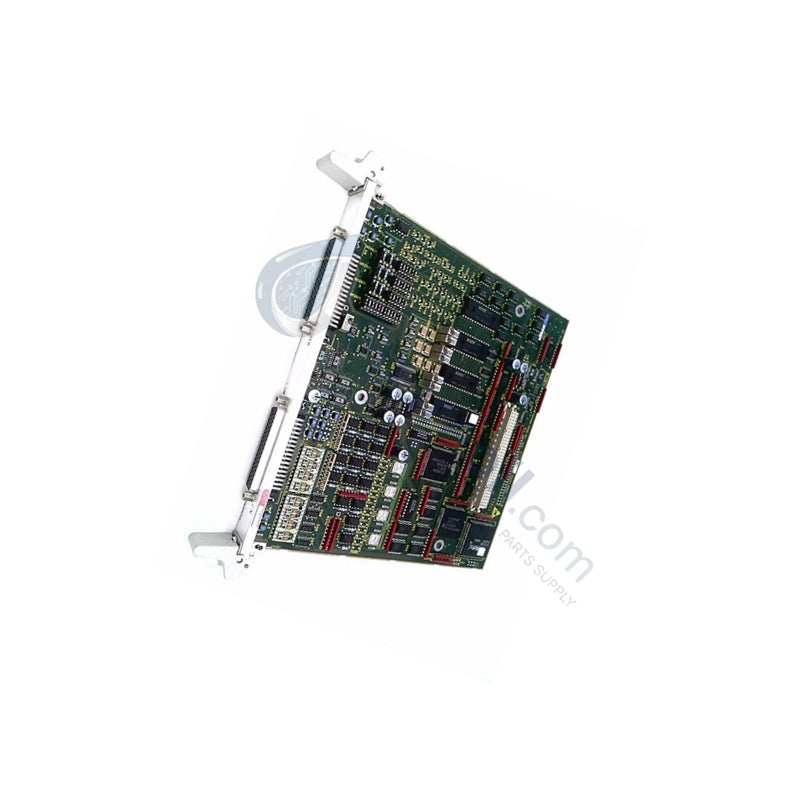

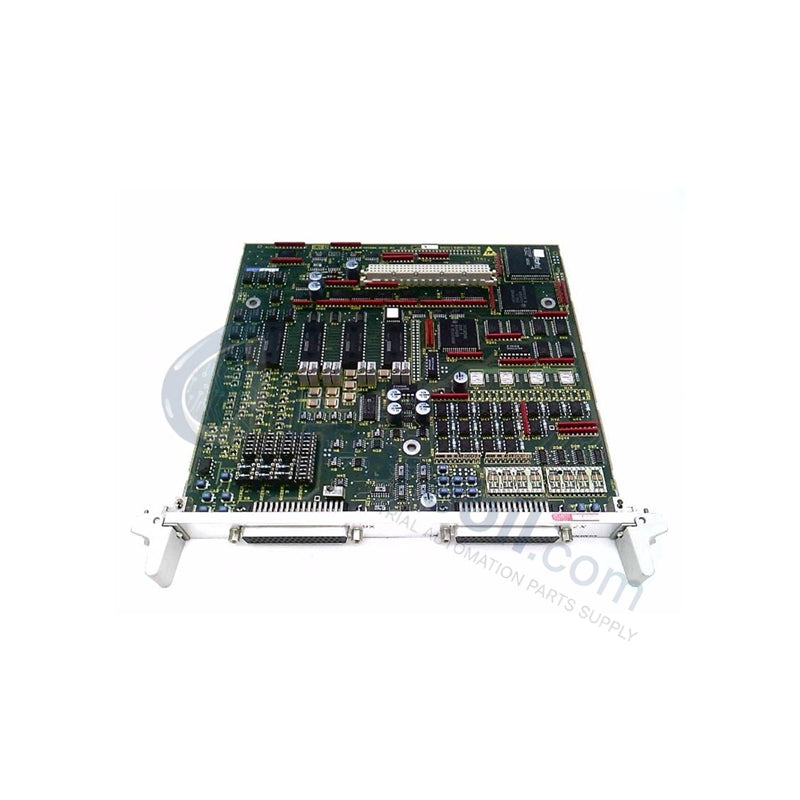

Siemens 6DD1606-3AC0 SIMADYN D Expansion Module

The Siemens 6DD1606-3AC0, also cataloged as the 6DD1606-3AC0 IT41 Expansion Module, operates as a dedicated hardware component for mixed analog, digital, and incremental encoder signal processing within SIMADYN D control platforms.

Hardware Specifications

Parameter	Specification
Model	6DD1606-3AC0
Brand	Siemens
Origin	Germany
Weight	0.42 kg (0.88 lbs)
Dimensions	26.2 cm x 25.5 cm x 2.1 cm
Operating Temp	Standard industrial limits per SIMADYN D specification
Power Consumption	Subrack backplane bus derived
Series / Module Type	SIMADYN D IT41
Digital Interfaces	16 Digital I/O channels
Analog Interfaces	4 Analog I/O channels
Encoder Interfaces	4 channels for PT incremental encoder inputs

Backplane Bus Communication Velocity and I/O Density Scaling

The 6DD1606-3AC0 integrates high-density I/O scaling directly into the parallel subrack assembly of the SIMADYN D platform. By embedding digital, analog, and high-speed incremental encoder logic onto a single physical board, the module minimizes the hardware footprint while optimizing backplane bus communication velocity. This layout supports real-time multi-axis tracking and dynamic control loops, exchanging raw signal matrices synchronously across Profinet or PROFIBUS DP deterministic networks. System operations are governed by strict parameters that maintain absolute firmware flash compatibility between the sub-module processing components and the main rack coordinator.

Frequently Asked Questions

Q: What specific encoder signals are compatible with the integrated incremental encoder inputs?

A: The onboard hardware interfaces are engineered to accept standard PT incremental encoder pulse tracks, allowing direct processing of speed and position feedback without external signal conditioning boards.

Q: Is hot-swapping permissible for the 6DD1606-3AC0 module inside the SIMADYN D rack?

A: No. The subrack infrastructure requires absolute power isolation prior to module insertion or extraction. Attempting to exchange the card under line voltage can result in damage to the internal CMOS logic and subrack backplane connectors.

Q: Are the 16 digital channels fixed or individually configurable as inputs or outputs?

A: The 16 digital channels are divided into distinct hardware sub-groups parameterized during system configuration via the software engineering tool to function as discrete inputs or outputs.

Field Installation Guidelines

Subrack Alignment: Slide the module vertically along the subrack plastic guide rails. Ensure the card is completely perpendicular to the backplane before applying firm pressure to seat the multi-pin DIN bus connectors.
Shielding for High-Speed Inputs: Terminate the shielding braids of all incremental encoder and analog signal cables directly to the enclosure functional earth (FE) bus bar using low-impedance clamps to mitigate high-frequency electrical noise.
Fastener Engagement: Secure the top and bottom integrated retention screws into the subrack chassis frame to complete the mechanical grounding loop and prevent vibration-induced displacement.
