6DD1610-0AK0 Siemens Flash Memory Module

6DD1610-0AK0 Siemens Flash Memory Module | New & Original Stock

Availability: 99 left in stock

Siemens 6DD1610-0AK0 SIMADYN D Memory Module Configured for program and data storage in SIMADYN D platforms, the Siemens 6DD1610-0AK0 (SIMADYN...

SKU: 6DD1610-0AK0

Manufacturer: Siemens
Product No.: 6DD1610-0AK0
Product Type: Flash Memory Modules
Product Origin: Germany
Payment:T/T, Western Union
Weight: 46g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

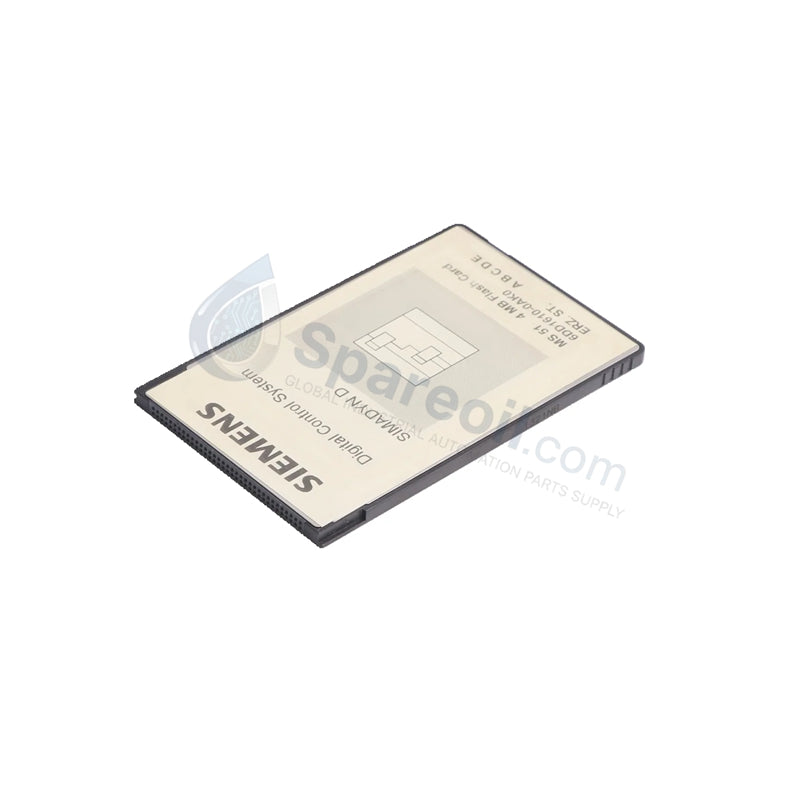

Siemens 6DD1610-0AK0 SIMADYN D Memory Module

Configured for program and data storage in SIMADYN D platforms, the Siemens 6DD1610-0AK0 (SIMADYN D MS51 Flash Memory Module) provides direct physical/electrical execution.

Hardware Specifications

Parameter	Specification
Model	6DD1610-0AK0 (MS51)
Brand	Siemens
Origin	Germany
Weight	0.046 kg (Net), 2.23 kg (Shipping package total weight)
Dimensions	22 mm x 124 mm x 126 mm (Physical card module format)
Operating Temp	0 deg C to +55 deg C (Standard industrial control room specification)
Power Consumption	Determined by host processor module bus interface
Memory Capacity	4 MB Flash-EPROM and 8 KB EEPROM
Form Factor	PCMCIA card architecture
Host Compatibility	SIMADYN D processor modules PM4, PM5, and PM6
Retention Architecture	Non-volatile solid-state memory matrix

Firmware Flash Compatibility and Host Interface Execution

The module operates via a standard PCMCIA bus interface directly linked to the processing core of SIMADYN D hardware. Firmware flash compatibility rules dictate strict adherence to the allocation protocols of the designated PM4, PM5, or PM6 processor modules. The non-volatile 4 MB Flash-EPROM architecture retains compiled user execution programs and configuration blocks across power cycles without battery buffering. Simultaneously, the 8 KB EEPROM storage segment is dedicated to volatile variable parameters, ensuring zero-latency read/write cycling during active processing tasks without data corruption risks.

Frequently Asked Questions

Q: Can this memory card be extracted from the PM module while the processor is actively executing logic?

A: No. Removing the PCMCIA card during execution disrupts the bus interface connection, resulting in a critical processor stop state or fault trap within the SIMADYN D operating system environment.

Q: What is the primary functional difference between the Flash-EPROM and EEPROM blocks on this module?

A: The 4 MB Flash-EPROM contains the system firmware image and compiled configuration task blocks, which require a full erase/write cycle during programming. The 8 KB EEPROM segment stores operational setpoints and parameter records that change dynamically during system initialization.

Field Installation Guidelines

Insertion Orientation: Align the PCMCIA card with the internal guiding tracks of the PM4, PM5, or PM6 module slot. Insert firmly until the mechanical eject mechanism engages, confirming structural lock.
Electrostatic Discharge Protection: Personnel must use a grounded ESD wrist strap before handling the 6DD1610-0AK0 to protect the exposed interface pins against static discharge damage.
Environmental Controls: The card must operate in an environment free from conductive dust, corrosive gases, and moisture condensation to maintain electrical connection continuity across the contact interface.
