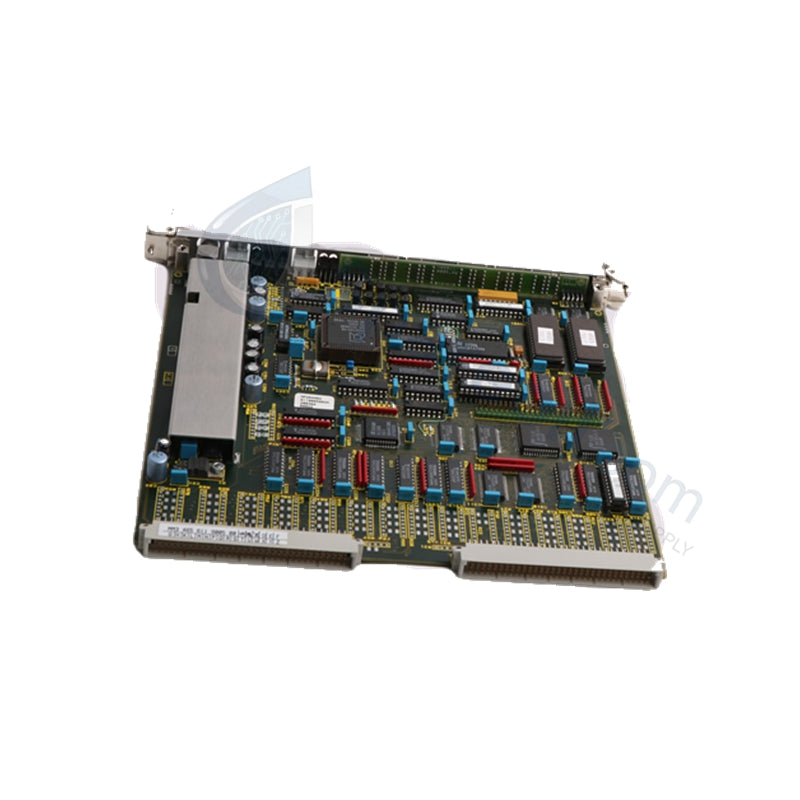

6DD1611-0AF0 Siemens Mailbox Module

6DD1611-0AF0 Siemens Mailbox Module | New & Original Stock

Availability: 99 left in stock

Siemens 6DD1611-0AF0 SIMADYN D Mailbox Module Configured for communication buffering and error signaling in SIMADYN D control racks, the Siemens...

SKU: 6DD1611-OAFO

Manufacturer: Siemens
Product No.: 6DD1611-OAFO
Product Type: Communication Buffer Modules
Product Origin: Germany
Payment:T/T, Western Union
Weight: 596g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Siemens 6DD1611-0AF0 SIMADYN D Mailbox Module

Configured for communication buffering and error signaling in SIMADYN D control racks, the Siemens 6DD1611-0AF0 (SIMADYN D MM3 Mailbox Module) provides direct physical/electrical execution.

Hardware Specifications

Parameter	Specification
Model	6DD1611-0AF0 (MM3)
Brand	Siemens
Origin	Germany
Weight	0.596 kg (Net), 0.3 kg reported in alternative shipping variations
Dimensions	25 mm x 279 mm x 279 mm (W x H x D)
Operating Temp	0 deg C to +55 deg C
Power Consumption	Logic derived from 5 V DC backplane; discrete outputs require external 24 V DC
Buffer Memory	2 x 64 KB RAM
System Bus Architecture	L-Bus and C-Bus integrated
Error Signaling Interface	Watchdog triggers, communication fault loops, power drop lines
Synchronization	Radio clock input interface
Physical Slot Allocation	Dedicated CS7 / CS8 carrier slots

Backplane Bus Communication Velocity and System Integration

The module acts as an asynchronous dual-port data buffer interfacing with standard SIMADYN D PM4, PM5, and PM6 processing boards. System communication is maintained via specific backplane bus communication velocity allocations assigned across the L-Bus and C-Bus lines. This arrangement minimizes transmission collision delays between concurrent processing subcomponents. It utilizes internal 2 x 64 KB RAM segments to prevent packet dropping during peak processing intervals while handling deterministic error interrupt generation concurrently.

Frequently Asked Questions

Q: Can the 6DD1611-0AF0 module be hot-swapped while the SIMADYN D rack is powered?

A: No. Standard SIMADYN D subracks require a total power-down before module extraction or insertion. Live insertion can induce voltage transients on the L-Bus or C-Bus lines, interrupting active host CPU execution.

Q: Is this module compatible with standard SIMATIC S7 automation systems?

A: No. The 6DD1611-0AF0 is strictly designed for the proprietary bus structure and mechanical dimensions of SIMADYN D racks and cannot be interfaced with S7-300, S7-400, or S7-1500 backplanes.

Field Installation Guidelines

Slot Restrictions: Installation is restricted to the designated CS7 or CS8 slot locations within the SIMADYN D carrier assembly to align correctly with subrack internal interconnect wiring.
Grounding Protocols: The front panel structural retention thumbscrews must be completely tightened to the rack frame to establish low-resistance grounding continuity for common-mode noise suppression.
Output Wiring Separation: Run the external 24 V DC power supply lines and discrete error signaling wires in separate physical wireways from high-voltage AC cables to minimize electromagnetic coupling risks.
