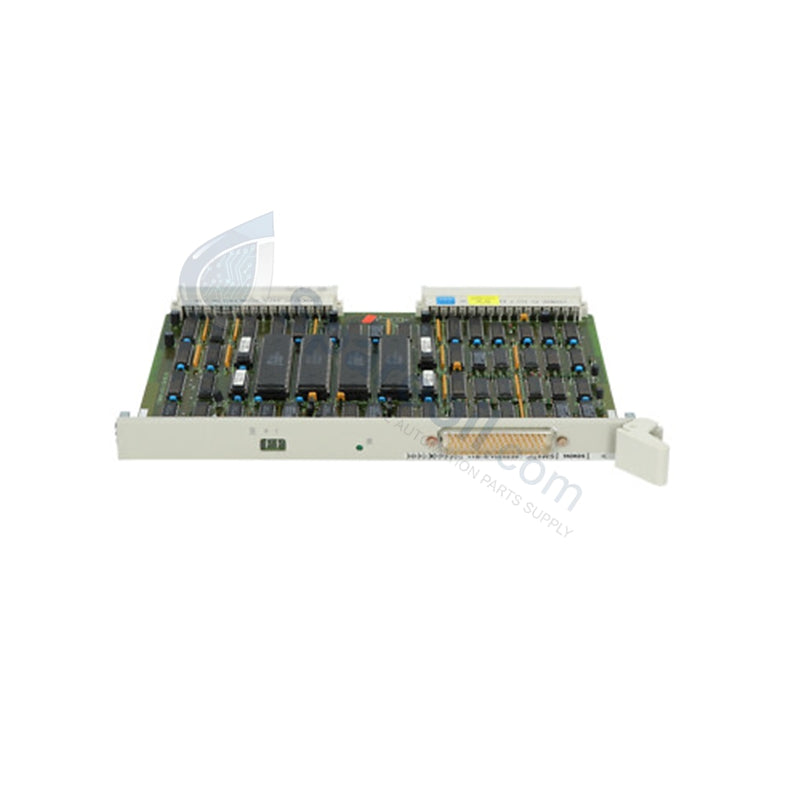

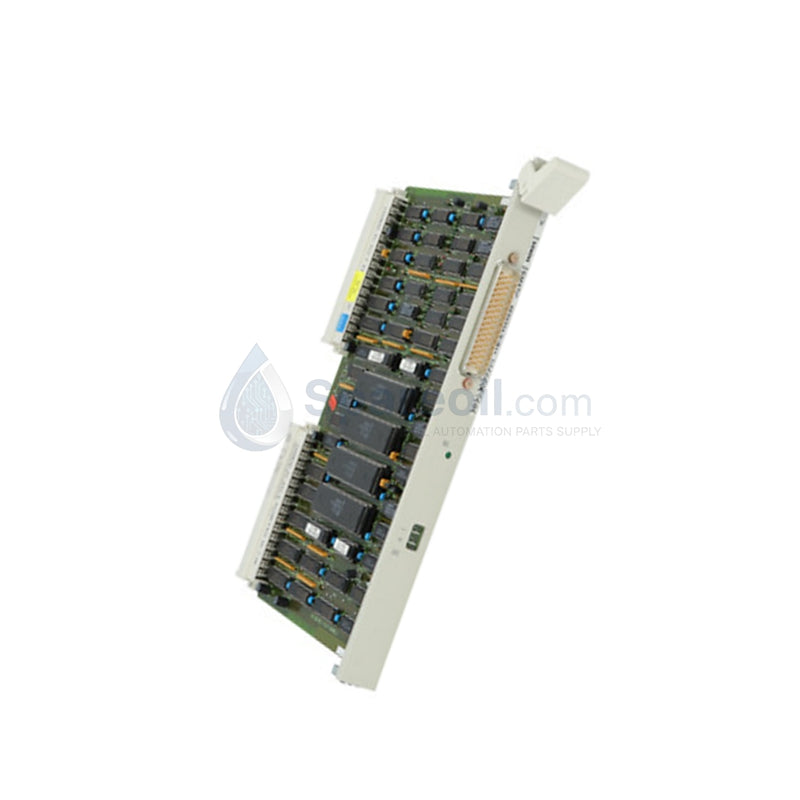

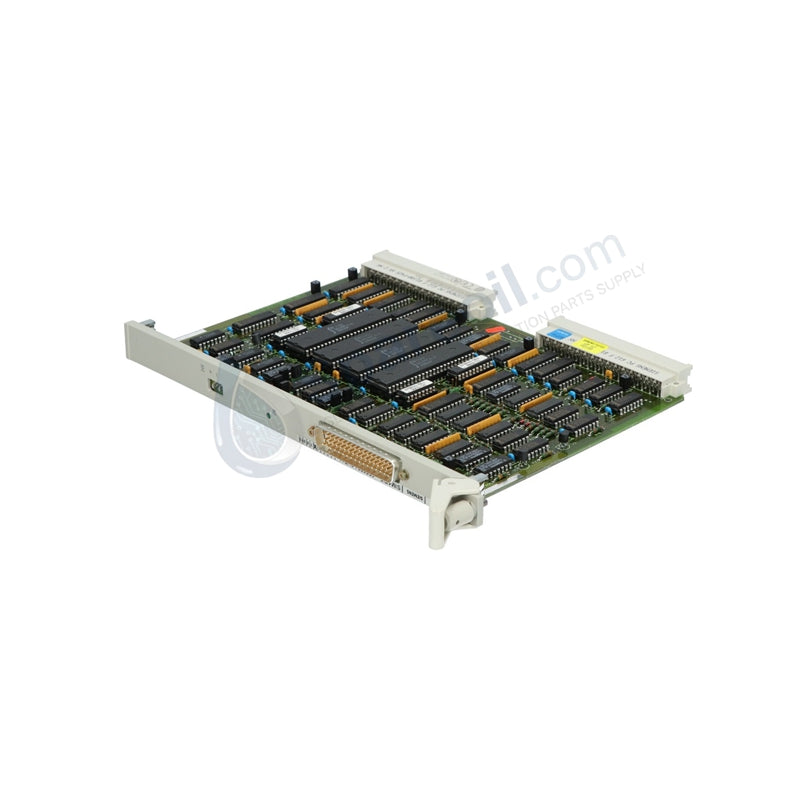

Siemens 6ES5324-3UR11 SIMATIC S5 Interface Module

The Siemens 6ES5324-3UR11, also cataloged as the 6ES5324-3UR11 Interface Module, operates as a dedicated hardware component for coupling central processing units within SIMATIC S5-115H and S5-155H fault-tolerant control platforms.

Hardware Specifications

Parameter Specification
Model 6ES5324-3UR11
Brand Siemens
Origin Germany
Weight 0.526 kg (0.99 lbs)
Dimensions 160 mm x 233.4 mm (Packaging: 21.0 cm x 26.1 cm x 3.5 cm)
Operating Temp Standard industrial limits per SIMATIC S5 specification
Power Consumption Maximum 1.5 A
System Family SIMATIC S5
Module Designation IM 324R
Primary Application S5-115H and S5-155H central unit coupling
Tariff Code 85389091

Backplane Bus Communication Velocity and Deterministic Networks

The 6ES5324-3UR11 establishes a specialized physical and electrical connection between separate central subracks to execute continuous backplane bus communication velocity across redundant systems. This interface is structured to handle high-density data synchronization required for real-time fault-tolerant tracking, ensuring deterministic updates between the primary and standby processing units. By mitigating signal latency over the inter-rack parallel bus, the hardware maintains absolute cycle timing synchronization. All communication frames conform to structural parameters mandated by the system firmware, verifying hardware and firmware flash compatibility during hot-standby changeover routines.

Frequently Asked Questions

Q: What specific function does the "R" suffix designate on the IM 324R interface module?

A: The "R" designation specifies specialized internal isolation and routing circuitry configured to handle the high-speed data link and synchronization synchronization requirements of redundant (fault-tolerant) central controllers.

Q: Can this interface module be removed or replaced while the S5 subrack is powered on?

A: No. The SIMATIC S5 backplane configuration requires total electrical isolation before extraction. Removing the 6ES5324-3UR11 while the subrack is energized will disrupt bus communication and may damage internal CMOS logic.

Q: How is the physical link between the two coupled central controllers established?

A: The coupling is executed via dedicated multi-pin interface cables connected directly to the front-facing ports of the IM 324R modules installed in the corresponding subracks.

Field Installation Guidelines

  • Subrack Placement: Insert the IM 324R module vertically into the pre-designated interface slot of the S5 subrack. Use the integrated board guides to ensure orthogonal alignment with the passive backplane connectors.
  • Cable Strain Relief: Ensure the heavy multi-core interconnection cables are mechanically secured to the cabinet frame or cable tray to prevent mechanical strain on the front-facing port connectors of the module.
  • Grounding Requirements: Verify that the subrack chassis is properly bonded to the central functional earth plane using low-impedance copper straps to suppress high-frequency electromagnetic noise across the synchronization bus.
