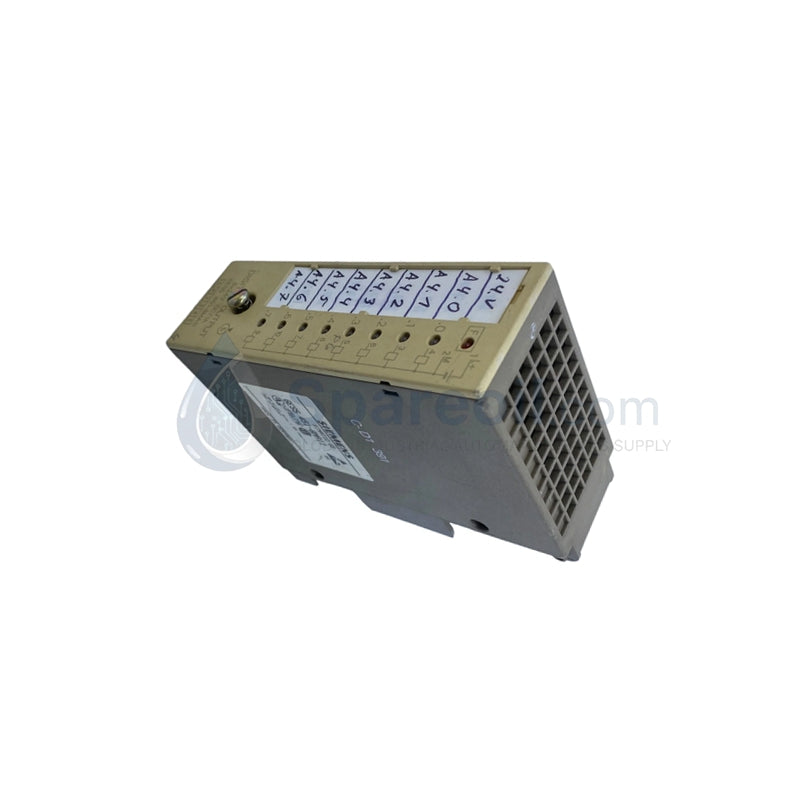

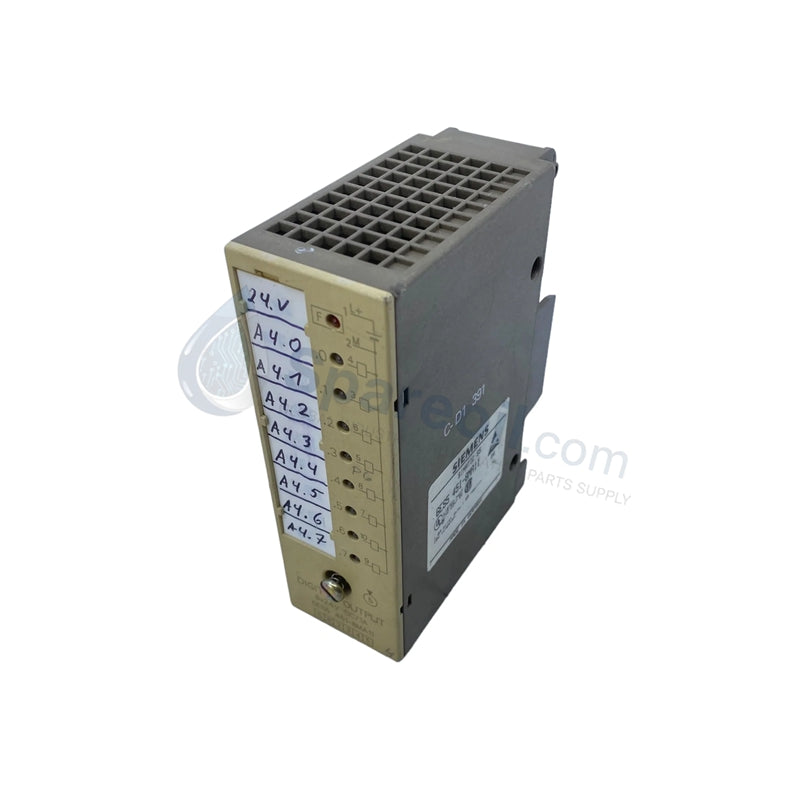

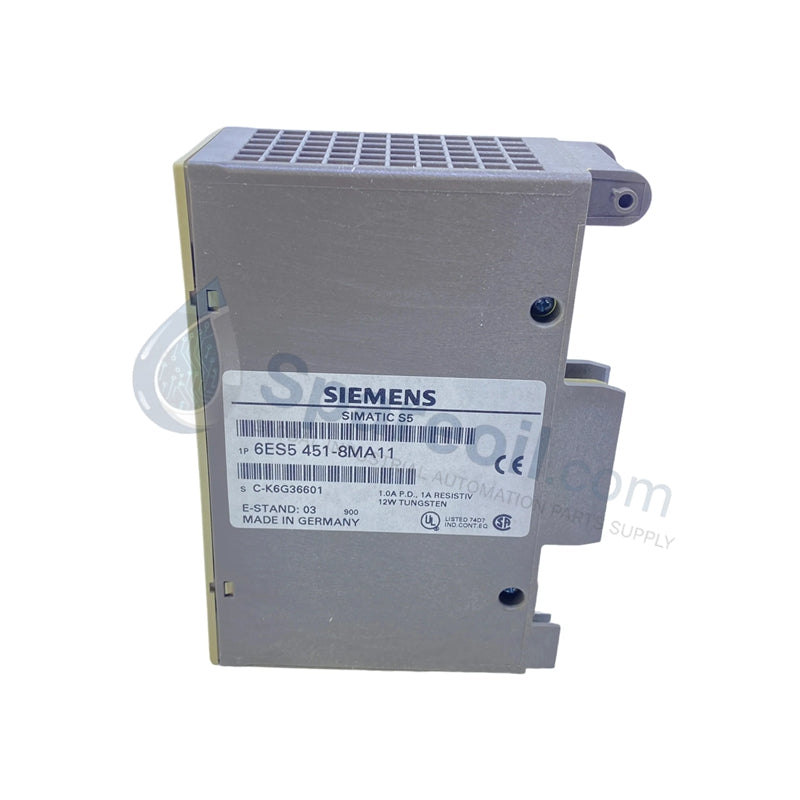

Siemens 6ES5451-8MA11 SIMATIC S5 Digital Output Module

The Siemens 6ES5451-8MA11, also cataloged as the SIMATIC S5 451 Digital Output Module, operates as a dedicated hardware component for discrete load switching within SIMATIC S5-90U/-95U/-100U and ET 100U/200U distributed I/O network platforms.

Hardware Specifications

Parameter Specification
Model 6ES5451-8MA11
Brand Siemens
Origin Germany
Weight 0.208 kg (0.31 lbs net / 0.46 lbs shipping pack bounds)
Dimensions 139 mm x 111 mm x 53 mm (L x W x H)
Operating Temp 0 deg C to +60 deg C (Standard subrack execution limits)
Power Consumption High-side circuit logic derived from internal bus matrix
Channels 8 digital outputs
Rated Voltage 24 V DC
Output Current Maximum 1 A per channel
Electrical Isolation Optocoupler galvanic isolation between backplane and load fields

I/O Density Scaling and Deterministic Driver Actuation

The digital module regulates electrical state switching across 8 isolated channels, outputting up to 1 A continuous per circuit path for external relay coils, contactors, and solenoids. Integrating these outputs into compact subracks establishes clean I/O density scaling profiles while maintaining precise field loop tracking. The underlying galvanic separation prevents field-side electrical surges from bleeding back into the processing layers, protecting internal backplane bus communication velocity and preventing logic card execution lockouts during high-frequency inductive load switching.

Frequently Asked Questions

Q: Can a single output channel be modified to handle switching loads higher than the rated 1 A threshold?

A: No. Exceeding the 1 A maximum current rating per channel can induce thermal breakdown within the internal output driver components. For switching currents above 1 A, the channel output must drive an external heavy-duty interposing relay.

Q: Is this module capable of being hot-swapped while the ET 100U or ET 200U rack is actively scanning?

A: No. The legacy bus architecture of the S5-100U and companion distributed racks does not support hot-swapping. Power to the rack interface module or local PLC must be fully isolated before removal or insertion to avoid backplane communication disruption.

Field Installation Guidelines

  • Bus Connector Mounting: Clip the module firmly onto the standard DIN rail terminal block unit, ensuring the rear blade terminals seat completely into the underlying bus connector segment.
  • Terminal Block Wiring: Terminate all 24 V DC load and return wiring securely into the matching front connector strip pins, limiting bare wire exposure to prevent cross-terminal short circuits.
  • External Suppressor Retrofit: Connect external flyback suppression diodes directly parallel to any connected inductive DC loads to limit switching transients and protect the internal solid-state output circuitry.
