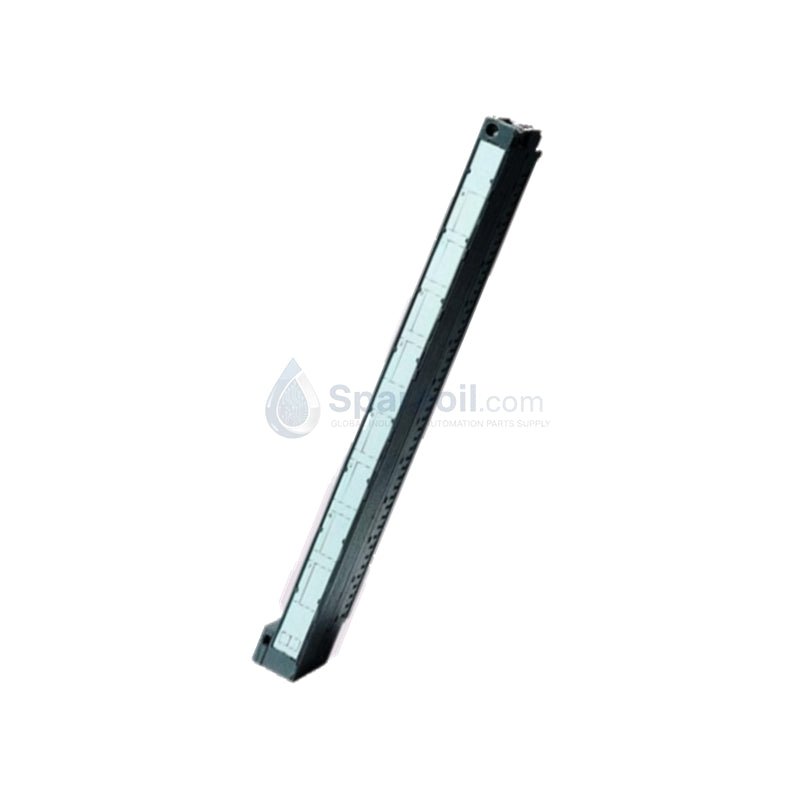

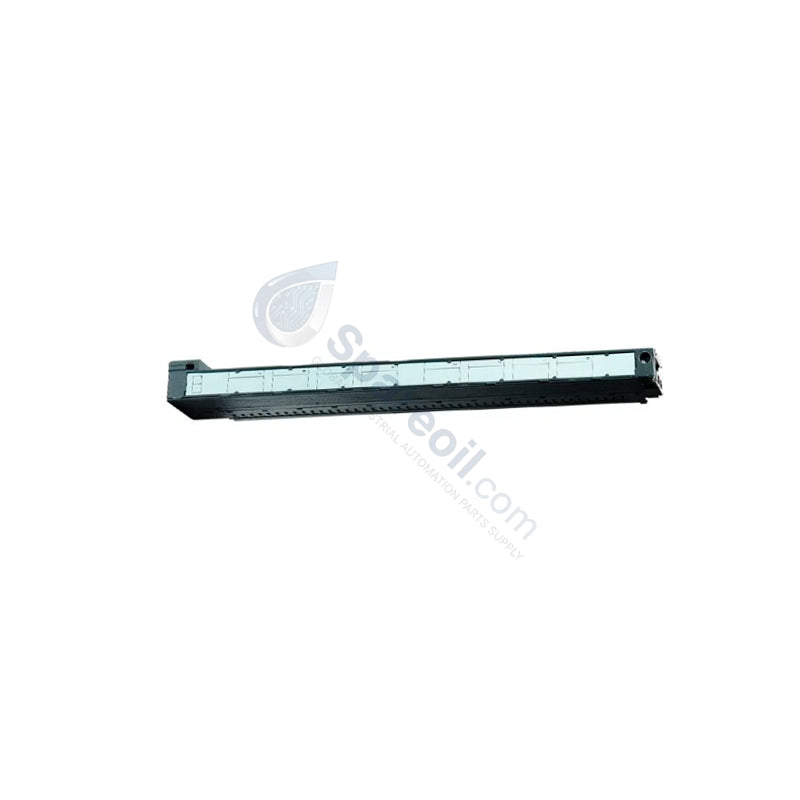

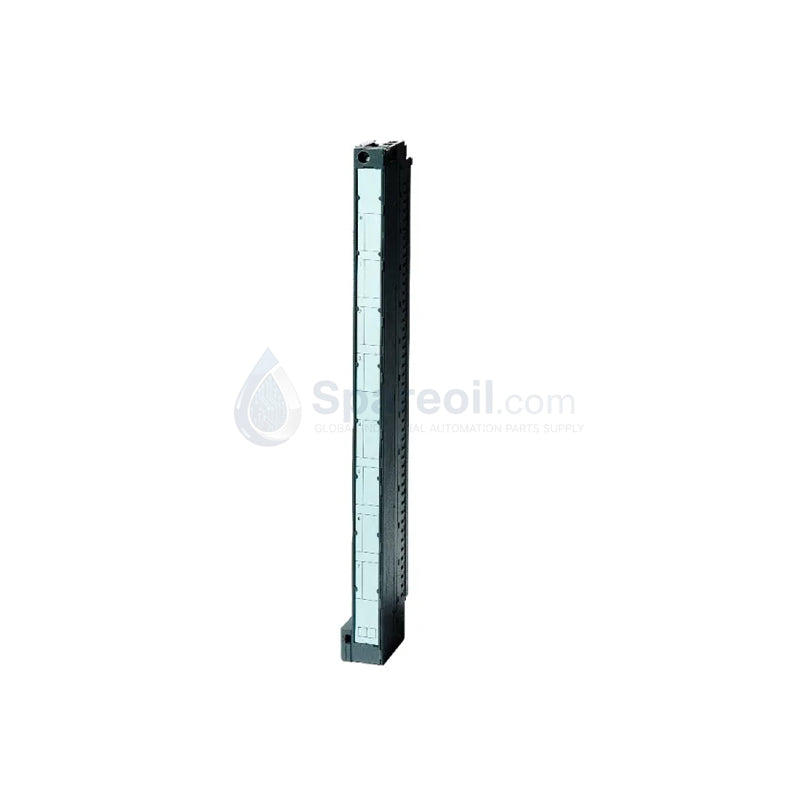

Siemens 6ES7492-1AL00-0AA0 SIMATIC S7-400 Front Connector

The Siemens 6ES7492-1AL00-0AA0 serves as the primary 6ES7492-1AL00-0AA0 Front Connector utilized to execute field wiring termination across SIMATIC S7-400 signal module platforms. This mechanical and electrical interface unit establishes the direct connection bridge between external field sensor/actuator cabling and the internal circuitry of the host digital or analog input/output hardware. It mounts directly onto the front face of the processing assembly, implementing dedicated terminal points to distribute electrical signals within the structured cabinet node.

Hardware Specifications

Parameter Specification
Model 6ES7492-1AL00-0AA0
Brand Siemens
Origin Germany
Product Type Front Connector for Signal Modules
System Family SIMATIC S7-400
Connection Type Screw-type terminals
Pin/Pole Count 48-pole
Protection Class IP20
Operating Temp 0 to 60 deg C
Power Consumption Passive physical connection (0 mA draw)
Dimensions 7.30 x 30.00 x 3.30 cm (Packaging)
Weight 0.238 kg (Net weight)

Deterministic Signaling and I/O Density Scaling

This high-density connection piece handles discrete and analog voltage paths without introducing resistance shifts that disrupt backplane bus communication velocity parameters. The 48-pole mechanical grid maintains signal convergence across extensive I/O density scaling footprints, matching the microsecond propagation thresholds required within Profinet and EtherNet/IP deterministic networks. The screw terminal alignment ensures complete physical separation between adjacent loops, maintaining total firmware flash compatibility across standard S7-400 functional variants by preventing voltage bleeding or channel-to-channel crosstalk at the outer module interface boundaries.

Frequently Asked Questions

Q: Can the 6ES7492-1AL00-0AA0 front connector be unplugged while the signal module is powered?

A: No. Unplugging the connector while under load will abruptly open all field loops. To prevent inductive spikes or unsafe system states, power down the field-side devices and host rack before separating the connector from the module.

Q: Does the module package contain pre-installed wiring combs or jumpers?

A: No. The unit provides independent screw-type terminal points for each separate pole, requiring manual conductor stripping and landing according to the specific loop diagram assigned to that I/O slot.

Q: What is the mechanical function of the extended length of this specific connector housing?

A: The long physical design mirrors the standard form factor of full-size SIMATIC S7-400 cards, providing a secure latching mechanism and space for large bundle routing within the integrated wiring duct.

Field Installation Guidelines

  • Strip each external wire conductor to the specified depth without scoring the copper strands before inserting it into the screw clamping block.
  • Secure each terminal screw to the standard torque rating using an appropriately sized instrument screwdriver to eliminate loose connections under heavy industrial vibration.
  • Use the internal strain-relief tie-down points to bundle the completed terminal wires securely, avoiding mechanical down-pull on the contact pins.
  • Snap the protective front cover plate shut to establish IP20 finger-safe isolation over all exposed screw heads.
