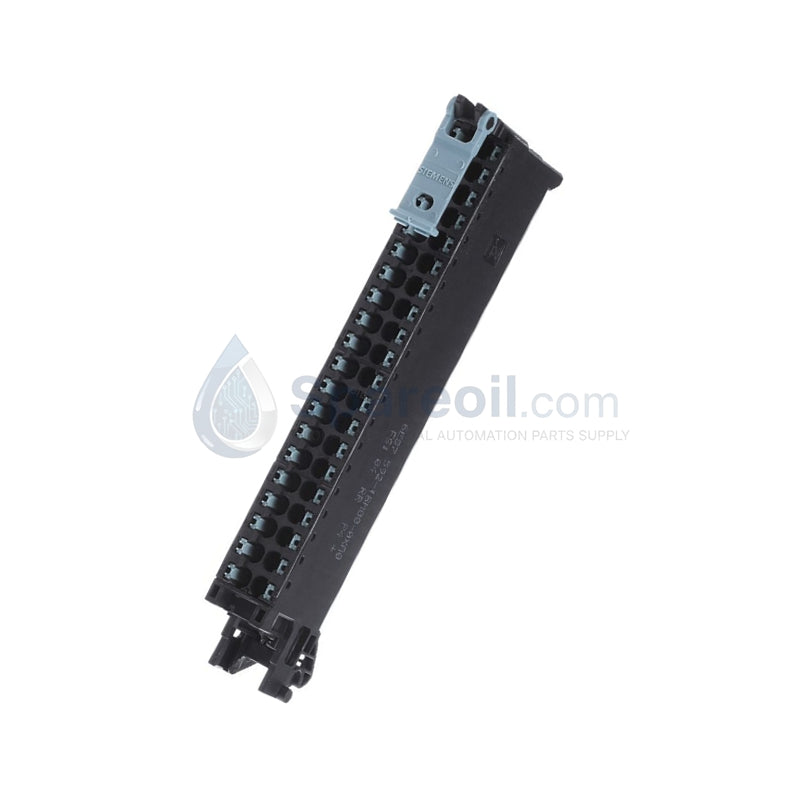

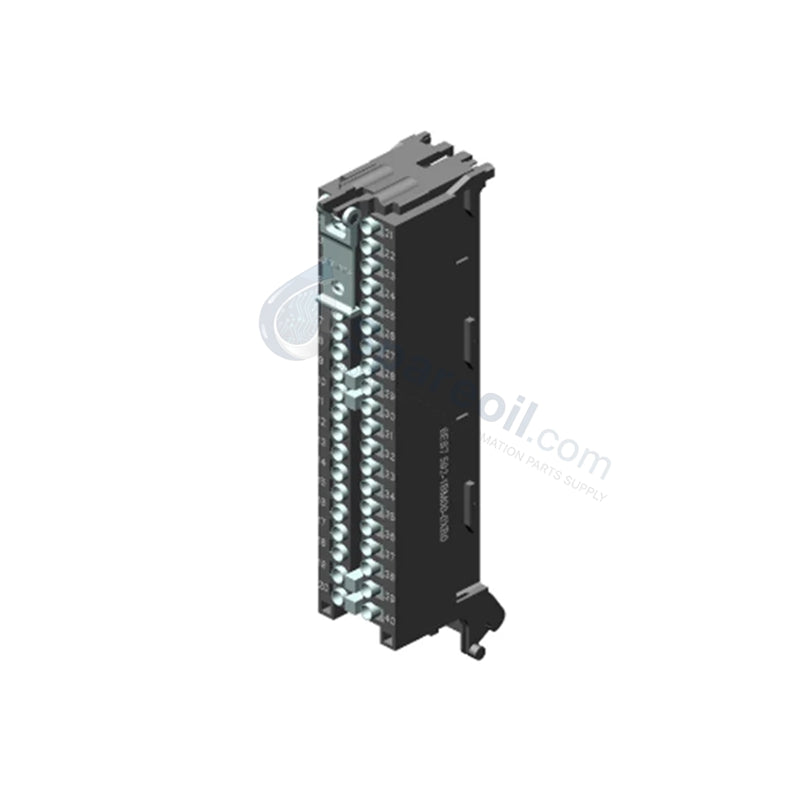

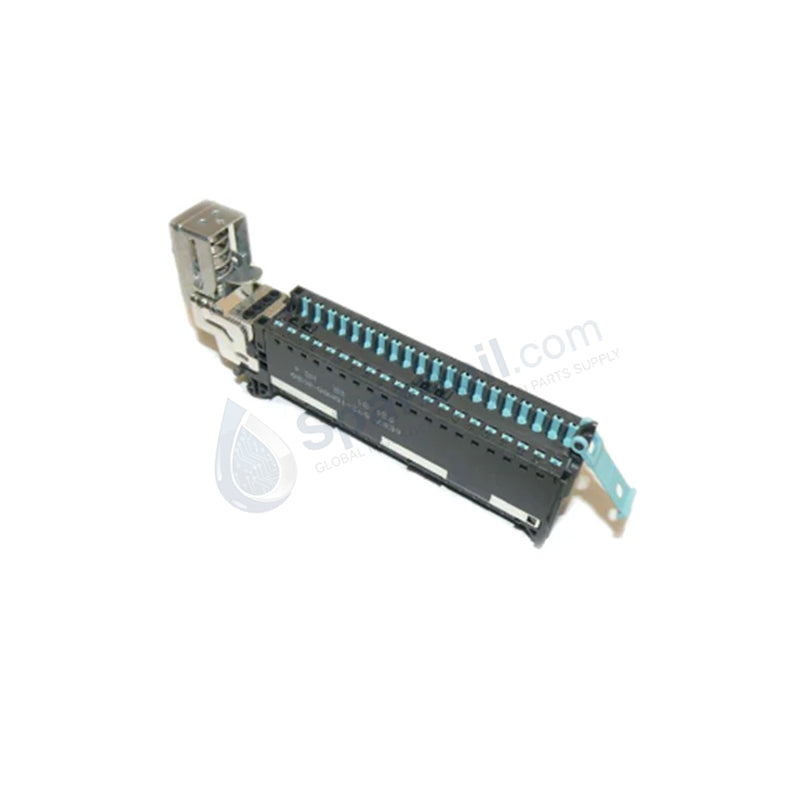

Siemens 6ES7592-1BM00-0XA0 SIMATIC S7-1500 Front Connector

The Siemens 6ES7592-1BM00-0XA0, also cataloged as the 6ES7592-1BM00-0XA0 Front Connector, operates as a dedicated hardware component for physical I/O signal and power termination within SIMATIC S7-1500 network platforms.

Hardware Specifications

Parameter Specification
Model 6ES7592-1BM00-0XA0
Brand Siemens
Origin Germany
Weight 123 g (0.123 kg)
Dimensions 19.8 mm x 130.5 mm x 43 mm (W x H x D)
Operating Temp -30 deg C to +60 deg C (Standard horizontal subrack limits)
Power Consumption Passive connection interface (0 W net)
Terminal Design Push-in technology, 40-pole configuration
Module Width Support 25 mm wide S7-1500 signal modules and compact CPUs
Wire Cross-Section Range 0.25 mm2 to 1.5 mm2 (24 AWG to 16 AWG)
Insulation Strip Length 8 mm to 11 mm
Mechanical Retention Integrated locking latch with cable tie support

I/O Density Scaling and Push-In Terminal Integrity

The front connector establishes high-density physical wire routing profiles directly across the I/O density scaling infrastructure of 25 mm automation blocks. The push-in connection architecture maintains consistent physical spring-force retention on individual conductors, which suppresses signal attenuation and prevents electrical discontinuities caused by mechanical fatigue. By avoiding terminal block screw loosening, this hardware configuration ensures direct electrical transmission from field transducers to the internal multi-channel signal conversion buses.

Frequently Asked Questions

Q: Can this 40-pole front connector be interchanged with standard 35 mm wide S7-1500 I/O modules?

A: No. The physical dimensions and depth profile of the 6ES7592-1BM00-0XA0 are keyed exclusively for the compact 25 mm wide module variants and compact CPU frames. It cannot be mechanically attached to standard 35 mm modules.

Q: Is a specialized extraction tool required to release connected field wires from the push-in spring clip?

A: No specialized extraction tool is required. Wires can be released by depressing the integrated physical release lever using a standard screwdriver featuring a 3.0 mm to 3.5 mm conical tip.

Field Installation Guidelines

  • Conductor Preparation: Strip conductor insulation to a uniform length between 8 mm and 11 mm. When using finely stranded wires, crimp on matching ferrules complying with DIN 46228 guidelines before insertion.
  • Mechanical Alignment: Align the front connector with the guide rails of the target module and slide it into the pre-wiring position until the primary mechanical detent clicks.
  • Cable Strain Relief: Secure the emerging wire bundle directly to the lower retention tang of the connector body using the included cable tie to mitigate axial terminal strain.
