6ES7972-0BB41-0XA0 Siemens SIMATIC DP Datasheet & Technical Manual

Availability: 99 left in stock

Siemens 6ES7972-0BB41-0XA0 SIMATIC DP Bus Connector The Siemens 6ES7972-0BB41-0XA0 serves as the primary 6ES7972-0BB41-0XA0 SIMATIC DP Bus Connector utilized to...

SKU: 6ES7972-0BB41-0XA0

Manufacturer: Siemens
Product No.: 6ES7972-0BB41-0XA0
Product Type: Bus Connectors
Product Origin: Germany
Payment:T/T, Western Union
Weight: 50g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

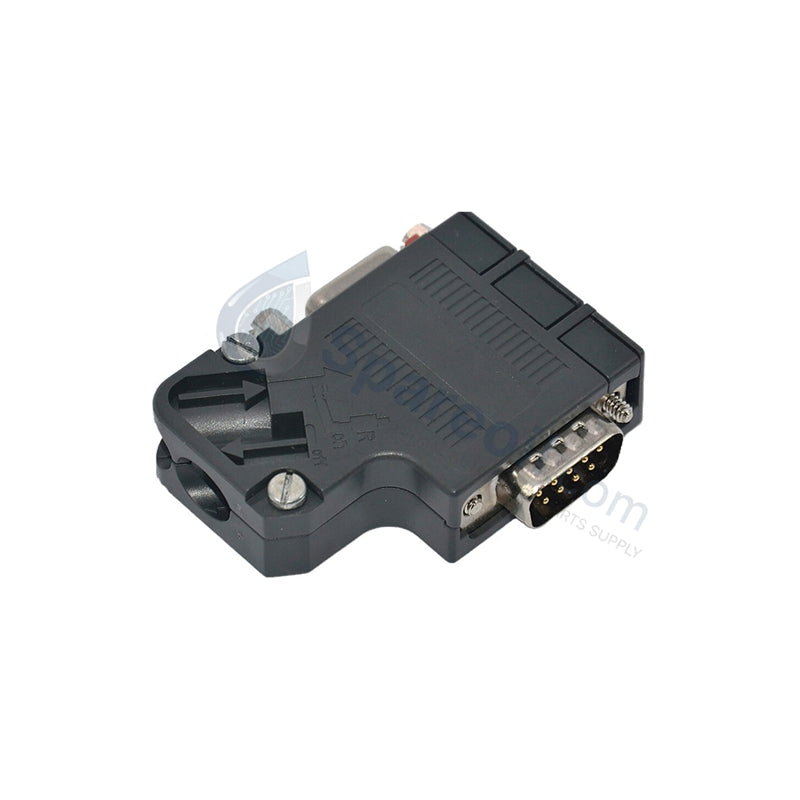

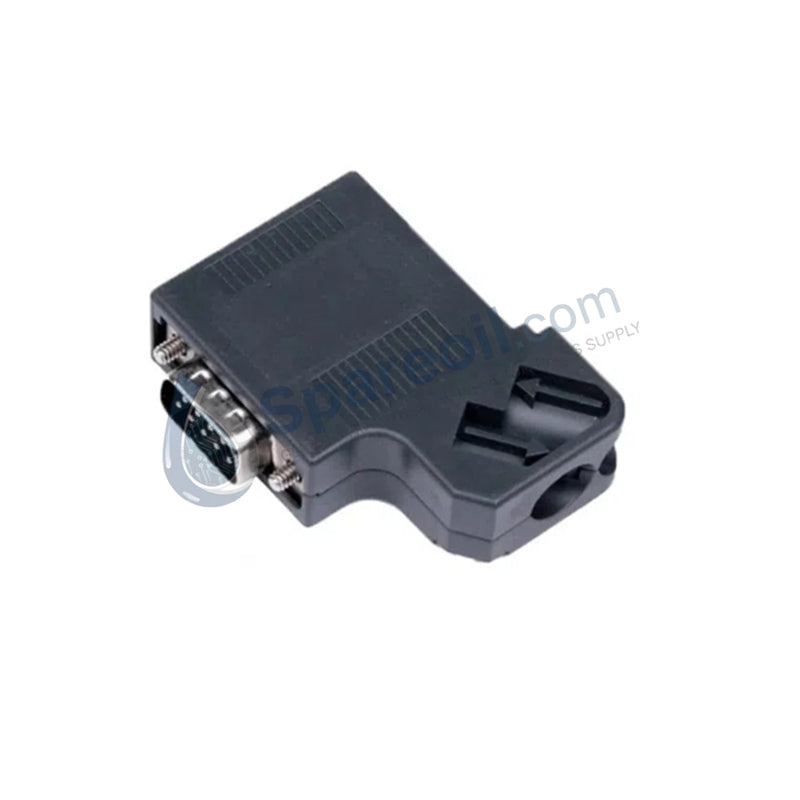

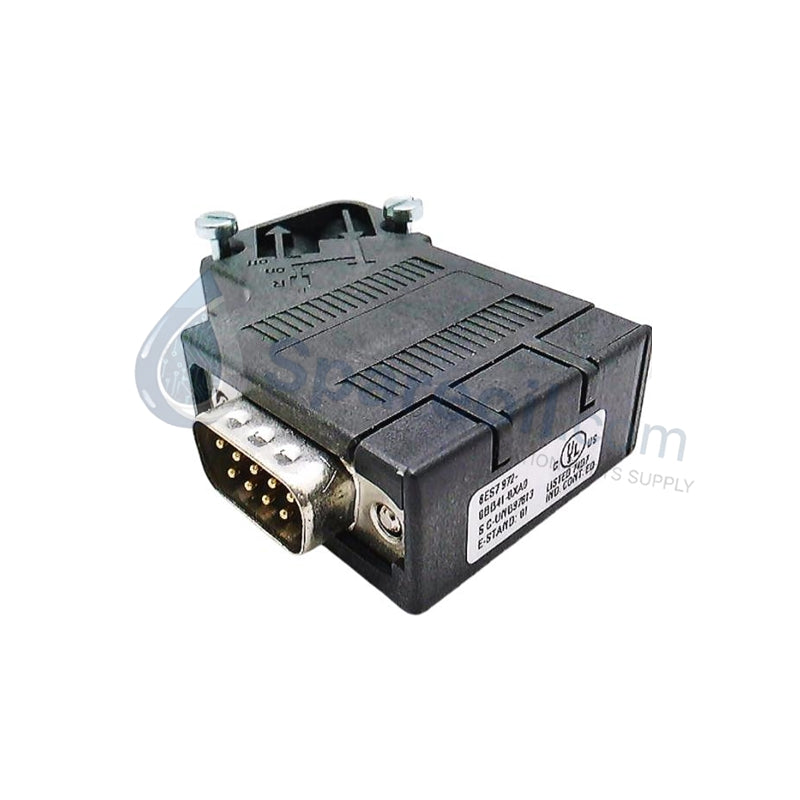

Siemens 6ES7972-0BB41-0XA0 SIMATIC DP Bus Connector

The Siemens 6ES7972-0BB41-0XA0 serves as the primary 6ES7972-0BB41-0XA0 SIMATIC DP Bus Connector utilized to execute RS485 physical layer tapping across PROFIBUS DP network platforms. This node connection hardware interfaces SIMATIC S7 programmable logic controllers and ET 200M distributed I/O stations directly to the dual-core industrial network medium. The device incorporates a Sub-D 9-pin male/female connector configuration along with an integrated switchable termination resistor assembly to establish definitive line impedance matching at network boundaries.

Hardware Specifications

Parameter	Specification
Model	6ES7972-0BB41-0XA0
Brand	Siemens
Origin	Germany
Product Type	SIMATIC DP Bus Connector
Interface Type	RS485 (PROFIBUS DP standard)
Baud Rate	Up to 12 Mbit/s
Connection Type	Sub-D 9-pin with integrated PG socket
Cable Outlet Orientation	Tilted / Angular design
Bus Termination	Integrated switchable resistor network
Protection Class	IP20
Operating Temp	0 to 60 deg C
Power Consumption	Passive physical connection (0 mA draw)
Dimensions	15.8 mm x 54.0 mm x 39.5 mm
Weight	0.05 kg (Net weight)

Deterministic Network Routing and Firmware Compatibility

This connection interface facilitates high-speed backplane bus communication velocity across localized automation segments, matching the timing requirements of Profinet and EtherNet/IP deterministic networks where hybrid architectures coexist. The physical copper wire retention clamping layout limits signal attenuation at the maximum 12 Mbit/s baud rate boundary, maintaining bit-stream phase alignment independent of I/O density scaling or slave node concentrations. This pure hardware layer component preserves strict firmware flash compatibility across legacy SIMATIC S7 master modules, guaranteeing transparent frame throughput without inserting execution latency or signaling delays into the cyclic process image update loop.

Frequently Asked Questions

Q: How does the integrated termination switch alter the internal circuit behavior of the connector?

A: When placed in the "ON" position, the manual slider isolates the outgoing PROFIBUS cable segment from the segment loop and engages a internal pull-up/pull-down resistor matrix to stabilize line polarization.

Q: Is it permissible to perform hot-plug insertion of this Sub-D connector while the network is active?

A: Yes. The passive RS485 interface pins support live insertion and extraction without corrupting adjacent node telegram packets, provided the termination switches on the network ends remain unchanged.

Q: What is the function of the integrated 9-pin PG socket on the rear housing?

A: The auxiliary PG socket duplicates the electrical connection traces, providing a direct diagnostic port for the insertion of a network analyzer or programming terminal without breaking the existing network line topology.

Field Installation Guidelines

Strip the outer sheath and copper shielding of the standard 6XV1830-0CH10 PROFIBUS cable to the exact dimensions specified by the standard stripping tool template.
Insert the green and red core conductors into the designated color-coded insulation displacement screw terminals before tightening the retaining fasteners.
Mount the connector securely onto the station RS485 port using the integrated mechanical locking screws to guarantee continuous shield grounding to the chassis.
Verify that only the physical first and final nodes on a linear network segment have their termination switches set to the active "ON" position.
