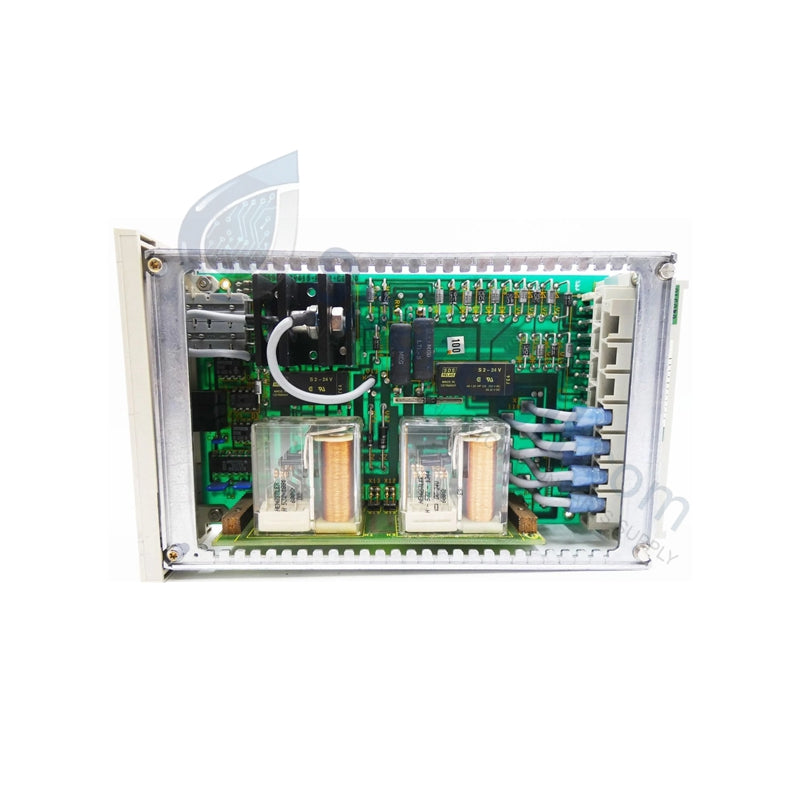

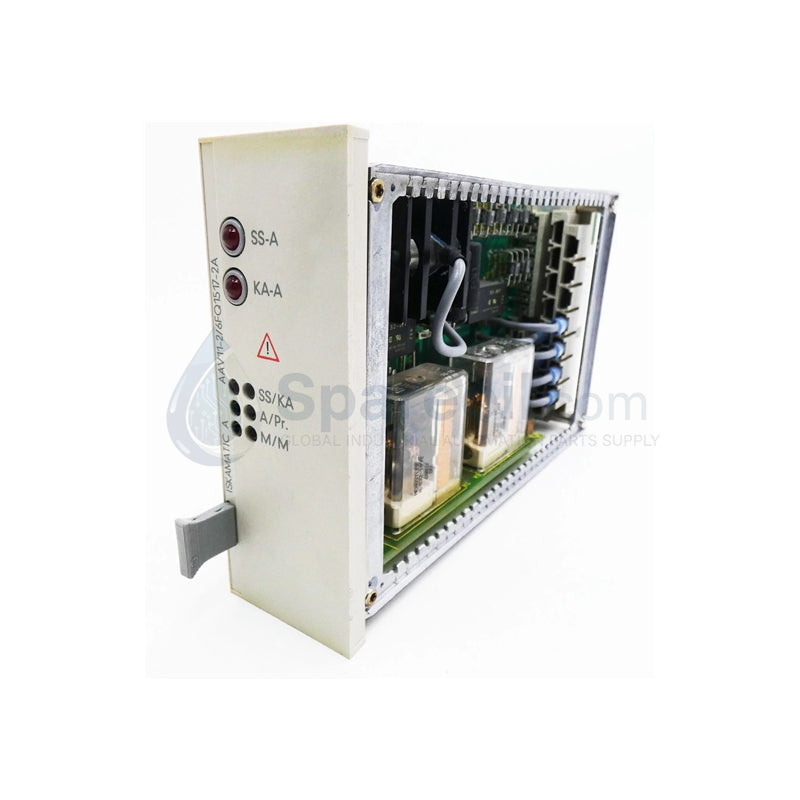

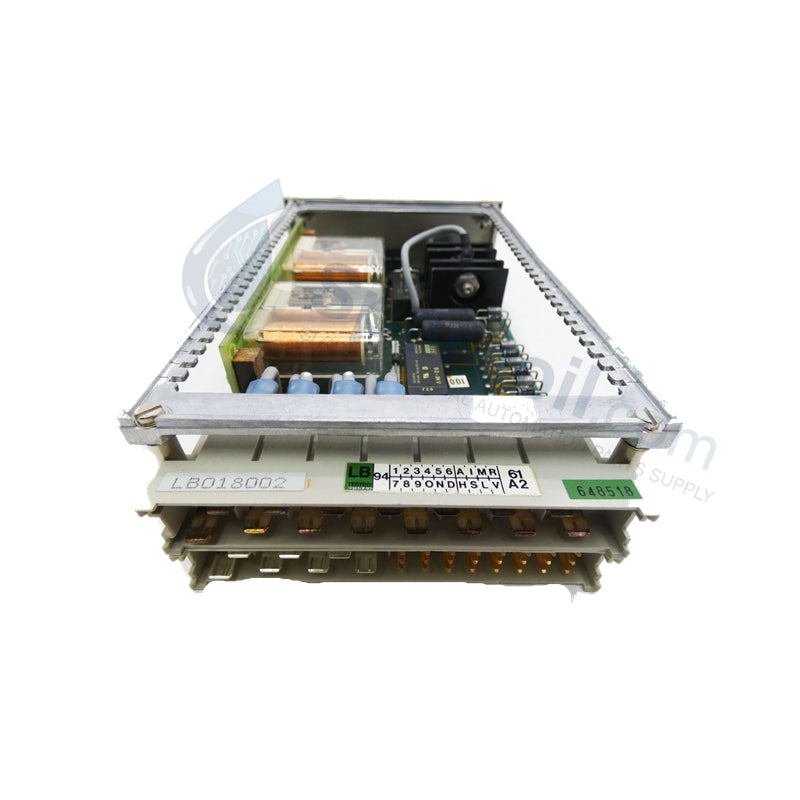

Siemens 6FQ1517-2A Iskamatic AAV11-2 Valve Positioner

Configured for precise valve positioning in industrial process automation systems, the Siemens 6FQ1517-2A, also cataloged as the AAV11-2 Electro-pneumatic Valve Positioner, provides direct physical/electrical execution.

Hardware Specifications

Parameter Specification
Model 6FQ1517-2A (AAV11-2)
Brand Siemens
Origin Germany
Weight 2.5 kg to 3.0 kg
Dimensions Standard Iskamatic series valve attachment footprint
Operating Temp -20 deg C to +60 deg C
Power Consumption Passive analog current loop consumption derived from input circuit
Signal Input 4-20 mA DC (Standard analog loop control signal)
Output Pressure 0.2 bar to 1.0 bar (3 psi to 15 psi)
Air Supply Pressure 1.4 bar to 6 bar
Valve Compatibility Linear and rotary control valve actuators
Housing Material Die-cast aluminum
Enclosure Protection IP54 rating

Profinet / EtherNet/IP Deterministic Networks and I/O Density Scaling

The electro-pneumatic positioner translates the analog 4-20 mA DC signal into proportional pneumatic displacement metrics. When deployed within an automated infrastructure managed via Profinet / EtherNet/IP deterministic networks, the current loop command signals are distributed from centralized multi-channel analog output cards optimized for high-density I/O scaling profiles. The mechanical transducer tracking loops interface with the system architecture by adjusting fluid output variables dynamically, ensuring execution stability without lagging backplane transmission penalties.

Frequently Asked Questions

Q: Can the 6FQ1517-2A positioner accept digital communication protocol overlays such as HART or PROFIBUS?

A: No. The legacy AAV11-2 / 6FQ1517-2A hardware platform relies strictly on analog 4-20 mA DC current loops. For digital parameter tracking and remote calibration diagnostics, the control loop must be upgraded to contemporary SIPART PS2 smart positioners.

Q: What are the continuous instrument air supply quality requirements for this module?

A: The pneumatic block requires a continuously clean, dry, oil-free instrument air feed inside the 1.4 bar to 6 bar window. Particulate contamination or moisture within the supply lines will cause pilot orifice blockages and zero-point calibration drift.

Field Installation Guidelines

  • Actuator Mechanical Linkage: Mount the die-cast aluminum housing directly to the linear or rotary actuator yoke, ensuring that the feedback lever links to the valve stem without backlash.
  • Pneumatic Connection Scaling: Secure all external pneumatic lines into the standard ports using appropriate thread sealant tape, ensuring supply pressure does not exceed the 6 bar maximum mechanical rating.
  • Electrical Loop Termination: Route the 4-20 mA signal wires through the designated conduit entries and clamp them into the internal screw terminals, verifying correct polarity to prevent loop failure.
