7760050028 Triconex 24VDC to 240VAC Input Panel

7760050028 Triconex 24VDC to 240VAC Input Panel

Availability: 10 left in stock

Product Overview The Triconex 9662-610 (Part Number 7760050028) functions as a high-integrity bridge between field instrumentation and Triconex Safety Instrumented Systems (SIS). This...

SKU: 9662-610 7760050028

Manufacturer: Triconex
Product No.: 9662-610 7760050028
Product Type: Triple Modular Redundancy
Product Origin: USA
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

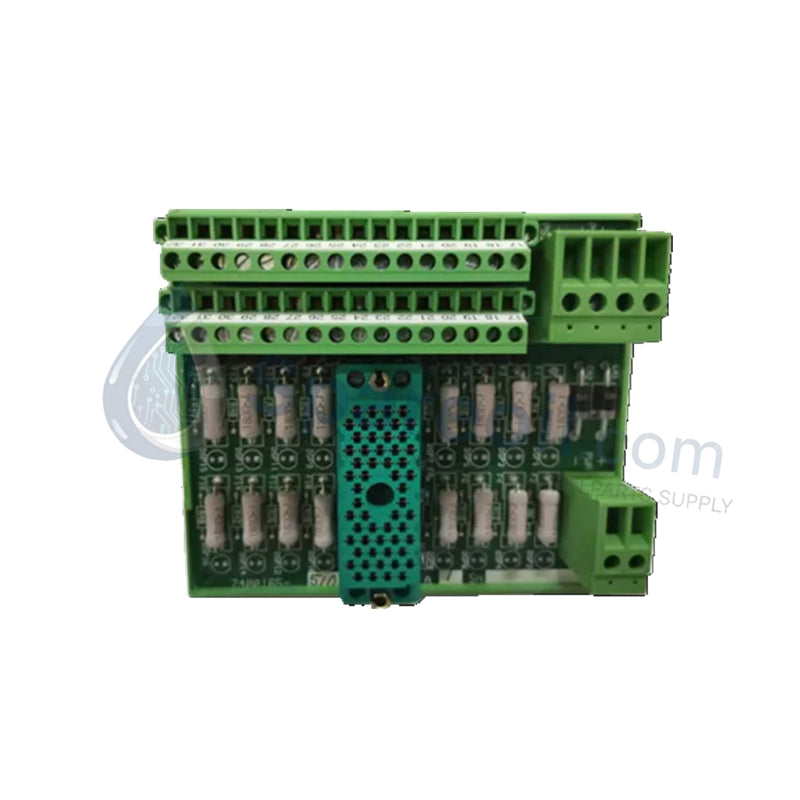

The Triconex 9662-610 (Part Number 7760050028) functions as a high-integrity bridge between field instrumentation and Triconex Safety Instrumented Systems (SIS). This digital input termination panel provides the physical interface required to connect switches, sensors, and relays to the TMR controller backplane. We offer this unit as 100% brand new and original, ensuring full hardware compliance with SIL 3 safety loops. Its ruggedized design incorporates per-channel fuse protection and industrial-grade isolation, preventing field-side electrical disturbances from compromising the core safety logic solver.

Technical Specifications

The 9662-610 delivers robust performance across a wide voltage spectrum:

Feature	Specification Details
Model / Part Number	9662-610 / 7760050028
Manufacturer	Triconex (Schneider Electric)
Input Channels	16 per panel
Voltage Range	24 VDC to 125 VDC / 120/240 VAC (50/60 Hz)
Current Range	1 mA – 100 mA
Isolation	1500 VAC channel-to-ground
Protection	500 mA slow-blow fuse per channel
Diagnostics	Blown-fuse LED indicator per channel
Operating Temp	–40 °C to +70 °C
Dimensions	495 × 356 × 152 mm (19.5 × 14 × 6 in)
Condition	100% Brand New Original

Engineering Advantages

Localized Fault Containment: Each of the 16 channels features an individual 500 mA slow-blow fuse. This ensures that a short circuit or surge on a single field device triggers only its specific fuse, maintaining the continuous operation of the remaining 15 safety-critical inputs.
Instantaneous Visual Diagnostics: The panel integrates blown-fuse LED indicators for every channel. This allows maintenance personnel to identify failed field loops at a glance during inspections, eliminating the need for time-consuming multimeter testing or software-only troubleshooting.
High-Integrity Electrical Isolation: With 1500 VAC channel-to-ground isolation, the 9662-610 protects the TMR processor from high-voltage transients and ground loop noise. This is particularly vital in heavy industrial environments like petrochemical plants and power generation facilities.
Flexible Signal Compatibility: The 9662-610 handles both DC and AC inputs across a broad voltage range. This versatility allows engineers to standardize on a single termination panel model for diverse field device types, simplifying cabinet design and reducing spare parts inventory.

FAQs

Does this panel support both 24VDC and 240VAC field devices?

Yes. The 9662-610 architecture supports a wide voltage range, allowing it to interface with low-voltage DC sensors or high-voltage AC interlocks, provided the connected Triconex I/O module supports those specific voltage levels.
How does the panel indicate a hardware failure?

The panel utilizes dedicated LED indicators. If a field-side event blows a fuse, the corresponding LED illuminates immediately, signaling exactly which channel requires attention to restore the safety loop.
Can I replace an existing board with the 7760050028 part number?

Yes. The 7760050028 is the exact manufacturer part number for the 9662-610. As a 100% brand new unit, it serves as a direct drop-in replacement for aged or damaged boards in existing Triconex racks.
