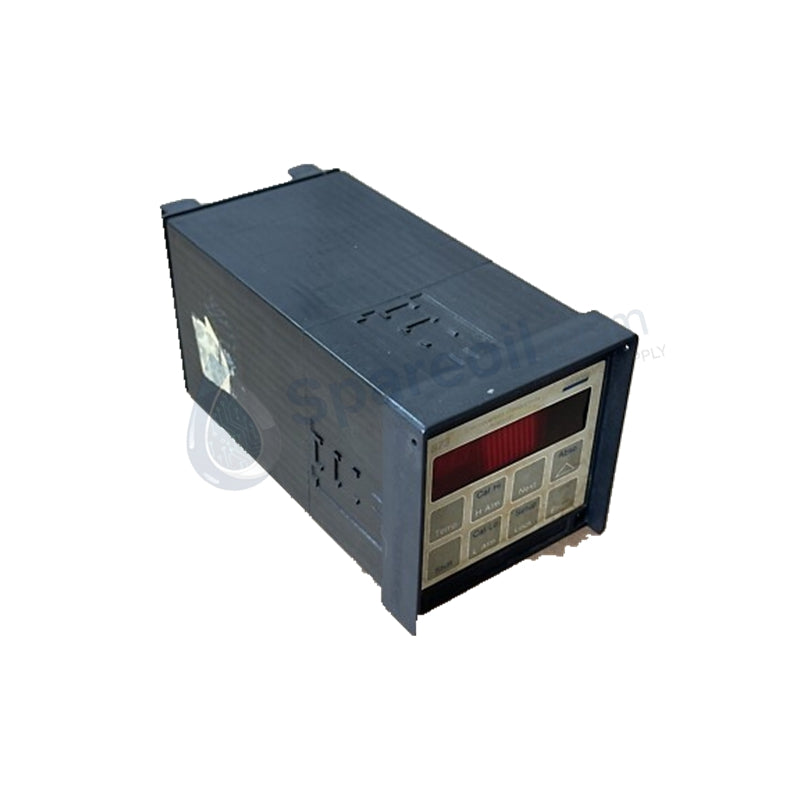

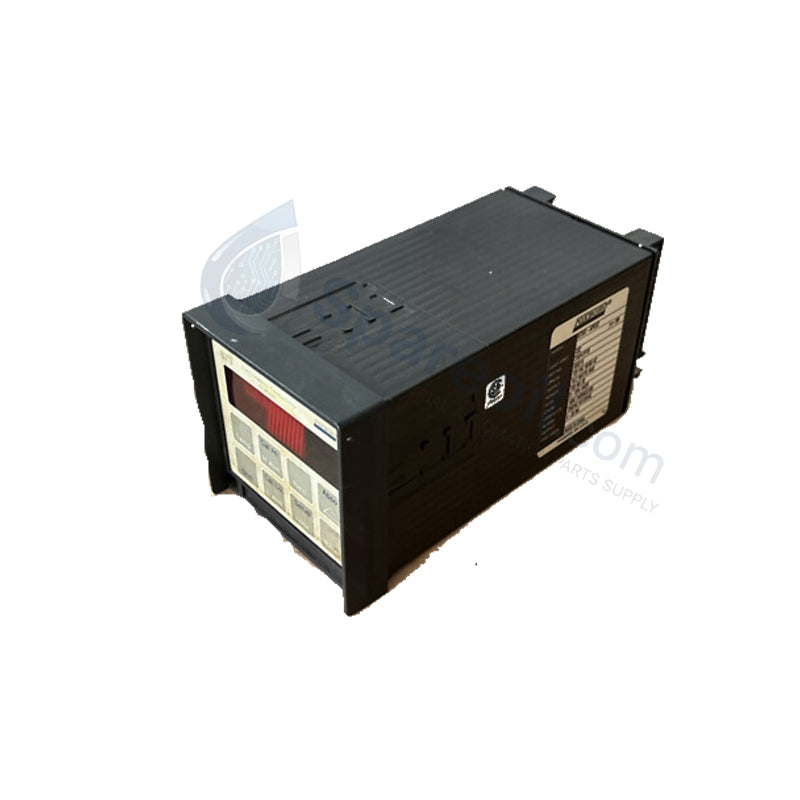

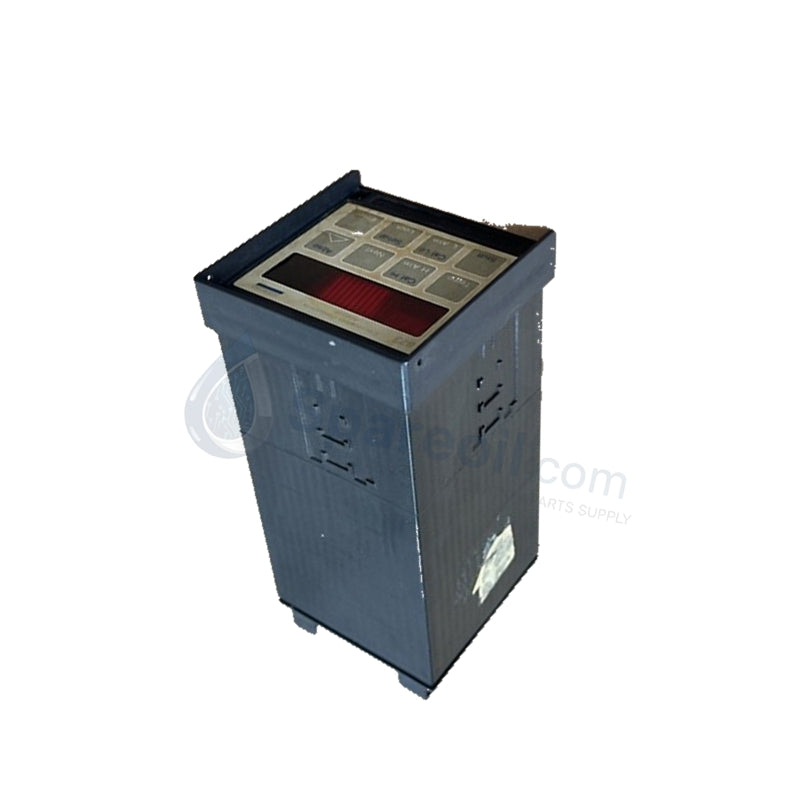

Foxboro 873EC-BIYFGZ Electrodeless Conductivity Electrochemical Analyzer

The Foxboro 873EC-BIYFGZ, also cataloged as the Foxboro 873EC Electrochemical Analyzer, operates as a dedicated hardware component for the calculation and tracking of aqueous solution conductivity within industrial liquid analysis loops.

Hardware Specifications

Parameter	Specification
Model	873EC-BIYFGZ
Base Model	873EC
Brand	Foxboro (Schneider Electric)
Module Type	Electrodeless Conductivity Analyzer
Input Power Configuration	220 VAC, 50/60 Hz nominal
Power Consumption	10.2 W maximum
Measurement Readouts	uS/cm, mS/cm, percent (%) concentration
Measurement Output	4-20 mA DC isolated signal
Signal Output Quantity	One isolated transmission channel
Enclosure Matrix	Plastic, panel mounting style
Temperature Sensing	Integrated automatic temperature compensation
Electrical Certification	FM approved for ordinary locations
Operating Temp	0 to 50 deg C
Storage Temp	-40 to 85 deg C
Maximum Humidity Limits	95% RH non-condensing
Net Weight	2.00 lbs (0.91 kg)
Shipping Weight	3.00 kg
Origin	USA

DCS Process Control and Loop Protocols

The Foxboro 873EC-BIYFGZ routes continuous measurement data to process computers using a dedicated 4-20 mA HART loop protocol matrix. Channel-to-channel isolation parameters decouple the core microprocessor logic from field-side ground loops and high-voltage line spikes. The internal computation framework samples solution temperature trends via an attached RTD sensor to calculate dynamic compensation matrices, which stabilizes the output scale factor across changing chemical variables. During sensor faults or line drop conditions, the analyzer invokes on-board firmware limits that override current output vectors, shifting the isolated loop signal to a configured safe fail-state value to prevent false alarms inside the distributed control network.

Frequently Asked Questions

Q: How does the configuration of option code -B (220 VAC) affect the power input terminal wiring requirements compared to option -A (120 VAC)?

A: The internal transformer parameters are structurally wound for a nominal 220 VAC line potential. Interchanging supply lines without verifying the product model option suffix will result in a hardware failure or a blown internal fuse link.

Q: Does the plastic panel-mount housing style support multiple isolated analog output paths?

A: No. The plastic panel enclosure layout provides space for only one 4-20 mA DC isolated measurement transmission channel. Dual analog output capabilities require the deployment of the metal field-mounted enclosure variant.

Q: What action does the internal watchdog timer perform if a microcode execution freeze occurs?

A: The software watchdog architecture trips after a 1-second execution delay. This automatically forces a full hardware reset sequence and displays the firmware revision code on the front panel display, identical to a power-up cycle.

Field Installation Guidelines

Panel Cutout Dimension Matching: Prepare a square 1/4 DIN 92 mm x 92 mm panel opening for housing insertion. Slip the plastic casing through the cutout from the front side and secure it tightly using the provided side retention brackets.
Grounding and Shielding Protocols: Connect the external cable shield to the dedicated earth stud terminal on the back terminal block assembly. Do not ground the cable shield at both the analyzer housing and the sensor head to avoid creating stray loop path noise.
Sensor Line Routing Restrictions: Route electrodeless conductivity sensor cables through an independent, isolated wire conduit away from large AC motors, electric switchgear, or variable speed drive paths to prevent induction cross-talk.
Terminal Screw Tightening Limits: Terminate field power and signal lines using the integrated screw clamp blocks. Tighten connection fasteners to a maximum torque setting of 0.6 Nm to ensure secure contact without fracturing the internal terminal trace contacts.
