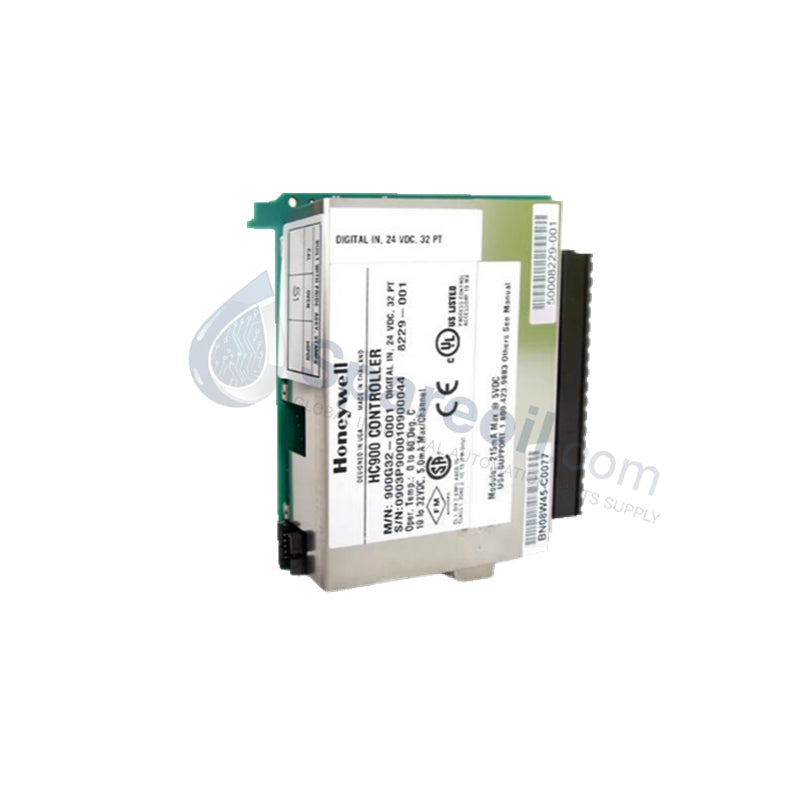

900G32-0101 Honeywell 24VDC Digital Input Card

900G32-0101 Honeywell 24VDC Digital Input Card | Brand New

Availability: 99 left in stock

Product Overview The Honeywell 900G32-0101 serves as a high-density discrete interface for the HC900 Process Automation System. This module provides 32 sinking...

SKU: 900G32-0101

Manufacturer: Honeywell
Product No.: 900G32-0101
Product Type: Digital Input Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 360g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Honeywell 900G32-0101 serves as a high-density discrete interface for the HC900 Process Automation System. This module provides 32 sinking digital input channels designed to sense the ON/OFF status of field devices such as limit switches, pushbuttons, and proximity sensors. By consolidating 32 points into a single slot, this module maximizes rack efficiency and reduces hardware costs for large-scale industrial projects. We supply this unit as 100% Brand New and Original in factory packaging, ensuring total compatibility with your HC900 C52 or C70 CPU controllers.

Technical Specifications

Feature	Specification Details
Model Number	900G32-0101
Input Type	Digital Input (Sinking)
Channels	32 Channels (2 groups of 16)
Input Voltage Range	10 VDC to 32 VDC
ON Voltage Level	9.5 VDC minimum
OFF Voltage Level	3.5 VDC maximum
Input Impedance	6.9 K ohms nominal
Response Time	5 ms maximum (OFF to ON / ON to OFF)
Galvanic Isolation	30VDC max (Group to Group)
Power Supply Loading	5V @ 215mA max
Dimensions	137mm H x 35.6mm W (5.4” H x 1.4” W)
Origin	United States (USA)

Engineering Advantages

High-Density Cabinet Optimization: Integrating 32 channels into a compact 1.4-inch wide module significantly reduces the number of I/O racks required. This allows engineers to design smaller control cabinets or expand existing systems without adding physical floor space.
Fast Signal Processing: A rapid 5ms maximum response time ensures the HC900 CPU captures high-speed discrete events instantly. This performance proves vital for safety interlocks and precision sequencing where timing determines process safety.
Simplified Maintenance through Group Isolation: The module features galvanic isolation between two groups of 16 inputs. This design prevents electrical faults or noise in one field segment from propagating to the other 16 channels or the central system backplane.
Low Power Consumption: Drawing only 215mA from the 5V backplane, this module allows for high-density rack configurations without overloading the HC900 power supply (900P02 or 900G01).

FAQs

Does the 900G32-0101 require a specific terminal block?

Yes. High-density modules typically require a 36-position terminal block or a remote termination panel to manage the wiring for all 32 channels. Ensure you verify your termination requirements during installation.
What is the difference between Sinking and Sourcing inputs for this module?

The 900G32-0101 is a sinking input module. This means the module provides the path to ground for the field device. You must connect the positive side of your 24VDC supply to the field switch for the module to sense the signal.
Can I replace a 16-channel module with this 32-channel version?

While the 900G32-0101 fits the same HC900 rack slots, you must update the hardware configuration in your Honeywell HC Designer software to recognize the increased channel count and adjust field wiring accordingly.
Is this unit genuine and factory-sealed?

Every Honeywell 900G32-0101 we ship is 100% Brand New and arrives in original factory packing. We include a 12-month warranty to guarantee industrial performance and authenticity.
