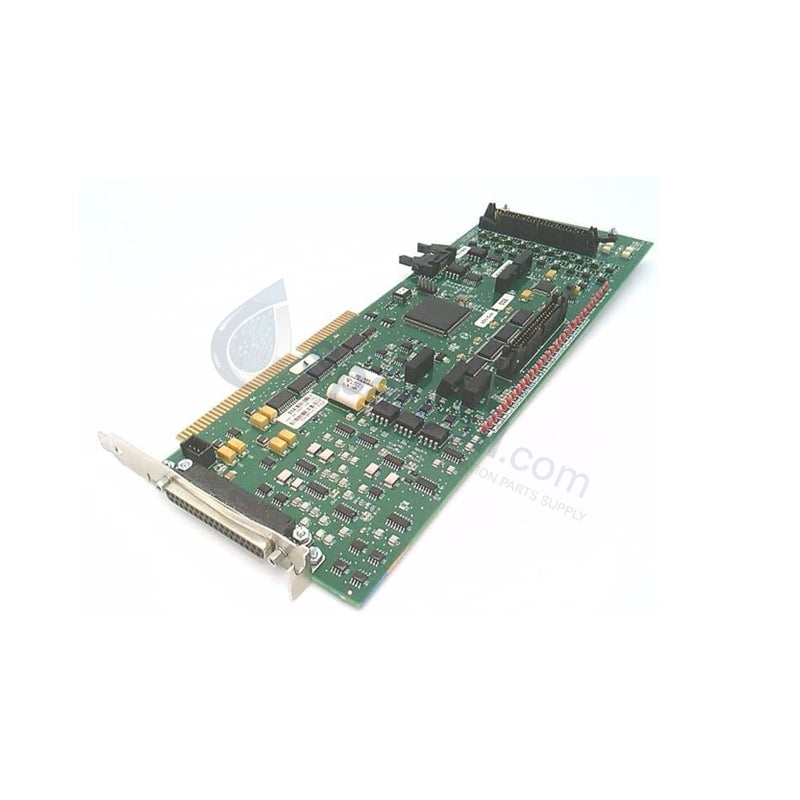

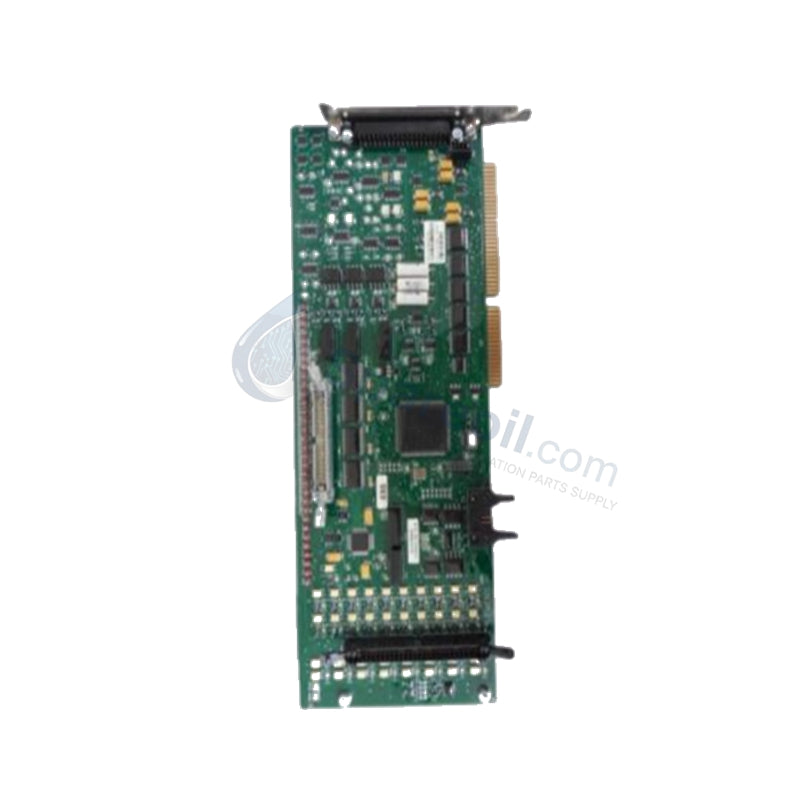

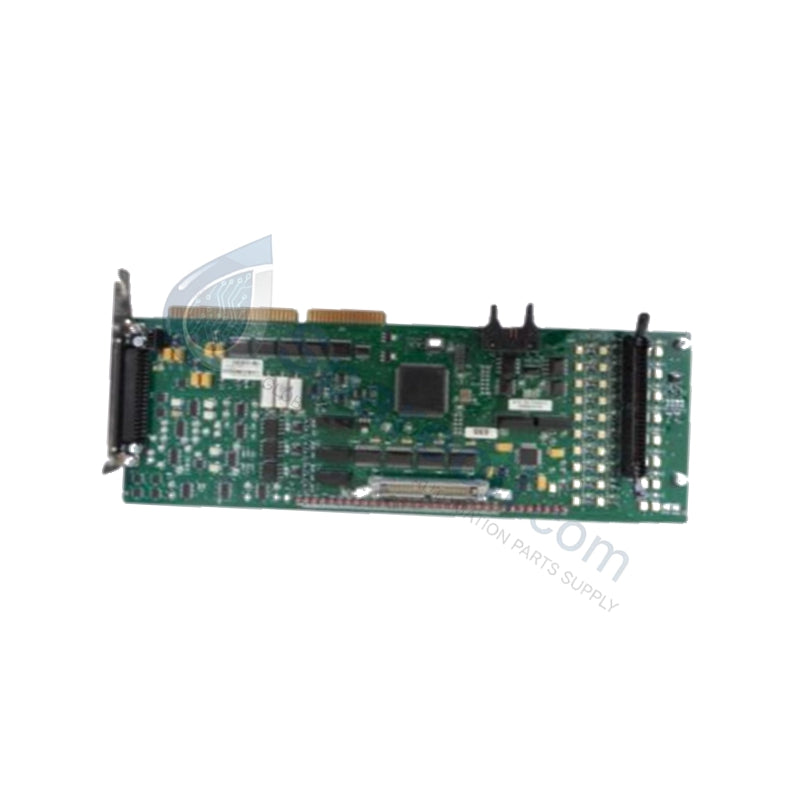

Siemens A1A10000423.00M Robicon Inverter I/O Board

Configured for speed and torque control in SIMOREG DC Master and Robicon high-voltage inverter assemblies, the Siemens A1A10000423.00M (A1A10000423.00M I/O Board) provides direct physical/electrical execution. This plug-in printed circuit board interfaces control logic and regulation functions, processing analog and digital input/output signals required for industrial motor management. The hardware establishes localized timing and gate-drive feedback loops directly through the drive backplane interconnect matrix.

Hardware Specifications

Parameter Specification
Model A1A10000423.00M
Brand Siemens
Origin Germany
Part Number A1A10000423.00M
Product Type Control Board Module
Voltage Supply 24 V DC (drawn from drive system)
Signal Interfaces Integrated analog and digital inputs/outputs
Protection Class IP20
Operating Temp 0 to 60 deg C
Storage Temp -40 to +70 deg C
Power Consumption Determined by drive chassis supply rails
Dimensions 22.9 cm x 2.5 cm x 27.9 cm
Weight 0.9 kg

Deterministic Network Routing and Firmware Compatibility

The internal processing paths of this module are designed to sustain synchronous control data distribution across the local drive framework. By aligning with Profinet or EtherNet/IP deterministic networks via the master controller gateway, the board minimizes latency during real-time speed adjustment commands. The component handles dense signal matrices without degrading the backplane bus communication velocity parameters. Furthermore, the electronic layout retains strict firmware flash compatibility with legacy Robicon and SIMOREG drive systems, preventing parameter mapping errors during direct component placement and scaling procedures.

Frequently Asked Questions

Q: Does the A1A10000423.00M board support live hot-swap replacement?

A: No. The drive system must be fully powered down and discharged before extracting or installing this control board. Swapping the card while the 24 V DC logic rail is active can cause component damage or erratic motor control states.

Q: How are firmware revisions managed when substituting a discontinued module version?

A: The board relies on firmware flash compatibility with the main drive processor. Ensure that the EEPROM or onboard microcode revision matches the parameter requirements detailed in the existing system backup configuration.

Q: Are individual digital channels on this board electrically isolated?

A: Yes. The hardware utilizes localized optocouplers to provide galvanic separation between external field signals and internal drive logic, mitigating the risk of noise induction from high-voltage inverter switching.

Field Installation Guidelines

  • Disconnect all primary power lines and secondary 24 V DC control circuits before handling the drive chassis.
  • Ground all service personnel using a calibrated static-dissipative wrist strap prior to removing the board from its packaging.
  • Guide the module evenly into the chassis slot tracks to prevent pin bending on the rear backplane bus connector interface.
  • Fasten all mechanical retention screws to maintain solid grounding contact and ensure physical resistance against industrial machinery vibration.
