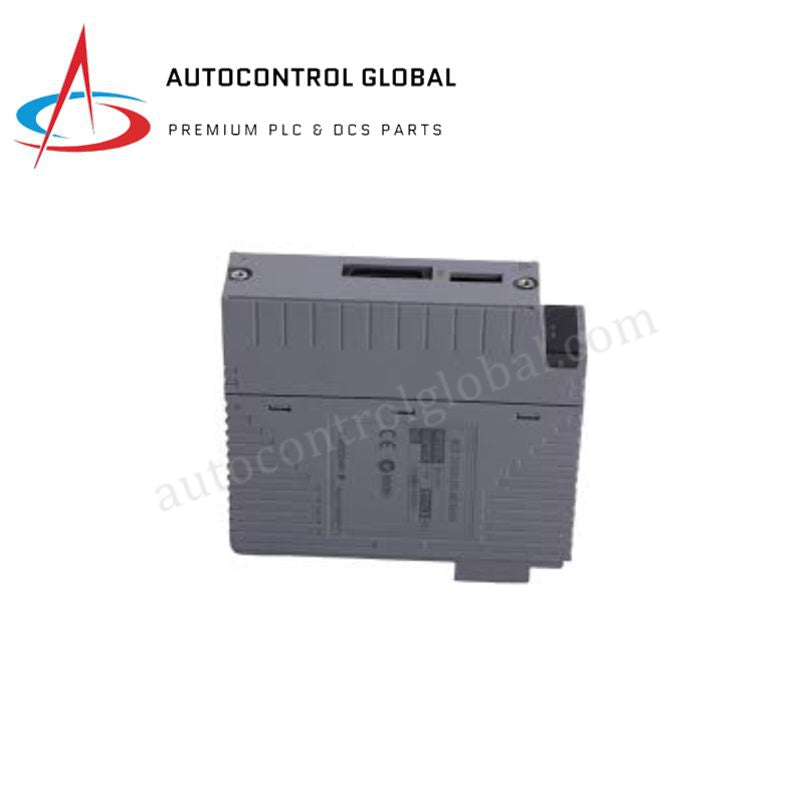

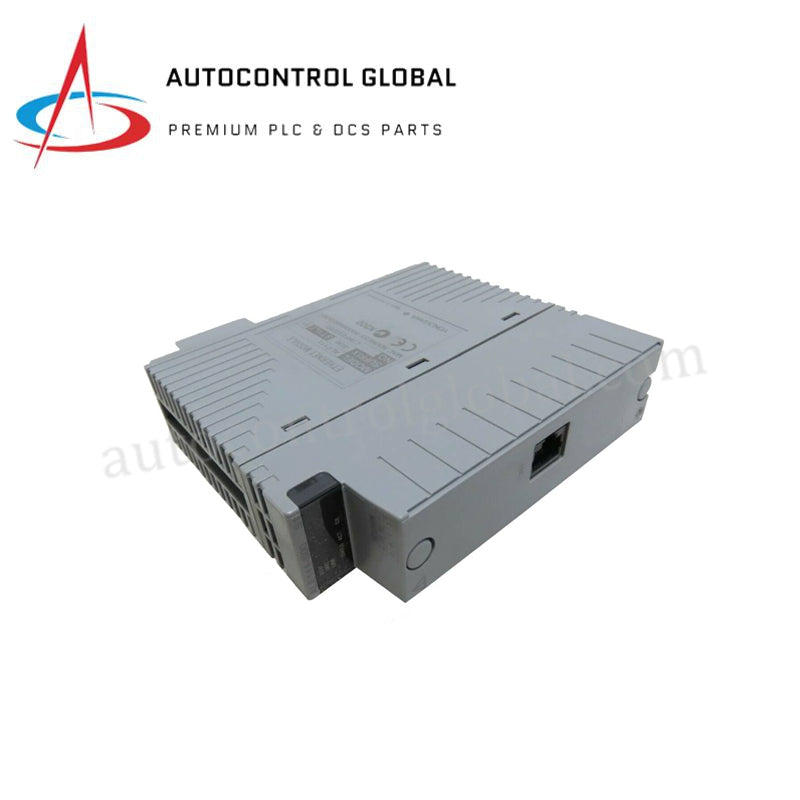

AAI141-H00/K4A00 YOKOGAWA Analog Input Module

AAI141-H00/K4A00 YOKOGAWA CENTUM Analog Input Module

AAI141-H00/K4A00 YOKOGAWA CENTUM Analog Input Module

Availability: 10 left in stock

YOKOGAWA AAI141-H00/K4A00 CENTUM Analog Input Module Configured for Specific Technical Task in CENTUM VP / CS 3000 Field Control Stations,...

SKU: AAI141-H00/K4A00

Manufacturer: Yokogawa
Product No.: AAI141-H00/K4A00
Product Type: Analog Input Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 800g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

YOKOGAWA AAI141-H00/K4A00 CENTUM Analog Input Module

Configured for Specific Technical Task in CENTUM VP / CS 3000 Field Control Stations, the YOKOGAWA AAI141-H00/K4A00 (AAI141 Analog Input Module) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

Code	Type	Description
AAI141	Base Model	Analog Input Module (4 to 20 mA, 16-channel, Non-Isolated)
-H	Suffix Code	With digital communication (HART protocol)
0	Suffix Code	Always 0
0	Suffix Code	Basic type
/K4A00	Option Code	With KS Cable Interface Adapter [Model: ATK4A-00]

Hardware Specifications

Parameter	Specification
Model	AAI141-H00/K4A00
Brand	Yokogawa
Origin	Japan
Weight	3.0 kg (Shipping Weight) / 0.8 kg (Net Weight)
Dimensions	260 x 180 x 60 mm
Operating Temp	-10 deg C to +60 deg C
Power Consumption	24 VDC nominal
Input Range	4-20 mA DC (0-25 mA permissible) with HART digital overlay
Channels	16
Resolution	16-bit A/D conversion
Accuracy	+/-0.1% of full scale
Input Impedance	250 Ohm (current input)
Isolation	Galvanic isolation per channel
Diagnostics	Open-circuit, short-circuit, and HART communication error detection
Mounting	Rack-mounted

HART Loop Protocol Integration

To establish digital interaction with smart field devices, the module utilizes the 4-20 mA HART loop protocol. It retrieves auxiliary process variables and calibration data by modulating high-frequency digital signals directly onto the analog loop without affecting the primary variable measurement. This digital overlay enables real-time instrument diagnostics and loop monitoring inside the CENTUM control network. Internal filter circuitry suppresses potential line noise to prevent attenuation of the frequency-shift keying (FSK) digital transmission.

Frequently Asked Questions

Q: Does the module support online maintenance inside the Field Control Station rack?

A: Yes, the module supports hot-swapping under powered conditions. An operator can replace a faulty module without disrupting the power supply or communication buses of neighboring modules in the same rack.

Q: What is the purpose of the /K4A00 option code included with this hardware assembly?

A: The /K4A00 option configures the module with the ATK4A-00 KS Cable Interface Adapter. This adapter allows direct plug-and-play terminal connections to field wiring termination blocks using standard system cables.

Q: How does the module indicate channel fault conditions to the host system?

A: The module runs continuous background diagnostics. If loop current drops below 3.6 mA, itflags an open-circuit fault, marks the specific channel data status as invalid, and issues an alarm to the operator station.

Field Installation Guidelines

Shield Grounding: Connect instrument cable shields to a dedicated, single-point instrument ground bar. Never ground the shield at both the field device and the cabinet to avoid induced ground loop currents.
Cable Routing: Maintain physical separation between the low-voltage analog input signal lines and high-voltage AC power distribution lines inside the cable trays to prevent electromagnetic noise induction.
HART Impedance Compatibility: Ensure the total loop impedance, including the 250 Ohm internal input impedance, is at least 250 Ohm to maintain reliable HART communication amplitude.
