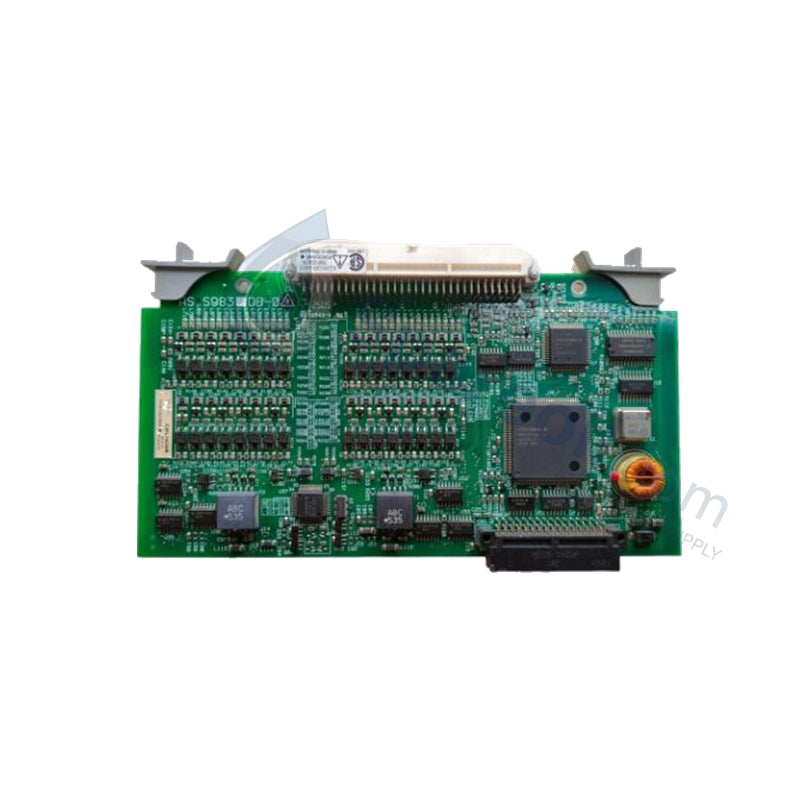

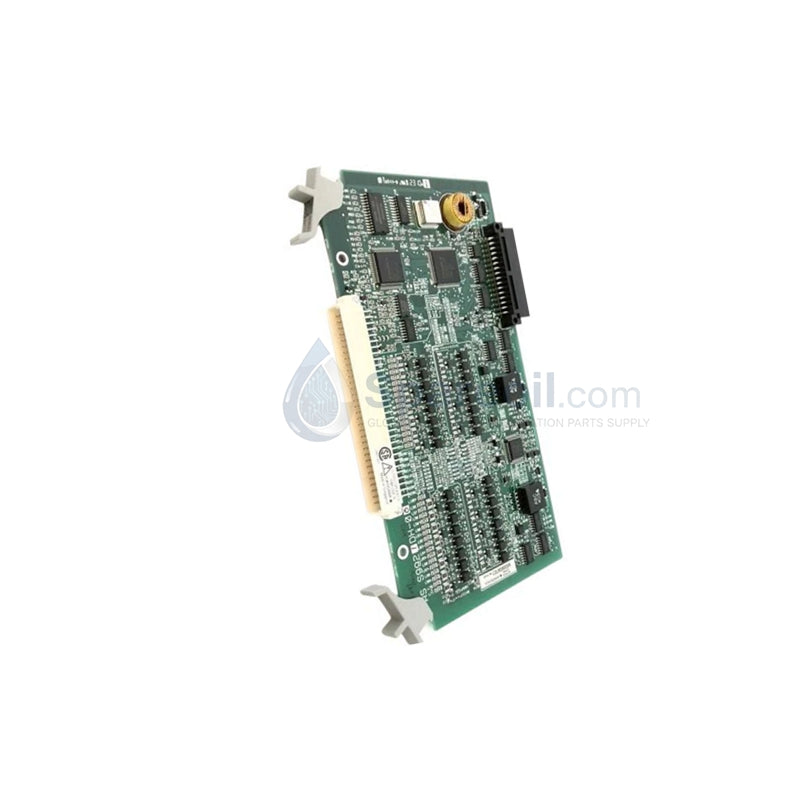

ADM52 Yokogawa CENTUM VP Series Datasheet & Technical Manual

Availability: 99 left in stock

Yokogawa ADM52 CENTUM VP Series Analog Input Module Configured for converting analog signals from field devices into digital values within...

SKU: ADM52

Manufacturer: Yokogawa
Product No.: ADM52
Product Type: Analog Input Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Yokogawa ADM52 CENTUM VP Series Analog Input Module

Configured for converting analog signals from field devices into digital values within CENTUM VP and ProSafe-RS networks, the Yokogawa ADM52 (ADM52 Analog Input Module) provides direct physical/electrical execution.

Hardware Specifications

Parameter	Specification
Model	ADM52
Brand	Yokogawa
Origin	Japan
Weight	0.3 kg (0.66 lbs)
Dimensions	130 mm x 30 mm x 100 mm
Operating Temp	0 to +60 deg C
Power Consumption	Sourced via ESB/ER bus node unit connections
Channel Count	2 Analog Input Channels
Signal Types Supported	0-10 V DC Voltage, 4-20 mA DC Current
Accuracy	+/-0.1% of full scale
Resolution	12-16 bit A/D conversion
Input Resistance	High impedance (Voltage) / 250 Ohm (Current)
Isolation	Channel-to-channel and channel-to-system isolation
System Bus Interface	ESB bus or ER bus via node units
Storage Temperature	-20 to +70 deg C
Mounting	Installed in AMN32T or equivalent mounting nest

Process Control & DCS Instrumentation Properties

The hardware processes dual-channel field variables by establishing interface connections through standard 4-20 mA HART loop protocol loops or 0-10 V DC voltage links. To stabilize measurement values against common-mode electrical noise, the architecture applies complete channel-to-channel isolation parameters. The input stages route filtered analog variables directly through scalable 12-16 bit analog-to-digital converters, matching precise data trends with a fast scan cycle step. This processing layout mitigates localized ground loop interference across the backplane nodes, feeding raw digital signals into the active ESB or ER bus framework without latency or signal degradation.

Frequently Asked Questions

Q: How does the ADM52 handle current-to-voltage conversion internally for 4-20 mA inputs? A: The input circuitry routes incoming 4-20 mA current loops through a precision internal 250 Ohm shunt resistor. This converts the current signal into a proportional voltage drop that can be interpreted accurately by the A/D processing unit.

Q: What action does the module execute when an internal system component fault occurs? A: The card runs continuous built-in self-diagnostics and fault detection routines. Upon identifying an internal failure or execution fault, the module flags the error channel and transmits diagnostic codes directly across the node bus to the central controller.

Q: Can this module be hot-swapped directly inside the active mounting nest? A: Hot-swapping must comply with standard Yokogawa rack restriction guidelines. While the system architecture supports live insertion into the AMN32T mounting nest, power to the field-side loops should be isolated to prevent voltage transients on adjacent hardware channels.

Field Installation Guidelines

Field Wire Shielding Ground Paths: Terminate all transmitter signal cable shields at a single ground block inside the marshalling enclosure. Avoid dual grounding paths on the transmitter end to eliminate potential differences that induce ground loop errors in the +/-0.1% measurement circuit.
Nesting Alignment Steps: Align the module side edges properly with the track slots of the AMN32T mounting nest. Slide the card back until the physical bus edge interface locks smoothly into the backplane plug to ensure complete connection integrity on the ESB/ER lines.
Environmental Ambient Monitoring: Mount the panel hardware in layouts that preserve free vertical convection pathways. Maintain the localized cabinet climate within the specified 0 to +60 deg C operating bounds, and ensure non-condensing relative humidity stays between 10% and 90%.
