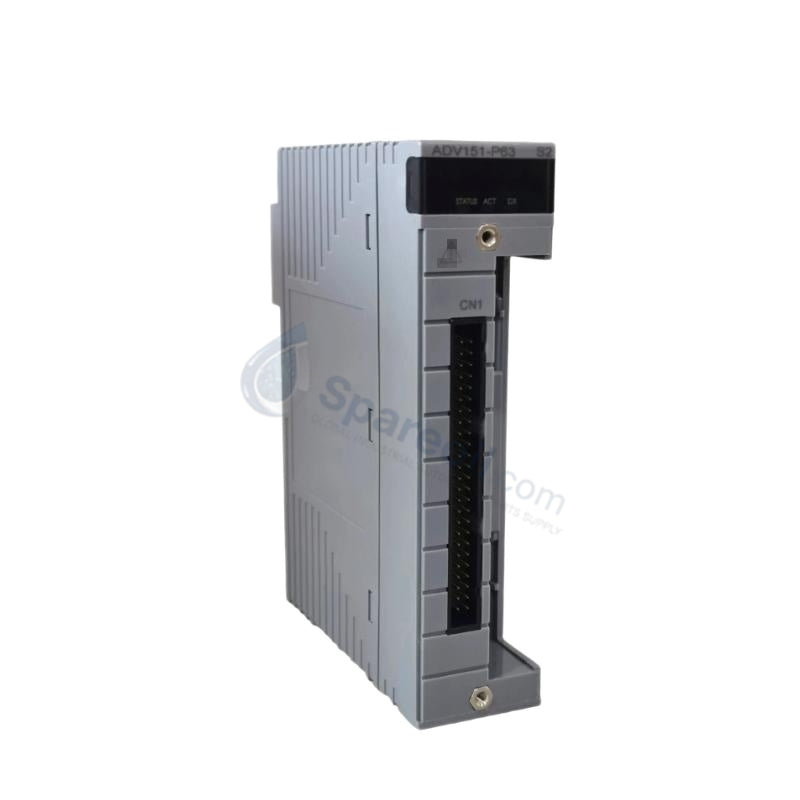

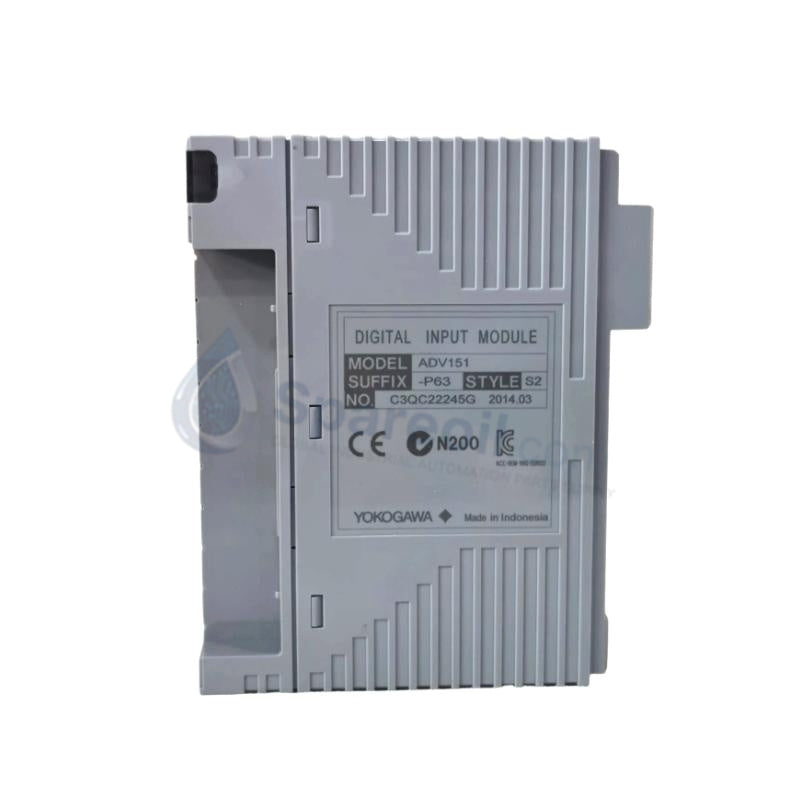

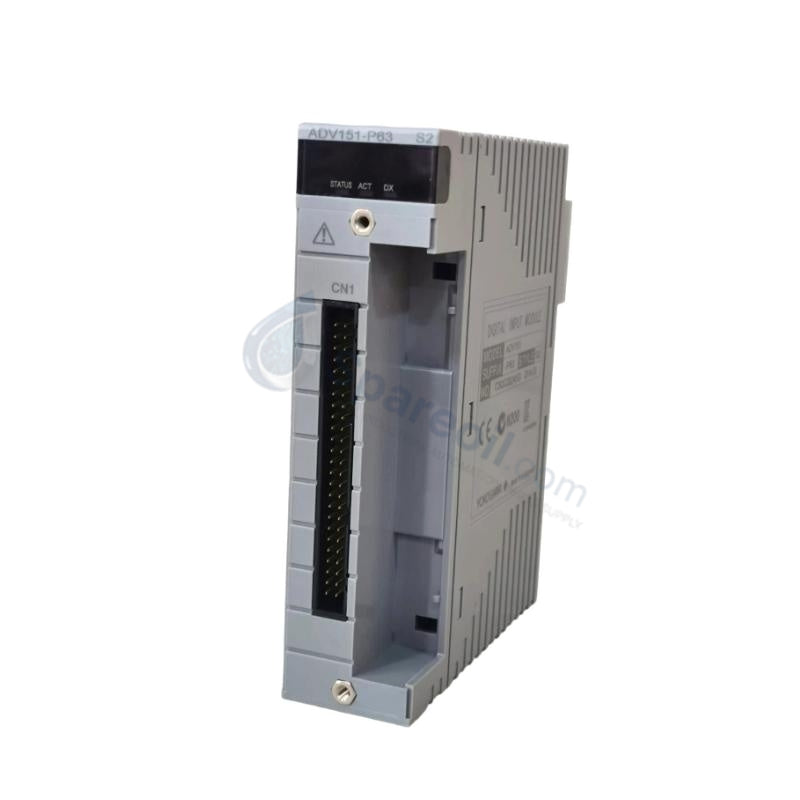

Yokogawa ADV151-P63 S2 Digital Input Modules

Configured for discrete status acquisition in CENTUM VP and ProSafe-RS control platforms, the Yokogawa ADV151-P63 S2 (ADV151 Digital Input Module) provides direct physical/electrical execution. The module processes binary field inputs across dedicated channels to update system logic blocks. Featuring 2000 VAC system isolation, status display indicators, and ISA Standard G3 conformal coating, the module maintains continuous signal supervision across redundant DCS communication backplanes.

Hardware Specifications

Parameter	Specification
Model	ADV151-P63 S2
Brand	Yokogawa
Origin	Japan
Weight	0.30 - 0.45 kg (1.5 kg shipping weight)
Dimensions	Standard Yokogawa I/O module footprint
Operating Temp	-20 to 70 deg C (G3 standard compliant)
Power Consumption	400 mA (5 VDC), 200 mA (24 VDC)
Input Channels	16 / 32 channels (configuration dependent)
Rated Input Voltage	24 VDC (sink/source)
Input Thresholds	ON: 18 to 26.4 VDC; OFF: <= 5.0 VDC
Input Current	4.1 mA +/- 20% per channel (at rated voltage)
Max Permissible Voltage	30.0 VDC
Response Time	<= 8 ms (for status input)
Isolation Voltage	2000 VAC between input signal and system logic for 1 minute; 500 VAC between commons

4-20 mA HART Loop Protocol and Channel-to-Channel Isolation

Yokogawa DCS architectures require electrical isolation to protect central control units from field-side electrical surges. The ADV151-P63 S2 module provides 2000 VAC withstand galvanic isolation between field signal connections and internal backplane processing logic, alongside 500 VAC channel group isolation. When operating in hybrid control cabinets alongside 4-20 mA HART analog loops, this high dielectric withstand capability mitigates cross-talk and ground loop currents, ensuring signal integrity across adjacent control loops.

Frequently Asked Questions

Q: What input voltage thresholds determine the logic states for the ADV151-P63 module? A: The module records a valid logic ON state between 18 and 26.4 VDC, and transition to a logic OFF state occurs at or below 5.0 VDC.

Q: What isolation ratings apply between field signal groups and internal logic buses? A: The hardware withstands 2000 VAC for 1 minute between field terminals and system logic circuits, and 500 VAC for 1 minute between internal common groups.

Q: Does the ADV151-P63 support hot-swapping during active control execution? A: Yes, when configured within a dual-redundant I/O architecture, operators can replace the module online without disrupting system logic execution or adjacent channel signals.

Field Installation Guidelines

Disconnect loop power or verify active execution of the redundant partner module before inserting or removing hardware from the rack slot.
Confirm that physical alignment pins on the module base engage properly with the backplane connector to prevent mechanical pin deformation.
Fasten field wiring connectors or interface cable adapters using standard torque specs to ensure stable electrical connections.
Route low-voltage DC input wires through dedicated wire raceways separated from high-voltage AC conductors to reduce inductive coupling.
Connect cable shield drain wires directly to the cabinet protective earth bar using short, low-impedance grounding conductors.
