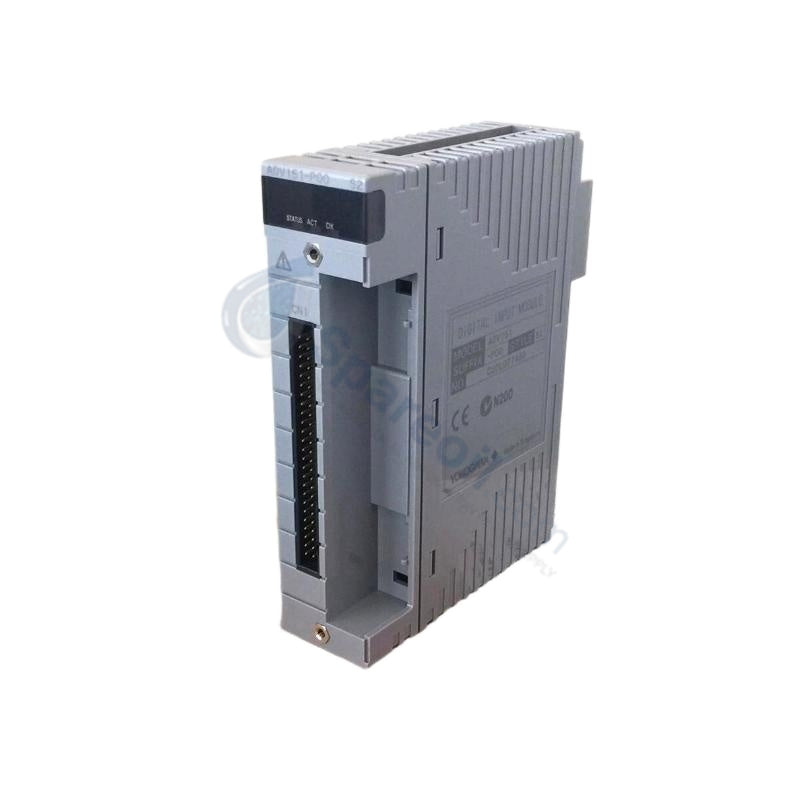

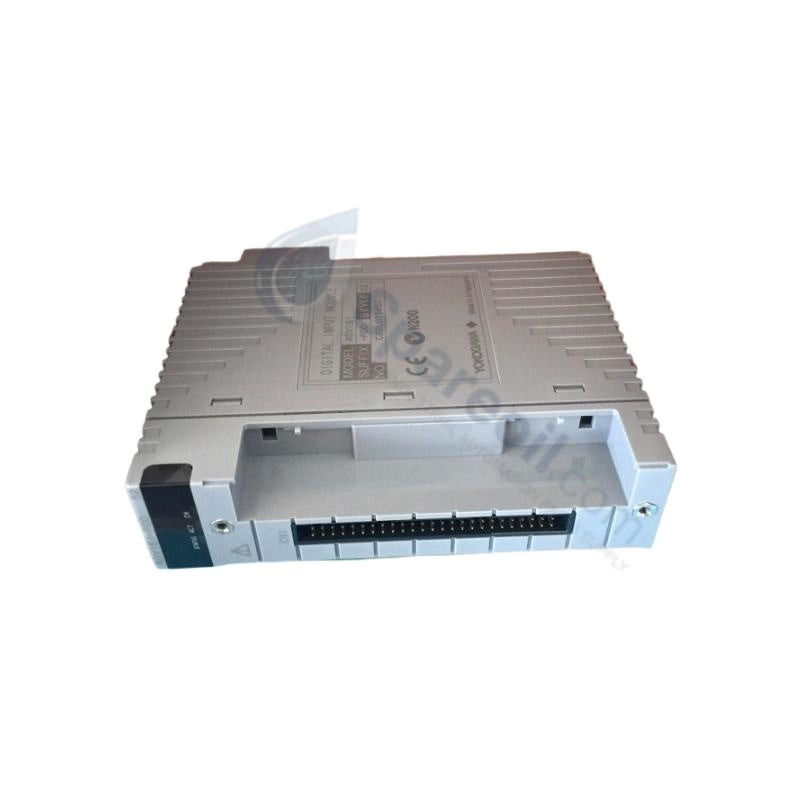

Yokogawa ADV569-P50 CENTUM VP Digital Output Module

Configured for high-density transistor switching in CENTUM VP control systems, the Yokogawa ADV569-P50 (ADV569 Digital Output Module) provides direct physical/electrical execution across 64 isolated output channels. The hardware executes current-sink transistor switching to drive external status indicators, solenoids, and interlock relays. It processes discrete commands with an integrated time-proportional control algorithm and single-shot pulse output capability. Channel isolation grouped in 16-channel common negative-side banks protects backplane communication circuits against field-side electrical interference.

Hardware Specifications

Parameter Specification
Model ADV569-P50
Brand Yokogawa
Origin Japan
Weight 0.30 kg
Dimensions 130 x 127.2 x 32.8 mm
Operating Temp -20 to +60 deg C
Power Consumption 2.4 W maximum
Output Type Transistor contact (current sink)
Number of Channels 64 channels
Signal Isolation Common minus side every 16 channels
Rated Load Voltage 30 VDC
Maximum Load Current 100 mA per channel
Output ON Voltage 2 VDC or lower
OFF Leakage Current 0.1 mA or lower
Response Time 16 ms maximum
Pulse Width Range 8 ms to 7200 s
Mounting Type Field Control Unit (FCU) cabinet rail
Protection Rating IP20

Process Loop & Signal Isolation Characteristics

The module incorporates robust channel-to-channel isolation architecture designed for 4-20 mA HART loop protocol environments and high-density digital field wiring. Common-mode noise suppression is enforced via galvanic isolation across each 16-channel negative-side bank, preventing ground loop potential differences from corrupting backplane signaling. Integrated drive circuits support pulse-width modulation and time-proportioning output routines directly on the module hardware, offloading processing overhead from the primary Field Control Unit CPU during complex process control operations.

Frequently Asked Questions

Q: How does the dual-redundancy configuration operate on the ADV569-P50?

A: Dual redundancy requires two ADV569-P50 modules installed in paired slots on a compatible CENTUM VP terminal board. The system continuously validates channel states; upon detection of a hardware fault on the active card, execution switches to the standby card within the system execution cycle to maintain uninterruptible load control.

Q: What precautions must be taken regarding output load current limits?

A: Each channel accommodates a maximum continuous load current of 100 mA at 30 VDC. Exceeding this limit triggers thermal degradation of the output transistors. External inductive loads require inductive suppression diodes installed across the field device terminals to prevent reverse voltage spikes from damaging the internal switching matrix.

Field Installation Guidelines

  1. Power down the rack power supply unit prior to inserting or removing the module from the node base plate to prevent backplane pin damage.
  2. Align the module card edge connectors with the targeted slot guide rails inside the Field Control Unit or extension node unit.
  3. Push the module firmly into the slot until the top and bottom retaining latches click securely into place.
  4. Dress field wiring cables along designated cable trays, ensuring signal wires maintain a minimum separation distance of 200 mm from high-voltage AC power lines.
  5. Terminate the shield braid of field cables to the cabinet grounding bar using a low-impedance ground clamp. Ensure a single-point connection to eliminate ground loops.
  6. Verify that the total load current per 16-channel bank does not exceed thermal dissipation thresholds before energizing the 24 VDC loop field supply.
