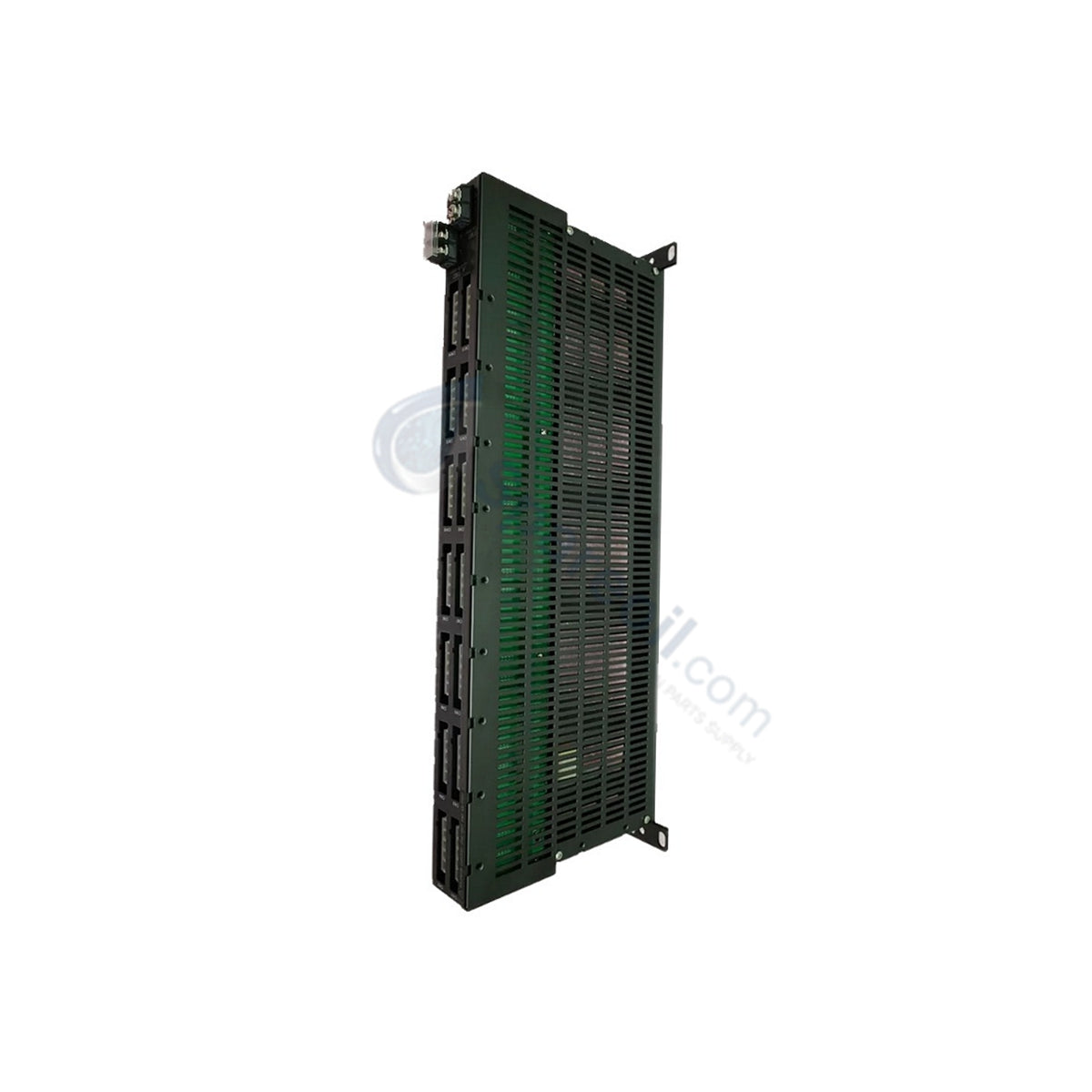

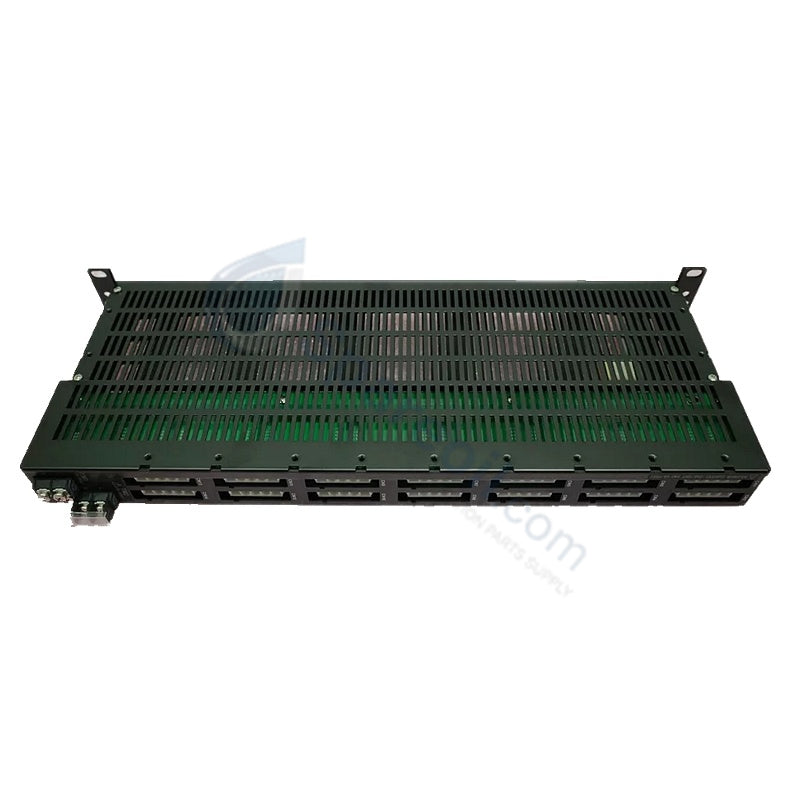

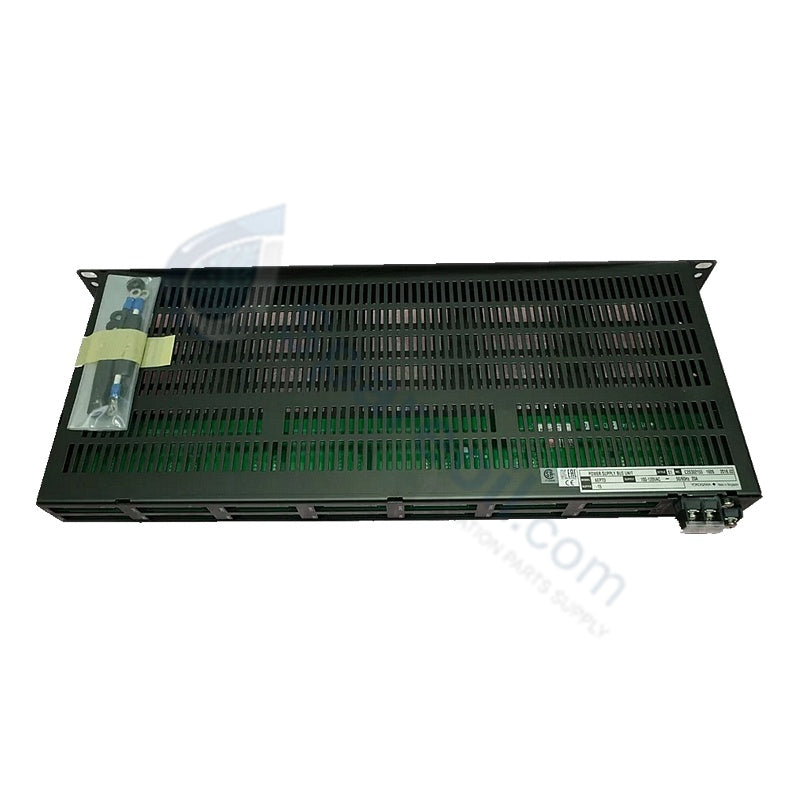

YOKOGAWA AEP7D-25 Primary Power Supply Bus Unit

The YOKOGAWA AEP7D-25, also cataloged as the AEP7D-25 Primary Power Supply Bus Unit, operates as a dedicated hardware component for power distribution within CENTUM VP / CS 3000 ESB/EF bus platforms.

Hardware Specifications

Parameter	Specification
Model	AEP7D-25
Brand	YOKOGAWA
Origin	China
Weight	0.35 to 0.40 kg
Dimensions	130 x 120 x 30 mm
Operating Temp	-20 to +55 deg C
Power Consumption	~600 mA at 5 VDC
Input Voltage Options	100-120 VAC (AEP7D-25-1), 220-240 VAC (AEP7D-25-2), 24 VDC (AEP7D-25-4)
Withstanding Voltage	1500 VAC (AC models), 500 VAC (DC model)
Max Input Current	20 A (AC models), 30 A (DC model)

Channel-to-Channel Isolation & Cold Junction Compensation

The unit provides galvanic and optical/electrical isolation to separate internal system logic from field-side disturbances. This isolation architecture prevents ground loop currents from propagating across the backplane bus, preserving signal integrity for analog input loops and cold junction compensation (CJC) reference networks tied to downstream DCS cards. By maintaining strict electrical separation across distribution branches, the system mitigates high-frequency noise interference, ensuring stable power delivery to sensitive process control modules.

Frequently Asked Questions

Q: What are the input voltage options for the AEP7D-25 power supply bus unit?

A: The AEP7D-25 supports three distinct factory-configured input options: 100-120 VAC for the AEP7D-25-1 variant, 220-240 VAC for the AEP7D-25-2 variant, and 24 VDC for the AEP7D-25-4 variant.

Q: How does the unit maintain continuous operation during dual supply configurations?

A: The unit incorporates internal dual input terminals that accept dual power feeds to enable redundant supply paths. If one feed drops, the internal bus switching maintains steady voltage delivery to the ESB/EF system downstream without causing system reset latencies.

Q: What withstanding voltage ratings apply to the different model configurations?

A: AC-powered configurations (AEP7D-25-1 and AEP7D-25-2) feature a dielectric withstanding voltage rating of 1500 VAC. The DC-powered configuration (AEP7D-25-4) features a rated withstanding voltage of 500 VAC.

Field Installation Guidelines

Mount the unit securely on the standard system baseplate using the keyed alignment slots. Before landing incoming supply cables, verify that the source voltage matches the specific suffix variant (100-120 VAC, 220-240 VAC, or 24 VDC). Maintain strict wire separation between high-voltage power feeds and low-voltage field instrument cables to avoid induced noise coupling.

Ensure the system grounding lug bonds directly to the primary cabinet safety earth bus using low-impedance copper conductors. For maximum heat dissipation, maintain clear airflow paths around the ventilated module housing. Verify that all terminal block screws torque down completely to avoid high-resistance terminal hotspots during continuous 30 A maximum current draw.
