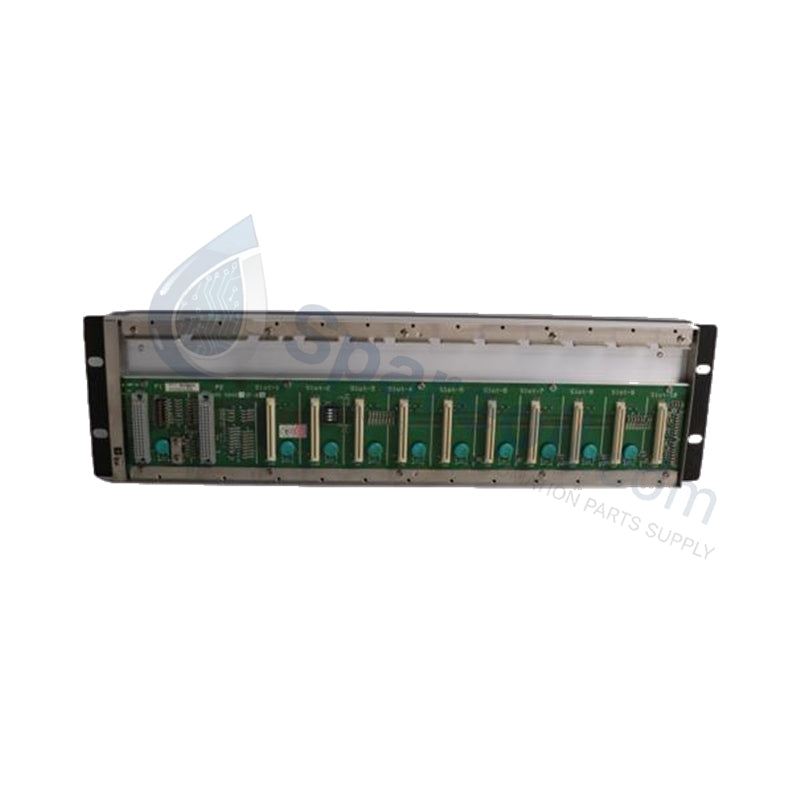

Yokogawa AFV30D-A41452 Duplexed Field Control Unit

Configured for high-availability process control in CENTUM VP and Vnet/IP platforms, the Yokogawa AFV30D-A41452 (AFV30D-A41452 Duplexed Field Control Unit) provides direct physical signal processing and redundant execution for distributed control networks.

Hardware Specifications

Parameter	Specification
Model	AFV30D-A41452
Brand	Yokogawa
Origin	Japan
Weight	8.0 kg (Standard Unit)
Dimensions	Rack Mountable Standard
Operating Temp	-20 deg C to +60 deg C
Power Consumption	Dual-redundant supply requirements
Channel Count	16 isolated analog inputs
Input Signal	4-20 mA DC

Process Control Connectivity

The AFV30D-A41452 architecture utilizes channel-to-channel isolation and galvanic separation to maintain process integrity across complex control loops. To facilitate accurate data acquisition, the unit manages 4-20 mA HART loop protocol connectivity, allowing for seamless integration with smart transmitters and diagnostic analyzers. The architecture supports internal cold junction compensation (CJC) logic for modules connected to the local bus, ensuring precision in temperature-sensitive control environments. Furthermore, the duplexed design incorporates high-speed synchronization interfaces to ensure bumpless transfer during primary-to-secondary controller failover events.

Frequently Asked Questions (FAQ)

Q: Can the power supply units be hot-swapped while the controller is active?

A: Yes, the dual-redundant power configuration supports the removal and replacement of individual power modules without interrupting the execution of the control logic, provided the secondary power rail remains energized.

Q: Does the unit support field-side diagnostics for analog inputs?

A: Yes. The AFV30D-A41452 performs continuous input abnormality detection and module health monitoring, reporting loop status and range deviations directly to the engineering station for predictive maintenance.

Field Installation Guidelines

Rack Mounting: Secure the controller within a standard instrumentation rack. Ensure that the chassis ground is bonded to the cabinet main earth bar using a low-impedance copper conductor to mitigate common-mode noise and protect against potential grounding loops.
Thermal Management: The AFV30D series requires unobstructed airflow. Maintain a minimum clearance of 50 mm above and below the unit to prevent thermal degradation of internal processing components.
Signal Shielding: All I/O cabling must utilize shielded twisted-pair conductors. Terminate shields at the cabinet-specific terminal block to minimize the ingress of electromagnetic interference (EMI), which could otherwise degrade the 16-bit A/D conversion accuracy.
Wiring Practices: Ensure that field wiring is routed independently from high-voltage power lines. Use appropriate ferrule termination for all screw-terminal connections to prevent strand fraying and intermittent resistance.
