AIP532 Yokogawa CENTUM Series Datasheet & Technical Manual

Availability: 99 left in stock

Yokogawa AIP532 CENTUM Series Bus Coupler Unit The Yokogawa AIP532, also cataloged as the AIP532 ESB Bus Coupler Unit, operates...

SKU: AIP532

Manufacturer: Yokogawa
Product No.: AIP532
Product Type: Bus Coupler Units
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

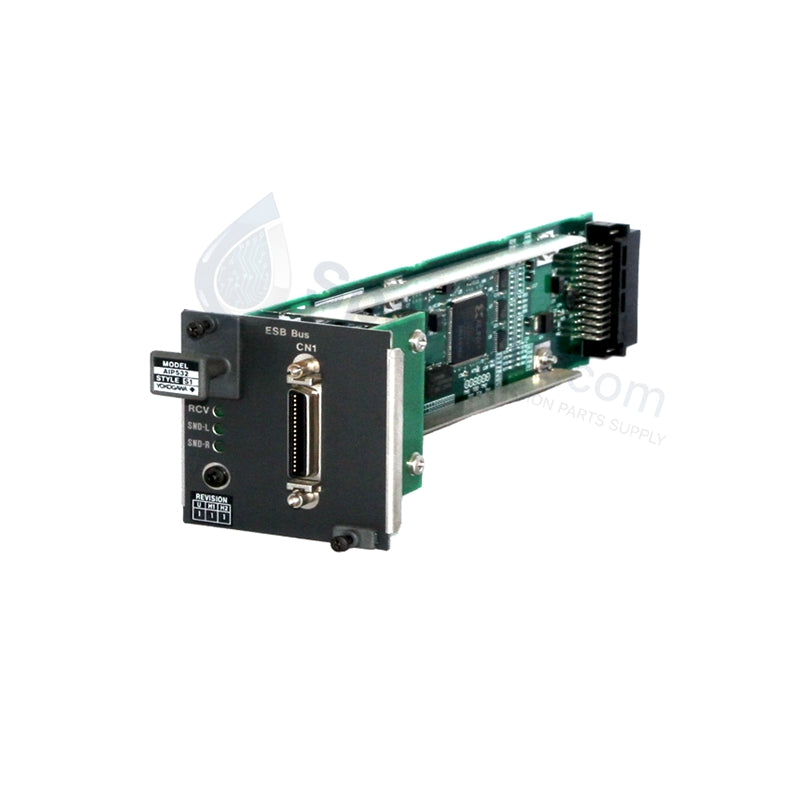

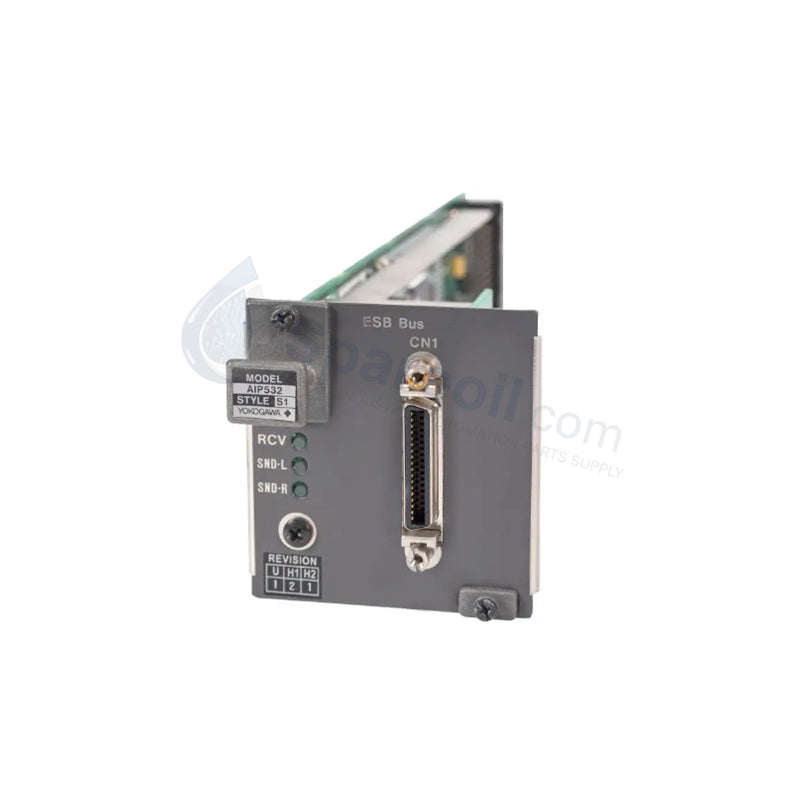

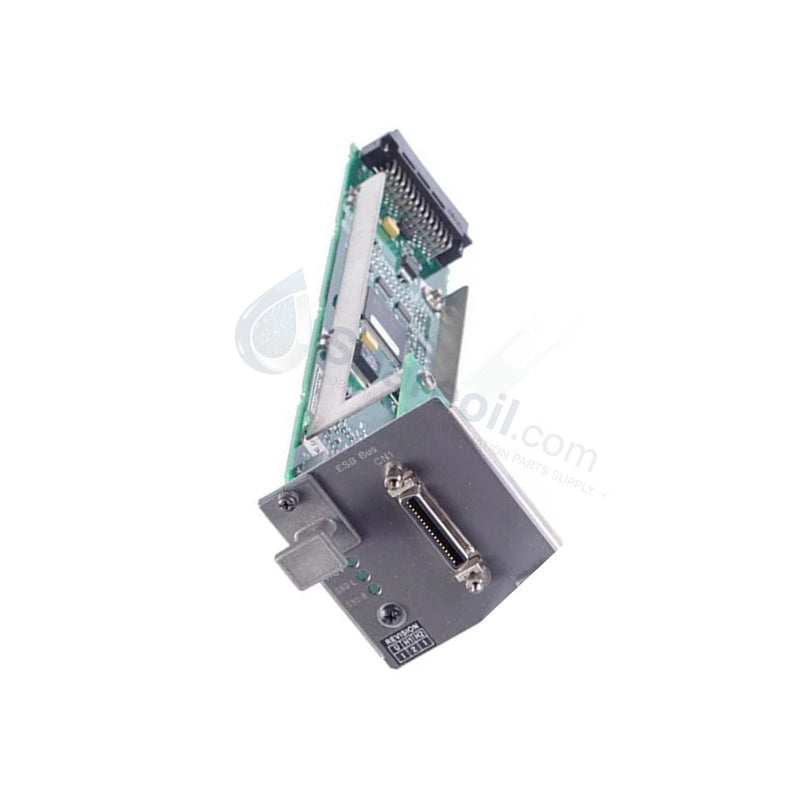

Yokogawa AIP532 CENTUM Series Bus Coupler Unit

The Yokogawa AIP532, also cataloged as the AIP532 ESB Bus Coupler Unit, operates as a dedicated hardware component for cross-rack communication within CENTUM VP/CS network platforms. The module interfaces system controllers with distributed I/O racks to establish low-latency, synchronized data transfer paths via the dual-channel Extension Serial Bus infrastructure.

Hardware Specifications

Parameter	Specification
Model	AIP532
Brand	Yokogawa
Origin	Japan
Weight	0.2 kg (Product net weight), 2 kg (Shipping weight)
Dimensions	6.4 cm x 6.4 cm x 24.1 cm
Operating Temp	0 to +55 deg C
Power Consumption	Powered via rack backplane (24 VDC nominal)
Bus Speed	128 Mbps class
Ports	ESB IN / ESB OUT (dual redundant channels)
Indicators	LED status display (RUN, ERR, COMM, PWR)

Process Control & FOUNDATION Fieldbus / Profibus PA Connectivity

The Yokogawa AIP532 establishes the underlying deterministic infrastructure required to bridge process control data from specialized network field interfaces, including FOUNDATION Fieldbus and Profibus PA connectivity cards mounted on the extension racks, back to the central processing units. By maintaining a high-speed synchronous 128 Mbps communication backplane, the unit passes block parameters, device diagnostics, and real-time process variables without inducing packet jitter or processing delay. Multi-level electrical isolation on the ESB IN and ESB OUT channels isolates the core system logic from common-mode noise and electromagnetic interference across extended subrack networks.

Frequently Asked Questions

Q: Does the module support hot-swap operations under active system processing?

A: Yes, the hardware design permits online module replacement (hot-swap) directly from the ESB extension rack without requiring a system shutdown or interrupting data traffic on adjacent functioning modules.

Q: How does the unit manage transmission errors across the cross-rack serial bus?

A: The onboard transceiver logic executes continuous hardware-level error detection routines. If a packet fault or transmission timeout is verified on one channel, the internal communication recovery functions redirect data frames to the redundant secondary ESB port automatically to maintain signal continuity.

Field Installation Guidelines

Subrack Alignment and Insertion: Insert the plug-in module card vertically into the designated ESB rack slot along the guide rails. Ensure the rear backplane connectors line up accurately before applying firm pressure to seat the module and lock it in place.
ESB Cable Routing Constraints: Connect the dual-channel ESB IN and ESB OUT ports using certified Yokogawa bus cables. Route these serial bus lines clear of primary AC distribution cables and motor control wiring to prevent high-frequency EMI from corrupting the 128 Mbps data flow.
Diagnostics Verification: Upon power-up via the backplane, confirm that the RUN LED illuminates solid green and the ERR LED remains unlit. Review the online diagnostic utilities through the CENTUM engineering workstation to verify the synchronization status of the extension rack.
