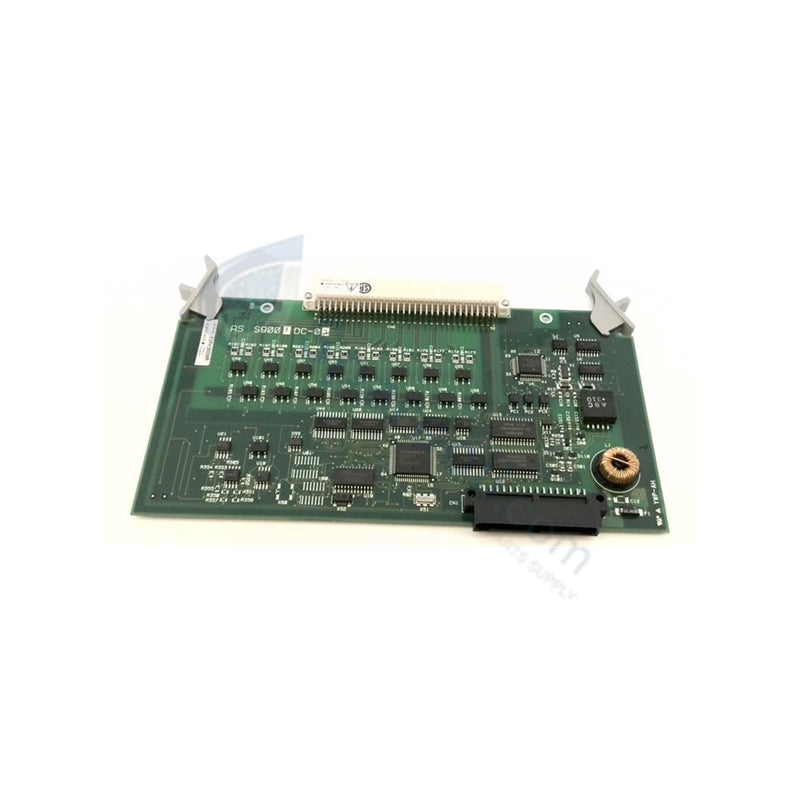

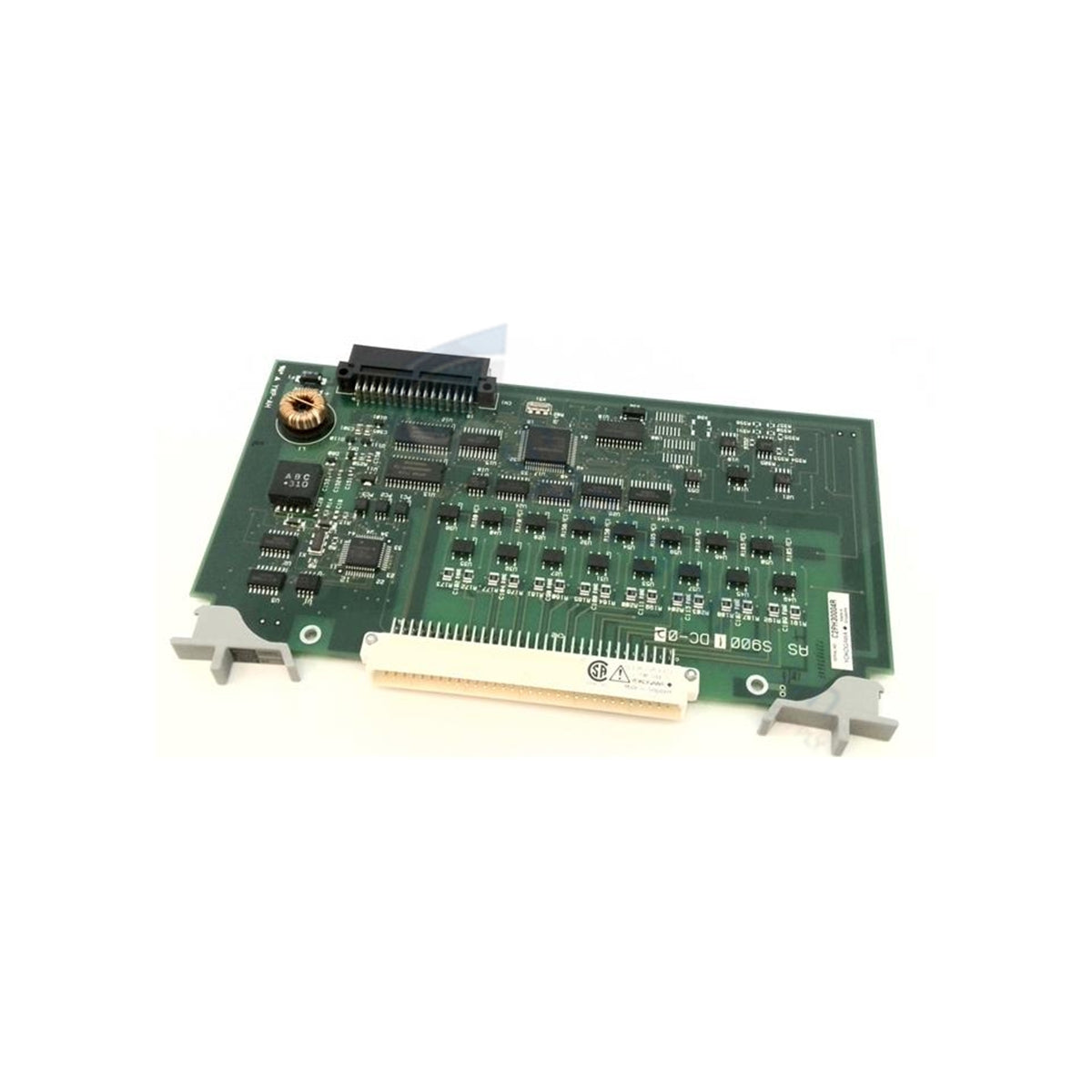

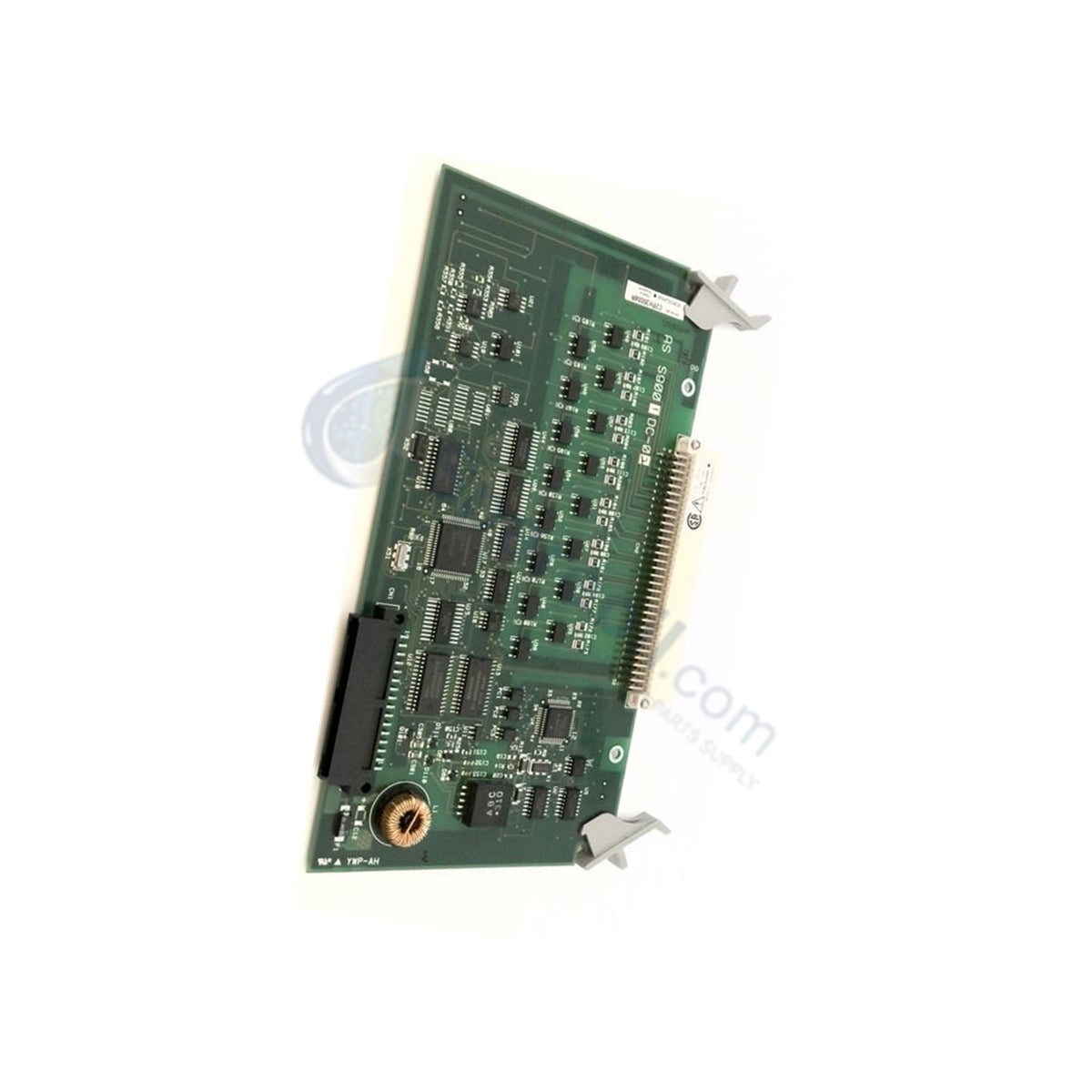

YOKOGAWA AMM12 S3 Voltage Input Multiplexer Module

The YOKOGAWA AMM12 S3, also cataloged as the AMM12 Voltage Input Multiplexer Module, operates as a dedicated hardware component for signal conditioning and data acquisition within DCS network architectures.

Hardware Specifications

Parameter Specification
Model AMM12 S3
Brand YOKOGAWA
Origin Japan
Weight 0.04 lbs
Dimensions Standard Multiplexer PCB Form Factor
Operating Temp Industrial Standard Range
Power Consumption System Backplane Dependent
Input Type Voltage Multiplexed

Signal Conditioning and Loop Integration

The AMM12 S3 utilizes precise switching logic to facilitate multi-channel voltage signal distribution within the control cabinet. The architecture relies on high-speed multiplexing to ensure that analog input signals remain synchronized with the scan cycle of the host controller. To maintain signal integrity, the module requires strictly controlled reference grounding to prevent common-mode noise propagation across the multiplexer array. Channel-to-channel isolation is maintained through standardized board-level layout practices to minimize cross-talk between high-impedance voltage inputs.

Frequently Asked Questions (FAQ)

Q: What is the primary function of the S3 suffix in this configuration?

A: The S3 suffix denotes the specific revision and hardware configuration level for this multiplexer module, ensuring compatibility with defined I/O racks and backplane communication protocols.

Q: Are there specific installation requirements for the AMM12 S3 to ensure signal accuracy?

A: Yes. Given its role as a voltage multiplexer, ensure all signal cabling uses twisted-pair shielding, and terminate shields at the designated ground bus to minimize electromagnetic interference (EMI) during high-speed sampling.

Field Installation Guidelines

  • Handling: The AMM12 S3 is a printed circuit board assembly. Handle only by the edges to prevent electrostatic discharge (ESD) damage to sensitive multiplexer components.
  • Seating: Ensure the board is fully seated in the host PLC or DCS slot. Verify that the backplane connector pins are aligned before applying pressure to avoid pin deformation.
  • Grounding: Maintain a low-impedance ground connection to the chassis. Confirm that no high-voltage transient sources are routed in parallel with the low-voltage signal inputs.
  • Inspection: Periodic inspection of the connector interface for oxidation or physical wear is advised to maintain consistent millivolt-level signal throughput.
